Ecological Pyramids - Biology Class 12 - NEET PDF Download

Ecological pyramids are graphical representations showing the relationship between organisms at different trophic levels in an ecosystem. The base of the pyramid is broad (representing producers) and it narrows towards the apex (representing top consumers). These pyramids help visualize the transfer of food, energy, or biomass through the food chain. Understanding ecological pyramids is crucial for analyzing ecosystem structure and energy flow patterns.

1. Ecological Pyramids - Basic Concept

An ecological pyramid is a graphical representation of the relationship between organisms at different trophic levels. The structure resembles a geometric pyramid.

• Base of Pyramid: Always represents producers (first trophic level)
• Apex of Pyramid: Always represents tertiary or top-level consumers
• Shape: Base is broad and narrows towards apex (in most cases)
• Expression Parameters: Can be expressed in terms of number, biomass, or energy

1.1 Important Principle - Trophic Level as Functional Unit

• Trophic level represents a functional level, not a species
• A given species may occupy more than one trophic level simultaneously in the same ecosystem
• Example - Sparrow: Acts as primary consumer when eating seeds, fruits, peas; acts as secondary consumer when eating insects and worms
• Human beings: Can function at multiple trophic levels (primary, secondary, tertiary) depending on diet

1.2 Calculation Requirements

• All organisms at a particular trophic level must be included in calculations
• Calculations based on only a few individuals will not give valid generalizations
• Total energy content, biomass, or numbers must account for complete population at each level

2. Types of Ecological Pyramids

Three main types of ecological pyramids are studied based on different parameters:

2.1 Pyramid of Numbers

Represents the number of individual organisms at each trophic level. The shape depends on the ecosystem type.

• Grassland Ecosystem Example: Nearly 6 million plants (producers) support only 3 top carnivores at apex
• Usually upright: Producers are more in number than herbivores; herbivores more than carnivores

• Exception - Tree Ecosystem: One large tree (single producer) supports numerous insects (herbivores), which support several small birds (secondary consumers), which support fewer large birds (tertiary consumers) - creates inverted or spindle-shaped pyramid

2.2 Pyramid of Biomass

Biomass refers to the total dry weight of living organisms at each trophic level per unit area.

• General Pattern: Shows sharp decrease in biomass at higher trophic levels
• Terrestrial Ecosystems: Usually upright - producer biomass exceeds herbivore biomass, which exceeds carnivore biomass

• Aquatic Ecosystems (Marine): Generally inverted

2.2.1 Inverted Pyramid of Biomass

• Occurs in sea/aquatic ecosystems
• Small standing crop of phytoplankton supports large standing crop of zooplankton
• Biomass of fishes far exceeds biomass of phytoplankton
• Explanation of Paradox: Phytoplankton have very high reproduction rate and rapid turnover time. Though their biomass is less at any given moment, their total productivity over time is sufficient to support larger biomass of consumers

2.3 Pyramid of Energy

Represents the amount of energy present at each trophic level in a given time period (annually per unit area).

• Always upright - can never be inverted
• Reason for upright shape: Energy is always lost as heat at each step during transfer from one trophic level to next
• Energy at lower trophic level is always more than at higher level
• Primary Producers: Convert only 1% of the energy in sunlight available to them into NPP (Net Primary Productivity)
• Each bar indicates amount of energy present at each trophic level
• Universal Pattern: This is the only pyramid that is always upright regardless of ecosystem type

3. General Patterns in Ecological Pyramids

3.1 Upright Pyramids - The General Rule

In most ecosystems, all three types of pyramids (number, energy, and biomass) are upright.

• Producers: More in number and biomass than herbivores
• Herbivores: More in number and biomass than carnivores
• Energy Pattern: Energy at lower trophic level always exceeds energy at higher level
• This represents the typical pattern in terrestrial ecosystems like grasslands and forests

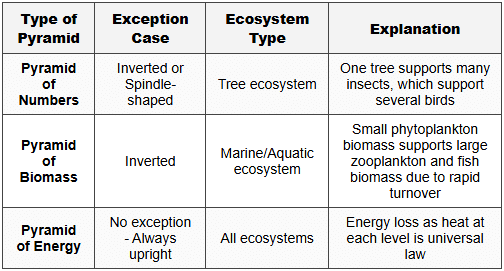

3.2 Exceptions to General Patterns

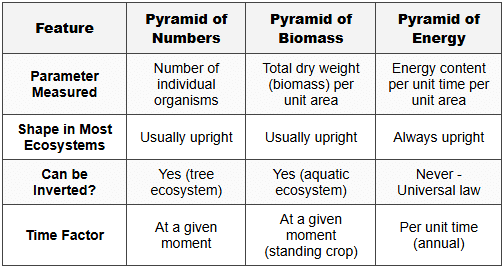

4. Key Distinctions Between Pyramid Types

5. Important Exam Points - Common Mistakes

• Trap Alert: Students often confuse trophic level with species. Remember: trophic level is a functional concept, not a taxonomic one. Same species can occupy multiple trophic levels
• Trap Alert: The inverted pyramid of biomass in aquatic ecosystems seems paradoxical but is explained by rapid turnover rate of phytoplankton, not by violation of energy laws
• Trap Alert: Pyramid of energy is ALWAYS upright - this is the only universal pattern. Never say any pyramid is always upright without specifying energy pyramid
• Key Distinction: Standing crop (biomass at one moment) vs productivity (biomass produced over time) - this explains aquatic pyramid inversion
• Energy Conversion: Primary producers convert only 1% of available sunlight into NPP - this is a specific, frequently asked value

Ecological pyramids provide a quantitative framework for understanding ecosystem structure and functioning. While pyramids of numbers and biomass can show variations based on ecosystem characteristics, the pyramid of energy universally remains upright due to thermodynamic principles governing energy transfer. Mastering these concepts helps in analyzing real-world ecosystem dynamics and energy flow patterns for competitive examinations.
