PCI (Peripheral Component Interconnect)
The peripheral component interconnect (PCI) is a popular high-bandwidth, processorindependent bus that can function as a peripheral bus. The current standard allows the use of up to 64 data lines at 66 MHz, for a raw transfer rate of 528 MByte/s, or 4.224 Gbps. It requires very few chips to implement and supports other buses attached to the PCI bus.
Intel began work on PCI in 1990 for its Pentium-based systems. The industry association, the PCI Special Interest Group (SIG), developed and further and maintained the compatibility of the PCI specifications. PCI is designed to support a variety of microprocessor-based configurations, including both single- and multiple-processor systems. It makes use of synchronous timing and a centralized arbitration scheme.

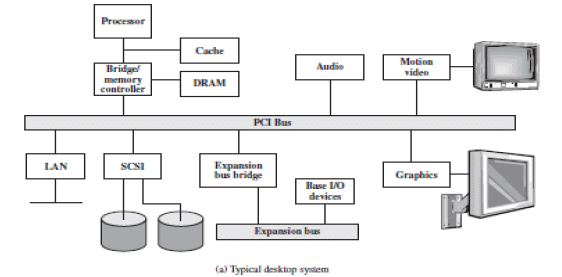

Figure 1.23a shows a typical use of PCI in a single-processor system. The bridge acts as a data buffer so that the speed of the PCI bus may differ from that of the processor’s I/O capability. In a multiprocessor system (Figure 1.23b), one or more PCI configurations may be connected by bridges to the processor’s system bus. Again, the use of bridges keeps the PCI independent of the processor speed yet provides the ability to receive and deliver data rapidly.
Bus Structure
PCI may be configured as a 32- or 64-bit bus. There are 49 mandatory signal lines for PCI which are divided into the following functional groups:
PCI Commands
Bus activity occurs in the form of transactions between an initiator, or master, and a target. When a bus master acquires control of the bus, it determines the type of transaction that will occur next The commands are as follows:
Interrupt Acknowledge is a read command intended for the device that functions as an interrupt controller on the PCI bus.
The Special Cycle command is used by the initiator to broadcast a message to one or more targets.
The I/O Read and Write commands are used to transfer data between the initiator and an I/O controller.

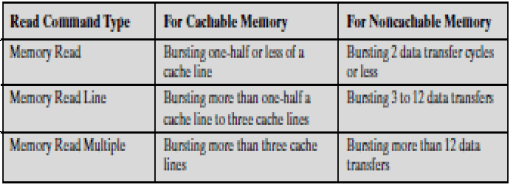

The memory read and write commands are used to specify the transfer of a burst of data, occupying one or more clock cycles. The three memory read commands have the uses outlined in Table
The Memory Write command is used to transfer data in one or more data cycles to memory.
The Memory Write and Invalidate command transfers data in one or more cycles to memory. In addition, it guarantees that at least one cache line is written.
The two configuration commands enable a master to read and update configuration parameters in a device connected to the PCI.
The Dual Address Cycle command is used by an initiator to indicate that it is using 64-bit addressing.
Data Transfers
Every data transfer on the PCI bus is a single transaction consisting of one address phase and one or more data phases.
Figure 1.24 shows the timing of the read transaction. All events are synchronized to the falling transitions of the clock, which occur in the middle of each clock cycle. Bus devices sample the bus lines on the rising edge at the beginning of a bus cycle. The following are the significant events, labeled on the diagram:
a. Once a bus master has gained control of the bus, it may begin the transaction by asserting FRAME. This line remains asserted until the initiator is ready to complete the last data phase. The initiator also puts the start address on the address bus, and the read command on the C/BE lines.
b. At the start of clock 2, the target device will recognize its address on the AD lines.
c. The initiator ceases driving the AD bus. A turnaround cycle (indicated by the two circular arrows) is required on all signal lines that may be driven by more than one device, so that the dropping of the address signal will prepare the bus for use by the target device. The initiator changes the information on the C/BE lines to designate which AD lines are to be used for transfer for the currently addressed data (from 1 to 4 bytes). The initiator also asserts IRDY to indicate that it is ready for the first data item.
d. The selected target asserts DEVSEL to indicate that it has recognized its address and will respond. It places the requested data on the AD lines and asserts TRDY to indicate that valid data are present on the bus.
e. The initiator reads the data at the beginning of clock 4 and changes the byte enable lines as needed in preparation for the next read.
f. In this example, the target needs some time to prepare the second block of data for transmission. Therefore, it deasserts TRDY to signal the initiator that there will not be new data during the coming cycle.Accordingly,the initiator does not read the data lines at the beginning of the fifth clock cycle and does not change byte enable during that cycle. The block of data is read at beginning of clock 6.
g. During clock 6, the target places the third data item on the bus. However, in this example, the initiator is not yet ready to read the data item (e.g., it has a temporary buffer full condition). It therefore deasserts IRDY. This will cause the target to maintain the third data item on the bus for an extra clock cycle.
h. The initiator knows that the third data transfer is the last, and so it deasserts FRAME to signal the target that this is the last data transfer. It also asserts IRDY to signal that it is ready to complete that transfer.
i. The initiator deasserts IRDY, returning the bus to the idle state, and the target deasserts TRDY and DEVSEL.
Arbitration

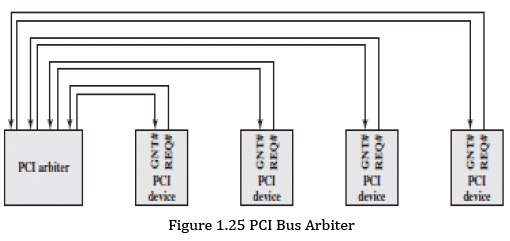

PCI makes use of a centralized, synchronous arbitration scheme in which each master has a unique request (REQ) and grant (GNT) signal. These signal lines are attached to a central arbiter (Figure 1.25) and a simple request–grant handshake is used to grant access to the bus.

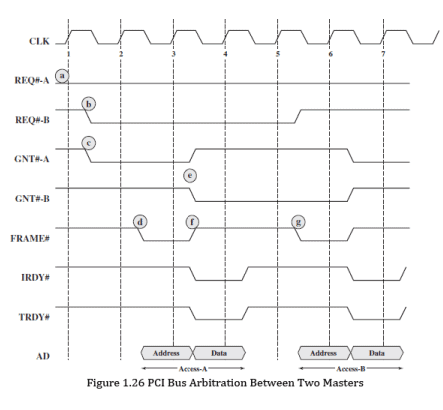

Figure 1.26 is an example in which devices A and B are arbitrating for the bus. The following sequence occurs:
a. At some point before the start of clock 1, A has asserted its REQ signal.
b. During clock cycle 1, B requests use of the bus by asserting its REQ signal.
c. At the same time, the arbiter asserts GNT-A to grant bus access to A.
d. Bus master A samples GNT-A at the beginning of clock 2 and learns that it has been granted bus access. It also finds IRDY and TRDY deasserted, which indicates that the bus is idle. It also continues to assert REQ-A, because it has a second transaction to perform after this one.
e. The bus arbiter samples all REQ lines at the beginning of clock 3 and makes an arbitration decision to grant the bus to B for the next transaction. It then asserts GNT-B and deasserts GNT-A. B will not be able to use the bus until it returns to an idle state.
f. A deasserts FRAME to indicate that the last data transfer is in progress.It puts the data on the data bus and signals the target with IRDY.The target reads the data at the beginning of the next clock cycle.
g. At the beginning of clock 5, B finds IRDY and FRAME deasserted and so is able to take control of the bus by asserting FRAME. It also deasserts its REQ line, because it only wants to perform one transaction.
Subsequently, master A is granted access to the bus for its next transaction.
