RBI JE EE Mock Test - 6 Free Online Test 2026


Full Mock Test & Solutions: RBI JE EE Mock Test - 6 (180 Questions)

You can boost your Regulatory Body Exams 2026 exam preparation with this RBI JE EE Mock Test - 6 (available with detailed solutions).. This mock test has been designed with the analysis of important topics, recent trends of the exam, and previous year questions of the last 3-years. All the questions have been designed to mirror the official pattern of Regulatory Body Exams 2026 exam, helping you build speed, accuracy as per the actual exam.

Mock Test Highlights:

  • - Format: Multiple Choice Questions (MCQ)
  • - Duration: 150 minutes
  • - Total Questions: 180
  • - Analysis: Detailed Solutions & Performance Insights
  • - Sections covered: Reasoning Ability, Electrical Engineering, English Language

Sign up on EduRev for free and get access to these mock tests, get your All India Rank, and identify your weak areas to improve your marks & rank in the actual exam.

RBI JE EE Mock Test - 6 - Question 1
Save

A series is given with one term missing. Choose the correct alternative from the given ones that will complete the series.
New Delhi, India, Lucknow, ?

Detailed Solution: Question 1

New Delhi is the capital of India. Similarly Lucknow is the capital of Uttar Pradesh.

RBI JE EE Mock Test - 6 - Question 2
Save

Direction: In each of the following questions, a series is given with one term missing. Choose the correct alternatives from the given ones that will complete the series.

A, CD, GHI, _ _ _ _, UVWXYZ

Detailed Solution: Question 2

Clear all your doubts with EduRev
RBI JE EE Mock Test - 6 - Question 3
Save

From the given alternative words, select the word which cannot be formed using the letters of the given word:

PROVINCLALISM

Detailed Solution: Question 3

'Initial' cannot be formed using the letters of the word 'provincialism' since the word does not have the letter 't'.

RBI JE EE Mock Test - 6 - Question 4
Save

Direction: In each of the following questions, select the one which is different from the other three.

Detailed Solution: Question 4

A 'knife' is a kitchen took with the others are tools used for repairing work.

RBI JE EE Mock Test - 6 - Question 5
Save

If H = 8 and HAT = 29, find how BOX = ?

Detailed Solution: Question 5

H = 8 & HAT = 29

By hit & trial,

Putting A = 1, we get T = 20

It shows that the code for HAT is the sum of the position of alphabets

Now, B O X = 2 + 15 + 24 = 41

RBI JE EE Mock Test - 6 - Question 6
Save

Identify the diagram that best represents the relationship among the given classes.
Omnivores, Bear, Dear

Detailed Solution: Question 6

The figure which best suits the above classes is,

Hence, the correct option is A.

RBI JE EE Mock Test - 6 - Question 7
Save

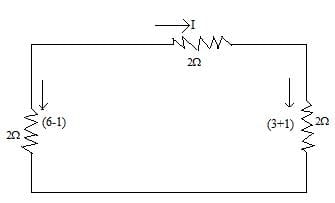

The current I in the circuit shown in the figure is-

Detailed Solution: Question 7

-21 - 8 (3+1)+(6-1)X 2 = 0

= 12I + 12 = 0

= I = -1

RBI JE EE Mock Test - 6 - Question 8
Save

The current in a 2.2 kΩ resistor is i(t)=5 sin(2π×100t+45∘)mA. What is the instantaneous value of resistor voltage at t = 0.4ms?

Detailed Solution: Question 8

Vm = Im x R = 5mA x 2.2kΩ = 11 V
∴ v(t)=11 sin (2π×100t+45∘)V
At t=0.4ms, v=11 sin[2π×100]
(0.4×10-3)+45∘]V
=11sin (0.2513rad+45∘)
= 11 (14.4∘ + 45∘)
= 9.47 V

RBI JE EE Mock Test - 6 - Question 9
Save

The condition of a semiconductor diode can be determined quickly using:

Detailed Solution: Question 9

On a digital display meter with a diode checking capability appears, the small diode symbol is the bottom option of the rotating dial to check the functionality of the diode. The curve tracer of can displays the characteristics of a host of devices, including the semiconductor diode.
By properly connecting the diode to the test panel at the bottom center of the unit and adjusting the controls, the display can be obtained.
Hence, the correct option is (C).

RBI JE EE Mock Test - 6 - Question 10
Save

The open loop control system is one in which __________.

Detailed Solution: Question 10

One type of control system in which the output has no influence or effect on the control action of the input signal is called an Open-loop system.

RBI JE EE Mock Test - 6 - Question 11
Save

A series circuit has R = 4Ω , XL = 12Ω , and XC = 9Ω  and is supplied with 200 V, 50 Hz Calculate the power.

Detailed Solution: Question 11

P = FR

RBI JE EE Mock Test - 6 - Question 12
Save

The flux through each turn of a 100-turn coil is t2 - 2t m Wb, where 't' is in second. Find the magnitude of the induced emf at t=2 s.

Detailed Solution: Question 12

E = 1V

RBI JE EE Mock Test - 6 - Question 13
Save

In an Intrinsic semiconductor ________.

Detailed Solution: Question 13

Semiconductors which are chemically pure, meaning free of impurities, are called Intrinsic Semiconductors or Un doped Semiconductor or i-type Semiconductor. The most common intrinsic semiconductors are Silicon (Si) and Germanium (Ge), which belong to Group IV of the periodic table. The atomic numbers of Si and Ge are 14 and 32.

RBI JE EE Mock Test - 6 - Question 14
Save

Which of the following expression is the mathematical representation of Mass Action law in electronics?

Detailed Solution: Question 14

Mass action law states that at thermal equilibrium, the productof number of holes and number of electrons in a semiconductor are constant and is independent of donor and acceptor impurity doping (only intrinsic concentration is considered).

RBI JE EE Mock Test - 6 - Question 15
Save

An industrial consumer has a daily load pattern of 2000 kW, 0.8 lag for 12 hours and 1000 kW UPF for 12 hours. The load factor is-

Detailed Solution: Question 15

Load factor

RBI JE EE Mock Test - 6 - Question 16
Save

An over-excited 3-phase synchronous motor can be used to

Detailed Solution: Question 16

An over-excited 3-phase synchronous motor is not only used as a motor to supply the needed mechanical power but also acts as a power factor correction device.But generally prefered for power factor correction.

RBI JE EE Mock Test - 6 - Question 17
Save

Consider the following circuit.

What is the equivalent resistance between points A and B when VA  < VB?

Detailed Solution: Question 17

When VA<VB,the diode is reverse biased and can be replaced by an ‘open’. Therefore, RAB = 10Ω

RBI JE EE Mock Test - 6 - Question 18
Save

A moving coil instrument has a resistance of 10 and gives full-scale deflection at 0.5 V potential difference across it. How can it be adapted to measure a current upto 100 A ?

Detailed Solution: Question 18

RBI JE EE Mock Test - 6 - Question 19
Save

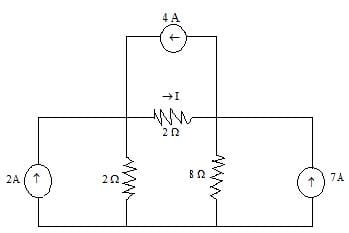

The current I in the circuit shown is Figure is

Detailed Solution: Question 19

RBI JE EE Mock Test - 6 - Question 20
Save

A 200/400 V, 20 kVA, 50 Hz single-phase transformer has, at full-load, a copper loss of 120 W. If it has an efficiency of 98% at full-load, determine the iron losses.

Detailed Solution: Question 20

Transformer Efficiency η
= 1- (Copper Loss + Iron Loss)/Input kVA
0.98  = 1- {( 120 + Pi)/(20x1000)}
0.98 x 20000 = 20000 - 120 -Pi
Pi = 20000 - 19600-120
= 280 W

RBI JE EE Mock Test - 6 - Question 21
Save

A 250 V d.c. shunt motor takes a total current of 20 A.  Resistance of shunt field winding is 200 Ω and that of armature is 0.3 Ω  What is the current in the armature?

Detailed Solution: Question 21

RBI JE EE Mock Test - 6 - Question 22
Save

The following is the apparent disadvantage of auto transformer as compared to two-winding transformer

Detailed Solution: Question 22




Drawback of auto transformer
(1) If the transformer ratio K1 is far from unity, then the Auto transformer would not be economical one.
(2) The short circuit current in Auto transformer is higher than the short circuit current in two winding transformer.
(3) The main disadvantage of autotransformer is the direct electrical connection between low tension and high tension side, so it might be possible that the insulation of Cu may fail due to which a large current flow in windings.

RBI JE EE Mock Test - 6 - Question 23
Save

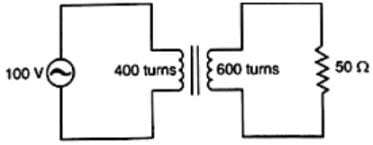

The impedance reflected back to the source in Fig. is………………..

Detailed Solution: Question 23

RBI JE EE Mock Test - 6 - Question 24
Save

A piece of oil soaked paper has been inserted between the plates of a parallel plate capacitor. Then the potential difference between the plates will

Detailed Solution: Question 24

On inserting oil-soaked paper between the plated K will increase.

Q = CV

As,

RBI JE EE Mock Test - 6 - Question 25
Save

Identify the segment in the sentence which contains the grammatical error. If there is no error, select 'No error'
The famous author and actor are being honoured at a function today

Detailed Solution: Question 25

When two nouns refer to the same person, the article 'the' is used only once and the verb is in the singular. When two nouns refer to two different persons, the article 'the' is repeated and the verb is in the plural. The phrase 'the famous author and actor' here refers to one person (the same person is an author and actor) and thus, singular verb 'is' must be used instead of 'are'.

RBI JE EE Mock Test - 6 - Question 26
Save

Select the most appropriate option to fill in the blank.
Colours, they say have the power to calm, pacify and relax; they can energise, activate and _______.

Detailed Solution: Question 26

Correct Answer: invigorate
We need a word that conveys the same sense as 'energise' and 'activate'. The only word that matches the context is 'invigorate', which means to stimulate or animate. So option 1 is correct.

RBI JE EE Mock Test - 6 - Question 27
Save

Fill blank (i).

Detailed Solution: Question 27

Dinner time' suggests that the elephants are being fed. The only word that matches the context is 'fed' because the sentence is in past tense. 'Feed', 'feeds' and 'feeding' are in present tense. So, option 1 is correct.

RBI JE EE Mock Test - 6 - Question 28
Save

Directions: Select the most appropriate meaning of the underlined idiom in the given sentence.
He kicked up a row when he was denied entry to the amusement park.

Detailed Solution: Question 28

Correct Answer: created a fuss
The idiom "kicked up a row" means to be very vocal in one's displeasure about something or to make a scene. The only option that is closest in meaning is option 4 (created a fuss).

RBI JE EE Mock Test - 6 - Question 29
Save

Directions: Choose the misspelt word.

Detailed Solution: Question 29

The correct spelling is bureau.

RBI JE EE Mock Test - 6 - Question 30
Save

Directions: Four alternatives are given for the meaning of the given Idiom/Phrase. Choose the alternative which best expresses the meaning of the Idiom/Phrase.
To take to one's heels

Detailed Solution: Question 30

To take to one's heels" is an idiom which means "to run away quickly especially to escape". So, option 2 is the correct answer.
