Introduction to NOR-Based S-R Latch
A NOR-based Set-Reset (S-R) latch is a fundamental building block in digital electronics, classified as an asynchronous sequential circuit. The classification stems from its inherent characteristics and operational mechanisms.
Understanding Asynchronous Sequential Circuits
- Definition: Asynchronous sequential circuits are those that do not rely on a clock signal for state changes. Instead, they change states based on input signals directly.
- Key Feature: The output of such circuits can change immediately in response to changes in input, making them asynchronous.
Why Cross-Coupled Connections Matter
- Cross-Coupled Configuration: The S-R latch utilizes feedback through cross-coupled NOR gates. This configuration enables the circuit to maintain its state until a new input is applied.
- State Retention: When one of the inputs (Set or Reset) is activated, it alters the state of the output. The feedback loop maintains this state even after the input is removed, underscoring the asynchronous nature.
Other Considerations
- Inverted Outputs: Although the outputs of a NOR gate are inverted, this alone does not classify the latch as asynchronous.
- Triggering Functionality: While triggering is relevant, it is not the primary reason for labeling the latch as asynchronous.
Conclusion
In summary, the cross-coupled connections in a NOR-based S-R latch are the primary reason for its classification as an asynchronous sequential circuit. The feedback mechanism allows the latch to change states based solely on input changes, independent of a clock signal.

Asynchronous Inputs:
The S-R (Set-Reset), J-K (Jump-Kill), and D (Data) inputs are known as synchronous inputs. These inputs are commonly used in digital circuits, such as flip-flops and memory elements, to control the behavior and state of the circuit.

Synchronous Inputs:
The term "synchronous" refers to the fact that these inputs are synchronized with a clock signal. In synchronous circuits, the clock signal is used to control the timing and sequencing of the circuit's operations. The state of the circuit is only updated when a clock edge occurs, ensuring that all changes happen simultaneously.

Differences between Synchronous and Asynchronous Inputs:
1. Timing: Synchronous inputs are synchronized with the clock signal and change their state only at specific clock edges. Asynchronous inputs, on the other hand, can change their state independently of the clock signal.

2. Simultaneity: Synchronous inputs ensure that all changes happen simultaneously, as they are updated together during the clock edge. Asynchronous inputs do not guarantee this simultaneous behavior and can introduce timing hazards or glitches.

3. Stability: Synchronous inputs are typically edge-triggered, meaning they are stable and will not change their state until the next clock edge. Asynchronous inputs can be level-triggered, meaning their state can change and propagate through the circuit at any time.

4. Design Complexity: Synchronous designs are generally easier to analyze and implement since the timing behavior is well-defined and predictable. Asynchronous designs require additional considerations, such as handling metastability issues and ensuring proper timing constraints.

Importance of Synchronous Inputs:
Synchronous inputs provide a structured and predictable way to control the operation of digital circuits. By using a clock signal, the circuit can be designed to perform specific actions at specific times. This allows for more reliable and consistent behavior, especially in complex systems where numerous signals need to be coordinated.

In contrast, asynchronous inputs can introduce unpredictable behavior and can be challenging to analyze and debug. They are typically used in specialized cases where specific timing requirements or functionality necessitate their use.

In conclusion, S-R, J-K, and D inputs are called synchronous inputs because they are synchronized with a clock signal and change their state only at specific clock edges. Synchronous inputs provide a structured and predictable way to control the behavior and timing of digital circuits, ensuring reliable and consistent operation.

SR Flip Flop Stability

The SR flip flop is a basic type of flip flop that consists of two inputs, S (Set) and R (Reset), and two outputs, Q (Output) and Q' (Inverted Output). It is used to store one bit of information and can be triggered by a clock signal.

Stability of SR Flip Flop

The stability of an SR flip flop refers to its ability to maintain a stable output state when the inputs are changed. In other words, a stable flip flop should not change its output state when the inputs are changed.

Explanation of Options

a) S = 0, R = 1:
In this case, the Set input S is 0 and the Reset input R is 1. When the Set input is 0 and the Reset input is 1, the flip flop enters an unstable state. This is because both inputs are active, which violates the normal operation of the flip flop. The output state becomes unpredictable, and it may toggle between different states or remain in an undefined state.

b) S = 1, R = 0:
In this case, the Set input S is 1 and the Reset input R is 0. When the Set input is 1 and the Reset input is 0, the flip flop enters an unstable state. This is again because both inputs are active, violating the normal operation of the flip flop. The output state becomes unpredictable and may toggle between different states or remain in an undefined state.

c) S = 0, R = 0:
In this case, both the Set input S and the Reset input R are 0. When both inputs are 0, the flip flop remains in its current state. The output state does not change, and the flip flop remains stable.

d) S = 1, R = 1:
In this case, both the Set input S and the Reset input R are 1. When both inputs are 1, the flip flop enters an unstable state. This is because both inputs are active, violating the normal operation of the flip flop. The output state becomes unpredictable and may toggle between different states or remain in an undefined state.

Conclusion

The SR flip flop is unstable when both the Set and Reset inputs are 1 (Option D). In this case, the flip flop enters an unpredictable state, and the output may toggle or remain undefined. Therefore, the correct answer is option D.

Flip-Flop and Latch: Differences and Functions

Introduction
Flip-flops and latches are fundamental building blocks in digital circuits, commonly used for storing and transferring data. Although they serve similar purposes, they have distinct differences in terms of triggering mechanism and functionality. This answer aims to explain these differences and highlight the correct option.

Flip-Flop
- A flip-flop is a sequential logic device that stores a single bit of data.
- It has two stable states, typically denoted as "0" and "1."
- The transition between these states occurs on a specific edge of a clock signal.
- The most common types of flip-flops are D flip-flop, JK flip-flop, T flip-flop, and SR flip-flop.
- Flip-flops are commonly used for applications such as data storage, counters, and registers.
- The transition from one state to another in a flip-flop is synchronized with the clock signal, making it edge-triggered.

Latch
- A latch is also a sequential logic device that stores a single bit of data.
- It has two stable states, similar to a flip-flop.
- The transition between these states is controlled by an enable signal.
- Latches are classified into different types, including SR latch, D latch, JK latch, and T latch.
- Latches are commonly used for applications such as data synchronization and data transfer.
- The transition from one state to another in a latch is controlled by the enable signal, making it level-triggered.

Differences
1. Triggering Mechanism:
- Flip-flops are edge-triggered, meaning they change state when a specific edge (rising or falling) of the clock signal occurs.
- Latches are level-triggered, meaning they change state when the enable signal is at a specific level (high or low), regardless of the clock signal.

2. Functionality:
- Flip-flops are primarily used for applications that require synchronization with the clock signal, such as storing data in registers or creating sequential circuits.
- Latches are commonly used for applications that require immediate data transfer or synchronization without the need for a clock signal.

Correct Answer: Option B
The correct option is B because it states that flip-flops are edge-triggered, while latches are level-triggered. This accurately describes the differences between these two sequential logic devices.

Explanation:

To understand why the minimum number of flip-flops required for a Modulus 15 counter is 4, let's first discuss what a Modulus counter is.

A Modulus counter is a type of counter that counts up to a specific value before resetting back to zero. In this case, we need a counter that counts up to 15 before resetting back to zero.

To determine the minimum number of flip-flops required for a Modulus counter, we can use the formula:

N = ceil(log2(M))

Where N is the number of flip-flops and M is the Modulus value.

Calculating the number of flip-flops:

In this case, the Modulus value is 15. Using the formula, we can calculate the number of flip-flops required as follows:

N = ceil(log2(15))
N = ceil(3.91)

Since the number of flip-flops cannot be a fraction, we need to round up to the nearest whole number. Therefore, N = 4.

Explanation of the formula:

The formula N = ceil(log2(M)) is derived from the fact that each flip-flop can store 2 different states (0 or 1). In a binary counter, the number of different states it can represent is equal to 2^N, where N is the number of flip-flops.

In a Modulus counter, the maximum count value is M. Therefore, the number of different states the counter needs to represent is M + 1 (including zero). In binary, this is represented by log2(M+1).

Since each flip-flop stores 2 different states, we divide log2(M+1) by 2 to determine the number of flip-flops required. Finally, we round up to the nearest whole number using the ceil function.

Conclusion:

In conclusion, the minimum number of flip-flops required for a Modulus 15 counter is 4. This is determined using the formula N = ceil(log2(M)), where M is the Modulus value.

Types of Triggering in Flip-Flops
Flip-flops are fundamental building blocks in digital electronics, often used for storing binary data. They can be triggered in various ways, which determines how they respond to input signals.
1. Edge Triggering
- This method activates the flip-flop on the transition of the clock signal.
- There are two types of edge triggering:
- Positive Edge Triggering: The flip-flop changes state on the rising edge of the clock pulse.
- Negative Edge Triggering: The flip-flop changes state on the falling edge of the clock pulse.
2. Level Triggering
- In this method, the flip-flop is sensitive to the level of the clock signal rather than its edges.
- The flip-flop remains in an active state as long as the clock signal is at a certain level (high or low).
- This type can lead to issues like glitches, as it may respond to noise on the clock line.
3. Pulse Triggering
- Pulse triggering uses a short pulse to activate the flip-flop.
- The flip-flop captures input data only during the pulse duration, making it less prone to noise compared to level triggering.
- It ensures that the data is stable and valid during the pulse period.
Conclusion
In summary, the three types of triggering in flip-flops are edge triggering, level triggering, and pulse triggering. Each type has its unique characteristics and application scenarios, making them essential for various digital circuit designs. Understanding these triggering methods is crucial for electrical engineers working with sequential circuits.

The terminal count of a typical modulus-10 binary counter is 1001 (option C). This means that when the counter reaches its maximum count value, it will output the binary number 1001.

To understand why option C is the correct answer, let's break down the operation of a modulus-10 binary counter.

Modulus-10 Binary Counter:
A binary counter is a sequential circuit that cycles through a predefined sequence of binary values. The modulus-10 binary counter is designed to count from 0 to 9 and repeat. It uses four flip-flops to store the binary values.

Binary Representation:
In a binary system, each digit can have two possible states: 0 or 1. To represent the numbers from 0 to 9, we require four binary digits.

The binary representation of the numbers from 0 to 9 are:
0 - 0000
1 - 0001
2 - 0010
3 - 0011
4 - 0100
5 - 0101
6 - 0110
7 - 0111
8 - 1000
9 - 1001

Terminal Count:
The terminal count refers to the maximum count value that the counter can reach before it resets to zero and starts counting again. In the case of a modulus-10 binary counter, the terminal count is 9, which is represented in binary as 1001.

Explanation of Option C:
Option C, which is 1001, represents the binary equivalent of the terminal count of a modulus-10 binary counter. When the counter reaches its maximum count of 9, it will output the binary number 1001.

Therefore, option C (1001) is the correct answer for the terminal count of a typical modulus-10 binary counter.

In summary:
- A modulus-10 binary counter counts from 0 to 9 and repeats.
- The terminal count is the maximum count value before the counter resets.
- The binary representation of the terminal count is 1001 (option C).

Solution:

A 3-bit asynchronous counter is a digital circuit that counts from 0 to 7 in binary. Each flip-flop in the counter represents one bit, and the number of possible states is determined by the number of bits.

To determine the number of different states, we need to consider the binary representation of each state.

- In a 3-bit counter, the binary representation of the states ranges from 000 to 111.
- The first bit can take on two values: 0 or 1.
- The second bit can also take on two values: 0 or 1.
- The third bit can also take on two values: 0 or 1.

Hence, to find the total number of states, we multiply the number of choices for each bit:

2 * 2 * 2 = 8

Therefore, a 3-bit asynchronous counter has 8 different states.

Therefore, the correct answer is option 'C' (8).

One-Bit Memory Element - S-R Latch

The S-R latch is a sequential logic circuit that is used as a one-bit memory element. It has two inputs, Set (S) and Reset (R), and two outputs, Q and Q'. The output Q represents the stored value of the latch, and Q' represents the complement of Q.

How it works

When the S input is high and R input is low, the Q output goes high, and Q' output goes low. This state is called SET. Conversely, when the R input is high and the S input is low, the Q output goes low, and Q' output goes high. This state is called RESET.

When both S and R inputs are low, the output state of the latch remains unchanged from its previous state, making it a memory element.

Applications

The S-R latch is used in various applications such as:

1. As a memory element in flip-flops and registers.

2. As a building block in more complex sequential circuits.

3. As a basic element in control circuits for digital systems.

Conclusion

In conclusion, the S-R latch is an example of a one-bit memory element. It is a simple and widely used digital circuit element that stores one binary bit of information.

A D flip-flop can be constructed from an S-R flip-flop.

Explanation:
To understand why a D flip-flop can be constructed from an S-R flip-flop, let's first understand the basic working of both flip-flops.

S-R Flip-Flop:
An S-R (Set-Reset) flip-flop is a basic flip-flop that has two inputs, S (Set) and R (Reset), and two outputs, Q (output) and Q' (complement of output). It operates based on the logic levels of the inputs as follows:

- When S = 1 and R = 0, the flip-flop sets and Q = 1.
- When S = 0 and R = 1, the flip-flop resets and Q = 0.
- When both S and R are 0 or both S and R are 1, the flip-flop holds its previous state.

D Flip-Flop:
A D flip-flop, also known as a data flip-flop, has a single input, D (data), and two outputs, Q and Q'. It operates based on the logic level of the input as follows:

- When D = 1, the flip-flop stores the value 1 and Q = 1.
- When D = 0, the flip-flop stores the value 0 and Q = 0.

Construction of D Flip-Flop from S-R Flip-Flop:
A D flip-flop can be constructed from an S-R flip-flop by connecting the inputs of the S-R flip-flop in a specific way. Here's how it can be done:

1. Connect the D input of the D flip-flop to both the Set (S) and Reset (R) inputs of the S-R flip-flop.
- This ensures that the S-R flip-flop behaves like a D flip-flop.

2. Connect the complement of the Q output of the S-R flip-flop to its Reset (R) input.
- This ensures that the S-R flip-flop resets when Q' = 1, which is the complement of the Q output of the D flip-flop.

3. Connect the Q output of the S-R flip-flop to the input of an inverter.
- This inverter generates the complement of the Q output of the S-R flip-flop, which becomes the Q' output of the D flip-flop.

By following these connections, we effectively convert the S-R flip-flop into a D flip-flop. The S-R flip-flop now behaves exactly like a D flip-flop, where the input D controls the state of the flip-flop and the outputs Q and Q' represent the stored value and its complement, respectively.

Maximum count value of an n-bit counter

The maximum count value of an n-bit counter refers to the maximum number of distinct states that the counter can represent. In other words, it represents the highest decimal value that can be stored in the counter.

Explanation:

To understand why the maximum count value is 2^n - 1, let's consider a binary counter with n bits. Each bit in the counter can have two possible states: 0 or 1. Therefore, the total number of distinct states that the counter can represent is equal to 2^n.

However, in a binary counter, the counting sequence starts from 0 and goes up to the maximum count value, and then wraps around back to 0. This means that the counter cannot represent the total number of distinct states, as the last state (2^n) is not included.

For example, let's consider a 3-bit counter. The possible states are:

000 (0 in decimal)
001 (1 in decimal)
010 (2 in decimal)
011 (3 in decimal)
100 (4 in decimal)
101 (5 in decimal)
110 (6 in decimal)
111 (7 in decimal)

As you can see, the maximum count value is 7, which is 2^3 - 1. The counter cannot represent the state 2^3 (8 in decimal) because it wraps around back to 0.

Formula:

The formula to calculate the maximum count value of an n-bit counter is given by:

Maximum count value = 2^n - 1

where:
- n is the number of bits in the counter.

Conclusion:

In conclusion, the maximum count value of an n-bit counter is given by the formula 2^n - 1. This formula takes into account the total number of distinct states that the counter can represent, excluding the wrap-around state. It is important to consider the maximum count value when designing and using counters to ensure that the counter does not overflow and that the desired counting range is achieved.

Effect of SET input in S-R latch:
When the SET input of an S-R latch is made high, it sets the latch, causing the Q output to become high.

Explanation:
- When the SET input is activated, it overrides the RESET input and forces the Q output to be high.
- This behavior is due to the internal logic of the S-R latch, where the SET input triggers the latch to store a high output.
- The Q output will remain high until a reset signal is applied to the latch.

Conclusion:
In summary, when the SET input of an S-R latch is made high, the output Q will be set to a high state, which can be represented as logic level 1.

And D input is also HIGH, the output of the flip-flop will be HIGH. If the clock input is LOW, the output of the flip-flop will remain unchanged regardless of the input D.

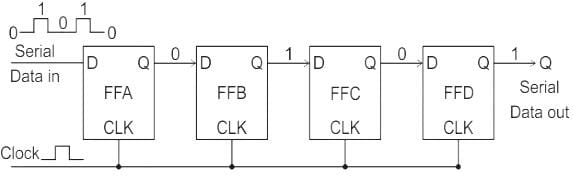

Operation of Positive Edge-Triggered D Flip-Flop

The positive edge-triggered D flip-flop is a type of sequential logic circuit that stores one bit of data. It has a single input called D (data) and two outputs called Q (output) and Q' (complementary output). The operation of the positive edge-triggered D flip-flop is as follows:

Leading Edge of the Clock

On the leading edge of the clock, the input D is sampled and stored in the flip-flop. The output Q reflects the value of the input D at the time of the leading edge of the clock. The output Q' is the complement of the output Q.

Trailing Edge of the Clock

On the trailing edge of the clock, the output Q remains stable and retains its previous value. The output Q' also remains stable and retains its previous complemented value.

Advantages of Positive Edge-Triggered D Flip-Flop

The positive edge-triggered D flip-flop has the following advantages:

- It is immune to glitches and noise on the input D during the clock transition.
- It has a predictable and reliable timing behavior.
- It can be easily cascaded to build more complex sequential circuits.

Conclusion

The positive edge-triggered D flip-flop is a fundamental building block of digital circuits. It provides a simple and reliable way to store one bit of data and synchronize it with a clock signal. Its operation on the leading and trailing edges of the clock makes it suitable for a wide range of applications, such as registers, counters, and state machines.

Propagation delay is the time it takes for a signal to propagate through a logic gate or flip flop. In the context of counter design, the propagation delay of flip flops plays a significant role in determining the speed of operation, especially in asynchronous (ripple) counters.

Asynchronous counters are designed using a series of flip flops, where the output of one flip flop serves as the clock input for the next flip flop in the chain. Each flip flop introduces a certain amount of propagation delay, which is the time it takes for the output of the flip flop to stabilize after a change in its inputs.

The main reason why the propagation delay of flip flops affects the speed of operation in asynchronous counters is due to the ripple effect. When the input to the first flip flop changes, it takes some time for the output of that flip flop to stabilize. This delay in stabilization propagates through the subsequent flip flops in the chain, causing a delay in the counting sequence.

The propagation delay can lead to several issues in asynchronous counters:

1. Skew: The propagation delay of flip flops can cause a skew in the counting sequence. Skew refers to the difference in arrival times of the clock signal at different flip flops. This can result in an inconsistent and unpredictable counting sequence.

2. Glitches: The propagation delay can also cause glitches in the counter output. A glitch is a temporary and unwanted change in the output of a logic circuit. Due to the ripple effect, glitches can occur when the outputs of the flip flops are changing during the stabilization period.

3. Limited frequency of operation: Asynchronous counters have a limited operating frequency due to the cumulative effect of propagation delays. If the input clock signal has a high frequency, the propagation delays can accumulate and result in errors or unpredictable behavior in the counter.

On the other hand, synchronous counters, both up and down, do not suffer from these issues because they use a common clock signal to synchronize all flip flops simultaneously. The propagation delay of individual flip flops still exists but does not affect the counting sequence or introduce glitches, as all flip flops are updated at the same time.

In conclusion, the propagation delay of flip flops largely affects the speed of operation in asynchronous (ripple) counters due to the ripple effect, which can lead to skew, glitches, and limitations on the operating frequency.

The given question asks us to determine the output of a J-K flip-flop with J = 1 and K = 1, given a 20 kHz clock input. Let's analyze the behavior of a J-K flip-flop and understand why the correct answer is option 'D' - A 10 kHz square wave.

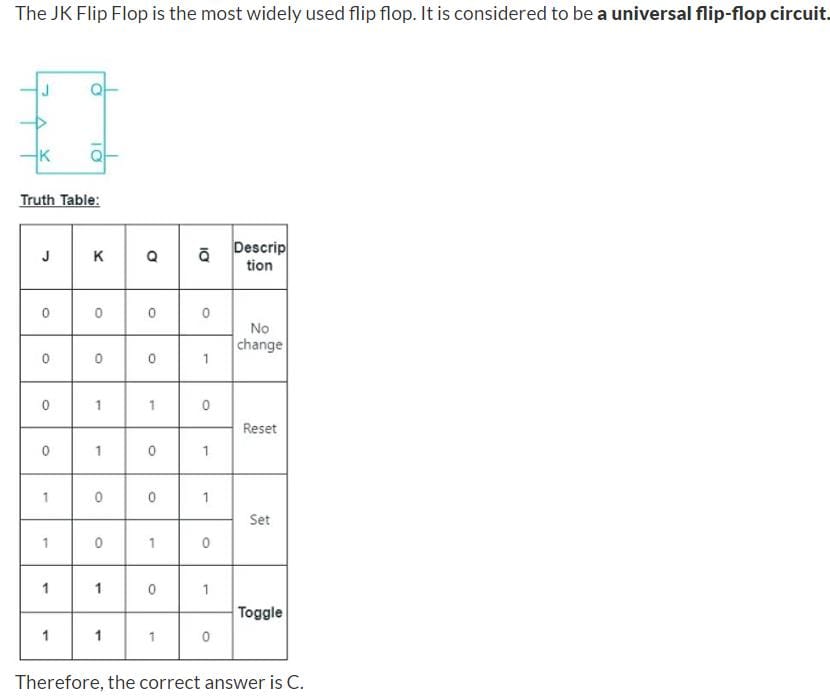

J-K Flip-Flop Behavior:
A J-K flip-flop is a sequential logic device that has two inputs, J and K, and two outputs, Q and Q̅. The flip-flop is clocked by an external clock signal (in this case, a 20 kHz clock input). The J and K inputs determine the behavior of the flip-flop.

- When J = 0 and K = 0, the flip-flop remains in its current state (Q and Q̅ do not change).
- When J = 0 and K = 1, the flip-flop is reset, and Q = 0 and Q̅ = 1.
- When J = 1 and K = 0, the flip-flop is set, and Q = 1 and Q̅ = 0.
- When J = 1 and K = 1, the flip-flop toggles its state. If Q = 0, it will change to 1, and if Q = 1, it will change to 0.

Analysis:
In this question, J = 1 and K = 1, which means that the input to the J-K flip-flop will always be in the toggle state.

- Initially, let's assume that the Q output is 0.
- When the clock input rises from low to high, the J-K flip-flop will toggle its state, and the Q output will become 1.
- When the clock input falls from high to low, the J-K flip-flop will toggle its state again, and the Q output will become 0.
- This toggling process will repeat for each rising and falling edge of the clock signal.

Frequency Analysis:
The given clock input is a 20 kHz signal. Since the J-K flip-flop toggles its state for each rising and falling edge of the clock, the frequency of the Q output will be half of the clock frequency.

- Therefore, the frequency of the Q output will be 20 kHz / 2 = 10 kHz.

Conclusion:
Based on the analysis, the correct answer to the question is option 'D' - A 10 kHz square wave. The J-K flip-flop with J = 1 and K = 1 will produce a square wave output with a frequency of 10 kHz, which is half the frequency of the clock input.

Explanation:

The T-flipflop is a type of flipflop that toggles its output based on the input signal. It has two inputs: T (toggle) and CLK (clock) and one output Q.

Given:
Input signal frequency = 200 Hz

Working:
When a T-flipflop receives a pulse at its CLK input, it toggles its output (Q) based on the value of the T input. If T = 0, the output remains the same, and if T = 1, the output flips.

In a cascade connection of three T-flipflops, the output of one flipflop is connected to the CLK input of the next flipflop. This means that the output of the first flipflop becomes the input to the second flipflop, and so on.

Since the input signal to the first T-flipflop is a 200 Hz signal, the output of this flipflop will toggle at 200 Hz. This means that the output will change its state (from 0 to 1 or from 1 to 0) 200 times per second.

Now, the output of the first flipflop becomes the input to the second flipflop. Since the output of the first flipflop toggles at 200 Hz, the input to the second flipflop will also toggle at the same frequency.

Similarly, the output of the second flipflop becomes the input to the third flipflop. So, the input to the third flipflop will also toggle at 200 Hz.

Therefore, the final output of the three T-flipflops in cascade will also toggle at 200 Hz.

Conclusion:
The final output of the three T-flipflops in cascade is 200 Hz.

Therefore, the correct answer is option 'A' (25 Hz).
