Practice Test: Gate Civil Engineering(CE) 2017 Paper - Civil Engineering (CE)

If the radius of a right circular cone is increased by 50%, its volume increases by

__________  with someone else’s email account is now very serious offence.

The last digit of (2171)⁷ + (2172)⁹ + (2173)¹¹ + (2174)¹³ is

Two machines M1 and M2 are able to execute any of four jobs P, Q, R and S. The machines can perform one job on one object at a time. Jobs P, Q, R and S take 30 minutes, 20 minutes, 60 minutes and 15 minutes each respectively. There are 10 objects each requiring exactly 1 job. Job P is to be performed on 2 objects. Job Q on 3 objects. Job R on 1 object and Job S on 4 objects. What is the minimum time needed to complete all the jobs?

Students applying for hostel rooms are allotted rooms in order of seniority. Students already staying in a room will move if they get a room in their preferred list. Preferences of lower ranked applicants are ignored during allocation.
Given the data below, which room will Ajit stay in?

The bar graph below shows the output of five carpenters over one month, each of whom made  different items of furniture: Chairs, tables, and beds.

Consider the following statements.
 i. The number of beds made by carpenter C2 is exactly the same as the same as the number   of tables made by carpenter C3.
​ ii. The total number of chairs made by all carpenters is less than the total number of tables.   Which one of the following is true?

The old concert hall was demolished because of fears that the foundation would be affected by the construction tried to mitigate the impact of pressurized air pockets created by the excavation of large amounts of soil. But even with these safeguards, it was feared that the soil below the concert hall would not be stable.

 From this, one can infer that

The ordinates of a 2 – h unit hydrograph at 1 hour intervals starting from time t = 0, are 0, 3, 8, 6, 3, 2 and 0 m3/s. Use trapezoidal rule for numerical integration, if required.

What is the catchment area represented by the unit hydrograph?

A uniformly distributed line load of 500 kN/m is acting on the ground surface. Based on Boussinesq’s theory, the ratio of vertical stress at a depth 2 m to that at 4 m, right below the line of loading, is

According to IS 456-2000, which one of the following statements about the depth of neutral axis χ_u,bal for a balanced reinforced concrete section is correct?

Group I lists the type of gain or loss of strength in soils.
Group II lists the property or process responsible for the loss or gain of strength in soils.
Group I                                                                  Group II
P. Regain of strength with time                           1. Boiling
Q. Loss of strength due to cyclic loading            2. Liquefaction
R. Loss of strength due to upward seepage       3. Thixotropy
S. Loss of strength due to remolding                  4. Sensitivity

The correct match between Group I and Group II is

A runway is being constructed in a new airport as per the International Civil Aviation Organization (ICAO) recommendations. The elevation and the airport reference temperature of this airport are 535 m above the mean sea level and 22.65°C, respectively. Consider the effective gradient of runway as 1%. The length of runway required for a design-aircraft under the standard conditions is 2000 m. Within the framework of applying sequential corrections as per the ICAO recommendations, the length of runway corrected for the temperature is

A soil sample is subjected to a hydrostatic pressure, σ. The Mohr circle for any point in the soil sample would be

The figure shows a two-hinged parabolic arch of span load of intensity q per unit length.

The maximum bending moment in the arch is equal to

For a steady incompressible laminar flow between two infinite parallel stationary plates, the shear stress variation is

Two machines M1 and M2 are able to execute any of four jobs P, Q, R and S. The machines can perform one job on one object at a time. Jobs P, Q, R and S take 30 minutes, 20 minutes, 60 minutes and 15 minutes each respectively. There are 10 objects each requiring exactly 1 job. Job P is to be performed on 2 objects. Job Q on 3 objects. Job R on 1 object and Job S on 4 objects. What is the minimum time needed to complete all the jobs?

The number of parameters in the univariate exponential and Gaussian distributions, respectively, are

The wastewater form a city, containing a high concentration of biodegradable organics, is being steadily discharged into a flowing river at a location S. If the rate of aeration of the river water is lower than the rate of degradation of the organics, then the dissolved oxygen of the river water

The reaction rate involving reactants A and B is given by −k [A]^α [B]^β. Which one of the following statements is valid for the reaction to be first –order reaction?

A strip footing is resting on the ground surface of a pure clay bed having an undrained cohesion C_u. The ultimate bearing capacity of the footing is equal to

A simply supported beam is subjected to a uniformly distributed load. Which one of the following statements is true?

A triangular pipe network is shown in the figure.

The head loss in each pipe is given by h_f = rQ^1.8, with the variables expressed in a consistent set of units. The value of r for the pipe AB is 1 and for the pipe BC is 2. If the discharge supplied at the point A (i.e., 100) is equally divided between the pipes AB and AC, the value of r (up to two decimal places) for the pipe AC should be_______.

A super-elevation e is provided on a circular horizontal curve such that a vehicle can be stopped on the curve without sliding. Assuming a design speed v and maximum coefficient of side friction f_max, which one of the following criteria should be satisfied?

Which one of the following is NOT present in the acid rain?

The accuracy of an Electronic Distance Measuring Instrument (EDMI) is specified as  ± (a mm + b ppm). Which one of the following statements is correct?

Consider the following partial differential equation:

The matrix P is the inverse of a matrix Q. If I denotes the identity matrix, which one of the following options is correct ?

Vehicles arriving at an intersection from one of the approach road follow the Poisson distribution. The mean rate of arrival is 900 vehicles per hour. If a gap is defined as the time difference between two successive vehicle arrivals (with vehicles assumed to be points), the probability (up to four decimal places) that the gap is greater than 8 seconds is _____

Let x be a continuous variable defined over the interval
The integral

The number of spectral bands in the Enhanced Thematic satellite Landsat-7 is

A 3 m thick clay layer is subjected to an initial uniform pore pressure of 145 kPa as shown in the figure.

For the given ground conditions, the time (in days, rounded to the nearest integer) required for 90% consolidation would be ________

A planar truss tower structure is shown in the figure.

Consider the following statements about the external and internal determinacies of the truss.

(P) Externally Determinate
(Q) External Static Indeterminacy = 1
(R) External Static Indeterminacy = 2
(S) Internally Determinate
(T) Internal Static Indeterminacy = 1
(U) Internal Static Indeterminacy = 2

Which one of the following options is correct?

Consider the stepped bar made with a linear elastic material and subjected to an axial load of 1 kN, as shown in the figure.

Segments 1 and 2 have cross-sectional are of 100 mm² and 60 mm², Young’s modulus of 2 × 10⁵ MPa and 3 × 10⁵ MPa, and length of 400 mm and 900 mm, respectively. The strain energy (in N-mm, up to one decimal place) in the bar due to the axial load is_____

Consider the beam ABCD shown in the figure.

For a moving concentrated load of 50 kN on the beam, the magnitude of the maximum bending moment (in kN-m) obtained at the support C will be equal to______

A column is subjected to a load through a bracket as shown in the figure.

The resultant force (in kN, up to one decimal place) in the bolt 1 is_____

What is the yield strength of bolt of class 4.6?

The value of M in the beam ABC shown in the figure is such that the joint B does not rotate.

The value of support reaction (in kN) at B should be equal to______

Two wastewater streams A and B, having an identical ultimate BOD are getting mixed to form the stream C. The temperature of the stream A is 20°C and the temperature of the stream C is 10°C. It is given that

• The 5-day BOD of the stream A measured at 20°C=50 mg/l
• BOD rate constant (base 10) at 20°C=0.115 per day
• Temperature coefficient = 1.135

The 5 –day BOD (in mg/l, up to one decimal place) of the stream C, calculated at 10°C, is______

A particle of mass 2 kg is travelling at a velocity of 1.5 m/s. A force f(t) = 3t² (in N) is applied to it in the direction of motion for a duration of 2 seconds, where t denotes time in seconds. The velocity (in m/s, up to one decimal place) of the particle immediately after the removal of the force is________

The queue length (in number of vehicles) versus time (in seconds) plot for an approach to a signalized intersection with the cycle length of 96 seconds is shown in the figure scale).

At time t = 0, the light has just turned red. The effective green time is 36 seconds, during which vehicles discharge at the saturation flow rate, vph). Vehicles arrive at a uniform rate, v (in vph), throughout the cycle. Which one of the following statements is TRUE?

For the function  to be a valid probability density function, which one of the following statements is correct?

The infinite sand slope shown in the figure is on the verge of sliding failure. The ground water table coincides with the ground surface. Unit weight of water γ_w = 9.81kN m³ .

The value of the effective angle of internal friction (in degrees, up to one decimal place) of the sand is

A sluice gate used to control the flow in a horizontal channel of unit width is shown in figure.

It is observed that the depth of flow is 1.0 m upstream of the gate, while the depth is 0.2 m downstream of the gate. Assuming a smooth flow transition across the sluice gate, i.e., without any energy loss, and the acceleration due to gravity as  10 m/s², the discharge (in m³/s, up to two decimal places) passing under the sluice gate is_______

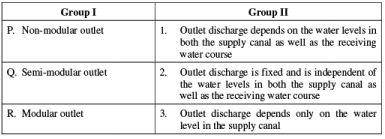

Group I contains three broad classes of irrigation supply canal outlets. Group II presents hydraulic performance attributes.

The correct match of the items in Group I with the items in Group II is

Consider the matrix  Which one of the following statements is TRUE for the
eigenvalues and eigenvectors of this matrix?

The laboratory test on a soil sample yields the following results: natural moisture content = 18%, liquid limit = 60%, plastic limit = 25%, percentage of clay sized fraction = 25%. The liquidity index and activity (as per the expression proposed by skempton) of the soil, respectively, are

The solution of the equation  with Q = 0 at t = 0 is

Water flows through a 90° bend in a horizontal plane as depicted in the figure.

A pressure of 140 kPa is measured at section 1-1. The inlet diameter marked at section 1-1 is cm, while the nozzle diameter marked at section 2-2 iscm. Assume the following:

(i) Acceleration due to gravity = 10 m/s².
(ii) Weights of both the bent pipe segment as well as water are negligible.
(iii) Friction across the bend is negligible.

The magnitude of the force (in kN, up to two decimal places) that would be required to hold the pipe section is______

A pre-tensioned rectangular concrete beam 150 mm wide and 300 mm depth is prestressed with three straight tendons, each having a cross-sectional area of 50 mm2, to an initial stress of 1200 N/mm2. The tendons are located at 100 mm from the soffit of the beam. If the modular ratio is 6, the loss of prestressing force (in kN, up to one decimal place) due to the elastic deformation of concrete only is ______.

The spherical grit particles, having a radius of 0.01mm and specific gravity of 3.0, need to be separated in a settling chamber. It is given that

• g = 9.81 m/s²
• the density of the liquid in the settling chamber = 1000 kg/m³
• the kinematic viscosity of the liquid in the settling chamber = 10^-6 m²/s

Assuming laminar conditions, the settling velocity (in mm/s, up to one decimal place) is_____

The equivalent sound power level (in dB) of the four sources with the noise levels of 60 dB, 69 dB, 70 dB and 79 dB is_______

Consider the equation  This is numerically solved by using the forward Euler method with a step size. ∆t = 2. The absolute error in the solution at the end of the first time step is_________

It is proposed to drive H-piles up to a depth of 7 m at a construction site. The average surface area of the H-pile is 3 m² per meter length. The soil at the site is homogeneous sand, having an effective friction angle of 32°. The ground water table (GWT) is at a depth of 2 m below the ground surface. The unit weights of the soil above and below the GWT are 16 kN/m³ and 19 kN/m³, respectively. Assume the earth pressure coefficient, K= 1.0, and the angle of wall friction, δ = 23°. The total axial frictional resistance (in kN, up to one decimal place) mobilized on the pile against the driving is________

The wastewater having an organic concentration of 54 mg/l is flowing at a steady rate of 0.8m³/day through a detention tank of dimensions 2m × 4m × 2m. If the contents of the tank are well mixed and the decay constant is 0.1 per day, the outlet concentration (in mg/l, up to  one decimal place) is ______

The radius of a horizontal circular curve on a highway is 120 m. The design speed is 60 km/hour, and the design coefficient of lateral friction between the tyre and the road surface is 0.15. The estimated value of superelevation required (if full lateral friction is assumed to develop), and the value of coefficient of friction needed (if no superelevation is provided) will, respectively, be

Consider two axially loaded columns, namely, 1 and 2, made of a linear elastic material with Young’s modulus 2 × 105 MPa, square cross-section with side 10 mm, and length 1 m. For Column 1, one end is fixed and the other end is free. For Column 2, one end is fixed and the other end is pinned. Based on the Euler’s theory, the ratio (up to one decimal place) of the buckling load of Column 2 to the buckling load of Column 1 is ________

The observed bearings of a traverse are given below:

The stations(s) most likely to be affected by the local attraction is/are

A 1 m wide rectangular channel has a bed slope of 0.0016 and the Manning’s roughness coefficient is 0.04. Uniform flow takes place in the channel at a flow depth of 0.5 m. At a particular section, gradually varied flow (GVF) is observed and the flow depth is measured as 0.6 m. The GVF profile at that section is classified as

A consolidated undrained (CU) triaxial compression test is conducted on a normally consolidated clay at a confining pressure of 100 kPa. The deviator stress at failure is 80 kPa, and the pore-water pressure measured at failure is 50 kPa. The effective angle of internal friction (in degrees, up to one decimal place) of the soil is_________

An effective rainfall of 2-hour duration produced a flood hydrograph peak of 200 m³/s. The flood hydrograph has a base flow of 20 m³/s. If the spatial average rainfall in the watershed for the duration of storm is 2 cm and the average loss rate is 0.4 cm/hour, the peak of 2-hour unit hydrograph (in m³/s-cm, up to one decimal place) is_________

The following observations are made while testing aggregate for its suitability in pavement construction:

i. Mass of oven-dry aggregate in air = 1000 g
ii. Mass of saturated surface-dry aggregate in air = 1025 g
iii. Mass of saturated surface-dry aggregate under water = 625 g

Based on the above observations, the correct statement is
