Test: Pressure Measuring Devices - Civil Engineering (CE) MCQ


Test Description

10 Questions MCQ Test Fluid Mechanics for Civil Engineering - Test: Pressure Measuring Devices

Test: Pressure Measuring Devices for Civil Engineering (CE) 2024 is part of Fluid Mechanics for Civil Engineering preparation. The Test: Pressure Measuring Devices questions and answers have been prepared according to the Civil Engineering (CE) exam syllabus.The Test: Pressure Measuring Devices MCQs are made for Civil Engineering (CE) 2024 Exam. Find important definitions, questions, notes, meanings, examples, exercises, MCQs and online tests for Test: Pressure Measuring Devices below.
Solutions of Test: Pressure Measuring Devices questions in English are available as part of our Fluid Mechanics for Civil Engineering for Civil Engineering (CE) & Test: Pressure Measuring Devices solutions in Hindi for Fluid Mechanics for Civil Engineering course. Download more important topics, notes, lectures and mock test series for Civil Engineering (CE) Exam by signing up for free. Attempt Test: Pressure Measuring Devices | 10 questions in 30 minutes | Mock test for Civil Engineering (CE) preparation | Free important questions MCQ to study Fluid Mechanics for Civil Engineering for Civil Engineering (CE) Exam | Download free PDF with solutions
*Answer can only contain numeric values
Test: Pressure Measuring Devices - Question 1

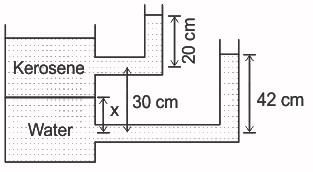

Consider a cylindrical vessel having two L-shape glass tubes as shown in the figure.

Find the value of x in cm. If the density of water and kerosene is 1000 kg/m3 and 800 kg/m3 respectively. [round off to nearest integer]


Detailed Solution for Test: Pressure Measuring Devices - Question 1

Hydrostatic Law:

It states that the rate of increase of pressure in a vertical direction is equal to the weight density of the fluid at that point.

P = ρgh
Calculation:
Given:


Pressure at point A = 0.2 × 800 × 9.81 = 1.569 kPa
Pressure at Point B = 0.42 × 1000 × 9.81 = 4.12 kPa
PA + y × 0.8 × 9.81 + x × 9.81 = PB [x & y in metre]
0.8 y + x = 0.26
& x + y = 0.3
solving both equation
x = 0.1 m = 10 cm

Test: Pressure Measuring Devices - Question 2

Which pressure measurement device has its construction wherein, a hollow metal tube is bent like a hook and the end is closed, connected to dial indicator?

Detailed Solution for Test: Pressure Measuring Devices - Question 2

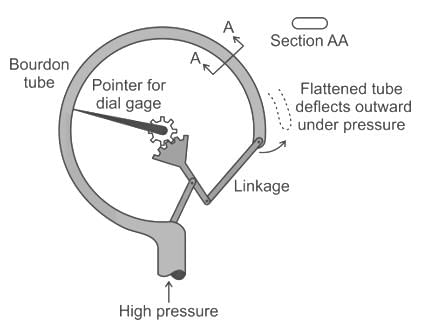

Bourdon Tube:

  • Bourdon gauges are available to cover a large range of pressures.
  • Bourdon gauges are purely mechanical devices utilizing the mechanical deformation of a flattened but bent tube that winds or unwinds depending on the pressure difference between the inside and the outside.
  • The motion is against a spring torque such that a needle attached to the shaft indicates directly the pressure difference.

    Bourdon tube pressure gauges are the most common type in many areas and are used to measure medium to high pressures. They cover measuring spans from 600 mbar to 4,000 bar. The measuring element is a curved tube with a circular, spiral or coiled shape, commonly called a bourdon tube.
1 Crore+ students have signed up on EduRev. Have you? Download the App
Test: Pressure Measuring Devices - Question 3

In a manometer, the two ends of a tube are connected to points where ______.

Detailed Solution for Test: Pressure Measuring Devices - Question 3

Manometer:
A simple manometer consists of a glass tube having one of its ends connected to a point where pressure is to be measured and another end remains open to the atmosphere. Common types of simple manometers are:

  • Piezometer
  • U-tube Manometer
  • Single Column Manometer

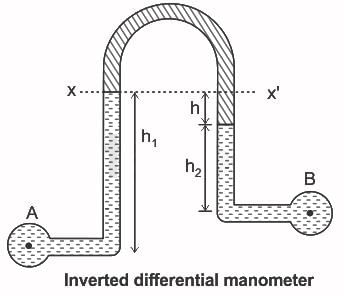

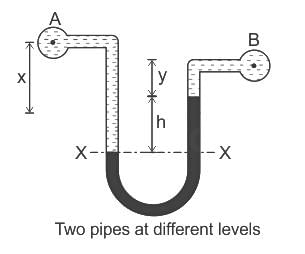

Differential Manometers measure the difference in pressure between two points in a fluid system and cannot measure the actual pressures at any point in the system. It consists of a U-tube, containing a heavy liquid, whose two ends are connected to the points whose difference in pressure is to be measured.

Test: Pressure Measuring Devices - Question 4

In an open U-tube containing mercury, kerosene of specific gravity 0.8 is poured into one of its limbs so that the length of column of kerosene is about 40 cm. The level of mercury column in that limb is lowered approximately by how much?

Detailed Solution for Test: Pressure Measuring Devices - Question 4

Given:
ρ1 = Specific gravity of mercury =  13.6, ρ2 =Specific gravity of kerosene =  0.8, h= 40 cm

Let h1 on the left side be the level of mercury, before pouring of kerosene

After pouring kerosene, 40 cm height is taken by kerosene, mercury is lowered by h1 on the left side and mercury on the right side raises by h1 from its original position, ie when kerosene was not poured
ρ1 = 13.6, ρ2 = 0.8, h= 40 cm
Writing the pressure equation for the above diagram, according to the final location of the mercury and kerosene, we get
40 × G for kerosene - 2 × h1 × G for mercury = 0, (pressure at level B and B' is the same, as they are at the same level)
40 × 0.8 = 2 × h1 × 13.6
h1 = 1.17 cm ≈ 1.2 cm

Test: Pressure Measuring Devices - Question 5

The U tube in the figure contains two liquids in static equilibrium. The water of density ρw (1000 kg/m3) is in the right arm and oil of unknown density ρx is in the left arm. If l = 80 mm and d = 20 mm, then the density ρx of the oil is

Detailed Solution for Test: Pressure Measuring Devices - Question 5

Concept:
In an open tube manometer

  • The pressure at both the open ends is atmospheric.
  • The pressure at any point inside the column can be calculated from either side.

Calculation:
Given:


ρwater = 1000 kg/m3, l = 80 mm and d = 20 mm
So, the pressure at the bottom of the oil column can be equated from either end to find the required value of ρoil
ρoil × g × (d + l) = ρwater × g × l
ρoil × (20 + 80) = 1000 × 80
ρoil = 800 kg/m3
Hence the required density of oil is 800 kg/m3.

Test: Pressure Measuring Devices - Question 6

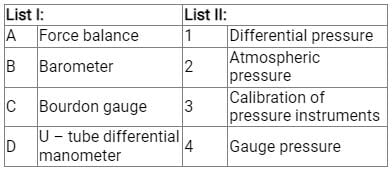

Select the option that correctly matches the items given in List I to those given in List II.

Detailed Solution for Test: Pressure Measuring Devices - Question 6

Force balance: Use for calibration of pressure measuring instruments
Barometer: Atmospheric pressure is measured by a device called a barometer; thus, the atmospheric pressure is often referred to as the barometric pressure.
Patm = ρgh
Where, ρ = Density, g = local gravitational acceleration, h = height of the mercury column above the free surface.
Frequently use standard atmospheric pressure unit is,
Patm = 760 mm of Hg column = 10.3 m of H2O column



Mechanical gauge: It is a device used for measuring the gauge pressure by balancing the spring balance or dead weight. The commonly use mechanical pressure gauges are,

  • Diaphragm pressure gauge

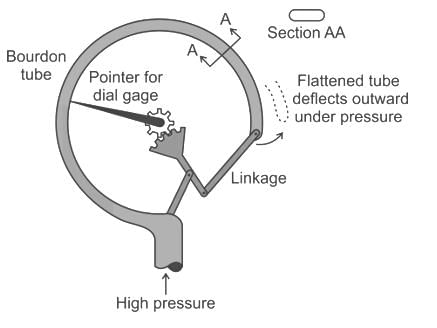

  • Bourdon pressure gauge
  • Deadweight pressure gauge
  • Bellows pressure gauge

Test: Pressure Measuring Devices - Question 7

What type of reservoir is used in a single column manometer?

Detailed Solution for Test: Pressure Measuring Devices - Question 7

Single column manometer:

(i) Single column manometer is a modified form of a U-tube manometer in which one side is a large reservoir and the other side is a small tube, open to the atmosphere.
There are two types of single-column manometer:

  • Vertical single-column manometer.
  • Inclined single-column manometer.

Vertical single column manometer:



Inclined single column manometer:
This manometer is more sensitive. Due to the inclination, the distance moved by the heavy liquid in the right limb will be more.

Test: Pressure Measuring Devices - Question 8

Sensitivity of U-tube manometer with inclined leg depends on:

Detailed Solution for Test: Pressure Measuring Devices - Question 8

Inclined column manometer:

  • In an inclined column manometer the column is inclined at some angle with the horizontal axis.
  • Due to inclination, the distance moved by the heavy liquid in the right limb is more.
  • This manometer is more sensitive.
  • The sensitivity of the inclined manometer is given by 1/sin⁡θ
  • The inclined manometer is used for measuring the actual airflow and is simply a more sensitive way of using a manometer, what is of interest is still the height the fluid moves up vertically.
Test: Pressure Measuring Devices - Question 9

In the space above the mercury column in a barometer tube, the gauge pressure of the vapour is

Detailed Solution for Test: Pressure Measuring Devices - Question 9

Concept:
The barometer is an instrument used to measure the pressure of air. There are two typed of barometers, the mercury manometer and, aneroid barometer.
Mercury barometer: In a mercury barometer a tube filled with mercury is placed upright with its open end down into a container of more mercury.
Air pressure on the mercury in the container keeps the mercury from draining out of the tube.
Aneroid barometer: An aneroid barometer uses a flexible metal bellows instead of mercury to measure air pressure.
Calculation:
The gauge pressure = Pabs - Patm
At atmospheric pressure the gauge pressure = 0

Now if we write the equation for pressure in vertical column then,
Patm – ρm × g × h – Pvapour = 0
⇒ Patm = ρm × g × h + Pvapour
Now Since At atmospheric pressure the gauge pressure = 0
(Pvapour­)gauge = -ρm × g × h
∴ Gauge pressure of vapour will be negative.

Test: Pressure Measuring Devices - Question 10

A U - tube manometer

Detailed Solution for Test: Pressure Measuring Devices - Question 10

U-tube Manometer:
(i) It consists of a glass tube in U shape, one end of which connected to the gauge point and another end open to the atmosphere.
(ii) The tube contains a liquid of specific gravity greater than that of the fluid of which the pressure is to be measured.
(iii) The choice of the manometric liquid depends on the range of pressure to be measured For the low-pressure range, liquid of lower SG is used and for the high range, generally, mercury is used.
(iv) A U-tube manometer is used inverted if the pressure differential is small (density of the manometric fluid is less than fluid) and A U-tube manometer is used upright if the pressure differential is large (density of the manometric fluid is large)
Limitation:

  • This method requires reading of fluid level at two or more points since the change in pressure causes a rise in one limb and drop in another.
