Tower A is 90 m tall and tower B is 140 m tall. They are 100 m apart. A horizontal skywalk connects the floors at 70 m in both the towers. If a taut rope connects the top of tower A to the bottom of tower B, at what distance (in meters) from tower A will the rope intersect the skywalk?

The temperature �� in a room varies as a function of the outside temperature ��0 and the number of persons in the room ��, according to the relation �� = Κ (Θ�� + ��₀), where Θ and Κ are constants. What would be the value of Θ given the following data?

A fruit seller sold a basket of fruits at 12.5% loss. Had he sold it for Rs. 108 more, he would have made a 10% gain. What is the loss in Rupees incurred by the fruit seller?

The price of a wire made of a superalloy material is proportional to the square of its length. The price of 10 m length of the wire is Rs. 1600. What would be the total price (in Rs.) of two wires of lengths 4 m and 6m?

Which of the following function(s) is an accurate description of the graph for the range(s) indicated?

Consider a sequence of numbers  for each integer �� > 0. What is the sum of the first 50 terms?

 Each of the letters arranged as below represents a unique integer from 1 to 9. The letters are positioned in the figure such that (A × B × C), (B × G × E) and (D × E × F) are equal.Which integer among the following choices cannot be represented by the letters A, B, C, D, E, F or G?

Which one of the following matrices is singular?

For the given orthogonal matrix Q,

The inverse is

At the point x = 0, the function f(x) = x³ has

A column of height h with a rectangular cross-section of size a×2a has a buckling load of P. If the cross-section is changed to 0.5a × 3a and its height changed to 1.5h, the buckling load of the redesigned column will be

A steel column of ISHB 350 @72.4 kg/m is subjected to a factored axial compressive load of 2000 kN. The load is transferred to a concrete pedestal of grade M20 through a square base plate. Consider bearing strength of concrete as 0.45f_ck, where f_ck is the characteristic strength of concrete. Using limit state method and neglecting the self weight of base plate and steel column, the length of a side of the base plate to be provided is

The Le Chatelier apparatus is used to determine

The deformation in concrete due to sustained loading is

A solid circular beam with radius of 0.25 m and length of 2 m is subjected to a twisting moment of 20 kNm about the z-axis at the free end, which is the only load acting as shown in the figure. The shear stress component ��_xy at Point ‘M’ in the cross-section of the beam at a distance of 1 m from the fixed end is

Two rectangular under-reinforced concrete beam sections X and Y are similar in all aspects except that the longitudinal compression reinforcement in section Y is 10% more. Which one of the following is the correct statement?

The percent reduction in the bearing capacity of a strip footing resting on sand under flooding condition (water level at the base of the footing) when compared to the situation where the water level is at a depth much greater than the width of footing, is approximately

The width of a square footing and the diameter of a circular footing are equal. If both the footings are placed on the surface of sandy soil, the ratio of the ultimate bearing capacity of circular footing to that of square footing will be

Bernoulli’s equation is applicable for

 There are 20,000 vehicles operating in a city with an average annual travel of 12,000 km per vehicle. The NOx emission rate is 2.0 g/km per vehicle. The total annual release of NOx will be

A bitumen sample has been graded as VG30 as per IS : 73-2013. The ‘30’ in the grade means that

The speed-density relationship for a road section is shown in the figure.

 The shape of the flow-density relationship is

A well-designed signalized intersection is one in which the

A flow field is given by Value of the z-component of the angular velocity (in radians per unit time, up to two decimal places) at the point (0, −1, 1) is ______

The frequency distribution of the compressive strength of 20 concrete cube specimens is given in the table.

If �� is the mean strength of the specimens and �� is the standard deviation, the number of specimens (out of 20) with compressive strength less than �� − 3�� is ______

In a fillet weld, the direct shear stress and bending tensile stress are 50 MPa and 150 MPa, respectively. As per IS 800: 2007, the equivalent stress (in MPa, up to two decimal places) will be ______

 In a shrinkage limit test, the volume and mass of a dry soil pat are found to be 50 cm³ and 88 g, respectively. The specific gravity of the soil solids is 2.71 and the density of water is 1 g/cc. The shrinkage limit (in %, up to two decimal places) is _____

A core cutter of 130 mm height has inner and outer diameters of 100 mm and 106 mm, respectively. The area ratio of the core cutter (in %, up to two decimal places) is ______

A 1:50 model of a spillway is to be tested in the laboratory. The discharge in the prototype spillway is 1000 m³/s. The corresponding discharge (in m³/s, up to two decimal places) to be maintained in the model, neglecting variation in acceleration due to gravity, is ______

A 10 m wide rectangular channel carries a discharge of 20 m³/s under critical condition. Using g = 9.81 m/s², the specific energy (in m, up to two decimal places) is ______

For routing of flood in a given channel using the Muskingum method, two of the routing coefficients are estimated as C₀ = - 0.25 and C₁ = 0.55. The value of the third coefficient C₂ would be ______

A city generates 40×10⁶ kg of municipal solid waste (MSW) per year, out of which only 10% is recovered/recycled and the rest goes to landfill. The landfill has a single lift of 3 m height and is compacted to a density of 550 kg/m³. If 80% of the landfill is assumed to be MSW, the landfill area (in m2, up to one decimal place) required would be ______

 The value of the integral

A cantilever beam of length 2 m with a square section of side length 0.1 m is loaded vertically at the free end. The vertical displacement at the free end is 5 mm. The beam is made of steel with Young’s modulus of 2.0×10¹¹ N/m². The maximum bending stress at the fixed end of the cantilever is

A cylinder of radius 250 mm and weight, W = 10 kN is rolled up an obstacle of height 50 mm by applying a horizontal force P at its centre as shown in the figure.

All interfaces are assumed frictionless. The minimum value of P is

A plate in equilibrium is subjected to uniform stresses along its edges with magnitude  as shown in the figure.

The Young’s modulus of the material is 2×10¹¹ N/m² and the Poisson’s ratio is 0.3. If is negligibly small and assumed to be zero, then the strain ��_yyis

The figure shows a simply supported beam PQ of uniform flexural rigidity EI carrying two moments M and 2M.

The slope at P will be

A 0.5 m × 0.5 m square concrete pile is to be driven in a homogeneous clayey soil having undrained shear strength, c_u = 50 kPa and unit weight, γ = 18.0 kN/m³. The design capacity of the pile is 500 kN. The adhesion factor α is given as 0.75. The length of the pile required for the above design load with a factor of safety of 2.0 is

A closed tank contains 0.5 m thick layer of mercury (specific gravity = 13.6) at the bottom.A 2.0 m thick layer of water lies above the mercury layer. A 3.0 m thick layer of oil (specific gravity = 0.6) lies above the water layer. The space above the oil layer contains air under pressure. The gauge pressure at the bottom of the tank is 196.2 kN/m². The density of water is 1000 kg/m³ and the acceleration due to gravity is 9.81 m/s². The value of pressure in the air space is

A rapid sand filter comprising a number of filter beds is required to produce 99 MLD of potable water. Consider water loss during backwashing as 5%, rate of filtration as 6.0 m/h and length to width ratio of filter bed as 1.35. The width of each filter bed is to be kept equal to 5.2 m. One additional filter bed is to be provided to take care of break-down, repair and maintenance. The total number of filter beds required will be

A priority intersection has a single-lane one-way traffic road crossing an undivided twolane two-way traffic road. The traffic stream speed on the single-lane road is 20 kmph and the speed on the two-lane road is 50 kmph. The perception-reaction time is 2.5 s, coefficient of longitudinal friction is 0.38 and acceleration due to gravity is 9.81 m/s². A clear sight triangle has to be ensured at this intersection. The minimum lengths of the sides of the sight triangle along the two-lane road and the single-lane road, respectively will be

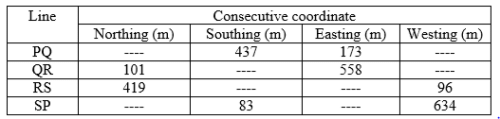

The following details refer to a closed traverse:

The length and direction (whole circle bearing) of closure, respectively are

A square area (on the surface of the earth) with side 100 m and uniform height, appears as 1 cm² on a vertical aerial photograph. The topographic map shows that a contour of 650 m passes through the area. If focal length of the camera lens is 150 mm, the height from which the aerial photograph was taken, is

The solution at x = 1, t = 1 of the partial differential equation  subject to initial conditions of

The solution (up to three decimal places) at x = 1 of the differential equation subject to boundary conditions

Variation of water depth (y) in a gradually varied open channel flow is given by the first order differential equation

Given initial condition: y(x = 0) = 0.8 ��. The depth (in m, up to three decimal places) of flow at a downstream section at x = 1 m from one calculation step of Single Step Euler Method is ______

An RCC short column (with lateral ties) of rectangular cross section of 250 mm × 300 mm is reinforced with four numbers of 16 mm diameter longitudinal bars. The grades of steel and concrete are Fe415 and M20, respectively. Neglect eccentricity effect. Considering limit state of collapse in compression (IS 456 : 2000), the axial load carrying capacity of the column (in kN, up to one decimal place), is ______

An RCC beam of rectangular cross section has factored shear of 200 kN at its critical section. Its width b is 250 mm and effective depth d is 350 mm. Assume design shear strength of concrete as 0.62 N/mm² and maximum allowable shear stress in concrete as 2.8 N/mm². If two legged 10 mm diameter vertical stirrups of Fe250 grade steel are used, then the required spacing (in cm, up to one decimal place) as per limit state method will be ______

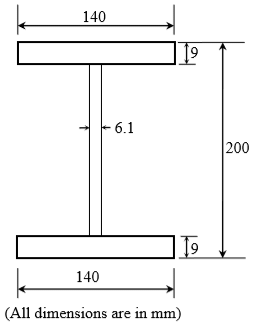

The dimensions of a symmetrical welded I-section are shown in the figure.

The plastic section modulus about the weaker axis (in cm³, up to one decimal place) is ______

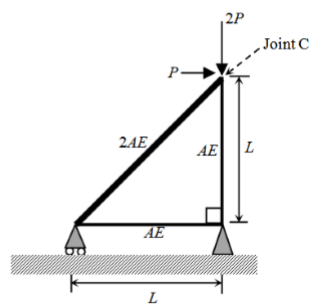

Consider the deformable pin-jointed truss with loading, geometry and section properties as shown in the figure.

Given that E = 2×10¹¹ N/m², A = 10 mm², L = 1 m and P = 1 kN. The horizontal displacement of Joint C (in mm, up to one decimal place) is ______

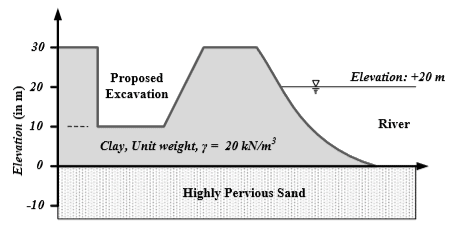

At a construction site, a contractor plans to make an excavation as shown in the figure.

The water level in the adjacent river is at an elevation of +20.0 m. Unit weight of water is 10 kN/m³. The factor of safety (up to two decimal places) against sand boiling for the proposed excavation is ______

A conventional drained triaxial compression test was conducted on a normally consolidated clay sample under an effective confining pressure of 200 kPa. The deviator stress at failure was found to be 400 kPa. An identical specimen of the same clay sample is isotropically consolidated to a confining pressure of 200 kPa and subjected to standard undrained triaxial compression test. If the deviator stress at failure is 150 kPa, the pore pressure developed (in kPa, up to one decimal place) is ______

The void ratio of a soil is 0.55 at an effective normal stress of 140 kPa. The compression index of the soil is 0.25. In order to reduce the void ratio to 0.4, an increase in the magnitude of effective normal stress (in kPa, up to one decimal place) should be ______

A rigid smooth retaining wall of height 7 m with vertical backface retains saturated clay as backfill. The saturated unit weight and undrained cohesion of the backfill are 17.2 kN/m³ and 20 kPa, respectively. The difference in the active lateral forces on the wall (in kN per meter length of wall, up to two decimal places), before and after the occurrence of tension cracks is ______

Rainfall depth over a watershed is monitored through six number of well distributed rain gauges. Gauged data are given below

The Thiessen mean value (in mm, up to one decimal place) of the rainfall is ______

The infiltration rate f in a basin under ponding condition is given by  where, f is in mm/h and t is time in hour. Total depth of infiltration (in mm, up to one decimal place) during the last 20 minutes of a storm of 30 minutes duration is ______

In a laboratory, a flow experiment is performed over a hydraulic structure. The measured values of discharge and velocity are 0.05 m³/s and 0.25 m/s, respectively. If the full scale structure (30 times bigger) is subjected to a discharge of 270 m³/s, then the time scale (model to full scale) value (up to two decimal places) is ______

A water sample analysis data is given below.

The carbonate hardness (expressed as mg/L of CaCO₃, up to one decimal place) for the water sample is ______

The ultimate BOD (��₀) of a wastewater sample is estimated as 87% of COD. The COD of this wastewater is 300 mg/L. Considering first order BOD reaction rate constant k (use natural log) = 0.23 per day and temperature coefficient θ = 1.047, the BOD value (in mg/L, up to one decimal place) after three days of incubation at 27^oC for this wastewater will be ______

A waste activated sludge (WAS) is to be blended with green waste (GW). The carbon (C) and nitrogen (N) contents, per kg of WAS and GW, on dry basis are given in the table.

The ratio of WAS to GW required (up to two decimal places) to achieve a blended C:N ratio of 20:1 on dry basis is ______

Given the following data: design life n = 15 years, lane distribution factor D = 0.75, annual rate of growth of commercial vehicles r = 6%, vehicle damage factor F = 4 and initial traffic in the year of completion of construction = 3000 Commercial Vehicles Per Day (CVPD). As per IRC:37-2012, the design traffic in terms of cumulative number of standard axles (in million standard axles, up to two decimal places) is ______

An aircraft approaches the threshold of a runway strip at a speed of 200 km/h. The pilot decelerates the aircraft at a rate of 1.697 m/s² and takes 18 s to exit the runway strip. If the deceleration after exiting the runway is 1 m/s², then the distance (in m, up to one decimal place) of the gate position from the location of exit on the runway is ______
