UGC NET Paper 2 Computer Science Mock Test - 2 - UGC NET MCQ

Cohesion is a natural extension of the information hiding concept. A module that performs tasks that are related logically is logically cohesive. When a module contains tasks that are related by the fact that all must be executed with the same span of time, the module exhibits temporal cohesion.

Transmission rate = frame rate * no of bits in a slot.

Frame rate = 4000 frames per second

# of bits in a slot = 8 bit

TDM = 4000 × 8 bps = 32 Kbps.

So, option (C) is correct.

let X = 2³ = 8 = 1000

then X - 1 = 7 = 0111

now X&(X - 1) = 0000

(here & is bitwise AND = If both bits in the compared position of the bit patterns are 1, the bit in the resulting bit pattern is 1, otherwise 0)

So answer is B.

Explanation:

In a cathode ray tube (CRT), the intensity of the electron beam is regulated by the control grid.

• The control grid is a negatively charged wire mesh that is located between the cathode and the anode of the CRT.
• The control grid is used to control the flow of electrons from the cathode to the anode.
• When a high negative voltage is applied to the control grid, it attracts the electrons being emitted by the cathode and allows them to pass through to the anode. As a result, the intensity of the electron beam is increased.
• On the other hand, when a low negative voltage is applied to the control grid, it repels the electrons and blocks their passage to the anode, decreasing the intensity of the electron beam.

Additional Information

Focusing Anode - The focusing anode is a component of the CRT that is used to focus the electron beam onto a small spot on the fluorescent screen. The focusing anode is typically shaped like a cylinder or a conical pyramid, with a hole or a depression at the tip to focus the electron beam.

Heating Filament- In a cathode ray tube (CRT), the heating filament is a small wire that is used to heat the cathode, which is a negatively charged electrode located at one end of the CRT.

Accelerating Anode- In a cathode ray tube (CRT), the accelerating anode is a positively charged electrode located at the other end of the CRT, opposite the cathode. The cathode is a negatively charged electrode that is responsible for emitting a stream of electrons.

Both S1 and S2 are correct statements about compilers.

S1: It is a system software to convert source language program into target language program.

1. A compiler is a system software that is used to convert source code written in a high-level programming language like C, C++, Java, Python, etc., into machine language (binary code) that can be executed by the computer's hardware.
2. The compiler translates the source code into an intermediate form (assembly code), and then into machine language, which can be understood by the computer's CPU.
3. The process of translating high-level code into machine language is called compilation.

S2: It validates the input program to the source language specification – produces error messages /warnings.

1. When a program is written in a programming language, it has to confirm to a specific set of rules and syntax.
2. The compiler validates the input program to the source language specification and produces error messages and warnings if the program violates any of the rules or syntax.
3. For example, if a program tries to use an undefined variable, the compiler will produce an error message indicating that the variable is undefined.
4. Similarly, if the program contains syntax errors like missing semicolons or parentheses, the compiler will generate error messages and prevent the program from being compiled.

let's take an example to understand the role of a compiler in converting source code into machine code and detecting errors.

Suppose we have the following C program:

#include <stdio.h>

int main() {
printf("Hello, World!");
return 0;
}

This program is written in C language and is intended to display the text "Hello, World!" on the screen when executed.

When we run this program, the compiler will perform the following steps:

• The preprocessor will include the header file stdio.h, which contains the standard input/output library functions.
• The compiler will analyze the syntax of the program to ensure that it conforms to the rules and syntax of the C language.
• If there are any syntax errors, the compiler will produce an error message and stop the compilation process.

For example, if we misspelled printf as print, the compiler would produce the following error message:

error: implicit declaration of function ‘print’

• If there are no syntax errors, the compiler will translate the C code into an intermediate language called assembly language. This process is called assembly.
• Finally, the assembler will convert the assembly code into machine code, which can be executed by the computer's hardware. This process is called linking.

If there are any errors or warnings detected during any of these steps, the compiler will report them to the programmer.

For example, if we forgot to include the stdio.h header file, the compiler would produce the following warning message:

warning: implicit declaration of function ‘printf’

• By reporting errors and warnings,
• the compiler helps the programmer to identify and fix problems in their code,
• making the process of developing software more efficient and reliable.

The correct answer is option 4.

Concept:

​Plagiarism:

Plagiarism is when you promote someone else's work or ideas as your own, with or without their permission, by combining them into your work without giving them full acknowledgment.

If we copy some content from the Internet but do not mention the source or the original creator, then it is considered an act of plagiarism.

Hence the correct answer is Plagiarism.

Additional Information

• Hacking is the act of unauthorized access to a computer, computer network, or any digital system. Hackers usually have the technical expertise in hardware and software.
• Identity thieves increasingly use personal information stolen from computers or computer networks, to commit fraud by using the data gained unlawfully.
• Cyberbullying is bullying with the use of digital technologies. It can take place on social media, messaging platforms, gaming platforms, and mobile phones.

The correct answer is option 2.

Concept:

Machine learning may be categorized into four categories:

Supervised Machine Learning:

Supervised learning, often known as supervised machine learning, is artificial intelligence and machine learning subcategory. Its use of labeled datasets to train algorithms that properly categorize data or predict outcomes defines it.

Supervised Learning techniques, such as regression and classification, are used to predict in Machine Learning and operate with labeled datasets.

Unsupervised Machine Learning:

Unsupervised learning, also known as unsupervised machine learning, analyses and clusters unlabeled information using machine learning techniques. Without the need for human interaction, these algorithms uncover hidden patterns or data groupings.

Semi-Supervised Machine Learning:

Semi-supervised machine learning combines the advantages of both supervised and unsupervised machine learning techniques. In supervised machine learning, you train a machine learning algorithm using a "labeled" dataset, where each record contains the outcome information.

Reinforcement Learning:

Reinforcement learning is a machine learning training method based on rewarding desired behaviors and/or punishing undesired ones.

Hence the correct answer is Supervised Machine Learning.

The correct answer is option 1.

Key Points

Apply first cross-product then apply filter. Cross product yields 10 rows, then you play filter A.ID>40 or C.ID<15 produces 7 rows.

AUB= A.Id

12,15,25,98,99

|x| is cross product followed selection and projection.

Hence the correct answer is 7.

The attribute at the left-hand subscript of G indicates that the input relation deposit_schema must be divided into groups based on the value of branch_name.

0 3 4 8 10 15

Completion time of P2 is 15.

0 3 9 11 15

P1 is in system for: 0-3 => 3

P2 is in system for: 1-9=>8

P3 is in system for: 4-15=>11

P4 is in system for: 6-11=>5

Average turnaround time = 27/4 = 6.75

0 3 4 8 10 15

Waiting time of P3 is 0

The correct answer is option 1.

Concept:

The interrupt is a signal emitted by hardware or software when a process or an event needs immediate attention. It alerts the processor to a high-priority process requiring interruption of the current working process.

Option 1: If a process is interrupted during system call handling then the OS will crash.

False, If a process is interrupted during a system call then the system call was interrupted and the system call returned an error so definitely OS will not crash.

Option 2: If a process is interrupted during system call handling then the process is moved to the READY queue.

False, When a process is interrupted, that process is transferred to the waiting queue. If the process has been completed or aborted, the process is discarded. In either case, the dispatcher then selects a process from the queue to execute.

Option 3: If an interrupt handler is interrupted, the OS will crash.

False, If an interrupt handler is interrupted, such kernel control paths may be arbitrarily nested an interrupt handler may be interrupted by another interrupt handler, thus giving rise to a nested execution of kernel threads.

Hence the correct answer is none of the above.

Fragmentation: It is a situation or problem occurring in operating system where many processes are loaded and unloaded in the memory which results in more and more fragmented pieces of memory. And then a time comes when the total available memory is more than the required memory for a process but since it is not contiguous, it is useless.

Advantages of Fragmentation:

1. Fast Data Writes: With fragmentation present in the memory, data writing turns out to be faster as in the other cases, reorganising the data storage to enable contiguous data writes wastes a lot of time.
2. Fewer Failures: There has to be sufficient space in the memory so that when data writes are done, write shouldn't fail. This probability is much higher in systems which don't support fragmentation.
3. Stable Optimisation: Sometimes, processes arrive in such a way that fragmented systems potentially make better use of a storage device by utilising every available storage block.

Disadvantages of Fragmentaion:

1. Need of regular defragmentation: With time, the performance of the storage device will reduce significantly which will further require for time consuming defragmentation processes.
2. Slower Read Times: If the storage device or memory becomes more and more fragmented, it will take equivalently more time to read the non-sequential data from the memory.

Instruction size = 2 byte = 16 bits

Addressing mode = 1 bit

operand = 1 byte = 8 bits

Instruction size = Addressing mode + opcode + operand

16 = 1 + opcode + 8

∴ opcode = 7 bits

Instruction code format:

The correct answer is Pixel.

Key Points

• Pixel stands for "Picture Element."
• Pixel is also known as "PEL."
• Pixel is the smallest element of an image on a computer display.
• It includes both types of display that is LCD or CRT monitors.
• A screen is made up of a matrix of thousands or millions of pixels.
• It is represented with a dot or a square on a computer screen.
• Each pixel has a unique logical address.
• It can have a single color at a time.
• The Colour of a pixel is determined by the number of bits which is used to represent it.
• A resolution of a computer screen depends upon the graphics card and display monitor, the quantity, size and color combination of pixels.
• When an image has zoomed in, the surface of the image will look like filled dots and these dots are light receptors called photodiode.
• These dots are known as pixels.

The output is given by:

F = P'Q' + P'QR + PQR'

= P'[Q' + QR] + PQR'

= P'[Q' + Q][Q' + R] + PQR'

= P'[Q' + R] + PQR'

= P'Q' + P'R + PQR'

The correct answer is A → 4, B → 2, C→ 1, D → 3

Additional Information

• The data stored in the database at a particular moment of time is called an instance of the database
• A database schema is the skeleton structure that represents the logical view of the entire database
• Metadata is the data information that provides information about the other data
• A database model is a type of data model that determines the logical structure of a database and fundamentally determines in which manner data can be stored, organized and manipulated

• During DMA the CPU is idle and it has no control over the memory buses. The DMA controller takes over the buses to manage the transfer directly between the I/O devices and the memory unit.
• Bus Request: It is used by the DMA controller to request the CPU to relinquish the control of the buses.
• Bus Grant: It is activated by the CPU to inform the external DMA controller that the buses are in high impedance state and the requesting DMA can take control of the buses.
• After the completion of the DMA transfer, the processor is notified by an interrupt signal.
• The Controller uses the registers to store the starting address, word count and the status of the operation.

• The integer data type can hold values from 0 to 4294967295, so it can hold a 10-digit number.
• The double and float data types hold numbers with decimal points. Since a phone number will not have a decimal point, using this data type will represent the phone numbers incorrectly.
• The varchar and char data types can store alphabets, numbers and special characters. So, it can be used as the data type for a column intended to hold phone numbers.

Important points:

If an integer number is inserted in a double or float type column, the number will be followed by a .00 by default. This is an incorrect representation of a phone number.

Concept:

Rules to find number of tables for ER diagram:

1. A strong entity with simple or composite attribute requires one table.

2. Strong entity with multivalued attribute requires two tables.

3. A relationship set will require one table in relational table.

4. Many to many relationship require one table.

5. if there is total participation between two entities then only single table is required.

Explanation:

For the given ER diagram, minimum 5 tables are required namely:

BR₁R₄R₅ (b₁, b₂, a₁, c₁, d₁) where a₁, c₁ and d₁ are the foreign keys.

A (a₁, a₂)

R₂(a₁, c₁) where both are the foreign keys. As it is a many to many relation

D (d₁, d₂)

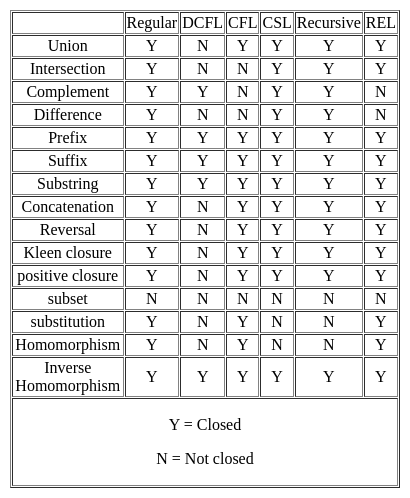

Pumping Lemma is to be applied to show that certain languages are not regular. It should never be used to show a language is regular. If L is regular, it satisfies Pumping Lemma. If L does not satisfy Pumping Lemma, it is non-regular.

• The minimum pumping length must always be greater than 0, even if there are no strings in the language.
• Pumping lemma satisfy regular language.
• Pumping lemma also satisfies CFLs.
• Proves why non-regular grammar is non-regular.

Hence the correct answer is to prove that certain sets are not regular.

Simplex method: It is a step by step method in which solution is started with initial feasible solution and in the next step the initial feasible solution is improved, the steps are repeated until the optimum solution is reached.

Following are the set of variables in Simplex Method.

• Artificial Variable
  • This variable is introduced in case of greater than or equal to type constraint to not violate the non-negativity constraint.
• Basic Variables
  • They can be defined as the variables which can take any value other than zero.
• Non basic Variables
  • This variable is not in the basic solution and is having the value zero.
• Slack Variable
  • This variable is introduced in the simplex method to eliminate less-than (<) constraints.
• Surplus Variable
  • This variable is introduced in the simplex method to eliminate greater-than (>) constraints.

A simplex table is shown below for example for the given objective function and constraints

Maximize Z = 4 x1 + 6 x2 + x3

Subject to 2 x1 - x2 + 3 x3 ≤ 5

x₂ ≤ 2

x₁, x₂, x₃ ≥ 0

Following are the special cases of simplex method:

Under Simplex Method, the existence of multiple optimal solutions is indicated by a situation under which a non-basic variable in the final simplex table showing optimal solution to a problem, has a net zero contribution.

Optimal solution: If at least one of the non-basic variable in the (Cj- Zj) row of the final simplex table has a zero value, it indicates that there is more than one optimal solution.

Unbounded solution: If all the replacement rations, bi/ai (ai – key column or pivot column coefficient are negative) then it is the solution is unbounded.

Infeasible solution: If artificial variables are present in the base, then the solution obtained is infeasible.

Degenerate solution: If some of the values in the constant column (bi) are zero, then the solution becomes degenerate.

To cover 0, 10 min terms,

This statement is correct. Consider an example: x – is a number. P(x) denotes x is even and Q(x) denotes x is odd.

∀x P(x) ∨ ∀xQ(x) - it means for all numbers x is even or for all numbers x is odd.

∀x(P(x) ∨ Q(x)) – it means for all x, x is either odd or even.

From this, it is clear that both these are not logically equivalent.

S2: ∃x P(x) ∧ ∃x Q(x) and ∃x (P(x) ∧ Q(x)) are not logically equivalent

This statement is correct.  Consider the same example as of first case.

∃x P(x) ∧ ∃x Q(x) – It means there exists a number which is odd and there exists a number which is even also which is true.

∃x (P(x) ∧ Q(x)) - It means, there exists a number which is both even and odd which is not possible. It is false.

So, these are not logically equivalent.

Hive also supports custom extensions written in Java, including user-defined functions (UDFs) and serializer-deserializers for reading and optionally writing custom formats. Hive allows users to read, write, and manage petabytes of data using SQL. Hive is built on top of Apache Hadoop, which is an open-source framework used to efficiently store and process large datasets. As a result, Hive is closely integrated with Hadoop and is designed to work quickly on petabytes of data.

If the partial order has at most one minimal element, or it has at most one maximal element, then to test whether a partial order with multiple sources and sinks can be drawn as a crossing-free Hasse diagram or not it’s time complexity is NP-complete.

Computer Bus provides the highest data rate to an individual device. The Computer Bus is a communication link used in a computer system to send the data, addresses, control signals, and power to various components in a computer system. The computer buses are used to connect the various hardware components that are part of the computer system.
