RCFL MT Mechanical Mock Test - 9 - Mechanical Engineering MCQ


Test Description

30 Questions MCQ Test RCFL MT Mechanical Mock Test Series 2025 - RCFL MT Mechanical Mock Test - 9

RCFL MT Mechanical Mock Test - 9 for Mechanical Engineering 2025 is part of RCFL MT Mechanical Mock Test Series 2025 preparation. The RCFL MT Mechanical Mock Test - 9 questions and answers have been prepared according to the Mechanical Engineering exam syllabus.The RCFL MT Mechanical Mock Test - 9 MCQs are made for Mechanical Engineering 2025 Exam. Find important definitions, questions, notes, meanings, examples, exercises, MCQs and online tests for RCFL MT Mechanical Mock Test - 9 below.
Solutions of RCFL MT Mechanical Mock Test - 9 questions in English are available as part of our RCFL MT Mechanical Mock Test Series 2025 for Mechanical Engineering & RCFL MT Mechanical Mock Test - 9 solutions in Hindi for RCFL MT Mechanical Mock Test Series 2025 course. Download more important topics, notes, lectures and mock test series for Mechanical Engineering Exam by signing up for free. Attempt RCFL MT Mechanical Mock Test - 9 | 100 questions in 90 minutes | Mock test for Mechanical Engineering preparation | Free important questions MCQ to study RCFL MT Mechanical Mock Test Series 2025 for Mechanical Engineering Exam | Download free PDF with solutions
RCFL MT Mechanical Mock Test - 9 - Question 1

Lowering the evaporator pressure in a vapour compression cycle

Detailed Solution for RCFL MT Mechanical Mock Test - 9 - Question 1
Decrease evaporator pressure.

C.O.P decreases as work input increases. C.O.P =

RCFL MT Mechanical Mock Test - 9 - Question 2

Consider the following w.r.t. the circuit as shown below


1. VR 100√ 2V=
2. | I |rms = 2A
3. L = 0.25H
Which of the above statements is/are correct?

Detailed Solution for RCFL MT Mechanical Mock Test - 9 - Question 2

RCFL MT Mechanical Mock Test - 9 - Question 3

The dimensions of dynamic viscosity μ are

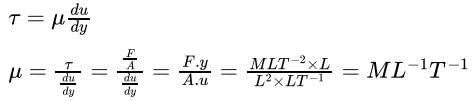

Detailed Solution for RCFL MT Mechanical Mock Test - 9 - Question 3

The unit of dynamic viscosity is kg/(m.sec), and the dimension is ML-1T-1

RCFL MT Mechanical Mock Test - 9 - Question 4

The coefficient of discharge, Cd in terms of Cv and Cc is given by (Notations have their usual meaning)-

Detailed Solution for RCFL MT Mechanical Mock Test - 9 - Question 4
The coefficient of discharge (Cd) is given by

Cd = Cc × Cv

Where,

Cc = Coefficient of contraction

Cv = Coefficient of velocity

RCFL MT Mechanical Mock Test - 9 - Question 5

The reason for getting the velocity fixed by the raindrop is-

Detailed Solution for RCFL MT Mechanical Mock Test - 9 - Question 5

Gravity does cause things to fall with increasing speed, but as they speed up, the viscous force due to air increases. Eventually, the viscous force due to air is enough to balance the force of gravity, so the acceleration stops, and the raindrop reaches a constant terminal velocity.

RCFL MT Mechanical Mock Test - 9 - Question 6

Two particles, each of mass m, collide head-on when their speeds are 2u and u. If they stick together on impact, find their combined speed in terms of u.

Detailed Solution for RCFL MT Mechanical Mock Test - 9 - Question 6

Conservation of linear momentum:

m1u1 + m2u2 = (m1 + m2) V

m(2u) + m(-u) = (2m) V

mu = 2mV

V = u/2

RCFL MT Mechanical Mock Test - 9 - Question 7

Which one of the following is a single-point cutting tool?

Detailed Solution for RCFL MT Mechanical Mock Test - 9 - Question 7

Cutting tools may be classified according to the number of major cutting edges (points) involved as follows:

• Single point: e.g., turning tools, shaping, planning, and slotting tools (parting tool), and boring tools

• Double (two) point: e.g., drills

• Multipoint (more than two): e.g., milling cutters, broaching tools, hobs, gear shaping cutters, etc.

RCFL MT Mechanical Mock Test - 9 - Question 8

For 450 m head of water,...... shall be used.

Detailed Solution for RCFL MT Mechanical Mock Test - 9 - Question 8

Correct Answer :- a

Explanation : For 450 m head of water, Pelton wheel shall be used.

A Pelton turbine or Pelton wheel is a type of hydro turbine (specifically an impulse turbine) used frequently in hydroelectric plants. These turbines are generally used for sites with heads greater than 300 meters.

The water in a Pelton turbine is moving quickly and the turbine extracts energy from the water by slowing the water down, which makes this an impulse turbine.

RCFL MT Mechanical Mock Test - 9 - Question 9

Mathematical expression for Modulus of Resilience is_______. (E is Young’s Modulus, ϵ is strain)

Detailed Solution for RCFL MT Mechanical Mock Test - 9 - Question 9
Strain Energy of the member is defined as the internal work done in deforming the body by the action of externally applied forces.

Resilience is defined as the capacity of a strained body for doing work on the removal of the straining force.

Proof resilience is defined as the maximum strain energy stored in a body. So, it is the quantity of strain energy stored in a body when strained up to an elastic limit (ability to store or absorb energy without permanent deformation).

Modulus of resilience is defined as proof resilience per unit volume. It is the area under stress–strain curve up to the elastic limit.

RCFL MT Mechanical Mock Test - 9 - Question 10

Which of the following is true for a self-locking screw?

Detailed Solution for RCFL MT Mechanical Mock Test - 9 - Question 10
For a self - locking screw, the coefficient of friction is equal to or greater than the tangent of the helix angle.

In the Power screw, the torque Mt required to lower the load is given by

Mt = Wdm/2 tan (ϕ−α) where, W = load on the screw in N, dm = the mean diameter of the screw-in m,

ϕ = friction angle and α = helix angle

Case 1. when ϕ ≥ α

tan (ϕ - α ) ≥ 0, thus Mt ≥ 0.

i.e., positive torque is required to lower the load. Thus the load will not turn the screw and will not descend on its own unless an effort is applied.

Such cases of screws are known as 'Self-locking screws.’ And the screw will hold the hold without any application of the brake.

Also, as ϕ ≥ α

tan ϕ ≥ tan α

Case 2. when ϕ < />

tan (ϕ - α ) < 0,="" thus="" />t < />

i.e., negative torque is required to lower the load. The load will turn down the screw and will descend on its own unless a restoring torque is required to hold the load.

Such cases of screws are known as 'overhauling of the screw' or back drawing of the screw.

RCFL MT Mechanical Mock Test - 9 - Question 11

Evaluate the following limit:

Detailed Solution for RCFL MT Mechanical Mock Test - 9 - Question 11

RCFL MT Mechanical Mock Test - 9 - Question 12

Efficiency of a Carnot engine is 75%. If the cycle direction is reversed, COP of the reversed Carnot cycle is

Detailed Solution for RCFL MT Mechanical Mock Test - 9 - Question 12



RCFL MT Mechanical Mock Test - 9 - Question 13

Figure out the odd point in the following

Detailed Solution for RCFL MT Mechanical Mock Test - 9 - Question 13

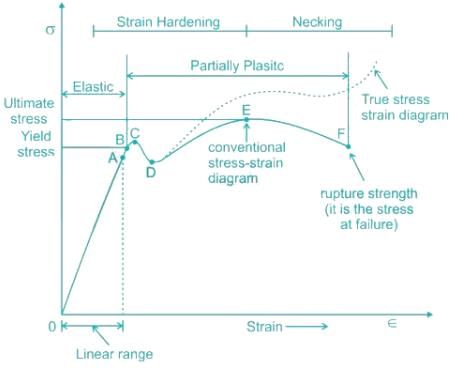

Proportional limit, Elastic limit, and yield point are points before metal failure, but fracture point is a point of failure where metal fractures.

  • So it is evident from the graph that the strain is proportional to stress or elongation is proportional to the load giving a straight-line relationship. This law of proportionality is valid up to a point A. Point A is known as the limit of proportionality or the proportionality limit.
  • For a short period beyond point A, the material may still be elastic in the sense that the deformations are completely recovered when the load is removed. The limiting point B is termed as Elastic Limit.
  • Beyond the elastic limit, plastic deformation occurs, and strains are not totally recoverable. There will be thus permanent deformation or permanent set when the load is removed. These two points are termed upper and lower yield points, respectively. The stress at the yield point is called the yield strength.
  • A further increase in the load will cause marked deformation in the whole volume of the metal. The maximum load which the specimen can withstand without failure is called the load at the ultimate strength. The highest point ‘E' of the diagram corresponds to the ultimate strength of a material.
  • Beyond point E, the bar begins to form the neck. The load falls from the maximum until a fracture occurs at F.

RCFL MT Mechanical Mock Test - 9 - Question 14

DirectionsIn questions given below out of four alternatives, choose the one which can be substituted for the given word/sentence.

Q. Extreme old age when a man behaves like a fool.

Detailed Solution for RCFL MT Mechanical Mock Test - 9 - Question 14

One word substitution is Dotage.

Imbecility: Stupid or insane behaviour.

Youth: The period between childhood and adult age.

Dotage: The period of life in which a person is old and weak, especially with some loss of mental ability.

Superannuation: Regular payment made into a fund by an employee towards a future pension.

RCFL MT Mechanical Mock Test - 9 - Question 15

Find out the Synonym of the following word:

CONSEQUENCES

Detailed Solution for RCFL MT Mechanical Mock Test - 9 - Question 15
  • Consequences are results of something that already had happened whereas conclusions are the final verdits of discussions or ideas.
  • Results: something that happens because of something else; the final situation at the end of a series of actions
  • Conclusions: an opinion that you reach after thinking about something carefully
  • Difficulties: the state or condition of being difficult
  • Applications: the action of putting something into operation.

Hence Correct Answer is Option A

RCFL MT Mechanical Mock Test - 9 - Question 16

No one suspected that Jerry was a spy. On the surface he behaved like any normal citizen. When his covert activity was discovered and announced to the world, we were all shocked. What does "covert" means?

Detailed Solution for RCFL MT Mechanical Mock Test - 9 - Question 16

Covert means not openly acknowledged or displayed

Synonyms: secret, furtive, clandestine, surreptitious, stealthy

We cannot win in Afghanistan while Pakistan gives covert support to the Taliban
The climax of the book, a covert operation in Iran, is flaccid and unconvincing
Legally, it will be a deniable covert action which will put the CIA in the lead

RCFL MT Mechanical Mock Test - 9 - Question 17

Directions: In each of the following questions, a sentence has been given in Active (or Passive) Voice. Out of the four alternatives suggested, select the one that best expresses the same sentence in Passive/ Active Voice.

I expect you to complete this work before sunset.

Detailed Solution for RCFL MT Mechanical Mock Test - 9 - Question 17

The given sentence is in the active voice: "I expect you to complete this work before sunset."

The correct transformation of this sentence into the passive voice is: "You are expected to complete this work before sunset."

Therefore, the correct answer is option B: "You are expected to complete this work before sunset."

RCFL MT Mechanical Mock Test - 9 - Question 18

The average of 100 numbers is 210. The average of these 100 numbers and 20 other new numbers is 200. What is the average of 20 new numbers?

Detailed Solution for RCFL MT Mechanical Mock Test - 9 - Question 18



Sum of 100 numbers =100×210=21000
Sum of 120 numbers =120×200=24000
Sum of 20 numbers =24000−21000=3000
∴ Average of 20 new numbers =3000/20=150


Hence, Option D is correct.

RCFL MT Mechanical Mock Test - 9 - Question 19

In the following figure, ∠B : ∠C = 2 : 3, find ∠B + ∠C.

Detailed Solution for RCFL MT Mechanical Mock Test - 9 - Question 19

∠DAC = ∠B + ∠C
(Exterior angle prop. of a Δ ABC)
According to question,
130° = 2A + 3A
5A = 130°
A = 26°
∴ ∠B = 52°; ∠C = 78°

RCFL MT Mechanical Mock Test - 9 - Question 20

Which of the following has the formula ½ (sum of parallel sides)×h

Detailed Solution for RCFL MT Mechanical Mock Test - 9 - Question 20

Area of Rectangle = Length * Breadth.
Area of Rhombus Using DiagonalsA = ½ × d1 × d2
Area of quadrilateral willl be calculated based on which type of quadriateral it is-
Area of trapezium willl be 1/2 (sum of Parallel sides )*height.

RCFL MT Mechanical Mock Test - 9 - Question 21

Which among these is the approximate value of π?

Detailed Solution for RCFL MT Mechanical Mock Test - 9 - Question 21

The number π  is a mathematical constant. Originally defined as the ratio of a circle's circumference to its diameter, it now has various equivalent definitions and appears in many formulas in all areas of mathematics and physics. It is approximately equal to 3.14159. It has been represented by the Greek letter "π" since the mid-18th century, though it is also sometimes spelled out as "pi". It is also called Archimedes' constant.

RCFL MT Mechanical Mock Test - 9 - Question 22

The difference between a number and 12.50% of the same number is 252. What is 44.44% of the number?

Detailed Solution for RCFL MT Mechanical Mock Test - 9 - Question 22





Hence, Option A is correct.

RCFL MT Mechanical Mock Test - 9 - Question 23

The product of 4 √6 and 3√24 is :-

Detailed Solution for RCFL MT Mechanical Mock Test - 9 - Question 23

4√6*3√24=4√6*3√2*√2*√*2*√3

=4√6*6√6

4*6*√6*√6=4*6*6=24*6=144

RCFL MT Mechanical Mock Test - 9 - Question 24

A candidate in an examination was asked to find  of a certain number. By mistake he found  of it. Thus, his answer was 25 more than the correct answer. The number was :

Detailed Solution for RCFL MT Mechanical Mock Test - 9 - Question 24

Let the required number be x.
As given,

RCFL MT Mechanical Mock Test - 9 - Question 25

Ramesh told Suresh, “Yesterday I defeated the only brother of the daughter of my grandmother”. Whom did Ramesh defeat?

Detailed Solution for RCFL MT Mechanical Mock Test - 9 - Question 25

Daughter of grandmother = Aunt
Aunt’s only brother = Father

RCFL MT Mechanical Mock Test - 9 - Question 26

Directions to Solve

In each of the following questions find out the alternative which will replace the question mark.

Question -

KeaC : CaeK :: XgmF : ?

Detailed Solution for RCFL MT Mechanical Mock Test - 9 - Question 26

First and fouth letters are interchanged while second and third letters are interchanged.

RCFL MT Mechanical Mock Test - 9 - Question 27

Direction: Study the following information carefully and answer the given questions besides.

Five students participated in a math test. Tarun scored more marks than Priyam but less than Rahul. Sagar neither scored 3rd highest nor scored lowest marks. Priyam scored more marks than Anurag. Sagar scored less marks than Tarun, who scored 87 marks.
Q. Who scored 2nd lowest marks?

Detailed Solution for RCFL MT Mechanical Mock Test - 9 - Question 27

From the common explanation, we get Sagar scored 2nd lowest marks.

Hence, Option D is correct.

References:

Tarun scored more marks than Priyam but less than Rahul.

Sagar neither scored 3rd highest nor scored lowest marks.

Priyam scored more marks than Anurag.

Sagar scored less than Tarun, who scored 87 marks.

Inferences:

From the above references, we get the following arrangements

Rahul > Tarun (87) > Priyam > Sagar > Anurag

RCFL MT Mechanical Mock Test - 9 - Question 28

Looking at a portrait of a man, Hari said, “His mother is the wife of my father’s son. Brothers and sisters I have none. At whose portrait was Hari looking?

Detailed Solution for RCFL MT Mechanical Mock Test - 9 - Question 28

Hari has no brother or sister.
So, he is his father’s only son, wife of Hari’s father’s son - Hari’s wife
Hari’s wife is the man’s mother.
Man is Hari’s son.

RCFL MT Mechanical Mock Test - 9 - Question 29
What is the sex ratio of Punjab?
Detailed Solution for RCFL MT Mechanical Mock Test - 9 - Question 29

The sex ratio of Punjab is 895.

  • The sex ratio in Punjab is 895 i.e. for every 1000 males which are below the national average of 940 according to the 2011 census.
  • In 2001 the female sex ratio in Punjab was 876 per 1000 males.
  • Punjab has a population of 2.77 Crores, an improvement from the figure of 2.44 Crore in 2001 census, according to data from Census 2011.
  • Punjab's total population as per the 2011 census is 27,743,338 of which 14,639,465 and 13,103,873 are male and female respectively.
  • Punjab's literacy rate has seen an upward trend and is 75.84% as per the census of the population in 2011.
  • Of that, male literacy stands at 80.44% while female literacy stands at 70.73%.
RCFL MT Mechanical Mock Test - 9 - Question 30

With the end of apartheid, who became the first President of South African Republic?

Detailed Solution for RCFL MT Mechanical Mock Test - 9 - Question 30
May 9, 1994, Nelson Mandela was unanimously elected president by the National Assembly, with Thabo Mbeki, deputy leader of the ANC and F.W. de Klerk as deputy presidents.
View more questions
10 tests
Information about RCFL MT Mechanical Mock Test - 9 Page
In this test you can find the Exam questions for RCFL MT Mechanical Mock Test - 9 solved & explained in the simplest way possible. Besides giving Questions and answers for RCFL MT Mechanical Mock Test - 9, EduRev gives you an ample number of Online tests for practice
Download as PDF
