GATE Mock Test Mechanical Engineering (ME) - 3 - Mechanical Engineering MCQ


Test Description

30 Questions MCQ Test GATE Mechanical (ME) Mock Test Series 2025 - GATE Mock Test Mechanical Engineering (ME) - 3

GATE Mock Test Mechanical Engineering (ME) - 3 for Mechanical Engineering 2024 is part of GATE Mechanical (ME) Mock Test Series 2025 preparation. The GATE Mock Test Mechanical Engineering (ME) - 3 questions and answers have been prepared according to the Mechanical Engineering exam syllabus.The GATE Mock Test Mechanical Engineering (ME) - 3 MCQs are made for Mechanical Engineering 2024 Exam. Find important definitions, questions, notes, meanings, examples, exercises, MCQs and online tests for GATE Mock Test Mechanical Engineering (ME) - 3 below.
Solutions of GATE Mock Test Mechanical Engineering (ME) - 3 questions in English are available as part of our GATE Mechanical (ME) Mock Test Series 2025 for Mechanical Engineering & GATE Mock Test Mechanical Engineering (ME) - 3 solutions in Hindi for GATE Mechanical (ME) Mock Test Series 2025 course. Download more important topics, notes, lectures and mock test series for Mechanical Engineering Exam by signing up for free. Attempt GATE Mock Test Mechanical Engineering (ME) - 3 | 65 questions in 180 minutes | Mock test for Mechanical Engineering preparation | Free important questions MCQ to study GATE Mechanical (ME) Mock Test Series 2025 for Mechanical Engineering Exam | Download free PDF with solutions
GATE Mock Test Mechanical Engineering (ME) - 3 - Question 1
Save

Find the wrong number in the series 7, 28, 63, 124, 215, 342, 511

Detailed Solution for GATE Mock Test Mechanical Engineering (ME) - 3 - Question 1
Clearly, the correct sequence is

(2)3 -1, (3)3-1, (4)3 -1, (5)3-1, (6)3-1, (7)3-1 (8)3-1

∴ 28 is wrong and should be replaced by (33-1) = 26

GATE Mock Test Mechanical Engineering (ME) - 3 - Question 2
Save

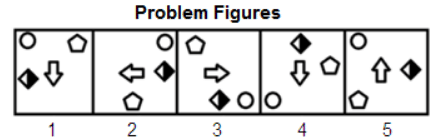

Directions: There are two sets of figures namely the problem figures, containing five figures 1, 2, 3, 4 and 5, and the answer figures (a), (b), (c) and (d). You have to select one figure from the answer figures which will continue the same series as given in the problem figures.



Detailed Solution for GATE Mock Test Mechanical Engineering (ME) - 3 - Question 2

Circle and Pentagon is moving by 2 places and 3 places respectively in clockwise direction. Shaded shape is moving by 4 and 2 places respectively in alternate shapes. Also, the arrow is moving by 90° and 180° clockwise in alternate steps.

1 Crore+ students have signed up on EduRev. Have you? Download the App
GATE Mock Test Mechanical Engineering (ME) - 3 - Question 3
Save

The question given below consists of a pair of related words followed by four pain of words. Select the pair that best expresses the relation in the original pair.

LEGEND : MAP ::

Detailed Solution for GATE Mock Test Mechanical Engineering (ME) - 3 - Question 3
(THINGE AND PURPOSE) A legend (meaning an explanatory list of symbols used in a map) explains the symbols used in a map; a glossary explains the technical terms used in a text.
GATE Mock Test Mechanical Engineering (ME) - 3 - Question 4
Save

In a certain code, BRAIN is written as *%÷#× and TIER is written as $#+%. How is RENT written in that code?
Detailed Solution for GATE Mock Test Mechanical Engineering (ME) - 3 - Question 4

The code for RENT is %+×$.

GATE Mock Test Mechanical Engineering (ME) - 3 - Question 5
Save

The average score of a cricketer in three matches is 22 runs and in two other matches it is 17 runs. Find the average in all the five matches.
Detailed Solution for GATE Mock Test Mechanical Engineering (ME) - 3 - Question 5
Total runs scored in 3 matches = 22 x3 = 66

next two matches runs =17 x2 = 34

now, total runs = 100

average of total five matches = 100/5 = 20

GATE Mock Test Mechanical Engineering (ME) - 3 - Question 6
Save

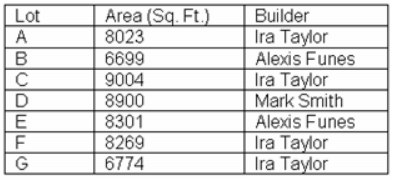

Directions: The table lists the size of building lots in the Orange Grove subdivision and the people who are planning to build on those lots. For each lot, installation of utilities costs $12,516. The city charges impact fees of $3,879 per lot. There are also development fees of 16.15 cents per square foot of land.

How much land does Mr. Taylor own in the Orange Grove subdivision?
Detailed Solution for GATE Mock Test Mechanical Engineering (ME) - 3 - Question 6
Look at the chart to see all of the land he owns

The total amount of land he owns is, 8023 + 9004 + 8269 + 6774 = 32070 square feet.

GATE Mock Test Mechanical Engineering (ME) - 3 - Question 7
Save

From a group of 7 men and 6 women, five persons are to be selected to form a committee so that at least 3 men are there on the committee in how many ways can it be done?
Detailed Solution for GATE Mock Test Mechanical Engineering (ME) - 3 - Question 7
We may have (3 men and 2 women) or (4men and 1 women) or (5 men only) Required number of ways

= (525 + 210 + 21) = 756

GATE Mock Test Mechanical Engineering (ME) - 3 - Question 8
Save

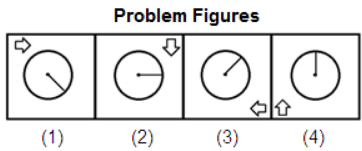

Directions: There are two sets of figures, namely the Problem Figures (1, 2, 3 and 4) and the Answer Figures (A, B, C and D). You have to select one figure from the Answer Figures which will continue the same pattern as established by the Problem Figures.
Detailed Solution for GATE Mock Test Mechanical Engineering (ME) - 3 - Question 8

In each step, the line inside the circle rotates 45° anticlockwise, while the arrow individually rotates 90° clockwise and also moves one side in the clockwise direction. Hence, Answer Figure (B) continues the series.

GATE Mock Test Mechanical Engineering (ME) - 3 - Question 9
Save

Team sports like baseball display strong socialist tendencies in their requirements of individual subordination to the authority of coaches and managers.

Which of the following conclusions may not be inferred from the above information?
Detailed Solution for GATE Mock Test Mechanical Engineering (ME) - 3 - Question 9

The sentence does not contain cue words which could help the reader identify premises and a conclusion. However, two sets of arguments may be identified

  • All team sports have socialist tendencies
  • Baseball is a team sport
  • Baseball has socialist tendencies

and

  • Individual subordination to authority is a form of socialism
  • All players in team sports are subordinate to their coaches
GATE Mock Test Mechanical Engineering (ME) - 3 - Question 10
Save

Walking at of his usual speed, a man reaches his destination two minutes early. What is the time taken by him to cover the same distance at his usual speed?
Detailed Solution for GATE Mock Test Mechanical Engineering (ME) - 3 - Question 10
The ratio of speeds before and after is 10 : 11. The ratio of time will be 11 : 10.

or,

He takes 1 unit less time now which is given as 2 minutes. The time taken will be 22 minutes at his usual speed.

GATE Mock Test Mechanical Engineering (ME) - 3 - Question 11
Save

Which among the following non-traditional machining process has the lowest specific power requirement?
Detailed Solution for GATE Mock Test Mechanical Engineering (ME) - 3 - Question 11
  • EDM has the lowest specific power requirement and can achieve sufficient accuracy
  • ECM has the highest metal removal rate
  • USM and AJM have low MRR and combined with high tool wear, are used for non-metal cutting
  • LBM and EBM have high penetration rates with low MRR and therefore, are commonly used for micro-drilling and sheet cutting.
GATE Mock Test Mechanical Engineering (ME) - 3 - Question 12
Save

Coriolis component acceleration exists whenever a point moves along a path that has:
Detailed Solution for GATE Mock Test Mechanical Engineering (ME) - 3 - Question 12
The total acceleration of a point with respect to another point in a rigid link is the vector sum of its normal (radial) and tangential components. This holds true when two bodies are in rolling contact, the point in one body that contacts the other body is instantaneously at rest relative to that body.

It implies velocity relative to that body is zero. If the point is no longer at rest relative to it, but rotates or slides, the total acceleration will contain one additional component called the Coriolis acceleration component.

GATE Mock Test Mechanical Engineering (ME) - 3 - Question 13
Save

Mild steel fails in a pronounced cup-cone fracture. If the percentage of carbon in steel is increased
Detailed Solution for GATE Mock Test Mechanical Engineering (ME) - 3 - Question 13
As percentage of carbon increases, the depth of cup becomes shallower until for high carbon steel it may completely disappear.
GATE Mock Test Mechanical Engineering (ME) - 3 - Question 14
Save

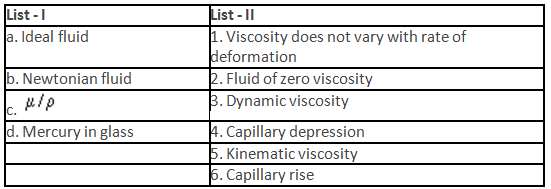

Match List - I (Properties of fluids) with List - II (Definition/Result) and select the correct answer using the codes given below:

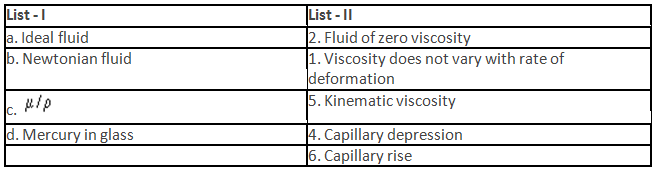

Detailed Solution for GATE Mock Test Mechanical Engineering (ME) - 3 - Question 14

*Multiple options can be correct
GATE Mock Test Mechanical Engineering (ME) - 3 - Question 15
Save

What is/are the main conditions to perform optimality test?
Detailed Solution for GATE Mock Test Mechanical Engineering (ME) - 3 - Question 15

For performing optimality test initial solution must be non-degenerate. For non-degenerate solution, total number of allocations must be exactly equal to (m + n - 1) and all of these allocations must be at independent positions.

GATE Mock Test Mechanical Engineering (ME) - 3 - Question 16
Save

Consider two metal plates pressed against each other. Other things being equal, which of the measures below will cause the thermal contact resistance to increase?
Detailed Solution for GATE Mock Test Mechanical Engineering (ME) - 3 - Question 16
When two metal plates are pressed against each other, the peaks form good material contact but the valleys form voids filled with air in most cases. As a result, an interface contains numerous air gaps of varying sizes that act as insulation because of the low thermal conductivity of air. Thus, an interface offers some resistance to heat transfer and this resistance for a unit interface area is called the thermal contact resistance. This resistance is observed to increase with increase in contact area by cleaning the surfaces to make them shinier.
GATE Mock Test Mechanical Engineering (ME) - 3 - Question 17
Save

A flywheel has mean kinetic energy of rotation equal to 100 Nm. If coefficient of fluctuation of speed is 0.012, the maximum fluctuation of energy in flywheel is
Detailed Solution for GATE Mock Test Mechanical Engineering (ME) - 3 - Question 17
Maximum fluctuation of energy in flywheel,

= Iω2 x CS

E = 1/2 Iω2

ΔE = 2E x CS

= 2 x 100 x 0.012

= 2.4 Nm

GATE Mock Test Mechanical Engineering (ME) - 3 - Question 18
Save

The singularity of esinz at z = ∞ is
Detailed Solution for GATE Mock Test Mechanical Engineering (ME) - 3 - Question 18
Since, |sin z| ≤ 1, the only singularity of esin z is at z = ∞. Thus, it is isolated essential singularity.
GATE Mock Test Mechanical Engineering (ME) - 3 - Question 19
Save

A hollow sphere has inner and outer surface areas of 2 m2 and 8 m2 respectively for a given temperature difference and heat flow across the surface. Considering the material of the sphere as a plane wall of the same thickness, the equivalent mean area normal to the direction of heat flow is
Detailed Solution for GATE Mock Test Mechanical Engineering (ME) - 3 - Question 19
Mean area for the sphere is geometric mean of inside and outside area.

GATE Mock Test Mechanical Engineering (ME) - 3 - Question 20
Save

Which of the following statements are correct?

  1. Steel and cast iron are multiphase alloys.

  2. Ferrite is a single phase interstitial solid solution of carbon in iron.

  3. Wrought iron is a highly refined iron with a small amount of slag which gives resistance to progressive corrosion.

  4. Satellite contains large amounts of metals like cobalt and tungsten resulting in high hardness.

Select the correct answer using the codes that follow.
Detailed Solution for GATE Mock Test Mechanical Engineering (ME) - 3 - Question 20

  • Steel and cast iron may contain ferrite and cementite; hence, they are multiphase alloys.

  • Ferrite is a single phase material which contains carbon at the interstitial site of iron atom, thus forming interstitial solid solution.

  • Wrought iron is a highly refined iron with uniformly distributed quantity of slag. The non-corrosive slag constituents causes wrought iron to be resistance to progressive corrosion.

  • The presence of slag produces a structure which diminishes the effect of fatigue caused by shock and vibration.

Co-based cast alloy is of trade name "Stellite".

It typically has the following composition:

Co: (38 – 52%)

Cr: (30 – 32%)

W: (10 – 12%)

C: (2%)

Its structure is composed of Co-matrix, in which W-Cr carbides are embedded with volume ratio of 25–30%. It has high hardness in the range of 58–64 HRC.

GATE Mock Test Mechanical Engineering (ME) - 3 - Question 21
Save

Which of the following method is sensitive to starting value, when solving an algebraic equation?
Detailed Solution for GATE Mock Test Mechanical Engineering (ME) - 3 - Question 21
Newton-Raphson method is sensitive to the starting value. If the initial guess is not sufficiently close to the root, then the method may not converge to the root.
GATE Mock Test Mechanical Engineering (ME) - 3 - Question 22
Save

A gating ratio of 1 : 2 : 5 is used to design the gating system for aluminium alloy casting.

The gating ratio 1 : 2 : 5 represents:
Detailed Solution for GATE Mock Test Mechanical Engineering (ME) - 3 - Question 22
Gating Ratio is defined as the ratio of sprue base area, followed by the total runner area and the total ingate area. The sprue base area is taken as unity.

So, 1 : 2 : 5 = Sprue base area : Runner area : Total ingate area.

*Answer can only contain numeric values
GATE Mock Test Mechanical Engineering (ME) - 3 - Question 23
Save

If a random variable follows Poisson distribution with mean 3, then V(2X + 5) = _________.

Detailed Solution for GATE Mock Test Mechanical Engineering (ME) - 3 - Question 23
Given mean = 3

⇒ Variance = 3 (∵ X follows Poisson distribution)

∴ V(2X + 5) = 4V (X)

= 4 x 3 =12

GATE Mock Test Mechanical Engineering (ME) - 3 - Question 24
Save

The clearance in blanking operation is provided
Detailed Solution for GATE Mock Test Mechanical Engineering (ME) - 3 - Question 24
Blanking is the operation of cutting a flat shape from a sheet metal. In blanking, the slug is the part and rest is scrap. In blanking operation, the die size is taken as the blank size and the punch is made smaller giving the necessary clearance between the die and the punch.

Die size = blank size

Punch size = blank size – 2 x clearance

GATE Mock Test Mechanical Engineering (ME) - 3 - Question 25
Save

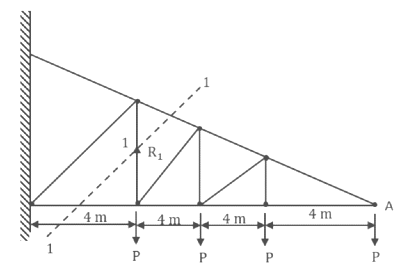

A plane cantilever truss is loaded a shown in the figure. If a positive sign denotes tension and a negative sign denotes compression, the axial force in the member 1 is

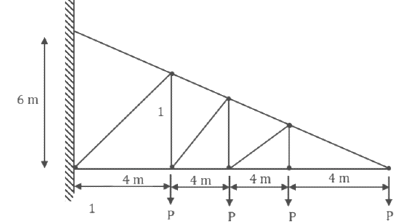

Detailed Solution for GATE Mock Test Mechanical Engineering (ME) - 3 - Question 25

ΣMA = R1 x 12 - P x 4 - P x 8 - P x 12 = 0

∴ = 2P

GATE Mock Test Mechanical Engineering (ME) - 3 - Question 26
Save

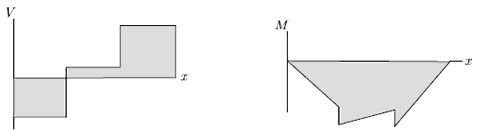

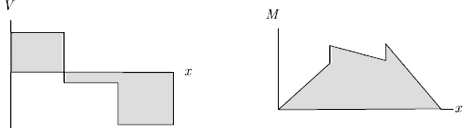

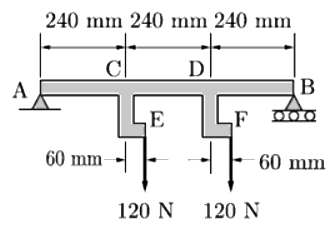

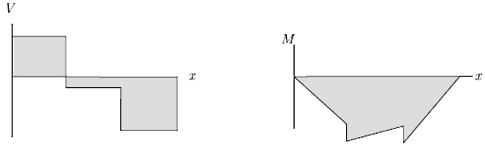

Consider the figure as shown. Which of the following are the required shear force and bending-moment diagrams for the beam and loading?
Detailed Solution for GATE Mock Test Mechanical Engineering (ME) - 3 - Question 26

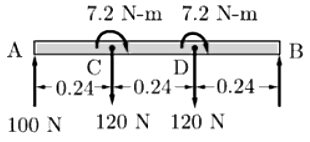

First calculate the reactions at A and B

- 0.72RA + (0.48) (120) + (0.24) (120) - 2 (120) (0.06) = 0

– (0.24) (120) – (0.48) (120) – 2 (120) (0.06) + 0.72RB = 0

RB = 140 N

Shear:

A to C, V = 100 N

C to D, V = 100 – 120 = – 20 N

D to B, V = – 20 – 120 = – 140 N

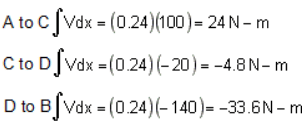

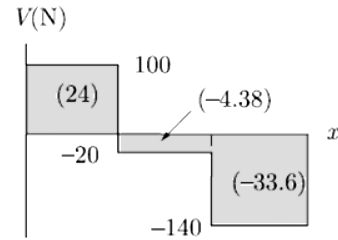

Areas under shear diagram:

Bending moments:

*Answer can only contain numeric values
GATE Mock Test Mechanical Engineering (ME) - 3 - Question 27
Save

A thin cylindrical shell of 500 mm diameter is required to withstand an internal fluid pressure of 5 N/mm2. IF the maximum tensile strength of plate material is 400 N/mm2 and efficiency of the joint is 65%, the minimum thickness (in mm) of the cylindrical shell by considering factor of safety of 4 is_______ . (Rounded to two decimal places)

Detailed Solution for GATE Mock Test Mechanical Engineering (ME) - 3 - Question 27
Given data: d = 500 mm, P = 5 N/mm2

Syt = 400 N/mm2 , FOS = 4

∴ Allowable stress = = Syt/FOS = 400/4 = 100 N/mm2

For minimum thickness,

Pd/2tη = 100 N/mm2

GATE Mock Test Mechanical Engineering (ME) - 3 - Question 28
Save

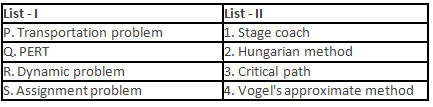

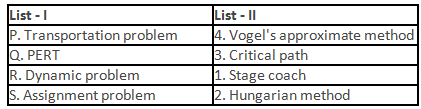

Match List - I with List - II and select the correct answer using the codes given below the lists:
Detailed Solution for GATE Mock Test Mechanical Engineering (ME) - 3 - Question 28

*Multiple options can be correct
GATE Mock Test Mechanical Engineering (ME) - 3 - Question 29
Save

The CORRECT statement about buoyancy force is
Detailed Solution for GATE Mock Test Mechanical Engineering (ME) - 3 - Question 29

All the statements given above about buoyancy are correct.

*Answer can only contain numeric values
GATE Mock Test Mechanical Engineering (ME) - 3 - Question 30
Save

A circular beam is subjected to a shear force of 10 kN. Calculate the value of maximum shear stress in N/mm2. [Take area = 176 cm2]. (Answer up to two decimal places)

Detailed Solution for GATE Mock Test Mechanical Engineering (ME) - 3 - Question 30
Given Area (A) = 176 cm2 = 17600 mm2

Shear Force (F) = 10 kN = 10000 N

For circular cross section, the maximum shear stress is equal to 4/3 times of average shear stress.

Maximum shear force = (4/3) × (F/A) = (4/3) × (10000/17600) = 0.76 N/mm2

View more questions
29 docs|220 tests
Join Course
Information about GATE Mock Test Mechanical Engineering (ME) - 3 Page
In this test you can find the Exam questions for GATE Mock Test Mechanical Engineering (ME) - 3 solved & explained in the simplest way possible. Besides giving Questions and answers for GATE Mock Test Mechanical Engineering (ME) - 3, EduRev gives you an ample number of Online tests for practice

Top Courses for Mechanical Engineering

Download as PDF

Top Courses for Mechanical Engineering

Important Questions for GATE Mock Test Mechanical Engineering (ME) - 3

Find all the important questions for GATE Mock Test Mechanical Engineering (ME) - 3 at EduRev.Get fully prepared for GATE Mock Test Mechanical Engineering (ME) - 3 with EduRev's comprehensive question bank and test resources. Our platform offers a diverse range of question papers covering various topics within the GATE Mock Test Mechanical Engineering (ME) - 3 syllabus. Whether you need to review specific subjects or assess your overall readiness, EduRev has you covered. The questions are designed to challenge you and help you gain confidence in tackling the actual exam. Maximize your chances of success by utilizing EduRev's extensive collection of GATE Mock Test Mechanical Engineering (ME) - 3 resources.

GATE Mock Test Mechanical Engineering (ME) - 3 MCQs with Answers

Prepare for the GATE Mock Test Mechanical Engineering (ME) - 3 within the Mechanical Engineering exam with comprehensive MCQs and answers at EduRev. Our platform offers a wide range of practice papers, question papers, and mock tests to familiarize you with the exam pattern and syllabus. Access the best books, study materials, and notes curated by toppers to enhance your preparation. Stay updated with the exam date and receive expert preparation tips and paper analysis. Visit EduRev's official website today and access a wealth of videos and coaching resources to excel in your exam.

Online Tests for GATE Mock Test Mechanical Engineering (ME) - 3 GATE Mechanical (ME) Mock Test Series 2025

Practice with a wide array of question papers that follow the exam pattern and syllabus. Our platform offers a user-friendly interface, allowing you to track your progress and identify areas for improvement. Access detailed solutions and explanations for each test to enhance your understanding of concepts. With EduRev's Online Tests, you can build confidence, boost your performance, and ace GATE Mock Test Mechanical Engineering (ME) - 3 with ease. Join thousands of successful students who have benefited from our trusted online resources.
© EduRev
Education Revolution
Follow Us
Signup to see your scores go up within 7 days!
Access 1000+ FREE Docs, Videos and Tests
Takes less than 10 seconds to signup
