Test: The PN - Junction - Question 1

### What is the effect of cascading the amplifier stages?​

Detailed Solution for Test: The PN - Junction - Question 1  Voltage gain of 1st satge - Voltage gain of 2nd stage
So it increases.
While upper cutoff frequency While lower cutoff frequency Increases compare to single state As decreases and increases.

Test: The PN - Junction - Question 2

### Generally, the gain of a transistor amplifier falls at high frequencies due to the​

Detailed Solution for Test: The PN - Junction - Question 2

The gain of a transistor falls at high frequencies due to the various parasitic capacitances of the devices.

Test: The PN - Junction - Question 3

### For the MOSFET shown in the figure, the threshold voltage and The value of (in mA) is ___________. Detailed Solution for Test: The PN - Junction - Question 3  Test: The PN - Junction - Question 4

The trans conductance gm of the transistor shown in figure is 10 mS. The value of the input resistance RIN   seen by source is - Detailed Solution for Test: The PN - Junction - Question 4

Input Resistance But overall input resistance seen from source is
RIN = 10 || 10|| 5
RIN = 2.5 kΩ.

Test: The PN - Junction - Question 5

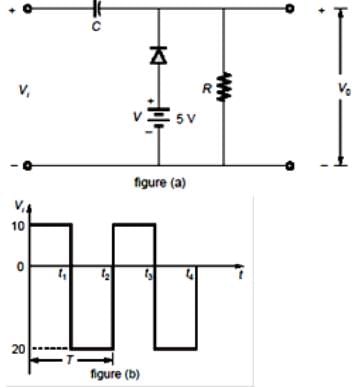

In the circuit shown in figure (a), if the input is given as in figure (b). then the output will be (Assume that the time constant is very large) Detailed Solution for Test: The PN - Junction - Question 5

The analysis will begin with the period t1-t2 of the input signal since the diode is in its short circuit state. The output is across R, but it is also across 5 V battery so V0 = 5V
Applying KVL around the input loop
-20-5 + Vc = 0
Vc= 25 V the capacitor will therefore charge up to 25 V from t2 to t3 the circuit will appear as shown below by applying KVL in the outside loop,
-10-25+V0 =0
V0 = 35 V
∴ The output waveform will be as Test: The PN - Junction - Question 6

The input resistance of the circuit in figure is Detailed Solution for Test: The PN - Junction - Question 6

Here Ix = But Vy =  Vy = 11 Vx
Ix = (Vx - Vy) / (1M Ω)
= (Vx - 11 Vx) / (106 Ω)
= -10 Vx/ 106
Therefore V/ Ix = 106/ (-10) = -100 K Ω

Test: The PN - Junction - Question 7

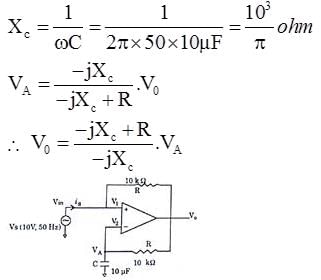

The following circuit has R = 10kΩ, C = 10μF. The input voltage is a sinusoid at 50Hz with an rms value of 10V. Under ideal conditions, the current is from the source is Detailed Solution for Test: The PN - Junction - Question 7 Assuming virtual ground,
Vm = VA = 10V   Test: The PN - Junction - Question 8

For the given n-channel MOSFET, determine the % decrease in the drain current at if the n-channel between the two n-doped regions is removed. Given,  Detailed Solution for Test: The PN - Junction - Question 8

Given is a depletion-type MOSFET. The drain current is given as, When the n-channel between the two-doped regions is removed, it resembles an enhancement-type MOSFET as shown below. For an enhancement-type MOSFET, Since, Thus, there is a 100% decrease in the drain current.

Test: The PN - Junction - Question 9

The feedback used in the circuit shown in figure can be classified as Detailed Solution for Test: The PN - Junction - Question 9

Equivalent circuit can be drawn with input voltage comparison and current feedback. It is shunt-shunt feedback.

Test: The PN - Junction - Question 10

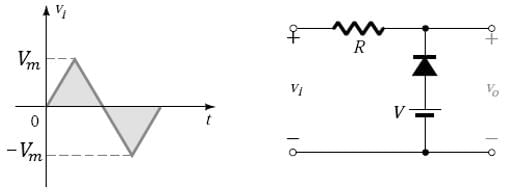

For the given network, determine the output waveform. The circuit components are given below:  Detailed Solution for Test: The PN - Junction - Question 10

The output voltage is across the series combination of 5 V supply, and the diode.
In the positive region of the input signal, the diode is an open circuit. The voltage drop across the resistor is zero. Hence, There is a change in state at Hence, the output is fixed at 5 V until , and above that the output waveform is same as the input waveform.
In the negative region of the input signal, the diode is on. When the diode is short-circuited, the output voltage is directly across the 5 V supply, and hence, the output is fixed at 5 V.
Hence, the output waveform is obtained as: Test: The PN - Junction - Question 11

In the voltage doubler circuit shown in the figure, the switch ‘S’ is closed at t = 0. Assuming diodes D1 and D2 to be ideal, load resistance to be infinite and initial capacitor voltages to be zero, the steady state voltage across capacitors C1 and C2 will be Detailed Solution for Test: The PN - Junction - Question 11

Since RLOAD is infinite, we can replace with open circuit
C1 will be charged in first +Ve half cycle
VC1 = +5v
C2 will be charged in first –Ve half cycle
VC2 = -10v

Test: The PN - Junction - Question 12

A clipper circuit is shown below. Q. which of the following is the transfer characteristics of above circuit?

Detailed Solution for Test: The PN - Junction - Question 12

When –0.7 V < Vi < 5.7 V output will following put, because zener diode and normal diodes are off
When Vi < –0.7 V Zener diode forward bias and V0 = –0.7 V
When Vi > 5.7 V Diode is forward bias and Vn = 5.7 V

Test: The PN - Junction - Question 13

Including a small resistance in the source (emitter) of a CS (CE) amplifier provides the designer with a tool to improve the performance, that is

Detailed Solution for Test: The PN - Junction - Question 13

If there is a small resistance added in the emitter of CE configuration will effect the gain as  = =  = In the second case, the gain decreased due to emitter resistance RE. as gain decreases , to maintain gain bandwidth product constant, bandwidth increases.

Test: The PN - Junction - Question 14

The transistor in the given circuit should always be in the active region.Take VcE(sat)=0.2V, VEE= 0.7 V The maximum value of Rc in Ω which can be used is __________. Detailed Solution for Test: The PN - Junction - Question 14 Given: VCE(sat) = 0.2
VBE = 0.7
β = 100
Writing KVL around the input loop
5 - IBRS - 0.7 = 0 Writing KVL around the output loop
5 - ICRC - VCE = 0
VCE = 5 - (0.215)RC
For active region VCE > VCE(sat)
or,      VCE > 0.2 V
So,     5 - 0.215RC > 0.2
0.215RC < 5 - 0.2
Hence RC(min) = 4.8 / (0.215) = 22.32 Ω

Test: The PN - Junction - Question 15

In the circuit shown , function of diode D1 is Detailed Solution for Test: The PN - Junction - Question 15

If D1 would have not been there then for V1<0, D2 ON and op-amp would have been in open loop mode.
In general Op-amp has high open loop gain which may cause the saturation.
By adding D1 saturation is avoided.

*Answer can only contain numeric values
Test: The PN - Junction - Question 16

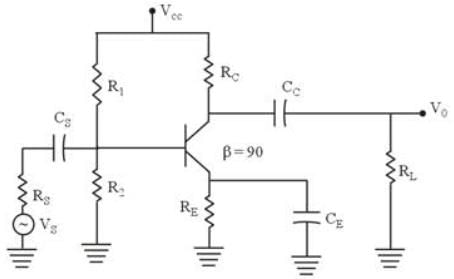

For the network of figure determine the input impedance Zi (in kΩ )Assume Vcc=22V RS = 10 kΩ, R1 = 56 kΩ, R2 = 8.2 kΩ
CE = 20 μF, RE = 1.5 kΩ
RC = 6.8 kΩ, CC = 10 μF

Detailed Solution for Test: The PN - Junction - Question 16 *Answer can only contain numeric values
Test: The PN - Junction - Question 17

For the common Emitter configuration circuit shown below, If Ic = 1.5mA then the magnitude of voltage gain is __________.

Detailed Solution for Test: The PN - Junction - Question 17 Test: The PN - Junction - Question 18

For the given fixed-bias configuration, determine the parameters re & ro for its equivalent re  model of the transistor, if the input impedance of the network is 1 kΩ and the output impedance is 4 kΩ. Detailed Solution for Test: The PN - Junction - Question 18

The ac equivalent circuit for the network is given below. The input impedance of the network is given as,  Test: The PN - Junction - Question 19

Identify the type of connection Test: The PN - Junction - Question 20

When the controlling voltage of an n-channel JFET is kept at 0 V, and a voltage greater than the pinch-off voltage is applied between the drain and the source terminal, the JFET:

Detailed Solution for Test: The PN - Junction - Question 20

The transfer characteristics for an n-channel JFET when the controlling voltage, VGS = 0V  is shown below. It can be seen from the characteristics that when the voltage between the drain and source (VDS) becomes greater than the pinch-off voltage (VP), the drain current remains essentially the same, as the region between the two depletion regions will increase in length. The drain current ID is fixed at the value ID = IDSS, where IDSS is the maximum drain current.
Hence, the JFET acts as a current source as shown below, for VGS = 0V, VDS>Vp ## GATE ECE (Electronics) 2023 Mock Test Series
