AIIMS CRE Civil JE/AE Mock Test- 8 - NEET MCQ


Test Description

30 Questions MCQ Test AIIMS CRE Group B & C Mock Test Series - AIIMS CRE Civil JE/AE Mock Test- 8

AIIMS CRE Civil JE/AE Mock Test- 8 for NEET 2025 is part of AIIMS CRE Group B & C Mock Test Series preparation. The AIIMS CRE Civil JE/AE Mock Test- 8 questions and answers have been prepared according to the NEET exam syllabus.The AIIMS CRE Civil JE/AE Mock Test- 8 MCQs are made for NEET 2025 Exam. Find important definitions, questions, notes, meanings, examples, exercises, MCQs and online tests for AIIMS CRE Civil JE/AE Mock Test- 8 below.
Solutions of AIIMS CRE Civil JE/AE Mock Test- 8 questions in English are available as part of our AIIMS CRE Group B & C Mock Test Series for NEET & AIIMS CRE Civil JE/AE Mock Test- 8 solutions in Hindi for AIIMS CRE Group B & C Mock Test Series course. Download more important topics, notes, lectures and mock test series for NEET Exam by signing up for free. Attempt AIIMS CRE Civil JE/AE Mock Test- 8 | 100 questions in 90 minutes | Mock test for NEET preparation | Free important questions MCQ to study AIIMS CRE Group B & C Mock Test Series for NEET Exam | Download free PDF with solutions
AIIMS CRE Civil JE/AE Mock Test- 8 - Question 1
Save

Anterior end of an earthworm consists of the mouth and the_____.

Detailed Solution for AIIMS CRE Civil JE/AE Mock Test- 8 - Question 1
The anterior end or head consists of the mouth and the prostomium covering the mouth and as a chock to force the cracks to open in the soil into which the earthworm may lug. The function of the prostomium is sensory. The first body segment is called the peristomium that is a buccal segment that contains the mouth.

Hence, the correct option is (c)

AIIMS CRE Civil JE/AE Mock Test- 8 - Question 2
Save

Who was the founder of Bhartiya Jan Sangh?

Detailed Solution for AIIMS CRE Civil JE/AE Mock Test- 8 - Question 2
Shyama Prasad Mukherjee was the founder of Bhartiya Jana Sangh. The Bharatiya Jana Sangh, commonly known as the Jan Sangh, was an Indian nationalist political party that existed from 1951 to 1977 and was the political arm of Rashtriya Swayamsevak Sangh (RSS), a Hindu right-wing organisation.

In 1977, it merged with several other left, centre, and right parties opposed to the rule of the Indian National Congress and formed the Janata Party.

Clear all your doubts with EduRev
AIIMS CRE Civil JE/AE Mock Test- 8 - Question 3
Save

Who among the following was a person of Indian origin, and he was also a recipient of the Nobel Prize for Medicine?

Detailed Solution for AIIMS CRE Civil JE/AE Mock Test- 8 - Question 3
Har Gobind Khorana was a person of Indian origin and a recipient of the Nobel Prize in Medicine.

Hence, the correct option is (a)

AIIMS CRE Civil JE/AE Mock Test- 8 - Question 4
Save

Directions: In the following questions, some statements are given. Conclusions are given after the statements. While studying the statements carefully, consider the conclusions given below. Select the correct conclusion using the codes given below.

Statement:

All students are girls.

No girl is dull.

Conclusion:

I. No boy is in class.

II. No student is dull.
Detailed Solution for AIIMS CRE Civil JE/AE Mock Test- 8 - Question 4

AIIMS CRE Civil JE/AE Mock Test- 8 - Question 5
Save

Which figure will complete the question figure?

Question Figure:

Answer Figure:
Detailed Solution for AIIMS CRE Civil JE/AE Mock Test- 8 - Question 5

Hence the correct answer is option B.

AIIMS CRE Civil JE/AE Mock Test- 8 - Question 6
Save

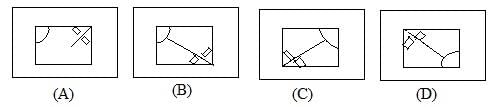

Find the mirror image for the given figure.

Question Figure

Answer figure
Detailed Solution for AIIMS CRE Civil JE/AE Mock Test- 8 - Question 6

Hence the correct answer is option D.

AIIMS CRE Civil JE/AE Mock Test- 8 - Question 7
Save

Ramesh can do 20% more work as Mohan can do in same time. If Mohan can finish the work in 30 hours then Ramesh with the help of Mohan, can finish the same work in how many hours ?
Detailed Solution for AIIMS CRE Civil JE/AE Mock Test- 8 - Question 7
Mohan can complete a work in 30 hours.

Ramesh can do 6/5 work in 30 hours.

So Ramesh can complete the work in 30 x (5/6) = 25 hours.

Together they can finish 1/30 + 1/25 of work in 1 hour, i.e., 11/150.

So in 150/11 hours, they will finish the work together.

AIIMS CRE Civil JE/AE Mock Test- 8 - Question 8
Save

The full form of ICANN is:
Detailed Solution for AIIMS CRE Civil JE/AE Mock Test- 8 - Question 8

ICANN stands for internet corporation for assigned names and numbers. It is formed as an international multi- stakeholder organization responsible for the coordination policies related to domain name system which are:

  • Related to the unique assignment of internet domain names.
  • Assignment of IP address, protocol port numbers.
  • Coordinated the DNS root server system

Its aim is to ensure the stable and secure operation of the internet’s unique identifier systems. It promotes competition and choice for registrants, especially in the generic top-level domain area and develop policies appropriate to its mission through bottom up, consensus-based processes

AIIMS CRE Civil JE/AE Mock Test- 8 - Question 9
Save

Which of the following represents Darcy’s friction factor in terms of Reynolds number (Re) for the laminar flow in circular pipes?
Detailed Solution for AIIMS CRE Civil JE/AE Mock Test- 8 - Question 9

Darcy Weisbach Equation for friction losses in circular pipe

where

L = length of the pipe,

D = diameter of the circular pipe,

V = mean velocity of the flow,

f = Darcy’s friction factor = 4 × F’,

F’ = coefficient of friction

hf = head loss due to friction

For Laminar Flow

Friction Factor

For Turbulent flow

AIIMS CRE Civil JE/AE Mock Test- 8 - Question 10
Save

Which of the following represents the requirement of valid contracts:

a. It must be in writing

b. can be enforced in a court of law

c. Parties should give the consent for agreement

d. Parties concerned must be competent
Detailed Solution for AIIMS CRE Civil JE/AE Mock Test- 8 - Question 10
There are six requirements for a contract to be valid

1. The agreement consists of an offer and an acceptance of an offer.

2. Something must be bargained for in exchange for a promise.

3. All parties must have the legal ability and capacity to be held to a contract.

4. Both parties must agree to the terms of the contract.

5. Subject of bartering must be legal.

6. The contract must be written out to be adequately enforced in a court of law.

AIIMS CRE Civil JE/AE Mock Test- 8 - Question 11
Save

The penman evapotranspiration equation is based on
Detailed Solution for AIIMS CRE Civil JE/AE Mock Test- 8 - Question 11
The penman formula is a semi-empirical equation combining mass transfer (Ea) and energy budget (H) methods. The formula was developed by Penman in 1948 and is still widely used for calculating the potential evaporation using synoptic meteorological data.

Hence the correct answer is option D.

AIIMS CRE Civil JE/AE Mock Test- 8 - Question 12
Save

Maximum spacing of side face reinforcement of beams having a depth of web more than 750 mm is

Detailed Solution for AIIMS CRE Civil JE/AE Mock Test- 8 - Question 12
Beams exceeding the depth of 750 mm and subjected to bending moment and shear shall have side face reinforcement. The total area of side face reinforcement shall be at least 0.1 percent of the web area and shall be distributed equally on two faces at a spacing not exceeding 300 mm or web thickness, whichever is less.

Hence the correct answer is option A.

AIIMS CRE Civil JE/AE Mock Test- 8 - Question 13
Save

Camber in the road is provided for
Detailed Solution for AIIMS CRE Civil JE/AE Mock Test- 8 - Question 13
Camber: Camber is the transverse slope provided to the road surface for the drainage of the rainwater for the better performance of the road. Parabolic camber is provided by giving a parabolic shape to the surface of the road.

Hence the correct answer is option A.

AIIMS CRE Civil JE/AE Mock Test- 8 - Question 14
Save

Shear span is defined as the zone where
Detailed Solution for AIIMS CRE Civil JE/AE Mock Test- 8 - Question 14
Shear span is defined as the zone where shear force is constant. The typical bending moment and shear force diagram of a uniformly loaded beam is given below. Since shear force is not constant between any span within the beam.

Hence the correct answer is option A.

AIIMS CRE Civil JE/AE Mock Test- 8 - Question 15
Save

Resins are:
Detailed Solution for AIIMS CRE Civil JE/AE Mock Test- 8 - Question 15
Natural resins used for varnish include amber, kauri gum, dammar, copal, rosin (colophony or pine resin), sandarac, balsam, elemi, mastic, and shellac. Varnish may also be created from synthetic resins such as acrylic, alkyd, or polyurethane.
AIIMS CRE Civil JE/AE Mock Test- 8 - Question 16
Save

According to IS: 456 -1978, the thickness reinforced concrete footing on piles at its edges is kept less than-
Detailed Solution for AIIMS CRE Civil JE/AE Mock Test- 8 - Question 16
Answer is none of the above; as per IS 456: 2000, for footing on soil, edge thickness should not be less than 150 mm and, for piles, edge thickness should not be less than 300 mm.
AIIMS CRE Civil JE/AE Mock Test- 8 - Question 17
Save

A manhole is generally provided at each:
Detailed Solution for AIIMS CRE Civil JE/AE Mock Test- 8 - Question 17
A manhole is generally provided at each:

  • Bend

  • Junction

  • Change of gradient

AIIMS CRE Civil JE/AE Mock Test- 8 - Question 18
Save

Plywood is obtained by gluing wooden sheets at a pressure of:
Detailed Solution for AIIMS CRE Civil JE/AE Mock Test- 8 - Question 18
Plywood is obtained by gluing wooden sheets at a pressure of 100 to 150 N/cm2 and a temperature of 100 to 130 degrees Celsius. Plywood is made up of three or more thin layers of wood. These layers are bonded together with an adhesive.
AIIMS CRE Civil JE/AE Mock Test- 8 - Question 19
Save

In a reverse curve, the superelevation provided at the point of reverse curvature is-
Detailed Solution for AIIMS CRE Civil JE/AE Mock Test- 8 - Question 19
In a reverse curve, the superelevation provided at the point of reverse curvature is zero.
AIIMS CRE Civil JE/AE Mock Test- 8 - Question 20
Save

Effective length of a column held in position in both ends and restrained against rotation at one end-
Detailed Solution for AIIMS CRE Civil JE/AE Mock Test- 8 - Question 20
According to IS: 800 – 1984, table for an effective length of a compression member for different degrees of end restraint of compression member.
AIIMS CRE Civil JE/AE Mock Test- 8 - Question 21
Save

The process by which a mass of saturated soil is caused by external forces to suddenly lose its shear strength and to behave as fluid is called-
Detailed Solution for AIIMS CRE Civil JE/AE Mock Test- 8 - Question 21
The phenomenon when the sand losses its shear strength due to oscillatory motion is known as liquefaction of sand—the structure resting on such soil sink.
AIIMS CRE Civil JE/AE Mock Test- 8 - Question 22
Save

A helical spring-
Detailed Solution for AIIMS CRE Civil JE/AE Mock Test- 8 - Question 22
A spring is defined as an elastic body whose function is to distort when loaded and to recover its original shape when the load is removed—helical springs. The helical springs are made up of a wire coiled in the form of a helix and are primarily intended for compressive or tensile loads.
AIIMS CRE Civil JE/AE Mock Test- 8 - Question 23
Save

For an irrigational flow, the velocity potential lines, and the streamlines are always-
Detailed Solution for AIIMS CRE Civil JE/AE Mock Test- 8 - Question 23
For an irrigational flow, the velocity potential lines and the streamlines are always orthogonal to each other.
AIIMS CRE Civil JE/AE Mock Test- 8 - Question 24
Save

A minimum pitch is to be provided to-
Detailed Solution for AIIMS CRE Civil JE/AE Mock Test- 8 - Question 24
Minimum pitch is to prevent the bearing failure of the plate between the two bolts, to permit the efficiency in the installation of bolts by providing sufficient space for tightening of bolts, to prevent overlapping of washes, and to provide adequate resistance to tear out of bolts.
AIIMS CRE Civil JE/AE Mock Test- 8 - Question 25
Save

Castiglione’s first theorem is applicable-
Detailed Solution for AIIMS CRE Civil JE/AE Mock Test- 8 - Question 25
Castigliano's first theorem is being used in structural analysis for finding deflection of an elastic structure based on the strain energy of the structure. Castigliano's theorem can be applied when the structure’s supports are unyielding, and the temperature of the structure is constant.
AIIMS CRE Civil JE/AE Mock Test- 8 - Question 26
Save

During temperature inversion in the atmosphere, air pollutants tend to:
Detailed Solution for AIIMS CRE Civil JE/AE Mock Test- 8 - Question 26
The answer to this question can be a, b and c, depending upon ALR and ELR conditions.

Fanning Plume- ELR inversion and Horizontal plume

Lofting- SALR above the inversion, so plume stays above the inversion

Fumigation- inversion occurs at a short distance from a stack, pollutants stay below the inversion layer.

Hence, the correct option is (D)

AIIMS CRE Civil JE/AE Mock Test- 8 - Question 27
Save

The flow of water in a wash hand basin when it is being emptied through a central opening, is an example of-
Detailed Solution for AIIMS CRE Civil JE/AE Mock Test- 8 - Question 27
The flow of water in a wash hand basin when it is being emptied through a central opening, is an example of a free vortex.

Free vortex- Free and Forced Vortex flow with Examples states: When no external torque is required to rotate the fluid mass that type of flow is called free vortex flow.

Examples: Flow of liquid through a hole provided at the bottom of the container.

Hence, the correct option is (A)

AIIMS CRE Civil JE/AE Mock Test- 8 - Question 28
Save

Clumann's method assumes, the plane failure surface passing through-
Detailed Solution for AIIMS CRE Civil JE/AE Mock Test- 8 - Question 28
Culmann's method assumes, the plane failure surface passing through the toe

A technique for the calculation of slope stability based upon the assumption of a plane

surface of failure through the toe of the slope has been proposed by Culmann. This slope stability analysis method is not widely used since it has been found that plane surfaces of sliding are observed only with very steep slopes, and for relatively flat slopes, the surfaces of sliding are almost always curved.

Hence, the correct option is (C)

AIIMS CRE Civil JE/AE Mock Test- 8 - Question 29
Save

Lime obtained from the calcination of Pure Limestone is called:
Detailed Solution for AIIMS CRE Civil JE/AE Mock Test- 8 - Question 29
Quick lime is a pure lime-stone product. It consists of oxides of calcium and is not crystalline. Pure lime and rich lime are different names of fat lime. lean lime is also another name for poor lime.

Hence, the correct option is (A).

AIIMS CRE Civil JE/AE Mock Test- 8 - Question 30
Save

If B is the width of the beam and D is the overall depth d is the effective depth then, Maximum tension reinforcement in concrete structure is given by :
Detailed Solution for AIIMS CRE Civil JE/AE Mock Test- 8 - Question 30
If B is the width of the beam and D is the overall depth and d is the effective depth then, Maximum tension reinforcement in concrete structure is given by 0.4 BD

Hence, the correct option is (A)
