The symbol shown here is:
- a)Voltage controlled current source
- b)Current controlled current source
- c)Current controlled voltage source
- d)Voltage controlled voltage source
Correct answer is option 'A'. Can you explain this answer?
| FREE This question is part of | Download PDF Attempt this Test |
Most Upvoted Answer
The symbol shown here is:a)Voltage controlled current sourceb)Current ...
Concept:
Independent sources:
An independent voltage source maintains a voltage (fixed or varying with time) which is not affected by any other quantity. Similarly, an independent current source maintains a current (fixed or time-varying) which is unaffected by any other quantity.
Independent sources:
An independent voltage source maintains a voltage (fixed or varying with time) which is not affected by any other quantity. Similarly, an independent current source maintains a current (fixed or time-varying) which is unaffected by any other quantity.
Dependent sources:
- Some voltage (current) sources have their voltage (current) values varying with some other variables.
- They are called dependent (voltage or current) sources or controlled (voltage or current) sources.
- It is represented in diamond symbol.
- Since the control of the dependent source is achieved by a voltage or current of some other element in the circuit, and the source can be voltage or current.
- It follows that there are four possible types of dependent sources, namely:
- Voltage-controlled voltage source (VCVS)
- Current-controlled voltage source (CCVS)
- Current-controlled current source (CCCS)
- Voltage-controlled current source (VCCS)
Application:
1.
In the given circuit, the dependent source is a current source (gvc) which depends on the voltage in the other branch. Hence dependent source in the circuit is a voltage-controlled current source.
2.
In the given circuit, the dependent source is a current source (dic) which depends on the current in the other branch. Hence dependent source in the circuit is a current-controlled current source.
3.
In the given circuit, the dependent source is a voltage source (bvc) which depends on the voltage in the other branch. Hence dependent source in the circuit is a voltage-controlled voltage source.
4.
In the given circuit, the dependent source is a voltage source (ric) which depends on the current in the other branch. Hence dependent source in the circuit is a current-controlled voltage source.
Free Test
FREE
| Start Free Test |
Community Answer
The symbol shown here is:a)Voltage controlled current sourceb)Current ...

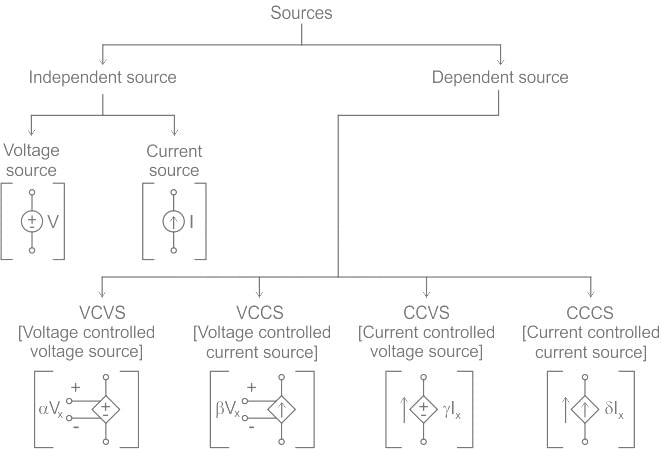

There are two kinds of voltage or current sources:
Independent Source: It is an active element that provides a specified voltage or current that is completely independent of other circuit variables.
Dependent Source: It is an active element in which the source quantity is controlled by another voltage or current in the circuit.
Independent Source: It is an active element that provides a specified voltage or current that is completely independent of other circuit variables.
Dependent Source: It is an active element in which the source quantity is controlled by another voltage or current in the circuit.
