Chain Reactions | Physics for Grade 10 PDF Download

Introduction

• Only one extra neutron is required to induce a Uranium-235 nucleus to split by fission
• During the fission, it produces two or three neutrons which move away at high speed
• Each of these new neutrons can start another fission reaction, which again creates further excess neutrons
• This process is called a chain reaction

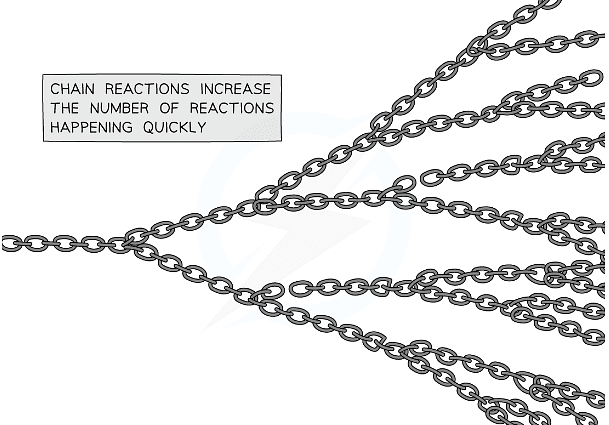

  The neutrons released by each fission reaction can go on to create further fissions, like a chain that is linked several times – from each chain comes two more

Controlled Chain Reactions

• In a nuclear reactor, a chain reaction is required to keep the reactor running
• When the reactor is producing energy at the correct rate, the number of free neutrons in the reactor needs to be kept constant
  • This means some must be removed from the reactor
• To do this, nuclear reactors contain control rods
• These absorb neutrons without becoming dangerously unstable themselves

Uncontrolled Chain Reactions

• Because each new fission reaction releases energy, uncontrolled chain reactions can be dangerous
• The number of neutrons available increases quickly, so the number of reactions does too
• A nuclear weapon uses an uncontrolled chain reaction to release a huge amount of energy in a short period of time as an explosion
