Ligands in Coordination Chemistry

In coordination chemistry, a ligand is an ion or molecule (functional group) that binds to a central metal atom to form a coordination complex.

  • A ligand is an ion or molecule, which donates a pair of electrons to the central metal atom or ion to form a coordination complex.
  • The word ligand is from Latin, which means “tie or bind”. Ligands can be anions, cations, and neutral molecules.
  • Ligands act as Lewis bases (donate electron pairs) and central metal atoms viewed as Lewis acid (electron pair acceptor). The nature of bonding between metal to ligand varies from covalent bond to ionic bond.

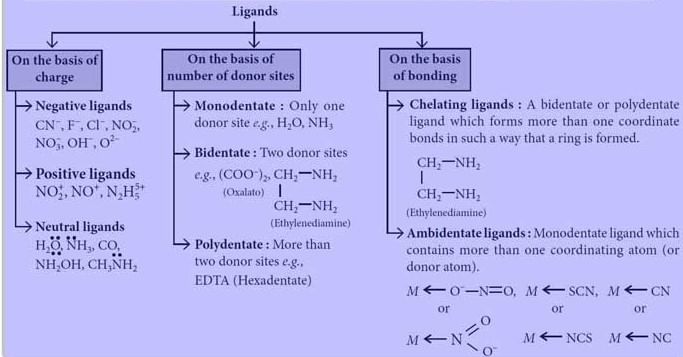

Classification of Ligands

Classification Of Ligands - Coordination Chemistry Notes | Study Inorganic Chemistry - ChemistryOn the Basis of Charge
  • Occasionally ligands can be cations (NO+, N2H5+) and electron-pair acceptors.
  • Examples for anionic ligands are F, Cl, Br, I, S2, CN, NCS, OH, NH2 and neutral ligands are NH3, H2O, NO, CO.
  • Some other examples and their names are:
Negative ligands

F fluoro

Cl chloro

Br bormo

I iodo

OH hydroxo

O2– oxo

O22– peroxo

O2– superoxo

H hydrido

NH–2 imido

N–3 nitrido

N3 azido

S2O32– thiosulphato

CN cyano

NO3 nitrato



Neutral ligands which are named as such:

(C6H5)3P     triphenyl phosphine

(C2H5)3 P    triethyl phosphine

C2H          ethylene

C5H5N         pyridine (py)

NH2 – NH  hydrazine

CH3NH2       methylamine



Neutral ligands which are given special name:

CO           carbonyl

H2O          aqua

NH3         ammine

NO          nitrosyl

CS           thiocarbonyl

NS           thionitrosyl



On the Basis of Number of Donor Sites

Ligands can be classified as monodentate or polydentate ligands (viz. Bidentate, tridentate) depending on the number of ligands donor atoms that attach to the metal ion or atom.

(1) Monodentate Ligands:

Monodentate ligands are also called “one-toothed“ because they bite the metal atom only in one place.

  • A ligand that shares the electron pair of a single donor atom with a metal atom or ion is called a monodentate ligand.
  • The word monodentate comes from the Greek: monos and the Latin: dentis, monos means one and dentis means tooth, which literally means one tooth.
  • Therefore, it means that a monodentate ligand bites a metal cation or atom with one lone pair of electrons.
  • In general, the denticity of a ligand is the number of pairs of electrons shared with the metal atom or ion. Some common monodentate ligands are shown below:
LigandLewis structureName
BrClassification Of Ligands - Coordination Chemistry Notes | Study Inorganic Chemistry - ChemistryBromide ion
FClassification Of Ligands - Coordination Chemistry Notes | Study Inorganic Chemistry - ChemistryFluoride ion
ClClassification Of Ligands - Coordination Chemistry Notes | Study Inorganic Chemistry - ChemistryChloride ion
IClassification Of Ligands - Coordination Chemistry Notes | Study Inorganic Chemistry - ChemistryIodide ion
H2OClassification Of Ligands - Coordination Chemistry Notes | Study Inorganic Chemistry - ChemistryWater
NH3Classification Of Ligands - Coordination Chemistry Notes | Study Inorganic Chemistry - ChemistryAmmonia
OHClassification Of Ligands - Coordination Chemistry Notes | Study Inorganic Chemistry - ChemistryHydroxide
COClassification Of Ligands - Coordination Chemistry Notes | Study Inorganic Chemistry - ChemistryCarbon monoxide
CNClassification Of Ligands - Coordination Chemistry Notes | Study Inorganic Chemistry - ChemistryCyanide ion
SCNClassification Of Ligands - Coordination Chemistry Notes | Study Inorganic Chemistry - ChemistryThiocyanate ion

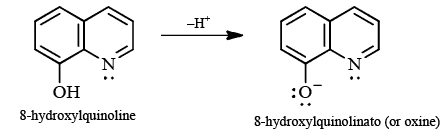

(2) Bidentate Ligands

Lewis base which donates two lone pairs of electrons to the central metal atom is known as bidentate ligands.

  • They are often referred to as a “chelating ligands”. The complex which contains chelating ligands is called “Chelates”.
  • These ligands have two donor atoms that can attach to a single metal cation or atom.
  • Bidentate ligands form one 5- or 6-membered ring with a metal ion or atom. Some examples of bidentate ligands are below:
Classification Of Ligands - Coordination Chemistry Notes | Study Inorganic Chemistry - ChemistryEthylenediammine (en)

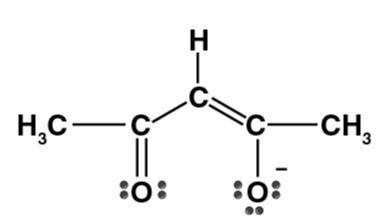

Classification Of Ligands - Coordination Chemistry Notes | Study Inorganic Chemistry - ChemistryAcetylacetonate ion (acac)

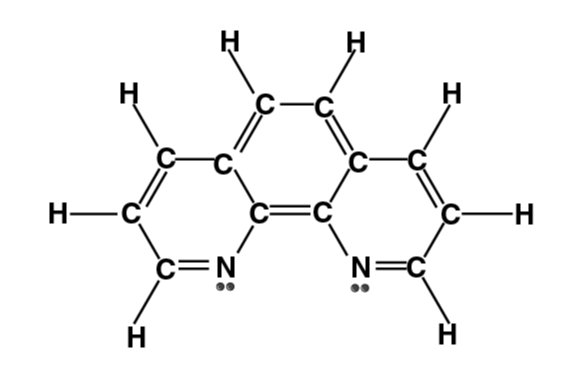

Classification Of Ligands - Coordination Chemistry Notes | Study Inorganic Chemistry - ChemistryPhenanthroline (phen)
Classification Of Ligands - Coordination Chemistry Notes | Study Inorganic Chemistry - ChemistryOxalate ion (ox)



Classification Of Ligands - Coordination Chemistry Notes | Study Inorganic Chemistry - Chemistry
Classification Of Ligands - Coordination Chemistry Notes | Study Inorganic Chemistry - Chemistry                   Troplonato
Classification Of Ligands - Coordination Chemistry Notes | Study Inorganic Chemistry - Chemistry                      ethylenediamine (en)
Classification Of Ligands - Coordination Chemistry Notes | Study Inorganic Chemistry - Chemistry               propylenediamine (pn) or 1, 2-diaminopropane
Classification Of Ligands - Coordination Chemistry Notes | Study Inorganic Chemistry - Chemistry        butylenediamine (bn) or 2, 3-diaminopropane
Classification Of Ligands - Coordination Chemistry Notes | Study Inorganic Chemistry - Chemistry              isobutylenediamine (i- bn)
Classification Of Ligands - Coordination Chemistry Notes | Study Inorganic Chemistry - Chemistry             bipyridine or bipyridyl (bpy or bipy)
Classification Of Ligands - Coordination Chemistry Notes | Study Inorganic Chemistry - Chemistry             1, 10-phenanthroline Or o-phenanthroline (o-phen or phen)

 Classification Of Ligands - Coordination Chemistry Notes | Study Inorganic Chemistry - Chemistry               o-phenylene bis dmethylarisine (diars)



Note: The ligands like CO32-, CH3COO-, NO2-, NO3-, SO32-, SO42-, NH2- NH2, O2N2, etc. have two donor atoms but in general, they act as monodentate ligands. They form either four or three-membered rings including metal cation or atom and there will be repulsion between donor atoms and their electron pairs which causes the ring to be strained and hence unstable.

Classification Of Ligands - Coordination Chemistry Notes | Study Inorganic Chemistry - Chemistry    Four Membered ring

Classification Of Ligands - Coordination Chemistry Notes | Study Inorganic Chemistry - Chemistry

These ligands may behave as bidentate ligands when the size of the metal cation is large like lanthanoids. For example, NO3- behaves as a bidentate ligand in [Ce(NO3)6]2– in which the coordination number of Ce4+ is 12.


(3) Polydentate Ligands

The ligands that bond to metal cation or atom through electron pairs present on more than one donor atoms are called multidentate or polydentate ligands (many toothed ligands).

  • Polydentate ligands form one or more rings with a metal cation or atom.
  • Polydentate ligands are called chelating ligands (the word derived from chele meaning claw) because the interaction of two or more electron pairs to a metal ion resulting in the formation of one or more rings including metal ion resembles the grasping of an object by the claw of a crab.
  • The polydentate ligands in general, form five or six-membered rings including metal ions, which are called chelate rings, and the complexes containing chelate rings are called chelates.
  • The extra stability of chelates as compared to similar non-chelates is called the chelate effect.
Classification of Polydentate Ligands
Tridentate Ligands
Tridentate ligands have three lone pairs of electrons to the central metal atom or ion.

Some important examples of tridentate ligands are shown below:

Classification Of Ligands - Coordination Chemistry Notes | Study Inorganic Chemistry - ChemistryClassification Of Ligands - Coordination Chemistry Notes | Study Inorganic Chemistry - Chemistry

Classification Of Ligands - Coordination Chemistry Notes | Study Inorganic Chemistry - ChemistryClassification Of Ligands - Coordination Chemistry Notes | Study Inorganic Chemistry - Chemistry

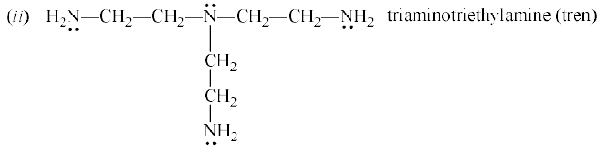

Tetradentate Ligands
Molecules with four donor atoms are called tetradentate.

Some important examples of tetradentate ligands are given below:



Classification Of Ligands - Coordination Chemistry Notes | Study Inorganic Chemistry - ChemistryClassification Of Ligands - Coordination Chemistry Notes | Study Inorganic Chemistry - Chemistry
Classification Of Ligands - Coordination Chemistry Notes | Study Inorganic Chemistry - Chemistry
Classification Of Ligands - Coordination Chemistry Notes | Study Inorganic Chemistry - Chemistry

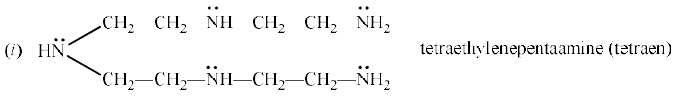

Pentadentate Ligands
Molecules with five donor atoms are called Pentadentate.

Important examples of pentadentate ligands are given below:

Classification Of Ligands - Coordination Chemistry Notes | Study Inorganic Chemistry - Chemistry
Classification Of Ligands - Coordination Chemistry Notes | Study Inorganic Chemistry - Chemistry

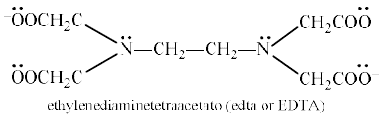

 Hexadentate Ligands
Molecules with Six donor atoms are called Hexadentate Ligands.

The most important examples of hexadentate ligands is:

Classification Of Ligands - Coordination Chemistry Notes | Study Inorganic Chemistry - Chemistry

  • Since EDTA4– bonds to a metal ion through six donor atoms, therefore, it forms highly stable complexes and in general, is used to hold metal ions in solution.
    EDTA4– ligand is used to trap metal ions such as Mg+ and Ca2+ ions in hard water.
    EDTA4– is also used to treat metal, especially lead poisoning.

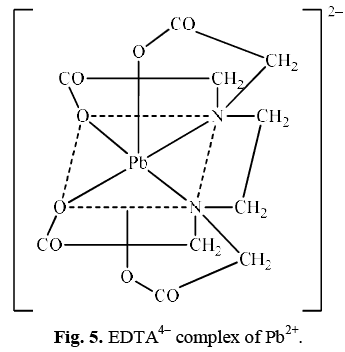

  • Six donor atoms of EDTA4– bond to Pb2+ ion to form very stable complex ion (figure 5) which is removed from the blood and tissues and excreted from the body with the help of kidneys as a soluble chelate, [Pb(EDT)]2–.

Classification Of Ligands - Coordination Chemistry Notes | Study Inorganic Chemistry - Chemistry

On the Basis of Bonding
Ambidentate Ligands

The monodentate ligands which have two or more different donor atoms can coordinate to a metal cation through either of the two different atoms. These ligands are called ambidentate ligands.

When ambidentate ligand coordinates to the metal cation through either of the two donor atom, two different compounds are obtained which are called linkage isomers. Examples of ambidentate ligands are:
Classification Of Ligands - Coordination Chemistry Notes | Study Inorganic Chemistry - ChemistryClassification Of Ligands - Coordination Chemistry Notes | Study Inorganic Chemistry - ChemistryBut except Classification Of Ligands - Coordination Chemistry Notes | Study Inorganic Chemistry - Chemistry

Classification Of Ligands - Coordination Chemistry Notes | Study Inorganic Chemistry - Chemistrynone of these has yet produced linkage isomers.NO -ligand, for example, can coordinate to a metal cation through either N or O atom as shown in Fig. 6.

Classification Of Ligands - Coordination Chemistry Notes | Study Inorganic Chemistry - ChemistryClassification Of Ligands - Coordination Chemistry Notes | Study Inorganic Chemistry - Chemistry

Similarly, SCN can coordinate with metal cation either through S or N atom as shown below:

M ←SNC                              M ← NCS

S-atom of SCN                    N-atom of SCN

Coordinated to metal ion    coordinated to metal ion


Chelating Ligands

Chelating ligands (chelates) – Ligands that have two or more points of attachment to the metal atom or ion such as Bidentate, tridentate, tetradentate, pentadentate, hexadentate (EDTA) ligands.

Example: [Cr(ox)3]3- has oxalate ion as the chelating ligand.

Classification Of Ligands - Coordination Chemistry Notes | Study Inorganic Chemistry - Chemistry
Example: [Ca(EDTA)]2- has EDTA ion as the chelating ligand.

Classification Of Ligands - Coordination Chemistry Notes | Study Inorganic Chemistry - Chemistry


Bridging Ligands

The ligands in which one or two different donor atoms have atleast two pairs of electrons and share these electron pairs with two metal ions or atoms (one pair with one atom or ion) simultaneously are called bridging ligands.

The interaction of bridging ligand with metal ions or atoms can be represented

as M ← : L : → M.

The monodentate ligands having two lone pair of electrons on one donor atom which act as bridging ligands are Classification Of Ligands - Coordination Chemistry Notes | Study Inorganic Chemistry - ChemistryThe monodentate ligands having two lone pairs on two different atoms (one pair on one atom) are

Classification Of Ligands - Coordination Chemistry Notes | Study Inorganic Chemistry - ChemistryClassification Of Ligands - Coordination Chemistry Notes | Study Inorganic Chemistry - Chemistry
