Cotter joint

A cotter is a flat wedge-shaped piece of steel as shown in figure-4.2.1.1. This is used to connect rigidly two rods which transmit motion in the axial direction, without rotation. These joints may be subjected to tensile or compressive forces along the axes of the rods. Examples of cotter joint connections are: connection of piston rod to the crosshead of a steam engine, valve rod and its stem etc.

Cotter & Knuckle Joint - 1 | Design of Machine Elements - Mechanical Engineering

4.2.1.1F- A typical cotter with a taper on one side only.

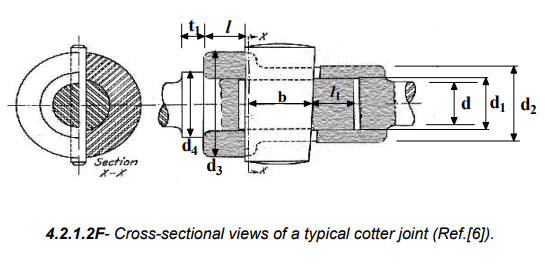

A typical cotter joint is as shown in figure-4.2.1.2. One of the rods has a socket end into which the other rod is inserted and the cotter is driven into a slot, made in both the socket and the rod. The cotter tapers in width (usually 1:24) on one

side only and when this is driven in, the rod is forced into the socket. However, if the taper is provided on both the edges it must be less than the sum of the friction angles for both the edges to make it self locking i.e α11 where α1 , α are the angles of taper on the rod edge and socket edge of the cotter respectively and φ1, φ are the corresponding angles of friction. This also means that if taper is given on one side only then α <φ1 for self locking. Clearances between the cotter and slots in the rod end and socket allows the driven cotter to draw together the two parts of the joint until the socket end comes in contact with the cotter on the rod end.

Cotter & Knuckle Joint - 1 | Design of Machine Elements - Mechanical Engineering

Cotter & Knuckle Joint - 1 | Design of Machine Elements - Mechanical Engineering
4.2.1.3F- An isometric view of a typical cotter joint .

The document Cotter & Knuckle Joint - 1 | Design of Machine Elements - Mechanical Engineering is a part of the Mechanical Engineering Course Design of Machine Elements.
All you need of Mechanical Engineering at this link: Mechanical Engineering
49 videos|70 docs|77 tests

Top Courses for Mechanical Engineering

FAQs on Cotter & Knuckle Joint - 1 - Design of Machine Elements - Mechanical Engineering

1. What is a cotter joint and how is it used in mechanical engineering?
Ans. A cotter joint is a type of mechanical joint used in engineering to connect two rods or shafts together. It consists of a tapered pin, called a cotter, that is inserted through a hole in the two parts to be joined and secured with a nut. This joint provides a rigid and strong connection that can withstand both tensile and compressive loads.
2. What are the advantages of using a cotter joint in mechanical applications?
Ans. The advantages of using a cotter joint in mechanical applications include its simplicity, ease of assembly and disassembly, and high load-carrying capacity. It provides a secure and rigid connection that minimizes relative motion between the joined parts, making it suitable for applications where accurate alignment and stability are crucial.
3. What are the limitations of using a cotter joint in mechanical engineering?
Ans. Some limitations of using a cotter joint include the need for precise machining of the cotter hole and the shaft, as any misalignment can lead to stress concentration and premature failure. Additionally, the cotter joint is a non-reversible joint, meaning that it can only be assembled and disassembled in one direction. This can be a disadvantage in applications that require frequent assembly and disassembly.
4. What is a knuckle joint and what are its applications in mechanical engineering?
Ans. A knuckle joint is a type of mechanical joint used to connect two rods or shafts that are subjected to tensile or compressive loads. It consists of two forks, or half-yokes, that are connected by a pin or a bolt passing through their eyes. Knuckle joints are commonly used in applications such as connecting links, tie rods, and control rods, where flexibility and angular movement are required.
5. How does a knuckle joint differ from a cotter joint in terms of design and functionality?
Ans. While both cotter joints and knuckle joints are used to connect two rods or shafts, they differ in terms of their design and functionality. A cotter joint provides a rigid and secure connection, whereas a knuckle joint allows for angular movement and flexibility. The cotter joint relies on a tapered pin and nut for its assembly, while the knuckle joint uses forks and a pin or bolt to connect the two parts. The choice between the two joints depends on the specific application requirements, such as the need for rigidity or flexibility.
