Describing Wave Motion

  • When describing wave motion, there are several terms which are important to know, including:
    • Amplitude
    • Wavelength
    • Frequency
    • Period

Amplitude

  • Amplitude is defined as:
    The distance from the undisturbed position to the peak or trough of a wave
  • It is given the symbol A and is measured in metres (m)
  • Amplitude is the maximum or minimum displacement from the undisturbed position

Wavelength

  • Wavelength is defined as
    The distance from one point on the wave to the same point on the next wave.
  • In a transverse wave:
    • The wavelength can be measured from one peak to the next peak
  • In a longitudinal wave
    • The wavelength can be measured from the centre of one compression to the centre of the next
  • The wavelength is given the symbol λ (lambda) and is measured in metres (m)
  • The distance along a wave is typically put on the x-axis of a wave diagram

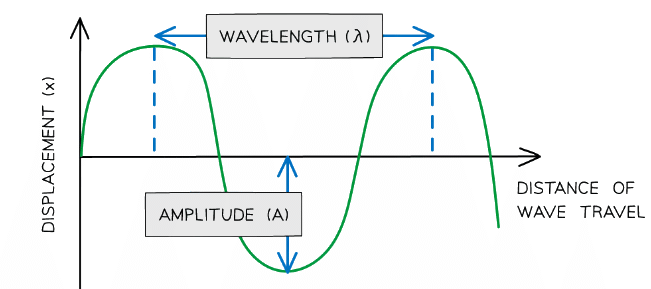

Diagram showing the amplitude and wavelength of a waveDiagram showing the amplitude and wavelength of a wave

Frequency

  • Frequency is defined as:
    The number of waves passing a point in a second
  • Frequency is given the symbol f and is measured in Hertz (Hz)

Time Period

  • The time period of a wave is defined as:
    The time taken for a single wave to pass a point
  • This can also be stated as
    The time taken for one full cycle of a wave
  • The time period is given the symbol T and is measured in seconds (s)

Describing Wave Motion & The Wave Equation | Physics for Grade 10

  • On a graph, this can be seen by the time taken for a complete wavelength, if the horizontal axis is time

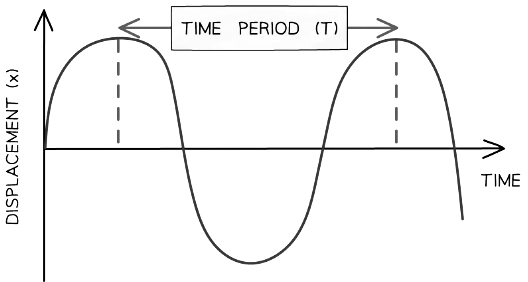

Diagram showing the time period of a waveDiagram showing the time period of a wave

The Wave Equation

  • Wave speed is defined as:
    The distance travelled by a wave each second
  • Wave speed is given the symbol ν and is measured in metres per second (m/s)
  • Wave speed is the speed at which energy is transferred through a medium

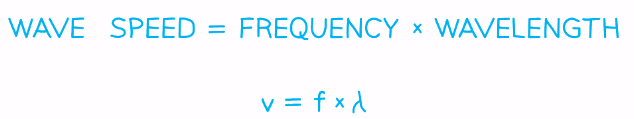

  • Transverse and longitudinal waves both obey the wave equation:

Describing Wave Motion & The Wave Equation | Physics for Grade 10

  • Where:
    • v = wave speed in metres per second (m/s)
    • f = frequency in Hertz (Hz)
    • λ = wavelength in metres (m)

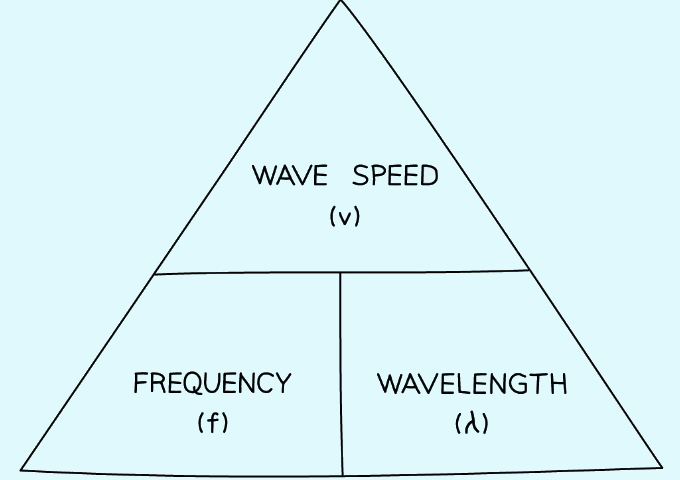

  • The wave speed equation may need to be rearranged, which can be done using this formula triangle:

Describing Wave Motion & The Wave Equation | Physics for Grade 10

Solved Example

A wave in a pond has a speed of 0.15 m/s and a time period of 2 seconds.Calculate:

(a) The frequency of the wave
(b) The wavelength of the wave

Part (a)
Step 1: List the known quantities

Time period, T = 2 s
Step 2: Write out the equation relating time period and frequency

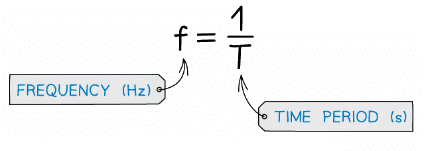

T = 1/f
Step 3: Rearrange for frequency, f, and calculate the answer
f = 1 ÷ T = 1 ÷ 2
Frequency, f = 0.5 Hz

Part (b)
Step 1: List the known quantities
Wave speed, v = 0.15 m/s
Frequency, f = 0.5 Hz
Step 2: Write out the wave speed equation
v = f × λ
Step 3: Rearrange the equation to calculate the wavelength
λ = v ÷ f
Step 4: Use the frequency you calculated in part (a) and put the values into the equation
λ = 0.15 ÷ 0.5
Wavelength, λ = 0.30 m

Exam Tip

When stating equations make sure you use the right letters:
For example, use λ for wavelength, not L or W
If you can’t remember the correct letters, then just state the word equations
Be careful with units: wavelength is usually measured in metres and speed in m/s, but if the wavelength is given in cm you might have to give the speed in cm/s
Likewise, watch out for frequency given in kHz: 1 kHz = 1000 Hz
