Dynamic Host Configuration Protocol (DHCP)
Ethernet addresses are configured into the network adaptor by the manufacturer, and this process is managed in such a way that these addresses are globally unique. This is clearly a sufficient condition to ensure that any collection of hosts connected to a single Ethernet will have unique addresses. IP addresses by contrast must be not only unique on a given internetwork, but also must reflect the structure of the internetwork. They contain a network part and a host part; the network part must be the same for all hosts on the same network.

Thus, it is not possible for the IP addresses to be configured once into a host when it is manufactured, since that would imply that the manufacturer knew which hosts were going to end up on which networks, and it would mean that a host, once connected to one network, could never move to another. For this reason, IP addresses need to be reconfigurable.
There are some obvious drawbacks in manual configuration by system administrator. So automated configuration methods are required. The primary method uses a protocol known as

Dynamic Host Configuration Protocol (DHCP).
DHCP relies on the existence of a DHCP server that is responsible for providing configuration information to hosts. At the simplest level, the DHCP server can function just as a centralized repository for host configuration information. The configuration information for each host could be stored in the DHCP server and automatically retrieved by each host when it is booted or connected to the network. The configuration information for each host stored in a table that is indexed by some form of unique client identifier, typically hardware address.

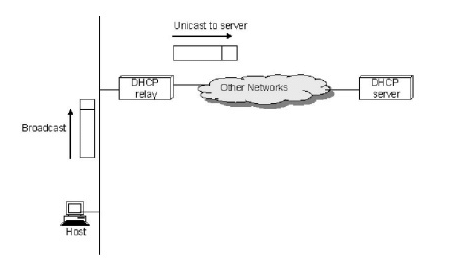

To contact a DHCP server the host sends a DHCPDISCOVER message to a special IP address (255.255.255.255) that is an IP broadcast address. It will received by all host and routers on the network. DHCP uses the concept of a relay agent. There is at least one relay agent on each network, and it is configured with just one piece of information, the IP address of DHCP server. When a relay agent receives a DHCPDISCOVER message, it unicasts it to the DHCP server and awaits the response, which it will send back to the requesting client

Dynamic Host Configuration Protocol (DHCP) Computer Science Engineering (CSE) Notes | EduRev

Dynamic Host Configuration Protocol (DHCP) Computer Science Engineering (CSE) Notes | EduRev

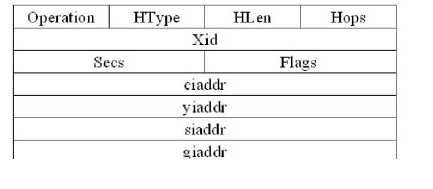

The packet format is shown above. The message is sent using a protocol called the User Datagram Protocol (UDP). When trying to obtain the configuration information, the client puts its hardware address in the chaddr field. The DHCP server replies by filling in the yiaddr (your IP address) field and sending to the client.
