What is Electron Beam Machining?

Electron Beam Machining (EBM) is a technique for removing metal through thermal processes. It involves using electrical energy to generate high-energy electrons, which are then focused into a high-velocity beam traveling at nearly half the speed of light (approximately 1.6 × 10⁸ meters per second). This method is particularly renowned for its accuracy in micro-cutting applications.

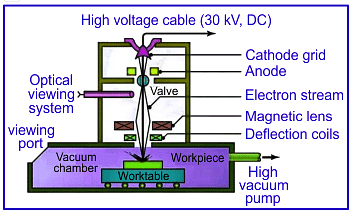

Electron Beam Machining Diagram

Electron Beam Machining

Parts of Electron Beam Machining

Electron Gun:

• Central to EBM, the electron gun consists of key elements. The cathode, typically made of tungsten and connected to the negative terminal of a DC power supply, emits electrons. These electrons are guided by the negatively biased grid cup. The anode, connected to the positive terminal, accelerates the electrons, ensuring the controlled generation of the electron beam.

Vacuum Chamber:

• EBM operates within a vacuum chamber to prevent electron collisions with air molecules. The vacuum level is maintained between 10−5 to 10−6 mm of mercury. A sealed door allows access for positioning the workpiece on the worktable. This environment is crucial for maintaining the precision and effectiveness of the electron beam machining process.

Focusing Lens:

• Critical for precision, the focusing lens concentrates the electron beam onto a specific point, reducing its diameter to as small as 0.01 to 0.02 mm. This precise focusing is essential for accurate material removal during machining.

Electromagnetic Deflector Coil:

• The electromagnetic deflector coil plays a versatile role, directing the electron beam to different areas of the workpiece. This capability allows for intricate control over the machining path, ensuring precise and complex machining operations.

Working of Electron Beam Machining

When a high DC voltage is applied to the tungsten filament, it heats up to 2500°C, emitting electrons. These electrons are guided by a grid cup, directed towards the positively charged anode, and accelerated to nearly half the speed of light (approximately 1.6 x 10⁸ m/s) with voltages ranging from 50 to 200 kV. Operating within a vacuum environment, they pass through tungsten diaphragms and electromagnetic focusing lenses to target the workpiece.

Upon striking the workpiece, the high-velocity electrons convert their kinetic energy into intense heat energy. This rapid conversion, facilitated by the electron beam's extremely high power density (around 6500 billion W/mm²), melts and vaporizes the material. The process occurs in short pulses, typically ranging in frequency from 1 to 16,000 Hz and durations from 4 to 65,000 microseconds. The electron beam can be precisely focused and deactivated as necessary, allowing for continuous cutting operations.

An integrated viewing device enables operators to monitor the machining process closely.

Characteristics of Electron Beam Machining Processes

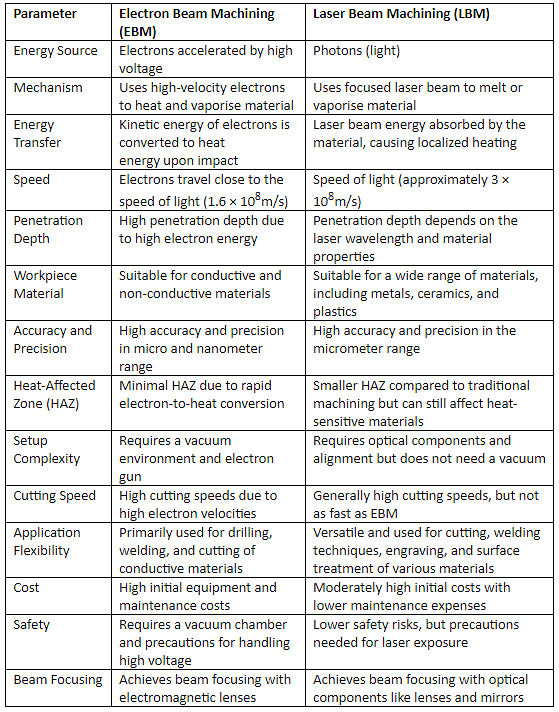

Difference between Electron Beam Machining and Laser Beam Machining

The table below draws a comparison between electron beam machining and laser beam machining.

Advantages of Electron Beam Machining (EBM):

• Exceptional precision with capabilities for fine details.
• Minimal heat-affected zones, preserving material integrity.
• Suitable for heat-sensitive and difficult-to-machine materials.
• No mechanical tool wear, reducing tooling costs.
• Minimal workpiece distortion.
• Capable of machining complex and intricate shapes.
• High material removal rates for deep cuts.
• No need for coolants or lubricants.
• Applicable in vacuum and high-temperature environments.
• Minimal environmental impact due to absence of coolants and lubricants.

Disadvantages of Electron Beam Machining (EBM):

• Limited to conductive materials.
• High initial equipment and maintenance costs.
• Requires a vacuum environment, limiting workpiece size.
• Limited availability and expertise in EBM.
• Potential for radiation hazards in inadequately shielded systems.
• Slower material removal compared to some processes.
• Complex setup and operation.
• High energy consumption.
• Surface finish quality may require additional processes.

Applications of Electron Beam Machining (EBM):

• Aerospace industry for precision components.
• Medical device manufacturing for intricate parts.
• Microelectronics for microfabrication.
• Tool and die-making for complex molds.
• Nuclear industry for specialized components.
• Automotive industry for engine parts.
• Research and development for prototyping.
• Jewelry and watchmaking for intricate designs.
• Military and defense for critical components.
• Space exploration for lightweight structures.
