 Electricity and Circuits 30 Flashcards |
Start
|
|
What is the primary role of the battery in an electric circuit? |
Card: 1 / 30 |
|
|
The battery supplies energy to the circuit, allowing electric current to flow from the negative terminal to the positive terminal. |
Card: 2 / 30 |
|
|
Fill in the blank: Electric current is the flow of ___ carried by electrons. |
Card: 3 / 30 |
|
|
Electric charge |
Card: 4 / 30 |
|
|
True or False: Resistance in a circuit decreases the energy required to maintain the flow of current. |
Card: 5 / 30 |
|
|
False. Resistance makes it harder for current to flow, requiring more energy to maintain the flow. |
Card: 6 / 30 |
|
|
In the rope loop model of electric current, what does tightening the grip on the rope represent? |
Card: 7 / 30 |
|
|
Tightening the grip on the rope represents resistance in the circuit. |
Card: 8 / 30 |
|
|
Riddle: I help power your devices but am invisible to the eye. I flow from one terminal to another, completing a circuit. What am I? |
Card: 9 / 30 |
|
|
Electric current |
Card: 10 / 30 |
|
|
List two components in a circuit that control the flow of electrons. |
Card: 11 / 30 |
|
|
Resistors and switches |
Card: 12 / 30 |
|
|
Fill in the blank: Conductors are materials with electrons that can move freely, making it easy for electric current to flow, while ___ are materials that do not allow electric current to flow easily. |
Card: 13 / 30 |
|
|
Insulators |
Card: 14 / 30 |
|
|
What happens to electrical energy in a lamp with a filament? |
Card: 15 / 30 |
|
|
 Unlock all Flashcards with EduRev Infinity Plan Starting from @ ₹99 only
|
|
|
|
The filament offers resistance and converts electrical energy to heat and light, causing the lamp to illuminate. |
Card: 16 / 30 |
|
|

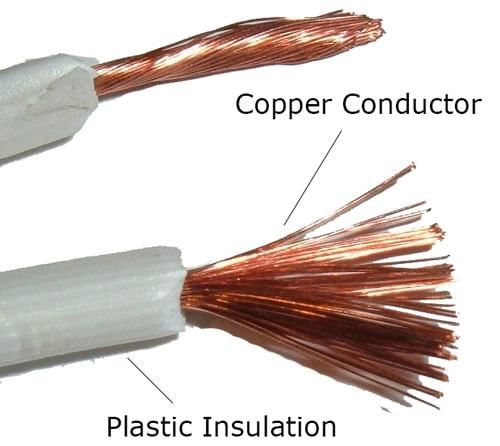

What materials are considered good electrical conductors? |
Card: 17 / 30 |
|
|
Good electrical conductors include metals such as copper, aluminum, and gold. |
Card: 18 / 30 |
|
|
Insulators are materials that ___ because the electrons cannot move as freely through them. |
Card: 19 / 30 |
|
|
Do not conduct electricity well |
Card: 20 / 30 |
|
|
True or False: Rubber and plastic are examples of electrical conductors. |
Card: 21 / 30 |
|
|
False. Rubber and plastic are examples of insulators. |
Card: 22 / 30 |
|
|
What is the primary function of insulators in electrical circuits? |
Card: 23 / 30 |
|
|
 Insulators are used to coat wires and protect against electric shocks. |
Card: 24 / 30 |
|
|
In a circuit diagram, what does a switch do? |
Card: 25 / 30 |
|
|
A switch interrupts the flow of electricity in a circuit; when open, the circuit is incomplete, and when closed, electricity can flow. |
Card: 26 / 30 |
|
|
Riddle: I can be connected in a single path or multiple loops. What am I? |
Card: 27 / 30 |
|
|
A circuit; specifically, a series circuit or a parallel circuit. |
Card: 28 / 30 |
|
|
Fill in the blank: The brightness of lamps in a circuit increases with ___ current. |
Card: 29 / 30 |
|
|
Higher |
Card: 30 / 30 |
|
|
Completed! Keep practicing to master all of them. |
