 Fourier Transform as a System

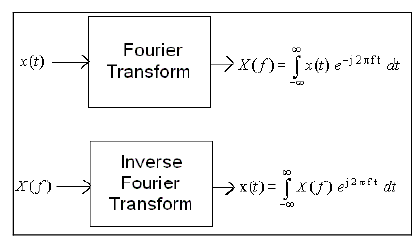

The Fourier Transform and the Inverse Fourier Transform as systems The Fourier Transform and The Inverse Fourier transform may be looked at as system transformations. One system for instance takes in a time signal and outputs its Fourier transform, another takes a frequency domain signal (or a spectrum) and produces the corresponding time-domain signal.

Fourier Transform as a System | Signals and Systems - Electrical Engineering (EE)

Let us now gain some additional insight into the Fourier Transform using this system notion.



1. Duality of the Fourier Transform

Fourier Transform as a System | Signals and Systems - Electrical Engineering (EE)

Notice a certain symmetry in these two system transformations.




Say y(t) has a Fourier Transform Y(f), then :     Fourier Transform as a System | Signals and Systems - Electrical Engineering (EE)    What is the transform of Y(t) ? Or, which signal on Inverse Fourier transformation would yield Y(t) ? Recall the Inverse Transformation equation above, and  Fourier Transform as a System | Signals and Systems - Electrical Engineering (EE)    put  in the equation for Y:    Fourier Transform as a System | Signals and Systems - Electrical Engineering (EE)


Therefore, y(-f ) is the Fourier transform of Y(t) (where Y(f) is the Fourier transform of y(t) ) ! This remarkable relationship between a signal and its Fourier transform is called the Duality of the Fourier Transform. i.e:

Fourier Transform as a System | Signals and Systems - Electrical Engineering (EE)


Duality implies a very remarkable relationship between the Fourier transform and its inverse. Notice the relationship between the Fourier Transform and the Fourier Inverse of X above:

Fourier Transform as a System | Signals and Systems - Electrical Engineering (EE)
This gives us a very important insight into the nature of the Fourier transform. We will use it to prove many “dual” relationships: if some result holds for the Fourier Transform, a dual result will hold for the Inverse transform as well.

2. Linearity
Both the Fourier transform and its inverse system are linear. Thus the Fourier transform of a linear combination of two signals is the same linear combination of their respective transforms. The same, of-course holds for the Inverse Fourier transform as well.


3. Memory
The independent variable for the input and output signals in these systems is not the same, so technically we can't talk of memory with respect to the Fourier transform and its inverse. But what we can ask is: if one changes a time signal locally, will only some corresponding local part of the transform change? Not quite.

Fourier Transform as a System | Signals and Systems - Electrical Engineering (EE)

Introducing a local kink like in the above time-signal causes a large, spread-out distortion of the spectrum. In fact, the more local the kink, the more spread-out the distortion!
By duality,one can say the same about the inverse Fourier transform.
I.e: if X(.) has a Fourier transform X(.), using Duality and the above discussion, we can say that introducing a local distortion in X(.) will cause a “wide-spread” distortion in x(-.). But x(.) is also the inverse Fourier transform of this locally changed X(.) Thus introducing a local kink in the spectrum of a signal changes it drastically.

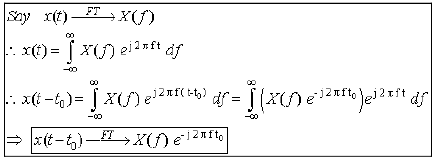

4. Shift invariance Again, we can't talk of shift variance/invariance with these systems as the independent variable for the input and output signals is not the same. But we can examine what happens to the spectrum of a signal on time-shifting it, and vice-versa.

Fourier Transform as a System | Signals and Systems - Electrical Engineering (EE)

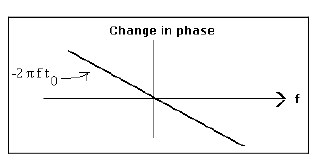

Notice that nowhere has the magnitude of X(f) changed. Only a phase (or argument) change that is linear in frequency has taken place.

Fourier Transform as a System | Signals and Systems - Electrical Engineering (EE)

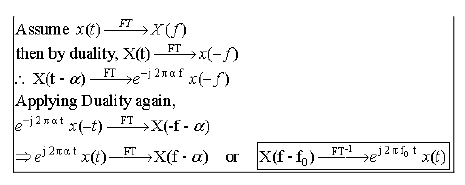

Let us, using Duality examine the effect of translating the spectrum on the time-signal.

Fourier Transform as a System | Signals and Systems - Electrical Engineering (EE)

5. Stability
Are our systems BIBO stable? i.e.: Will a bounded input necessarily give rise to a bounded output? No.
The integrals that describe the two systems need not converge for a bounded input signal. e.g.: they don't converge for a non-zero constant input signal.
Now that we have come to the issue of the Fourier transform and the Inverse Fourier transform not converging for a constant input signal, let us see what the Transform of the unit impulse is.
Note that the impulse, far from satisfying Dirichlet's conditions, is not even a function. It falls in the class of generalized functions. Thus what we are doing is extending our idea of the Fourier Transform. Why? Because we will find it useful.

Fourier Transform as a System | Signals and Systems - Electrical Engineering (EE)

That is, the Fourier transform of the unit impulse is the identity function. Thus, even though the inverse equation does not converge for the identity function, we say that that Fourier Transform of the unit impulse is the identity function.

  Fourier Transform as a System | Signals and Systems - Electrical Engineering (EE)
Why stop here? Consistent with duality, we say that the Fourier Transform of the identity function is the unit impulse:

Fourier Transform as a System | Signals and Systems - Electrical Engineering (EE)
We will even apply the time-shift and frequency-shift properties we have just proved to make further generalizations:

Fourier Transform as a System | Signals and Systems - Electrical Engineering (EE)

Conclusion:

In this lecture you have learnt:

  • We looked at The Fourier Transform and The Inverse Fourier transform as system transformations .
  • We took a look over dual nature of Fourier transform.
  • Both the Fourier transform and its inverse system are linear.
  • We examined the properties like 'memory' & 'shift invariance' & stability of these systems.
