GATE Past Year Questions: Heat Exchangers | Heat Transfer - Mechanical Engineering PDF Download

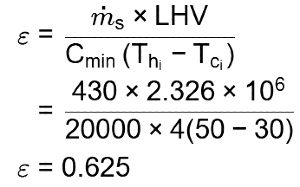

Q1: A condenser is used as a heat exchanger in a large steam power plant in which steam is condensed to liquid water. The condenser is a shell and tube heat exchanger which consists of 1 shell and 20,000 tubes. Water flows through each of the tubes at a rate of 1 kg/s with an inlet temperature of 30° C. The steam in the condenser shell condenses at the rate of 430 kg /s at a temperature of 50 ° C. If the heat of vaporization is 2.326 MJ/k g and specific heat of water is 4 kJ/(kg. K), the effectiveness of the heat exchanger is ______ (rounded off to 3 decimal places).
Ans: (0.59 to 0.633)
GATE Past Year Questions: Heat Exchangers | Heat Transfer - Mechanical Engineering

no. of tube, n = 20, 000
GATE Past Year Questions: Heat Exchangers | Heat Transfer - Mechanical Engineeringw = 1 kg/sec/ per tube
GATE Past Year Questions: Heat Exchangers | Heat Transfer - Mechanical Engineerings = 430 kg/sec
So,
GATE Past Year Questions: Heat Exchangers | Heat Transfer - Mechanical Engineeringw = n x GATE Past Year Questions: Heat Exchangers | Heat Transfer - Mechanical Engineeringw
= 20000 x 1 = 20000 kg/sec
LHC = 2.236MJ/kg
C = 4 kJ/kgK
C min = Mw x C = 20000 x 4GATE Past Year Questions: Heat Exchangers | Heat Transfer - Mechanical Engineering

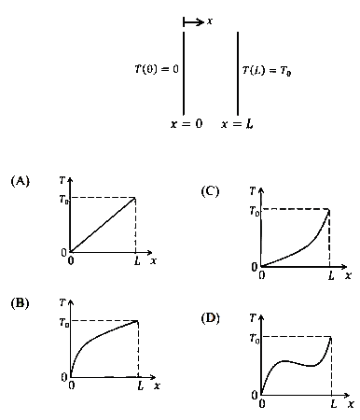

Q2: A plane, solid slab of thickness L , shown in the figure, has thermal conductivity k that varies with the spatial coordinate x as k = A + B x, where A and B are positive constants ( A > 0 , B > 0 ). The slab walls are maintained at fixed temperature of T ( x = 0 ) = 0 and T ( x = L ) = T0 > 0 . The slab has no internal heat sources. Considering one dimensional heat transfer, which one of the following plots qualitatively depicts the steady-state temperature distribution within the slab? [GATE ME 2024]
GATE Past Year Questions: Heat Exchangers | Heat Transfer - Mechanical Engineering(a) A
(b) B
(c) C
(d) D
Ans: (b)
Give: k = A + Bx
GATE Past Year Questions: Heat Exchangers | Heat Transfer - Mechanical Engineeringg → 0
AsGATE Past Year Questions: Heat Exchangers | Heat Transfer - Mechanical Engineering = - KA dT/dX
or, GATE Past Year Questions: Heat Exchangers | Heat Transfer - Mechanical Engineering/A = C
= - k (dT/dX) for steady state
So, -k (dT/dX) = constant
or, - (A + Bx) dT/dX = C
GATE Past Year Questions: Heat Exchangers | Heat Transfer - Mechanical Engineering
So, temperature distribution will follow logarithmic curve.


Q1: Consider a counter-flow heat exchanger with the inlet temperatures of two fluids (1 and 2) being T1 , in = 300 K and T2 , in = 350 K The heat capacity rates of the two fluids are C1 = 1000 W/ KC1  =1000W/K and C2 = 400 W/K C, and the effectiveness of the heat exchanger is 0.5. The actual heat transfer rate is _____ kW. (Answer in integer) [GATE ME 2023]
Ans: (9.999 to 10.001)
GATE Past Year Questions: Heat Exchangers | Heat Transfer - Mechanical EngineeringData given
C1 = 1000 W/K
C2 = 400 W/K
ϵ = qactual/qmax
for qmax, C should be minimum
So, Cmin = C2
GATE Past Year Questions: Heat Exchangers | Heat Transfer - Mechanical Engineering
qactual = 0.5 x 400 (350 - 300)
= 10kW

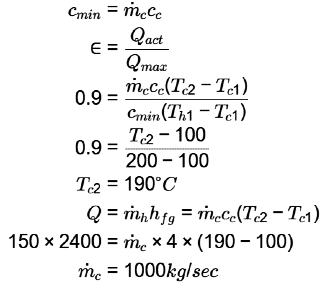

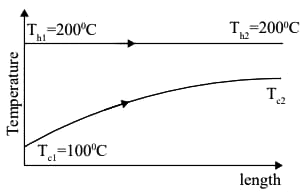

Q1: Saturated vapor at 200 ° C condenses to saturated liquid at the rate of 150 kg/s on the shell side of a heat exchanger (enthalpy of condensation h fg = 2400 kJ/ kg ). A fluid with Cp = 4 kJGATE Past Year Questions: Heat Exchangers | Heat Transfer - Mechanical Engineeringg − 1GATE Past Year Questions: Heat Exchangers | Heat Transfer - Mechanical Engineering− 1 enters at 100 ° C on the tube side. If the effectiveness of the heat exchanger is 0.9, then the mass flow rate of the fluid in the tube side is ____ kg/s (in integer). [GATE ME 2022,SET-2]
Ans: (1000 to 1000)
GATE Past Year Questions: Heat Exchangers | Heat Transfer - Mechanical EngineeringHot fluid
Th1 = Th2 = 200° C
ṁ h = 150kg/s
= hfg = 2400kj/kg
Cold fluid
Tc1 = 100° C
ϵ = 0.9
ṁc = ? kg/ sec
If fluid is under phase change then that fluid have in finite heat capacity rate.
In this case hot fluid is under phase change so C max = ∞
GATE Past Year Questions: Heat Exchangers | Heat Transfer - Mechanical Engineering

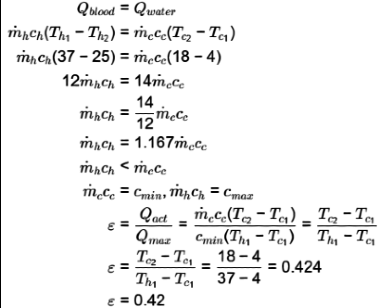

Q2: During open-heart surgery, a patient ?s blood is cooled down to 25°C from 37°C using a concentric tube counter-flow heat exchanger. Water enters the heat exchanger at 4°C and leaves at 18°C.  Blood flow rate during the surgery is 5 L/minute. Use the following fluid properties:
GATE Past Year Questions: Heat Exchangers | Heat Transfer - Mechanical Engineering

Effectiveness of the heat exchanger is _________ (round off to 2 decimal places).   [GATE ME 2022, SET-1]
Ans: (0.4 to 0.44)GATE Past Year Questions: Heat Exchangers | Heat Transfer - Mechanical EngineeringFor preferred heat exchange between load and water.

GATE Past Year Questions: Heat Exchangers | Heat Transfer - Mechanical Engineering

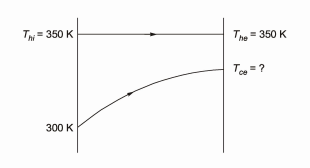

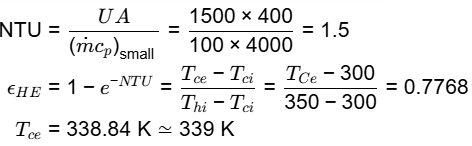

Q1: A shell and tube heat exchanger is used as a steam condenser. Coolant water enters the tube at 300 K at a rate of 100 kg/s. The overall heat transfer coefficient is 1500 W/m 2. K, and total heat transfer area is 400 m2 . Steam condenses at a saturation temperature of 350 K. Assume that the specific heat of coolant water is 4000 J/kg.K. The temperature of the coolant water coming out of the condenser is _______K (round off to the nearest integer).  [GATE ME 2021, SET-2]
Ans: (337 to 341)
GATE Past Year Questions: Heat Exchangers | Heat Transfer - Mechanical EngineeringGATE Past Year Questions: Heat Exchangers | Heat Transfer - Mechanical Engineering


Q1: In a concentric tube counter-flow heat exchanger, hot oil enters at 102 °C and leaves at 65°C. Cold water enters at 25 °C and leaves at 42°C. The log mean temperature difference (LMTD) is ______°C (round off to one decimal place)  [GATE ME 2020, SET-1]
Ans: (48.8 to 49.8)
Thi = 102°C, The = 65°C,
Tc, i = 25°C, Tce = 42°C
LMTD = (ΔT1 - ΔT2) / ln(ΔT1 / ΔT2)
ΔT1 = 102°C - 42°C = 60°C
ΔT2 = 65°C - 25°C = 40°C7
LMTD = (60 - 40) / ln(60 / 40) = 20 / 0.4054 = 49.3°C

Question for GATE Past Year Questions: Heat Exchangers
Try yourself:In shell and tube heat exchanger, baffles are mainly used to

[1991]

View Solution

Question for GATE Past Year Questions: Heat Exchangers
Try yourself:The practice to use steam on the shell side and water on the tube side in condensers of steam power plant is because

[1994]

View Solution

Question for GATE Past Year Questions: Heat Exchangers
Try yourself:Hot oil is cooled from 80 to 50°C in an oil cooler which uses air as the coolant. The air temperature rises from 30 to 40°C. The designer uses a LMTD value of 26°C. The type of heat exchanger is

[2005]

View Solution

Question for GATE Past Year Questions: Heat Exchangers
Try yourself:In a heat exchanger, it is observed that ΔT1 = ΔT2 where ΔT1 is the temperature difference between the two single phase fluid streams at one end and ΔT2 is the temperature difference at the other end. This heat exchanger is

[2014]

View Solution

Question for GATE Past Year Questions: Heat Exchangers
Try yourself:In certain heat exchanger, both the fluids have identical mass flow rate specific heat product. The hot fluid enters at 76°C and leaves at 47°C, and the cold fluid entering at 28°C leave at 55°C, the effectiveness of the HE is

[1997]

View Solution

Question for GATE Past Year Questions: Heat Exchangers
Try yourself:In a counter flow heat exchanger, for the hot fluid the heat capacity = 2 kJ/kgK, mass flow rate = 5 kg/s, inlet temperature = 150°C, outlet temperature = 100°C. For the cold fluid, heat capacity = 4 kJ/kg K, mass flow rate = 10 kg/s, inlet temperature = 20°C. Neglecting heat transfer to the surroundings, the outlet temperature of the cold fluid in °C is

[1994]

View Solution

Question for GATE Past Year Questions: Heat Exchangers
Try yourself:In a condenser, water enters at 30°C and flows at the rate 1500 kg/hr. The condensing steam is at a temperature of 120°C and cooling water leaves the condenser at 80°C. Specific heat of water is 4.187 kJ/kgK. If the overall heat transfer coefficient is 2000 W/m2K, the heat transfer area is

[2005]

View Solution

Question for GATE Past Year Questions: Heat Exchangers
Try yourself:An industrial gas (c = 1 kJ/kgK) enters a parallel flow heat exchanger at 250°C with a flow rate of 2 kg/s to heat a water stream. The water stream (c = 4 kJ/kgK) enters the heat exchanger at 50°C with a flow rate of 1 kg/s.The heat exchanger has an effectiveness of 0.75. The gas stream exit temperature will be

[2010]

View Solution

Question for GATE Past Year Questions: Heat Exchangers
Try yourself:Cold water flowing at 0.1 kg/s is heated from 20°C to 70°C in a counter flow type heat exchanger by a hot water stream flowing at 0.1 kg/s and entering at 90°C. The specific heat of water is 4200 J/(kgK) and density is 1000 kg/m3. If the overall heat transfer coefficient U for the heat exchanger is 2000 W/(m2K), the required heat exchange area (in m2) is

[2011]

View Solution

Question for GATE Past Year Questions: Heat Exchangers
Try yourself:A balanced counter flow heat exchanger has a surface area of 20 m2 and overall heat transfer coefficient of 20 W/m2K. Air (cp = 1000 J/kgK) entering at 0.4 kg/s and 280 K is to be preheated by the air leaving the system at 0.4 kg/s and 300 K. The temperature (in K) of the preheated air is

[2015]

View Solution

Question for GATE Past Year Questions: Heat Exchangers
Try yourself:In a counter-flow heat exchanger, water is heated at the rate of 1.5 kg/s from 40°C to 80°C by an oil entering at 120°C and leaving at 60°C. The specific heats of water and oil are 4.2 kJ/ kgK and 2 kJ/kgK, respectively. The overall heat transfer coefficient is 400 W/m2K.The required heat transfer surface area (in m2) is

[2007]

View Solution

Question for GATE Past Year Questions: Heat Exchangers
Try yourself:Air enters a counter flow HE at 70°C and leaves at 40°C. Water enters at 30°C and leaves at 50°C, the LMTD in degree C is

[2000]

View Solution

Question for GATE Past Year Questions: Heat Exchangers
Try yourself:For the same inlet and exit temperatures of the hot and cold fluids, the log mean temperature difference (LMTD) is

[2002]

View Solution

Question for GATE Past Year Questions: Heat Exchangers
Try yourself:In a counterflow heat exchanger, hot fluid enters at 60°C and cold fluid leaves at 30°C. Mass flow rate of the hot fluid is 1 kg/s and that the cold fluid is 2 kg/s. Specific heat of the hot fluid is 10 kJ/kgK and that of the cold fluid is 5 kJ/kgK. The Log Mean Temperature Difference (LMTD) for the heat exchanger in °C is

[2007]

View Solution

Question for GATE Past Year Questions: Heat Exchangers
Try yourself:The logarithmic mean temperature difference (LMTD) of a counter flow heat exchanger is 20°C. The cold fluid enters at 20°C and the hot fluid enters at 100°C. Mass flow rate of the cold fluid is twice that of the hot fluid. Specific heat at constant pressure of the hot fluid is twice that of the cold fluid. The exit temperature of the cold fluid

[2008]

View Solution

Question for GATE Past Year Questions: Heat Exchangers
Try yourself:In a condenser of a power plant, the steam condenses at a temperature of 60°C. The cooling water enters at 30°C and leaves at 45°C. The Logarithmic Mean Temperature Difference (LMTD) of the condenser is

[2011]

View Solution

Question for GATE Past Year Questions: Heat Exchangers
Try yourself:Water (c = 4.18 kJ/kgK) at 80°C enters a counter flow heat exchanger with a mass flow rate of 0.5 kg/s. Air (c = 1 kJ/kgK) enter at 30°C with a mass flow rate 2.09 kg/s. If the effectiveness of the heat exchanger is 0.8, the LMTD (in °C) is

[2012]

View Solution

Question for GATE Past Year Questions: Heat Exchangers
Try yourself:For a heat exchanger, ΔTmax is the maximum temperature difference and ΔTmin is the minimum temperature difference between the two fluids. LMTD is the log mean temperature difference. Cmin and Cmax are the minimum and the maximum heat capacity rates. The maximum possible heat transfer (Qmax) between the two fluids is

[2014]

View Solution

Question for GATE Past Year Questions: Heat Exchangers
Try yourself:In a parallel flow heat exchanger operating under steady state, the heat capacity rates (product of specific heat at constant pressure and mass flow rate) of the hot and cold fluid are equal. The hot fluid, flowing at 1 kg/s with cp = 4 kJ/kgK, enters the heat exchanger at 102°C while the cold fluid has an inlet temperature of 15°C. The overall heat transfer coefficient for the heat exchanger is estimated to be 1 kW/m2K and the corresponding heat transfer surface area is 5 m2. Neglect heat transfer between the heat exchanger and the ambient. The heat exchanger is characterized by the following relation:
2ε = 1 - expt(-2NTU). The exit temperature (in °C) for the cold fluid is

[2009]

View Solution

Question for GATE Past Year Questions: Heat Exchangers
Try yourself:Saturated vapor is condensed to saturated liquid in a condenser. The heat capacity ratio is GATE Past Year Questions: Heat Exchangers | Heat Transfer - Mechanical Engineering The effectiveness (e) of the condenser is

[2015]

View Solution

The document GATE Past Year Questions: Heat Exchangers | Heat Transfer - Mechanical Engineering is a part of the Mechanical Engineering Course Heat Transfer.
All you need of Mechanical Engineering at this link: Mechanical Engineering
59 videos|108 docs|86 tests
Join Course for Free

FAQs on GATE Past Year Questions: Heat Exchangers - Heat Transfer - Mechanical Engineering

1. What are the different types of heat exchangers commonly used in chemical engineering?
Ans. The most common types of heat exchangers used in chemical engineering include shell and tube heat exchangers, plate heat exchangers, air-cooled heat exchangers, and double-pipe heat exchangers. Each type has its own advantages and applications depending on the specific process requirements.
2. How do you calculate the overall heat transfer coefficient in a heat exchanger?
Ans. The overall heat transfer coefficient (U) can be calculated using the formula: $$ U = \frac{Q}{\Delta T_{lm}} $$ where Q is the heat transfer rate, and ΔTlm is the log mean temperature difference. The value of U accounts for the thermal resistances on both the hot and cold sides, as well as the resistance of the heat exchanger material.
3. What is the significance of the log mean temperature difference (LMTD) in heat exchangers?
Ans. The log mean temperature difference (LMTD) is crucial in the design and analysis of heat exchangers as it provides a measure of the temperature driving force for heat transfer. It is defined as the logarithmic average of the temperature differences between the hot and cold fluids at each end of the heat exchanger, which helps in determining the heat transfer rate accurately.
4. What factors affect the performance of a heat exchanger?
Ans. Several factors affect the performance of a heat exchanger, including temperature difference between the fluids, flow arrangement (counterflow or parallel flow), surface area of the heat exchanger, fluid properties (viscosity, specific heat), and fouling on the heat transfer surfaces. Optimizing these factors can enhance the efficiency of heat transfer.
5. What is the purpose of using baffles in shell and tube heat exchangers?
Ans. Baffles are used in shell and tube heat exchangers to direct the flow of the shell-side fluid, promote turbulence, and enhance the heat transfer coefficient. They also help prevent the formation of dead zones, ensure better mixing, and support the tubes mechanically, minimizing vibration and potential damage.
