Important Diagrams: Human Health and Diseases | Biology Class 12 - NEET PDF Download

Human health and sickness are really important parts of being a human. They're closely connected to how our bodies work, where we live, and how we interact with others. Being healthy isn't just about not being sick; it's about feeling good physically, mentally, and socially.

Understanding the basic structures and processes through diagrams is useful for NEET aspirants in solving questions and deeper concept clarity. some of the important diagrams of this chapter are given below.

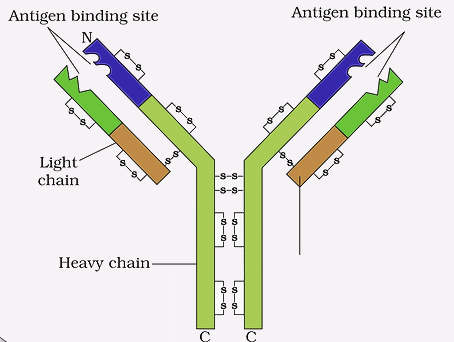

1. Structure of Antibody

An antibody has a Y-shaped structure with four polypeptide subunits, each containing two identical light and heavy chains.

  • The N-terminus of the heavy chains forms antigen-binding domains (Fab), while the C-terminus forms a crystallization domain (Fc) for effector cell interaction.
  • Disulfide and non-covalent bonds hold the subunits together.
  • Antibodies have two identical antigen-binding sites with variations between them  Structure of Antibody
    Structure of Antibody

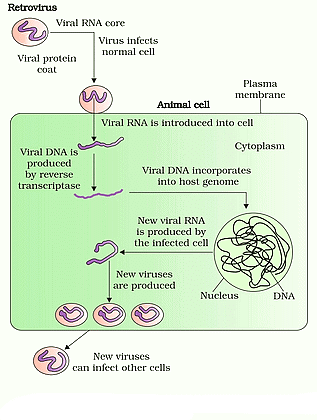

2. Lifecycle of Retrovirus

Retroviruses, a group of viruses within the Retroviridae family, possess RNA as their genetic material. Upon infecting a cell, they undergo reverse transcription, converting their RNA into DNA.

This viral DNA integrates into the host cell's DNA, initiating replication. An example of such a retrovirus is the Human Immunodeficiency Virus (HIV).

Life Cycle of retrovirusLife Cycle of retrovirus

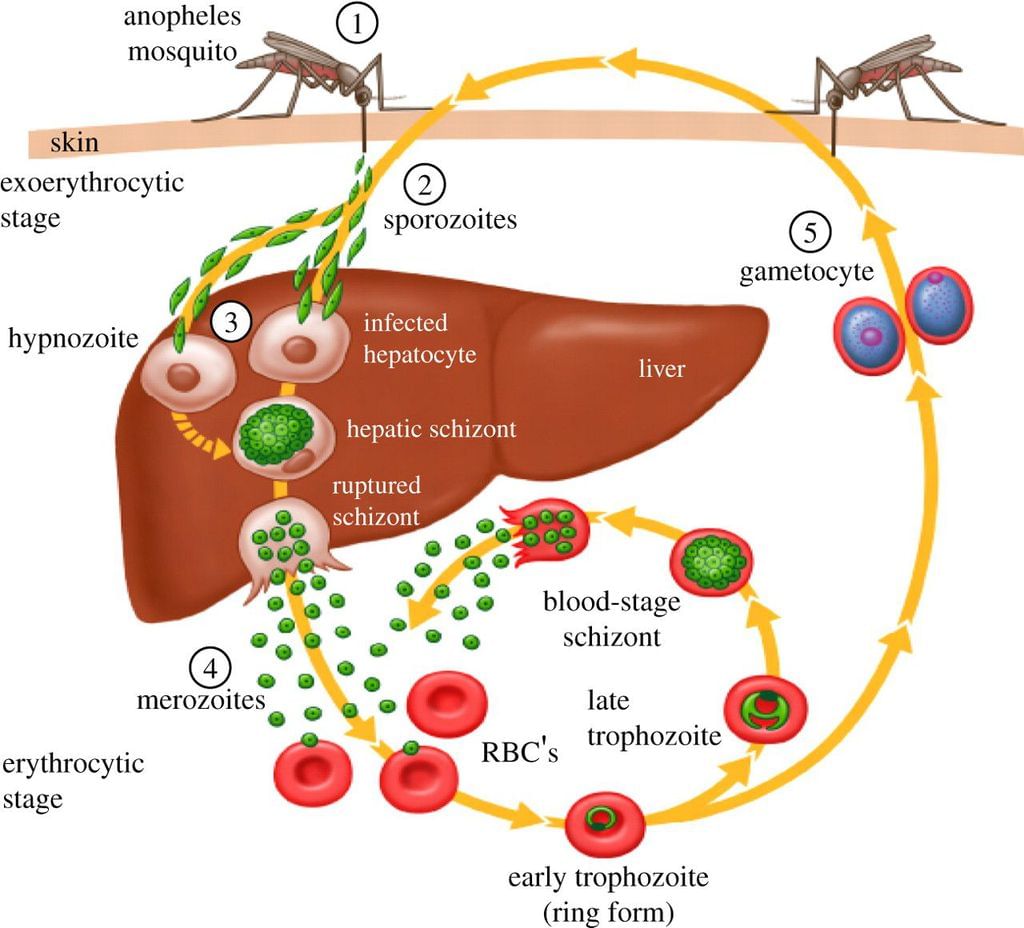

3. Life-cycle of Plasmodium vivax

Plasmodium is a unicellular parasite that falls under the genus protozoans. The Plasmodium life cycle species includes development within a blood-feeding insect host, which injects parasites into a vertebrate host during a blood meal.

  • Plasmodium is known to cause malaria, which occurs when a female Anopheles mosquito bites humans or any other mammal. Some other species of Plasmodium are P. malariae, P. ovale, and P. vivax.
  • Plasmodium parasite have a complex life cycle consisting of three stages and it alternates between two hosts: humans and female Anopheles mosquitoes. The life cycle of Plasmodium consists of two phases – sexual phase, which occurs in insects and asexual phase that is completed in humans.

Important Diagrams: Human Health and Diseases | Biology Class 12 - NEET

Diagram Based Questions- NEET

Q11: The infectious stage of plasmodium that enters the human body is :     (NEET 2020)
(a) Female gametocytes
(b) Male gametocytes

(c) Trophozoites
(d) Sporozoites

Ans. (d)

Solution.

The life cycle of plasmodium that infects humans follows three stages:

Life Cycle of PlasmodiumLife Cycle of Plasmodium(i) infection of a human with sporozoites

(ii) asexual reproduction

(iii) sexual reproduction.

The two first take place exclusively in the human body, while the third one starts in the human body and is completed into the mosquito organism. The human infection begins when an infected female anopheles mosquito bites a person and injects infected with sporozoites saliva into the blood circulation i.e., the first life stage of plasmodium (stage of infection).

The document Important Diagrams: Human Health and Diseases | Biology Class 12 - NEET is a part of the NEET Course Biology Class 12.
All you need of NEET at this link: NEET
100 videos|294 docs|185 tests

Top Courses for NEET

FAQs on Important Diagrams: Human Health and Diseases - Biology Class 12 - NEET

1. What is the structure of an antibody?
Ans. An antibody is composed of four polypeptide chains - two heavy chains and two light chains, all linked together by disulfide bonds. The basic unit of an antibody is called a monomer, which consists of two identical heavy chains and two identical light chains.
2. What is the lifecycle of a retrovirus?
Ans. The lifecycle of a retrovirus involves several stages: attachment and entry into the host cell, reverse transcription of viral RNA into DNA, integration of viral DNA into the host genome, transcription and translation of viral genes, assembly of new viral particles, and release of mature virions from the host cell.
3. What is the life-cycle of Plasmodium vivax?
Ans. The life-cycle of Plasmodium vivax, the parasite responsible for causing malaria, involves both human and mosquito hosts. In humans, the parasite infects liver cells, undergoes replication, and then infects red blood cells, leading to symptoms of malaria. Mosquitoes become infected when they feed on an infected human, allowing the parasite to complete its life-cycle.
4. How does the immune system respond to antibodies?
Ans. When an antibody binds to a foreign antigen, it can activate various immune responses, such as neutralization of the antigen, opsonization to enhance phagocytosis, and activation of the complement system. These responses help the immune system to eliminate the foreign invader.
5. How do antibodies provide immunity against pathogens?
Ans. Antibodies play a crucial role in the immune response by recognizing and binding to specific antigens on pathogens, marking them for destruction by other immune cells. Through this mechanism, antibodies help the immune system to neutralize or eliminate pathogens, providing immunity against future infections.
