Fibre Optic Communications

Fibre optic communication is a method of transmitting information from one place to another by sending pulses of light through an optical fibre. The information carrying capacity of a cable or radio channel is directly proportional to its bandwidth.

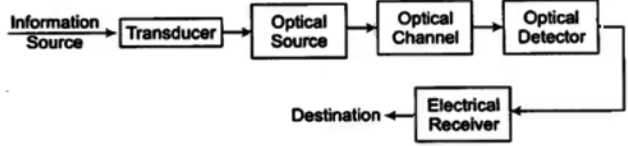

Block diagram of fibre optic communication

• Transducer basically converts information from source into electrical signal.
• Optical source (LASER or LED) converts electrical signal into optical (light) signal.
• Optical channel is optical fibre.
• Optical detector converts optical signal into electrical signal. Avalanche photo-diode is used as optical detector.

Key Points

• If there is interaction between a material and light then we go for photon theory.
• When we deal with transmission of optical signal or reception of optical signal then we go for wave theory.
• When we have to compare the behaviour of light in two medium then we go for ray theory.
• The primary application of fibre optic communications is in long-distance telephone systems.
• Because of the great attenuation of light in a fibre optic cable, repeater units are used to amplify and regenerate the signals over long distances.
• Because of the very high frequency of light compared to typical information signals, tremendous bandwidth is easily available.
• Light is an electromagnetic signal like a radio wave but is much higher in frequency. It can be used as a carrier for information signals.
• The angle at which light strikes a surface is called the angle of incidence. The angle at which light is reflected from a surface is called the angle of reflection. The angle of incidence is equal to the angle of reflection.
• When a light ray passes from one medium to another, it is bent. This is called refraction.
• The amount of refraction is called the index of refraction n and is the ratio of the speed of light in air to the speed of light in another medium, such as water, glass, or plastic. [n = 1 in air, n = 1.3 in water, n = 1.5 in glass]. n=c/v, Value of refractive index is always greater than or equal to 1.

Total Internal Reflection: By Snell's law n₁ sin φ₁ = n₂ sin φ₂
if φ₂ = 90; internal reflection takes place

Total internal reflection will take place if angle of incidence φ₁ will be greater than or equal to critical angle.

Total internal reflection in two mediums

• The critical angle is the angle of incidence that causes the refracted light to travel along the interface between two different media.
• All the information in optical fibre is carried out by the principle of total internal reflection and all the information is carried in core of the optical fibre.
• Cladding does not support any transmission of information.

Key Points

• A popular fibre optic cable with a glass core and plastic cladding is called Plastic Clad Silica (PCS).
• The cladding surrounding the core protects the core and provides an interface with a controlled index of refraction.

Acceptance Angle (θ_a): Acceptance angle is the maximum angle to the fibre axis at which the light may enter in order to propagate.

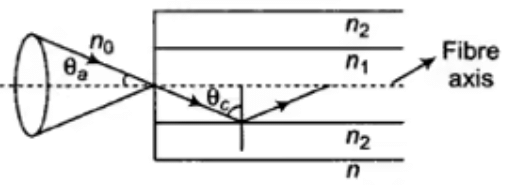

Acceptance angle of fibre

n₁, n₂ = Refractive indices of core and cladding respectively
If angle of incidence to the fibre will be greater than θ_a, then total internal reflection will not take place in optical fibre and some information will be lossed.
Numerical Aperture (NA): It is a measure of light collecting ability of fibre. It establishes the relationship between acceptance angle and refractive indexes of different medium involved.
n₀ sin θ_a = n₁sin(90 – θ_c) = n₁cos θ_c

NA = n₀ sin θa = (n²₁ - n²₂)^1/2

Relative Refractive Index Difference (Δ)

NA = n₁(2Δ)^1/2

Meridonal Rays: Meridonal rays are those rays which pass through core axis.
NA = n₀ sin θa = (n²₁ - n²₂)^1/2
Skew Rays: Skew rays are those rays which do not pass through core axis.

NA = n₀ sin θaz cos γ = (n²₁ - n²₂)^1/2
where, θ_as = Acceptance angle for skew says.
γ = The angle between angle of incidence and normal at the point of incidence.

Key Points

θ_as is always greater than θ_a.
Skew rays will be in large number inside fibre.

Normalized Frequency (v)
v = 2π/λ x a x(NA) = 2π/λ x α x n₁ x (2Δ)^1/2
where, a = Core radius
λ = Wavelength of operation
It is a dimensionless quantity.
Step Index Fibre: Step index means there is a sharp difference in the index of refraction between the core and cladding.
n(r) = n₁ r < a
n₂ r ≥ a

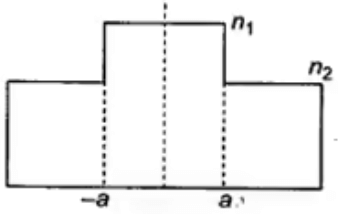

Step index fibre

Mode: Number of modes or mode volume M = v²/2. Some modes depends on energy and phase equivalence is given below.
Equal energy and equal phase

Same phase but unequal energy

Different phase but same energy

Key Points

• A single mode cable is very small in diameter and essentially provides only a single path for light.
• Multimode cores are large and provide multiple paths for the light.
• Multiple light paths through a step-index core causes a light pulse to be stretched and attenuated. This is called modal dispersion and it limits the upper pulse repetition rate and thus the information bandwidth.
• If we reduce the radius such that single mode is only transmitted through core so no dispersion and so no different delays

Graded Index Fibre: Graded index means that the index of refraction of the core varies over its cross- section, highest in the centre and lowest at the edges.

n₂ = n₁[1 – 2Δ]^1/2 ; r ≥ a

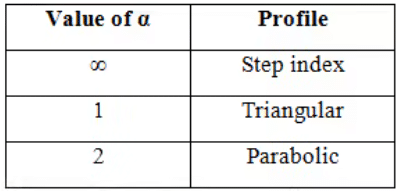

where, α is called as profile of the fibre.

• As a increases, graded index fibre will tend toward step index fibre behaviour.
• Multiple light paths in a graded index core are controlled so that they converge at multiple points along the cable. Modal dispersions does occur, but it is not as serve as that caused by a step-index core.
• Modal dispersion does not occur in single-mode cores.
• The three most widely used types of fibre-optic cables are multimode step-index, single-mode step-index, and multimode graded-index.
• Number of modes or mode volume is
• If we want to transmit only single mode, then normalized frequency must be in the range 0 ≤ v ≤ v_c, where v_c = 2.405.
• For single mode transmission minimum value of wavelength λ is

Losses in Optical Fibre: The primary specification of a fibre optic cable is attenuation which is usually expressed as the loss in decibels per kilometre. Light loss in a fibre optic cable is caused by absorption, scattering, and dispersion.

Absorption Losses: Absorption losses can be classified as

• Intrinsic [due to interaction of one or major components of glass]
• Extrinsic [due to OH– ion or due to transition element impurity]

Key Points

• Cable attenuation is directly proportional to its length.
• Cable losses at range from 1db/km in glass single-mode step-index cable to 100 db/km for plastic multi mode step-index cable.
• Fibre-optic cables can be spliced by gluing.

Critical Radius of Curvature

For multimode

For single mode

Optical Sources: Fibre-optic systems use Light Emitting Diodes (LEDs) and semiconductor lasers as the main light sources. Laser is source of monochromatic and coherent light. LED is source of monochromatic and non-coherent light. Light emitting diodes are used in short-distance, low-speed systems. Injection Laser Diodes (ILDs) are used in long-distance, high-speed systems.

Key Points

• In case of He-Ne laser for same output optical power loss, input power is required compare to Ruby laser.
• Most LEDs and ILDs emit light in the invisible near infrared range (0.82 to 1.55μm)
• In case of LED total recombination rate R_t is directly proportional to forward biased current and is given by R_t = R_nr + R_r

where, R_nr = Non-radiative recombination

R_r = Radiative recombination

Internal Quantum Efficiency of LED: The internal quantum efficiency of LED can be calculated as
n_int = R_r/R_t; R_t = i/e'; n_int =
where e is charge on electron
Internal power F_int = Photon rate × h_f
P_int = R_r × h_f
P_int - η_int x i/e x hc/λ
External power is somewhat lesser than internal power and is given by

where, F is transmission coefficient and lies between (0, 1), 0 for opaque and 1 for transparent medium.

n = Refractive index of the medium

nx = Refractive index of the crystal

• External quantum efficiency is equal to P_ext/P, where P is input electrical power.
• Relation between overall mean life time (τ_t), mean life time (τ_r), corresponding to radiative recombination and mean life time (τ_nr) corresponding to non-radiative recombination is


Coupling Efficiency: Coupling efficiency is a parameter which defines the amount of optical power coupled to the optical fibre from LED.


for I(θ) = I₀ cos θ

Optical Detector: The most commonly used light sensor is photo diode or PIN diode. PIN junction diodes are faster and more sensitive than conventional photo diodes. The fastest and most sensitive light detector is the Avalanche Photo Diode (APD). Optical detector must have high sensitivity, high fidelity, short response time and stability within the range of operation.

Quantum Efficiency of Optical Detector: The quantum efficiency of optical detector can be calculated as
η_D = Electron generate rate/Incident photon rate
η_D = r_e/r_p
where r_e and r_p are electron and photon generation rate respectively.
Responsivity (R): It gives the transfer characteristic of detector and is equal to
where, I_p = Photon current, P₀ = Incident photon power
P₀ = Photon rate × h_f
P₀ = r_p × h_f
r_e = ηP₀/h_f
