Transition Metal Carbene Complex

A transition metal carbene complex is an organometallic compound featuring a divalent organic ligand. The divalent organic ligand coordinated to the metal center is called a carbene. Carbene complexes for almost all transition metals have been reported. Many methods for synthesizing them and reactions utilizing them have been reported. The term carbene ligand is a formalism since many are not derived from carbenes and almost none exhibit the reactivity characteristic of carbenes. Described often as M = CR2, they represent a class of organic ligands intermediate between alkyls (−CR3) and carbynes (≡CR). They feature in some catalytic reactions, especially alkene metathesis, and are of value in the preparation of some fine chemicals.

Classification

Metal carbene complexes are often classified into two types. The Fischer carbenes named after Ernst Otto Fischer feature strong π-acceptors at the metal and being electrophilic at the carbene carbon atom. Schrock carbenes, named after Richard R. Schrock, are characterized by more nucleophilic carbene carbon centers; these species typically feature higher valent metals. N-Heterocyclic carbenes (NHCs) were popularized following Arduengo's isolation of a stable free carbene in 1991. Reflecting the growth of the area, carbene complexes are now known with a broad range of different reactivities and diverse substituents. Often it is not possible to classify a carbene complex with regards to its electrophilicity or nucleophilicity.

Fischer Carbenes
Fischer carbenes are found with:

  • low oxidation state metal center
  • middle and late transition metals Fe(0), Mo(0), Cr(0)
  • π-acceptor metal ligands
  • π-donor substituents on the carbene atom such as alkoxy and alkylated amino groups.

The chemical bonding (Scheme 1) is based on σ-type electron donation of the filled lone pair orbital of the carbene atom to an empty metal d-orbital, and π back bonding of a filled metal d-orbital to the empty p-orbital on carbon. An example is the complex (CO)5Cr = C(NR2)Ph.
Fischer carbenes can be likened to ketones, with the carbene carbon being electrophilic, much like the carbonyl carbon of a ketone. Like ketones, Fischer carbene species can undergo aldol-like reactions. The hydrogen atoms attached to the carbon α to the carbene carbon are acidic, and can be deprotonated by a base such as n-butyllithium, to give a nucleophile which can undergo further reaction.
This carbene is the starting material for other reactions such as the Wulff-Dötz reaction.

Schrock Carbenes
Schrock carbenes do not have π-accepting ligands. These complexes are nucleophilic at the carbene carbon atom. Schrock carbenes are typically found with:

  • high oxidation state metal center
  • early transition metals Ti(IV), Ta(V)
  • π-donor ligands
  • hydrogen and alkyl substituents on carbenoid carbon.

Bonding in such complexes can be viewed as the coupling of a triplet state metal and triplet carbene. These bonds are polarized towards carbon and therefore the carbene atom is a nucleophile. An example of a Schrock carbene is the compound Ta(=C(H)But)(CH2But)3, with a tantalum(V) center doubly bonded to a neopentyl diene ligand as well as three neopentyl ligands. An example of interest in organic synthesis is Tebbe's reagent.

N-Heterocyclic Carbenes
N-Heterocyclic carbenes (NHCs) are particularly common carbene ligands. They are popular because they are more readily prepared than Schrock and Fischer carbenes. In fact many NHCs are isolated as the free ligand, since they are persistent carbenes. Being strongly stabilized by π-donating substituents, NHCs are powerful σ-donors but π-bonding with the metal is weak. For this reason, the bond between the carbon and the metal center is often represented by a single dative bond, whereas Fischer and Schrock carbenes are usually depicted with double bonds to metal. Continuing with this analogy, NHCs are often compared with trialkylphosphine ligands. Like phosphines, NHCs serve as spectator ligands that influence catalysis through a combination of electronic and steric effects, but they do not directly bind substrates.Carbenes without a metal ligand have been produced in the lab.

IMes is a common NHC ligandIMes is a common NHC ligand

Carbene Radicals
Carbene radicals are long-lived reaction intermediates found with:

  • low oxidation state metal center with singly occupied dz2 orbital
  • middle and late transition metal, e.g. Co(II)
  • σ-donor and π-acceptor ligand
  • π-acceptor substituents on the ligand such as carbonyl or sulfonyl groups. The chemical bond present in carbene radicals is described as aspects of both Fischer and Schrock carbenes.

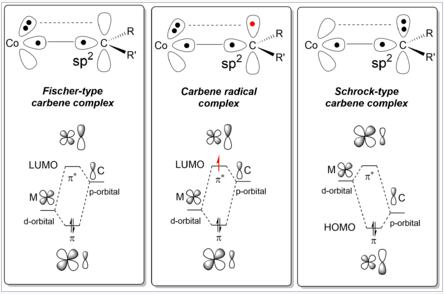

    Bonding Scheme of Carbene Radical Complexes as compared to Schrock and Fischer-type carbene complexes
    Bonding Scheme of Carbene Radical Complexes as compared to Schrock and Fischer-type carbene complexes

Applications of Carbene Complexes

The main applications of metal carbenes involves none of the above classes of compounds, but rather heterogeneous catalysts used for alkene metathesis in the Shell higher olefin process. A variety of related reactions are used to interconvert light alkenes, e.g. butenes, propylene, and ethylene. Carbene-complexes are invoked as intermediates in the Fischer–Tropsch route to hydrocarbons. A variety of soluble carbene reagents, especially the Grubbs' and molybdenum-imido catalysts have been applied to laboratory-scale synthesis of natural products and materials science. In the nucleophilic abstraction reaction, a methyl group can be abstracted from a Fischer carbene for further reaction.
Diazo compounds like methyl phenyldiazoacetate can be used for cyclopropanation or to insert into C-H bonds of organic substrates. These reactions are catalyzed by dirhodium tetraacetate or related chiral derivatives. Such catalysis is assumed to proceed via the intermediacy of carbene complexes.

History

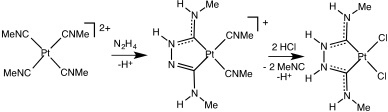

The first metal carbene complex, Chugaev`s red salt, was not recognized as such until decades after its preparation.The first metal carbene complex, Chugaev's red salt, was not recognized as such until decades after its preparation.

The characterization of (CO)5W(COCH3(Ph)) in the 1960s is often cited as the starting point of the area, although carbenoid ligands had been previously implicated. Ernst Otto Fischer, for this and other achievements in organometalic chemistry, was awarded the 1973 Nobel Prize in Chemistry.

The document Metal Carbenes & Their Classification | Inorganic Chemistry is a part of the Chemistry Course Inorganic Chemistry.
All you need of Chemistry at this link: Chemistry
40 videos|91 docs|41 tests

FAQs on Metal Carbenes & Their Classification - Inorganic Chemistry

1. What is a transition metal carbene complex?
Ans. A transition metal carbene complex refers to a compound in which a carbene molecule is coordinated to a transition metal center. Carbenes are highly reactive species containing a divalent carbon atom with two unshared electrons. Transition metal carbene complexes are known for their unique reactivity and play a significant role in various catalytic reactions.
2. How are transition metal carbene complexes classified?
Ans. Transition metal carbene complexes can be classified based on the type of carbene ligand and the coordination mode of the carbene to the metal center. Commonly encountered carbene ligands include Fischer, Schrock, and N-heterocyclic carbenes (NHCs). The coordination mode can be either η1 or η2, depending on whether the carbene is bonded to the metal through one or both of its carbon atoms.
3. What are the properties of transition metal carbene complexes?
Ans. Transition metal carbene complexes possess several interesting properties. They often exhibit strong metal-carbene bonds, allowing them to stabilize highly reactive carbenes. These complexes can undergo various reactions, such as insertion into C-H bonds, cyclopropanation, olefin metathesis, and alkene or alkyne insertion. Additionally, they can serve as efficient catalysts in organic transformations.
4. How are transition metal carbene complexes synthesized?
Ans. Transition metal carbene complexes can be synthesized through different methods. One common approach involves the reaction of a suitable carbene precursor with a transition metal compound. For example, NHCs can be prepared by deprotonation of the corresponding imidazolium salts followed by coordination with a metal precursor. Another method is the direct metalation of diazo compounds, which generates metal carbene intermediates.
5. What are the applications of transition metal carbene complexes?
Ans. Transition metal carbene complexes have diverse applications in organic synthesis and catalysis. They are widely used in the formation of carbon-carbon and carbon-heteroatom bonds, enabling the synthesis of complex organic molecules. These complexes also find utility in various transformations, including cross-coupling reactions, cyclopropanations, ring-opening reactions, and polymerization processes. Additionally, they play a crucial role in the development of new pharmaceuticals and materials.
