NCERT Solutions for Class 8 Maths Chapter 5 - Understanding Elementary Shapes (Exercise 5.4, 5.5 and 5.6)

Exercise 5.4

Q1. What is the measure of
(i) a right angle?

Ans: The measure of a right angle is 90o
(ii) a straight angle?

Ans: The measure of a straight angle is 180o


Q2. Say True or False:
(a) The measure of an acute angle < 90°.
(b) The measure of an obtuse angle < 90°.
(c) The measure of a reflex angle > 180°.
(d) The measure of on complete revolution = 360°.
(e) If m∠A = 53o and m∠B = 35o then m∠A > m∠B.
Ans:
(a) True; the measure of an acute angle is less than 90o
(b) False; the measure of an obtuse angle is more than 90o but less than 180o
(c) True; the measure of a reflex angle is more than 180o
(d) True; the measure of one complete revolution is 360o
(e) True; A is greater than B


Q3. Write down the measure of:
(a) some acute angles
(b) some obtuse angles
(give at least two examples of each)
Ans: (a) The measures of an acute angle are 50°, 65°
(b) The measures of obtuse angle are 110°, 175°

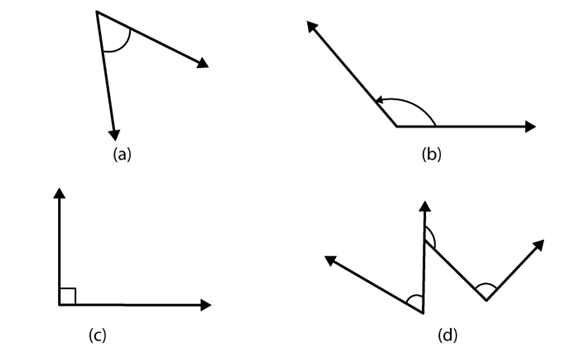

Q4. Measure the angles given below using the Protractor and write down the measure:
NCERT Solutions for Class 8 Maths Chapter 5 - Understanding Elementary Shapes (Exercise 5.4, 5.5 and 5.6)
Ans: (a) The measure of an angle is 45°
(b) The measure of an angle is 120°
(c) The measure of an angle is 90°
(d) The measures of angles are 60°, 90° and 130°


Q5. Which angle has a large measure? First estimate and then measure:

NCERT Solutions for Class 8 Maths Chapter 5 - Understanding Elementary Shapes (Exercise 5.4, 5.5 and 5.6)Measure of angle A = ?
Measure of angle B = ?
Ans: ∠B has larger measure.
∠A = 40o and ∠B = 68o


Q6. From these two angles which has larger measure? Estimate and then confirm by measuring them:
Ans: Second angle has larger measure.
The measures of these angles are 45o and 55o.
NCERT Solutions for Class 8 Maths Chapter 5 - Understanding Elementary Shapes (Exercise 5.4, 5.5 and 5.6)


Q7. Fill in the blanks with acute, obtuse, right or straight:
(a) An angle whose measure is less than that of a right angle is ________________.
Ans: acute angle
(b) An angle whose measure is greater than that of a right angle is ________________.
Ans: obtuse angle
(c) An angle whose measure is the sum of the measures of two right angles is ________________.
Ans: straight angle
(d) When the sum of the measures of two angles is that of a right angle, then each one of them is ________________.
Ans: acute angle
(e) When the sum of the measures of two angles is that of a straight angle and if one of them is acute then the other should be ________________.
Ans: obtuse angle

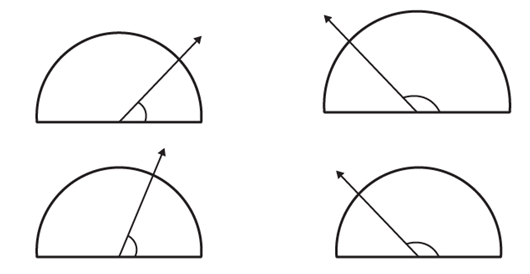

Q8. Find the measure of the angle shown in each figure. (First estimate with your eyes and then find the actual measure with a protractor.)
NCERT Solutions for Class 8 Maths Chapter 5 - Understanding Elementary Shapes (Exercise 5.4, 5.5 and 5.6)Ans: The measures of the angles shown in the above figures are 40o, 130o, 65o and 135o

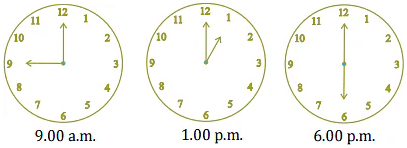

Q9. Find the angle measure between the hands of the clock in each figure:

NCERT Solutions for Class 8 Maths Chapter 5 - Understanding Elementary Shapes (Exercise 5.4, 5.5 and 5.6)Ans: (i) 90 (Right angle)
(ii) 30 (Acute angle)
(iii) 180 (Straight angle)


Q10. Investigate:
In the given figure, the angle measure 30o. Look at the same figure through a magnifying glass. Does the angle becomes larger? Does the size of the angle change?

NCERT Solutions for Class 8 Maths Chapter 5 - Understanding Elementary Shapes (Exercise 5.4, 5.5 and 5.6)

Ans: No, the measure of angle will be same.

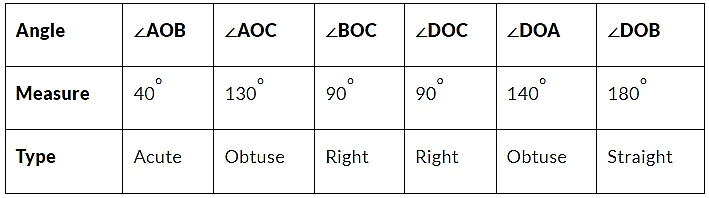

Q11. Measure and classify each angle:

NCERT Solutions for Class 8 Maths Chapter 5 - Understanding Elementary Shapes (Exercise 5.4, 5.5 and 5.6)

NCERT Solutions for Class 8 Maths Chapter 5 - Understanding Elementary Shapes (Exercise 5.4, 5.5 and 5.6)Ans:
NCERT Solutions for Class 8 Maths Chapter 5 - Understanding Elementary Shapes (Exercise 5.4, 5.5 and 5.6)


Exercise 5.5

Q1. Which of the following are models for perpendicular lines:
(a) The adjacent edges of a table top.
(b) The lines of a railway track.
(c) The line segments forming the letter ‘L’.
(d) The letter V.

Ans:

(a) Perpendicular
(b) Not perpendicular
(c) Perpendicular
(d) Not perpendicular


Q2. Let NCERT Solutions for Class 8 Maths Chapter 5 - Understanding Elementary Shapes (Exercise 5.4, 5.5 and 5.6)  be the perpendicular to the line segment NCERT Solutions for Class 8 Maths Chapter 5 - Understanding Elementary Shapes (Exercise 5.4, 5.5 and 5.6). Let NCERT Solutions for Class 8 Maths Chapter 5 - Understanding Elementary Shapes (Exercise 5.4, 5.5 and 5.6) and NCERT Solutions for Class 8 Maths Chapter 5 - Understanding Elementary Shapes (Exercise 5.4, 5.5 and 5.6)intersect in the point A. What is the measure of ∠PAY?
Ans: We will be using the concept of perpendicular lines to solve this.
Since PQ ⊥ XY Therefore, ∠PAY = 90°
NCERT Solutions for Class 8 Maths Chapter 5 - Understanding Elementary Shapes (Exercise 5.4, 5.5 and 5.6)

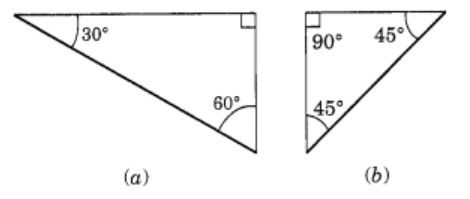

Q3. There are two “set-squares” in your box. What are the measures of the angles that are formed at their corners? Do they have any angle measure that is common?

NCERT Solutions for Class 8 Maths Chapter 5 - Understanding Elementary Shapes (Exercise 5.4, 5.5 and 5.6)

Ans: One set-square has 60°,90°, 30° and other set-square has 45° ,90° ,45°. They have 90° as common angle.


Q4. Study the diagram. The line l is perpendicular to line m.

NCERT Solutions for Class 8 Maths Chapter 5 - Understanding Elementary Shapes (Exercise 5.4, 5.5 and 5.6)(a) Is CE = EG?
(b) Does PE bisect CG?
(c) Identify any two line segments for which PE is the perpendicular bisector.
(d) Are these true?
(i) AC > FG
(ii) CD = GH
(iii) BC < EH
Ans: (a) Yes, both measure 2 units.
(b) Yes, because CE = EG
NCERT Solutions for Class 8 Maths Chapter 5 - Understanding Elementary Shapes (Exercise 5.4, 5.5 and 5.6)
(d) (i) True, (ii) True, (iii) True


Exercise 5.6

Q1. Name the types of following triangles:
(a) Triangle with lengths of sides 7 cm, 8 cm and 9 cm.
(b) ΔABC with AB = 8.7 cm, AC = 7 cm and BC = 6 cm.
(c) ΔPQR such that PQ = QR = PR = 5 cm.
(d) ΔDEF with m∠D = 90o
(e) ΔXYZ with m∠Y = 90o and XY = YZ
(f) ΔLMN with m∠L = 30o , m∠M = 70o and m∠N = 80o
Ans: (a) Scalene triangle
(b) Scalene triangle
(c) Equilateral triangle
(d) Right-angled triangle
(e) Isosceles right-angled triangle
(f) Acute-angled triangle

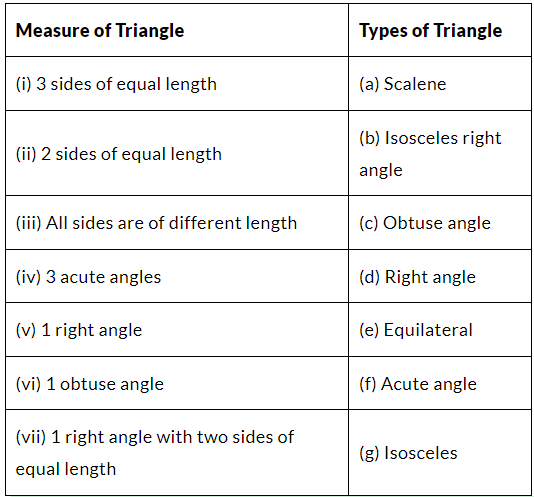

Q2. Match the following:

NCERT Solutions for Class 8 Maths Chapter 5 - Understanding Elementary Shapes (Exercise 5.4, 5.5 and 5.6)Ans: (i) → (e)
(ii) → (g)
(iii) → (a)
(iv) → (f)
(v) → (d)
(vi) → (c)
(vii) → (b)

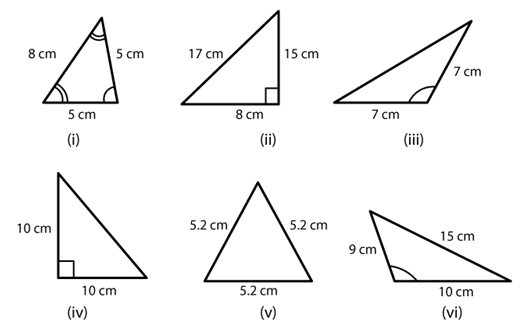

Q3. Name each of the following triangles in two different ways: (You may judge the nature of angle by observation)
NCERT Solutions for Class 8 Maths Chapter 5 - Understanding Elementary Shapes (Exercise 5.4, 5.5 and 5.6)

Ans: (i) Acute-angled and isosceles triangle
(ii) Right-angled and scalene triangle
(iii) Obtuse-angled and isosceles triangle
(iv) Right-angled and isosceles triangle
(v) Equilateral and acute-angled triangle
(vi) Obtuse-angled and scalene triangle


Q4. Try to construct triangles using match sticks. Some are shown here.

NCERT Solutions for Class 8 Maths Chapter 5 - Understanding Elementary Shapes (Exercise 5.4, 5.5 and 5.6)Can you make a triangle with:
(a) 3 matchsticks?
(b) 4 matchsticks?
(c) 5 matchsticks?
(d) 6 matchsticks?
(Remember you have to use all the available matchsticks in each case)
If you cannot make a triangle, think of reasons for it.
Ans: (a) 3 matchsticks This is an acute angle triangle and it is possible with 3 matchsticks to make a triangle because sum of two sides is greater than third side.
(b) 4 matchsticks This is a square, hence with four matchsticks we cannot make triangle.
NCERT Solutions for Class 8 Maths Chapter 5 - Understanding Elementary Shapes (Exercise 5.4, 5.5 and 5.6)
(c) 5 matchsticks This is an acute angle triangle and it is possible to make triangle with five matchsticks, in this case sum of two sides is greater than third side.
NCERT Solutions for Class 8 Maths Chapter 5 - Understanding Elementary Shapes (Exercise 5.4, 5.5 and 5.6)
(d) 6 matchsticks This is an acute angle triangle and it is possible to make a triangle with the help of 6 matchsticks because sum of two sides is greater than third side.
NCERT Solutions for Class 8 Maths Chapter 5 - Understanding Elementary Shapes (Exercise 5.4, 5.5 and 5.6)
