NCERT Solutions: Force and Laws of Motion

# NCERT Solutions for Class 9 Science Chapter 8 - Force and Laws of Motion

## Page No. 91

Q1. Which of the following has more inertia?
(a) A rubber ball and a stone of the same size?
(b) A bicycle and a train?
(c) A five rupees coin and one-rupee coin?
Ans:
(a) Out of a rubber ball and a stone of the same size, the mass of stone is larger; so stone has more inertia than a rubber ball.
(b) Out of a bicycle and a train, train has much larger mass than bicycle, so train has more inertia.
(c) Out of five rupees and one rupee coins, five rupee coin has larger mass and hence more inertia.

Q2. In the following example, try to identify the number of times the velocity of the ball changes.
"A football player kicks a football to another player of his team who kicks the football towards the goal. The goalkeeper of the opposite team collects the football and kicks it towards a player of his own team".
Also identify the agent supplying the force in each case.
Ans: The velocity of the ball changes four times in the following ways:
(a) Player 1 changes the velocity by kicking it.
(b) Player 2 changes the velocity by kicking it to the goal.
(c) Goalkeeper changes the velocity by, collecting the ball.
(d) Goalkeeper changes the velocity by kicking the ball.

Q3. Explain why some of the leaves may get detached from a tree if we vigorously shake its branch.
Ans: The leaves of the tree have inertia of rest. When the branch is shaken, it moves, but the leaves tend to be in a state of rest due to their inertia. Thus, they get detached from the tree.

Q4. Why do you fall in the forward direction when a moving bus apply brakes to stop and fall back when it accelerates from rest?
Ans:

• In a running bus, our speed is equal to the speed of the bus. As a moving bus brakes to a stop, the lower part of our body being in contact with the bus comes to rest, but the upper part due to inertia of motion remains in the state of motion.
The bus stops suddenly, Passenger jerks forward
• Hence, we fall in the forward direction. When the bus accelerates from rest, the feet come into motion while the upper part of the body remains at rest due to inertia of rest; hence, we fall backwards.

## Page No. 97

Q1. An object experiences a net zero external unbalanced force. Is it possible for the object to be travelling with a non-zero velocity? If yes, state the conditions that must be placed on the magnitude and direction of the velocity. If no, provide a reason.
Ans:

• Yes, it is possible for the object to be travelling with a non-zero velocity, if it experiences a net zero external unbalanced force.
• This is due to inertia of motion. If body is initially moving with some velocity on a smooth surface, then it will continue to move with same velocity, though the net external force acting on the body is zero.
Example: When we stop pedalling a moving bicycle, the bicycle begins to slow down and finally comes to rest. This is again because of the friction forces acting opposite to the direction of motion. The force of friction opposes the motion of the bicycle. If there were no unbalanced force of friction and no air resistance, a moving bicycle would go on moving forever.

Q2. When a carpet is beaten with a stick, dust comes out of it. Explain.
Ans: When the carpet is beaten, it is suddenly set into motion. The dust particles tend to remain at rest due to the inertia of rest, therefore, dust comes out of it.

Q3. Why is it advised to tie any luggage kept on the roof of a bus with a rope?
Ans: The luggage kept on the roof possesses inertia. As the bus moves, breaks to stop or takes a turn, the luggage might fall off. Thus, it should be tied with a rope.

Q4. A batsman hits a cricket ball which then rolls on level ground. After covering a short distance, the ball comes to rest. The ball slows to a stop because
(a) the batsman did not hit the ball hard enough.
(b) velocity is proportional to the force exerted on the ball.
(c) there is a force on the ball opposing the motion.
(d) there is no unbalanced force on the ball, so the ball would want to come to rest.
Ans: When the ball rolls on the flat surface of the ground, its motion is opposed by the force of friction (the friction arises between the ground and the ball). This frictional force eventually stops the ball. Therefore, the correct answer is (c).
If the surface of the level ground is lubricated (with oil or some other lubricant), the friction that arises between the ball and the ground will reduce, which will enable the ball to roll for a longer distance.

Q5. A truck starts from rest and rolls down a hill with a constant acceleration. It travels a distance of 400 m in 20 s. Find its acceleration. Find the force acting on it if its mass is 7 metric tonnes
(Hint : 1 metric tonne = 1000 kg.)
Ans:
Initial velocity of truck (u) = 0
Time (t) = 20 s
Distance covered (S) = 400 m
Acceleration (a) = ?
Mass of truck (m) 7 tonne = 7000 kg
Force on truck We know ; (F) = ?
We know:
S = ut  1/2 at2
400 = 0 × 20 1/2 × a × (20)2
400 = 200a
a = 2ms-2
Force on truck (F) = ma
= 7000 x 2
= 14000 N

Q6. A stone of 1 kg is thrown with a velocity of 20 ms-1 across the frozen surface of a lake and comes to rest after travelling a distance of 50 m. What is the force of friction between the stone and the ice?
Ans:
Mass, m = 1kg; Initial velocity, u = 20 ms-1
Final velocity, v = 0;
distance travelled, s = 50 m
Acceleration,

Force exerted = ma
= 1 kg x (- 4) ms-2 = - 4N
Friction = 4 N against the direction of motion.

Q7. An 8000 kg engine pulls a train of 5 wagons, each of 2000 kg, along a horizontal track. If the engine exerts a force of 40000 N and the track offers a friction force of 5000 N, then calculate:
(a) the net accelerating force and (b) the acceleration of the train

Ans: (a) Given, the force exerted by the train (F) = 40,000 N
Force of friction = -5000 N (the negative sign indicates that the force is applied in the opposite direction)
Therefore, the net accelerating force = sum of all forces = 40,000 N + (-5000 N) = 35,000 N
(b) Total mass of the train = mass of engine + mass of each wagon = 8000kg + 5 × 2000kg
The total mass of the train is 18000 kg.
As per the second law of motion, F = ma (or: a = F/m)
Therefore, acceleration of the train = (net accelerating force) / (total mass of the train)
= 35,000/18,000 = 1.94 ms-2
The acceleration of the train is 1.94 m.s-2.

Q8. An automobile vehicle has a mass of 1500 kg. What must be the force between the vehicle and road if the vehicle is to be stopped with a negative acceleration of 1.7 ms-2?
Ans: Here, mass of automobile, m = 1,500 kg
Acceleration, a = 1.7 ms-2 force between the vehicle and road
F = ma = 1500 kg x ( -1.7 ms-2)
= -2,550 kg ms-2
= -2,550 N

(Negative sign indicates that the force is in a direction opposite to the motion of the vehicle.)

## Page No. 98

Q9. What is the momentum of an object of mass m, moving with a velocity v?
(a) (mv)2
(b) mv2
(c) 1/2mv2
(d) mv
Ans: (d) mass x velocity
The momentum of an object is defined as the product of its mass m and velocity v
Momentum = mass x velocity
Hence, the correct answer is mv i.e option (d)

Q10. Using a horizontal force of 200 N, we intend to move a wooden cabinet across a floor at a constant velocity. What is the friction force that will be exerted on the cabinet?
Ans: Since the velocity of the cabinet is constant, its acceleration must be zero. Therefore, the effective force acting on it is also zero. This implies that the magnitude of opposing frictional force is equal to the force exerted on the cabinet, which is 200 N. Therefore, the total friction force is -200 N.

Q11. According to the third law of motion when we push on an object, the object pushes back on us with an equal and opposite force. If the object is a massive truck parked along the roadside, it will probably not move. A student justifies this by answering that the two opposite and equal force cancel each other Comment on this logic and explain why the truck does not move.
Ans: The logic given by student is wrong; because the action and reaction forces do not act on same body; but act on different bodies.
The reason for not moving the truck is as follows:

• The truck is massive, so it has very large inertia. Moreover, it is parked on the ground; there is a frictional force between the truck and ground.
• The force exerted by us on the truck is insufficient to overcome the force of friction; so these are balanced forces on the truck; (force exerted by us plus force of friction in opposite direction); that is net force is zero; and hence, the truck does not move.

Q12. A hockey ball of mass 200 g travelling at 10 ms-1 is struck by a hockey stick so as to return it along its original path with a velocity at 5 ms-1. Calculate the change of momentum occurred in the motion of the hockey ball by the force applied by the hockey stick.
Ans:
Mass of ball (m) = 200 g = 0.2 kg
Initial velocity of ball (u1) = 10 ms-1
Final velocity of ball (u2) = 5 ms-1
(Negative sign denotes that ball is moving in opposite direction)
Initial momentum of ball = mu1 = 0.2 × 10 = 2 Ns
Final momentum of ball = mu2 = 0.2 × (- 5) = -1 Ns
Change in momentum = Final momentum + Initial momentum
= 1 + 2 = 3 Ns

Negative sign denotes that change in momentum is in the direction opposite to the direction of initial momentum of the ball.

Q13. A bullet of mass 10g travelling horizontally with a velocity of 150 ms-1 strikes a stationary wooden block and comes to rest in 0.03s. Calculate the distance of penetration of the bullet into the block. Also, calculate the magnitude of the force exerted by the wooden block on the bullet.
Ans:
Mass of bullet (m) = 10 g = 0.01 kg
Initial velocity of bullet (u) = 150 ms-1
Final velocity of bullet (v) = 0
Time (t) = 0.03 secs
Acceleration on bullet (a) = ?
Force acting on wooden block (F) = ?
Distance penetrated by bullet (s) = ?
We know:
v = u + at
0 = 150 + (a × 0.3)
a × 0.03 = 150
a = 5000ms-2
We know:

S = ut + 0.5at2
= 150 × 0.03 + (5000) × (0.03)2 = 4.5 + 2.25 = 6.75m
We know:
F = ma
Force acting on bullet (F) = 0.01 × (5000) = 50N
Negative sign denotes that wooden block exerts force in the direction, opposite to the direction of motion of the bullet.

Q14. An object of mass 1 kg travelling in a straight line with a velocity of 10 ms-1 collides with and sticks to a stationary wooden block of mass 5 kg. Then they both move off together in the same straight line. Calculate the total momentum just before the impact and just after the impact. Also, calculate the velocity of the combined object.
Ans:
For object:
m1 = 1 kg
u= 10 ms1
For wooden block:
m2 = 5 kg
u2 = 0
Momentum just before collision:
= m1u1 + m2u2
= 1 × 10 + 5 × 0
= 10 kg ms-1
Mass after collision = (m+ m2)
= 1 + 5 = 6 kg
Let velocity after collision = v
Momentum after collision = 6 × v
Using the law of conservation of momentum:
Momentum after collision = Momentum before collision
6 × v = 10
v = 1.67 ms-1

Q15. An object of mass 100 kg is accelerated uniformly from a velocity of 5 ms-1 to 8 ms-1 in 6s. Calculate the initial and final momentum of the object. Also, find the magnitude of the force exerted on the object.
Ans:
Mass of object (m) = 100 kg
Initial velocity (u) = 5 ms-1
Final velocity (v) = 8 ms-1
Time (t) = 6 s
Initial momentum (Pinitial) = mu = 100 × 5 = 500 Ns
Final momentum (Pfinal) = mv = 100 × 8 = 800 Ns
Force exerted on the object (F) = [(mv - mu) / t] = (800 - 500)/6 = 300/6 = 50N

Q16. Akhtar, Kiran and Rahul were riding in a motorcar that was moving with a high velocity on an expressway when an insect hit the windshield and got stuck on the windscreen. Akhtar and Kiran started pondering over the situation. Kiran suggested that the insect suffered a greater change in momentum as compared to the change in momentum of the motorcar (because the change in the velocity of the insect was much more than that of the motorcar). Akhtar said that since the motorcar was moving with a larger velocity, it exerted a larger force on the insect. And as a result the insect died. Rahul while putting an entirely new explanation said that both the motorcar and the insect experienced the same force and a change in their momentum. Comment on these suggestions.
Ans: As per the law of conservation of momentum, the total momentum before the collision between the insect and the car is equal to the total momentum after the collision. Therefore, the change in the momentum of the insect is much greater than the change in momentum of the car (since force is proportional to mass).
Akhtar’s assumption is partially right. Since the mass of the car is very high, the force exerted on the insect during the collision is also very high.
Kiran’s statement is false. The change in momentum of the insect and the motorcar is equal by conservation of momentum. The velocity of insect changes accordingly due to its mass as it is very small compared to the motorcar. Similarly, the velocity of motorcar is very insignificant because its mass is very large compared to the insect.
Rahul’s statement is completely right. As per the third law of motion, the force exerted by the insect on the car is equal and opposite to the force exerted by the car on the insect. However, Rahul’s suggestion that the change in the momentum is the same contradicts the law of conservation of momentum.

Q17. How much momentum will a dumb-bell of mass 10 kg transfer to the floor if it falls from a height of 80 cm and does not rebound? Take its downward acceleration to be 10ms-2.
Ans:
Height, h = 80 cm = 0.8 m
Mass, m = 10 kg ; Initial velocity, u = 0
Acceleration, a = 10 ms-2
Final velocity, v =

Momentum transferred = mv = 10 kg x 4 ms-1
= 10 kg x 4 ms-1
= 40 kgms-1

## Page No. 99

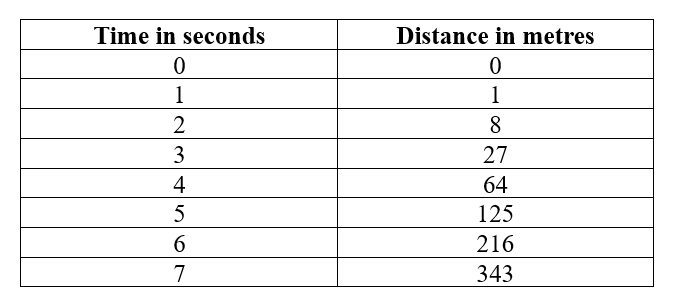

Q1. The following is the distance-time table of an object in motion time in seconds Distance in meters

(a) What conclusion can you draw about the acceleration? Is it constant, increasing, decreasing or zero?
(b) What do you infer about the forces acting on the object?
Ans:
(a) The distance covered by the object at any time interval is greater than any of the distances covered in previous time intervals. Therefore, the acceleration of the object is increasing.

(b) Force, F = ma ⇒ F ∝ a. Since the mass of the object remains constant, the increasing acceleration implies that the force acting on the object is increasing as well

Q2. Two persons manage to push a motorcar of mass 1200 kg at a uniform velocity along a level road. The same motorcar can be pushed by three persons to produce an acceleration of 0.2 ms-2. With what force does each person push the motorcar? (Assume that all persons push the motorcar with the same muscular effort.)
Ans:
Mass of car, m = 1200 kg
Let each person applies force F on the motor car. Thus, the force ‘2F applied by 2 persons balances the frictional fore due to ground force applied by three persons = 3F
Effective force = 3F - friction = 3F - 2F = F
Thus force F produces an acceleration of 0.2 ms-2.
F = ma = 1200 x 0.2 = 240 N
Thus, force applied by each person = 240 N

Q3. A hammer of mass 500 g, moving at 50 ms-1, strikes a nail. The nail stops the hammer in a very short time of 0.01 s. What is the force of the nail on the hammer?
Ans:
Mass of hammer, M = 500 g = 0.5 kg
Initial velocity of hammer, u = 50 ms-1
Final velocity of hammer, v = 0
Time, t = 0.01 s
= - 5000 ms-2
Force applied by nail, F = ma
= (0.5) x (-5000 ms-2)
= - 2500 N (opposite to motion of hammer)

Q4. A motorcar of mass 1200 kg is moving along a straight line with a uniform velocity of 90 km/h. Its velocity is slowed down to 18 km/h in 4 s by an unbalanced external force. Calculate the acceleration and change in momentum. Also calculate the magnitude of the force required.
Ans:
Mass of motor car, m = 1200 kg
Initial velocity of car, u = 90 km/h

Final velocity of car, v = 18 km/h

Time, t = 4s
Acceleration,
Momentum change = mv - mu
= 1200 (5 - 25) = - 24000 kg ms-1
Magnitude of force, F = ma
= 1200 x (- 5) = - 6000 N
Acceleration, momentum change and force are opposing the motion of motorcar, as indicated by negative sign.

The document NCERT Solutions for Class 9 Science Chapter 8 - Force and Laws of Motion is a part of the Class 9 Course Science Class 9.
All you need of Class 9 at this link: Class 9

## Science Class 9

80 videos|352 docs|97 tests

## FAQs on NCERT Solutions for Class 9 Science Chapter 8 - Force and Laws of Motion

 1. What are the three laws of motion given by Newton?
Ans. Newton gave three laws of motion. The first law of motion states that an object remains at rest or in uniform motion in a straight line unless acted upon by an external force. The second law of motion states that the rate of change of momentum of an object is directly proportional to the force applied, and it takes place in the direction in which the force is applied. The third law of motion states that for every action, there is an equal and opposite reaction.
 2. What is the unit of force?
Ans. The unit of force is Newton (N). It is defined as the force required to give a mass of 1 kg an acceleration of 1 m/s2.
 3. What is frictional force?
Ans. Frictional force is the force that opposes the relative motion between two surfaces in contact. It acts in the opposite direction to the direction of motion and is proportional to the normal force between the two surfaces.
 4. What is the difference between mass and weight?
Ans. Mass is the amount of matter present in a substance or an object and is measured in kilograms (kg). Weight is the force exerted by the gravitational pull of the Earth on an object and is measured in Newtons (N). Mass remains the same everywhere, whereas weight changes with the gravitational pull of the object.
 5. What is the importance of Newton's laws of motion?
Ans. Newton's laws of motion are fundamental laws of physics and are applicable in all fields of science and engineering. They provide the basis for understanding the behavior of objects in motion and help in predicting their motion under different circumstances. These laws also form the basis for the development of various technologies and tools, such as cars, airplanes, rockets, and satellites.
