How to Find Potential Energy of a Dipole?

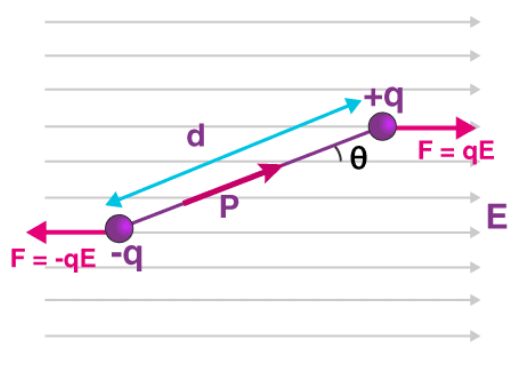

  • Consider a dipole with charges q1 = +q and q2 = -q placed in a uniform electric field as shown in the figure above. The charges are separated by a distance d and the magnitude of the electric field is E. The force experienced by the charges is given as –qE and +qE, as can be seen in the figure.
    Potential Energy of a Dipole Class 12 Notes | EduRev

Try yourself:Choose the best definition of a dipole.
View Solution

  • As we know that, when a dipole is placed in a uniform electric field, both the charges as a whole do not experience any force, but it experiences a torque equal to τ which can be given as,
    Potential Energy of a Dipole Class 12 Notes | EduRev
  • This torque rotates the dipole unless it is placed parallel or anti-parallel to the field. If we apply an external and opposite torque, it neutralizes the effect of this torque given by τext and it rotates the dipole from the angle Ɵ0 to an angle Ɵ1 at an infinitesimal angular speed without any angular acceleration.
    The amount of work done by the external torque can be given by:

Potential Energy of a Dipole Class 12 Notes | EduRev

  • As we know that the work done in bringing a system of charges from infinity to the given configuration is defined as the potential energy of the system, hence the potential energy U(Ɵ)  can be associated to the inclination Ɵ of the dipole using the above relation:
    Potential Energy of a Dipole Class 12 Notes | EduRev
  • From the above equation, we can see that the potential energy of a dipole placed in an external field is zero when the angle Ɵ is equal to 90° or when the dipole makes an angle of 90°. Considering the initial angle to be the angle at which the potential energy is zero, the potential energy of the system can be given as:
    Potential Energy of a Dipole Class 12 Notes | EduRev
