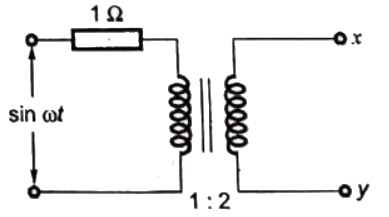

Q21: Assuming an ideal transformer, the Thevenin's equivalent voltage and impedance as seen from the terminals x and y for the circuit in figure are     (SET-2 (2014))
(a) 2sin(ωt), 4Ω
(b) $1𝑠𝑖𝑛\left(𝜔𝑡\right),1\Omega$1sin(ωt), 1Ω
(c) $1𝑠𝑖𝑛\left(𝜔𝑡\right),2\Omega$1sin(ωt), 2Ω
(d) 2sin(ωt), 0.5Ω
Ans: (a)
Sol: Thevenin's equivalent voltage = voltage referred to secondary.
We have:
V_Th = 2sin(ωt)
Also, Thevenin's impedance seen from the x and y terminals = voltage referred to secondary side

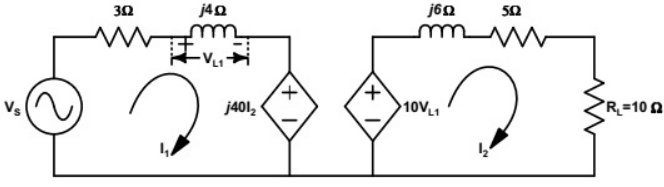

Q22: In the circuit shown below, if the source voltage V_s = 100∠53.13°V then the Thevenin's equivalent voltage in Volts as seen by the load resistance R_L is       (2013)
(a) 100 ∠ 90°
(b) $800\angle 0\circ$800 ∠ 0°
(c) 800 ∠ 90^∘
(d) $100\angle 60\circ$100 ∠ 60^∘
Ans: (c)
Sol:
Q23: A source v_s(t) = Vcos 100πt has an internal impedance of (4 + j3)Ω. If a purely resistive load connected to this source has to extract the maximum power out of the source, its value in Ω should be       (2013)
(a) 3
(b) 4
(c) 5
(d) 7
Ans: (c)
Sol: Using maximum power transfer theorem,

Q24: Assuming both the voltage sources are in phase, the value of R for which maximum power is transferred from circuit A to circuit B is     (2012)
(a) 0.8 Ω
(b) 1.4 Ω
(c) 2 Ω
(d) 2.8 Ω
Ans: (a)
Sol: Power transferred from circuit A to circuit B

Q25: The impedance looking into nodes 1 and 2 in the given circuit is    (2012)
(a) 50 Ω
(b) 100 Ω
(c) 5 kΩ
(d) 10.1 kΩ
Ans: (a)

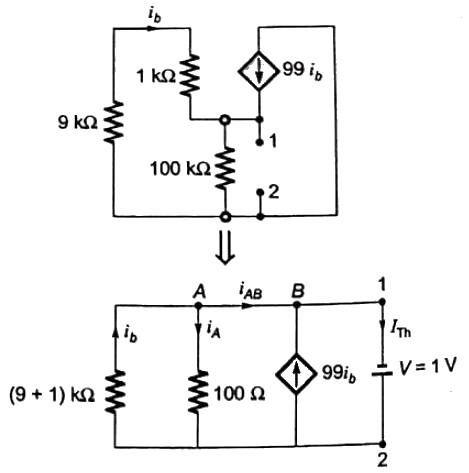

Sol: To find thevenin impedance across node 1 and node 2. Connect a 1 V source and find the current through voltage source.
Then, Z_Th = 1/(I_Th)
By applying KCL at node B and A
By applying KVL in outer loop
∴ From equation (i),

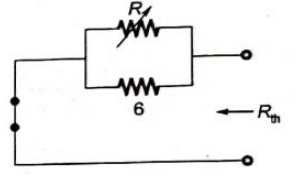

Q26: In the circuit given below, the value of R required for the transfer of maximum power to the load having a resistance of 3 Ω is      (2011)
(a) zero
(b) 3Ω
(c) 6Ω
(d) infinity
Ans: (a)
Sol: For maximum power transfer to the load, the source resistance must be minimum i.e. zero.
So, R = 0Ω.

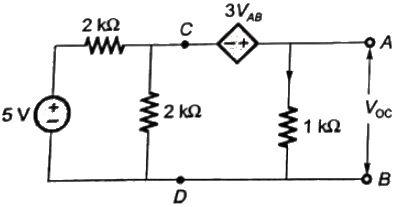

Q27:  For the circuit given above, the Thevenin's voltage across the terminals A and B is     (2009)
(a) 1.25V
(b) 0.25V
(c) 1V
(d) 0.5V
Ans: (d)
Sol: To calculate thevenin's volatage, terminal A-B are kept open.
Applying source transformation, voltage sorce is transformed into current source.
Applying source transformation current source is transformed into voltage souce.

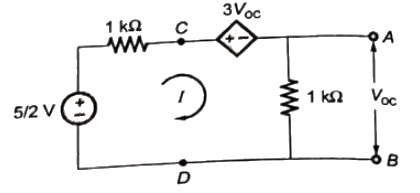

Applying KVL, (I is assumed to be in mA)
Put value of I in equation (i),

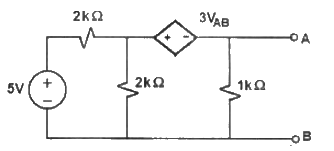

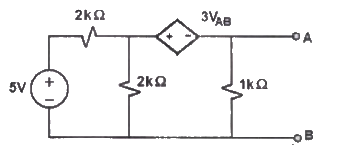

Q28: For the circuit given above, the Thevenin's resistance across the terminals A and B is      (2009)
(a) 0.5 kΩ
(b) 0.2 kΩ
(c) 1 kΩ
(d) 0.11 kΩ
Ans: (b)

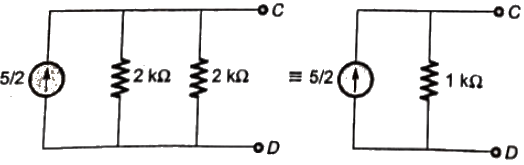

Sol: To calculate thevenin's resistance 5 V source is short-circuited and V_dc source is connected at terminals A and B
V_AB = V_dc and assuming I and I₁ in mA. Current through 1kΩ resistance
Comparing equation (i) and (ii),

Q29: The Thevenin's equivalent of a circuit operation at ω = 5 rads/s, has V_oc = 3.71∠ − 15.9° V and Z₀ = 2.38 − j₀.667Ω. At this frequency, the minimal realization of the Thevenin's impedance will have a       (2008)
(a) resistor and a capacitor and an inductor
(b) resistor and a capacitor
(c) resistor and an inductor
(d) capacitor and an inductor
Ans: (b)
Sol: Thevenin's Impedance:
as real part is not zero, so Z₀ has resistor
Img[Z₀] = −j0.667
CASE-I:
Z₀ has capacitor (as Img[Z₀] is negative)
CASE-II:
Z₀ has both capacitor and inductor, but inductive reactance < capacitive reactance.
At, ω = 5 rad/sec
For minimal realization case-I is considered. Therefore, Z₀ will have a resistor and a capacitor.

Q30: In the figure the current source is 1 ∠ 0 A, R = 1 Ω, the impedances are Z_C = −jΩ and Z_L= 2jΩ. The Thevenin equivalent looking into the circuit across X-Y is      (2006)

(a)
(b)
 (c)
(d)
Ans: (d)
Sol: To calculate Thevenin's impedance, current-souce is open-circuited
Open-circuit voltage at terminals X - Y

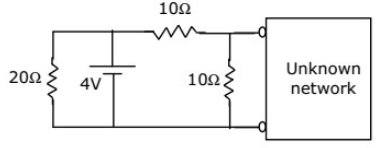

Q31: In the given figure, the Thevenin's equivalent pair (voltage, impedance), as seen at the terminals P-Q, is given by     (2005)
(a) (2V, 5Ω)
(b) (2V, 7.5Ω)
(c) (4V, 5Ω)
(d) (4V, 7.5Ω)
Ans: (a)

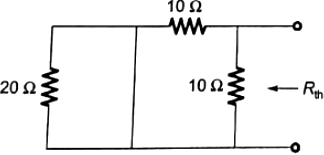

Sol: To calculate R_th (seen at terminals P-Q), voltage source is short-circuit
V_th  = open-circuit voltage at terminals P-Q.
Thevenin's equivalent circuit

Q32: Two ac sources feed a common variable resistive load as shown in figure. Under the maximum power transfer condition, the power absorbed by the load resistance R_L is    (2003)
(a) 2200 W
(b) 1250 W
(c) 1000 W
(d) 625 W
Ans: (d)
Sol: For obtaining power absorbed by R_L under maximum power transfer condition. We find thevenin's equivalent circuit across R_L.
Z_th is calculated by short-circuting the voltage source.
For maximum power transfer ,
Power absorbed by R_L(max)

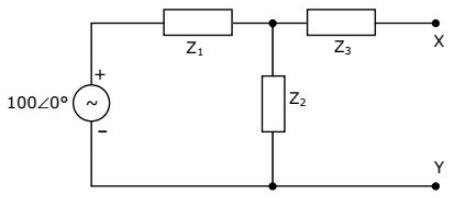

Q33: In the figure, Z₁ = 10∠ − 60°, Z₂ = 10∠60°, Z₃ = 50∠53.13°.  The venin impedance seen form X-Y is      (2003)
(a) 56.66 ∠ 45°
(b) 60 ∠ 30°
(c) 70 ∠ 30°
(d) $34.4\angle 65\circ$34.4 ∠ 65°
Ans: (a)
Sol: By Thevenin's theorem

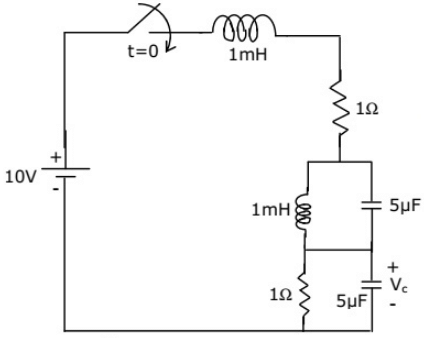

Q34: In the circuit shown in figure, the switch is closed at time t = 0. The steady state value of the voltage V_c is      (2002)
(a) 0 V
(b) 10 V
(c) 5 V
(d) 2.5 V
Ans: (c)

Q35: A 240 V single-phase ac source is connected to a load with an impedance of 10∠60°Ω. A capacitor is connected in parallel with the load. If the capacitor supplies 1250 VAR, the real power supplied by the source is       (2001)
(a) 3600 W
(b) 2880 W
(c) 2400 W
(d) 1200 W
Ans: (b)
