Principles of Hydropower Engineering (Part - 1) - Civil Engineering (CE) PDF Download

Introduction

The water of the oceans and water bodies on land are evaporated by the energy of the sun’s heat and gets transported as clouds to different parts of the earth. The clouds travelling over land and falling as rain on earth produces flows in the rivers which returns back to the sea. The water of rivers and streams, while flowing down from places of higher elevations to those with lower elevations, loose their potential energy and gain kinetic energy. The energy is quite high in many rivers which have caused them to etch their own path on the earth’s surface through millions of years of continuous erosion. In almost every river, the energy still continues to deepen the channels and migrate by cutting the banks, though the extent of morphological changes vary from river to river. Much of the energy of a river’s flowing water gets dissipated due to friction encountered with its banks or through loss of energy through internal turbulence. Nevertheless, the energy of water always gets replenished by the solar energy which is responsible for the eternal circulation of the Hydrologic Cycle.

Hydropower engineering tries to tap this vast amount of energy available in the flowing water on the earth’s surface and convert that to electricity. There is another form of water energy that is used for hydropower development: the variation of the ocean water with time due to the moon’s pull, which is termed as the tide. Hence, hydropower engineering deals with mostly two forms of energy and suggest methods for converting the energy of water into electric energy. In nature, a flowing stream of water dissipates throughout the length of the watercourse and is of little use for power generation. To make the flowing water do work usefully for some purpose like power generation (it has been used to drive water wheels to grind grains at many hilly regions for years), it is necessary to create a head at a point of the stream and to convey the water through the head to the turbines which will transform the energy of the water into mechanical energy to be further converted to electrical energy by generators. The necessary head can be created in different ways of which two have been practically accepted.

These are:

1. Building a dam across a stream to hold back water and release it through a channel, conduit or a tunnel (Figure 1)

Principles of Hydropower Engineering (Part - 1) - Civil Engineering (CE)

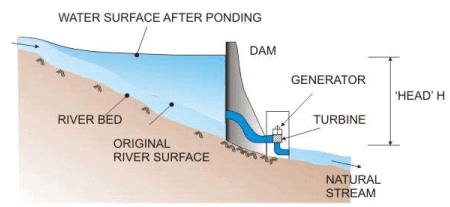

Figure 1. Creation of head by constructing a dam

2. Divert a part of the stream by creating a low-head diversion structure like barrage. (Figure 2)

Principles of Hydropower Engineering (Part - 1) - Civil Engineering (CE)

Principles of Hydropower Engineering (Part - 1) - Civil Engineering (CE)

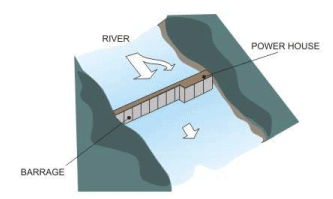

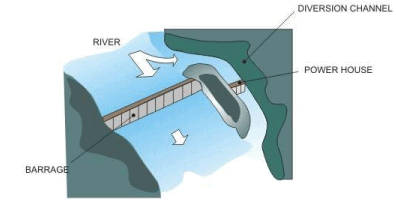

FIGURE 2. Power generation through stream flow diversion (a) Power house as a part of diversion structure (b) Power house on diversion channel

A series of integrated power developments along the same watercourse form what may be called a multistage hydroelectric system in which each portion of the river with a power plant of its own is referred to as a stage (Figure 3). The head created by a dam put across a lowland river usually ranges from 30 to 40m. In mountainous terrain, it may run over 200m.

Principles of Hydropower Engineering (Part - 1) - Civil Engineering (CE)

Principles of Hydropower Engineering (Part - 1) - Civil Engineering (CE)

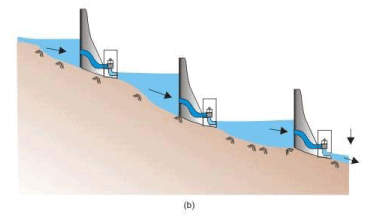

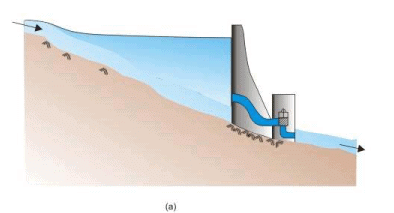

FIGURE 3 . (a) Single-stage hydro-power development scheme (b) Cascade or Multi-stage hydro-system

The following sections briefly discuss the issues related to the fundamentals of hydropower project development.

The document Principles of Hydropower Engineering (Part - 1) - Civil Engineering (CE) is a part of Civil Engineering (CE) category.
All you need of Civil Engineering (CE) at this link: Civil Engineering (CE)
Are you preparing for Civil Engineering (CE) Exam? Then you should check out the best video lectures, notes, free mock test series, crash course and much more provided by EduRev. You also get your detailed analysis and report cards along with 24x7 doubt solving for you to excel in Civil Engineering (CE) exam. So join EduRev now and revolutionise the way you learn!
Sign up for Free Download App for Free

FAQs on Principles of Hydropower Engineering (Part - 1) - Civil Engineering (CE)

1. What is hydropower engineering?
2. How does hydropower work?
Hydropower works by converting the energy from flowing or falling water into mechanical energy, which is then used to generate electricity. It typically involves the construction of dams or reservoirs to store and control the water flow. The water is then released under controlled conditions, creating a force that drives turbines. These turbines are connected to generators, which produce electrical energy.
3. What are the advantages of hydropower?
Hydropower offers several advantages, including being a renewable and clean energy source. It does not produce greenhouse gas emissions or contribute to air pollution. Hydropower plants can also provide a reliable and consistent power supply since water flow can be controlled. Additionally, hydropower reservoirs can serve as water storage for irrigation, flood control, and recreational activities.
4. What are the challenges of hydropower engineering?
Hydropower engineering faces various challenges, such as environmental impacts and the displacement of communities due to dam construction. It requires careful consideration of ecological factors to minimize disruption to aquatic ecosystems and fish migration. Another challenge is the need for suitable water resources and proper site selection for hydropower plants. Additionally, the high initial investment cost and long project timelines can pose challenges for developers.
5. What is the future of hydropower engineering?
The future of hydropower engineering lies in the development of more sustainable and environmentally friendly technologies. Advancements in turbine design and fish-friendly passage systems are being explored to mitigate the negative impacts on aquatic life. Additionally, the integration of hydropower with other renewable energy sources, such as solar and wind, is being studied to create hybrid power systems. The focus is on optimizing efficiency, reducing environmental impacts, and increasing the overall contribution of hydropower to the global energy mix.
