Data Flow Analysis

• Properties of data taken into consideration the control flow in a function (also known as flow-sensitive analysis)
• Intraprocedural analysis

Examples of optimizations

• Constant propagation
• Common subexpression elimination
• Dead code elimination
  Value of x?
  Which “definition” defines x?
  Is the definition still meaningful (live)?

Static program vs. dynamic execution

• Statically: Finite program
• Dynamically: Can have infinitely many possible execution paths
• Data flow analysis abstraction:
  • For each static point in the program:
    combines information of all the dynamic instances of the same program point.
• Example of a data flow question:
  • Which definition defines the value used in statement “b = a”?

Reaching Definitions

•  Every assignment is a definition
• A definition d reaches a point p
• if there exists a path from the point immediately following d to p
• such that d is not killed (overwritten) along that path.
• Problem statement
  •  For each point in the program, determine if each definition in the program reaches the point
  • A bit vector per program point, vector-length = #defs

Clear all your Computer Science Engineering (CSE) doubts with EduRev Join for Free

Join for Free

Data Flow Analysis Schema

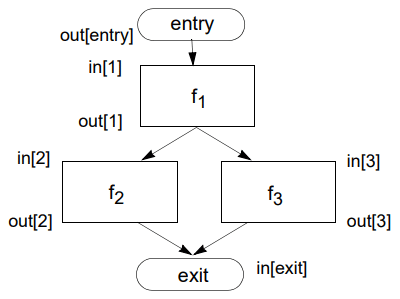

• Build a flow graph (nodes = basic blocks, edges = control flow)
• Set up a set of equations between in[b] and out[b] for all basic blocks b
  • Effect of code in basic block:
    Transfer function fb relates in[b] and out[b], for same b
  •  Effect of flow of control:
    relates out[b₁], in[b2] if b₁ and b₂ are adjacent
• Find a solution to the equations

Effects of a Basic Block

•  A statement s (d: x = y + z)
  out[s] = fs(in[s]) = Gen[s] U (in[s]-Kill[s])
  • Gen[s]: definitions generated: Gen[s] = {d}
  •  in[s]-Kill[s] : propagated definitions: in[s] - Kill[s], where Kill[s]=set of all other defs to x in rest of program

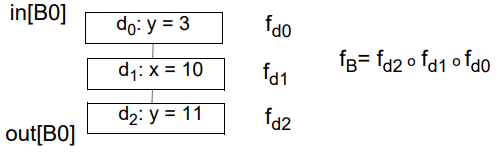

• out[B] = f_d2fd1f_d0(in[B])
  =Gen[d₂] U (Gen[d₁] U (Gen[d₀] U (in[B]-Kill[d₀]))-Kill[d₁])) -Kill[d₂]
  = Gen[d₂] U (Gen[d₁] U (Gen[d₀] - Kill[d₁]) - Kill[d₂]) U in[B] - (Kill[d₀] U Kill[d₁] U Kill[d₂])
  = Gen[B] U (in[B] - Kill[B])
•  Gen[B]: locally exposed definitions (available at end of bb)
•  Kill[B]: set of definitions killed by B

Effects of the Edges (acyclic)

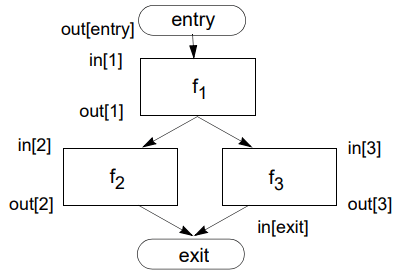

• Join node: a node with multiple predecessors
• meet operator (∧): ∪
  in[b] = out[p₁] ∪ out[p₂] ∪ ... ∪ out[p_n], where
  p₁, ..., p_n are predecessors of b

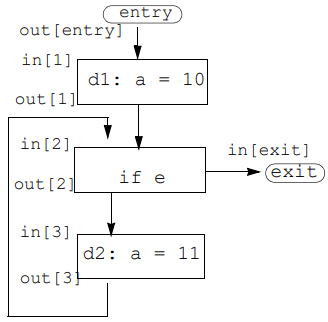

Cyclic Graphs

• Equations still hold
  • out[b] = f_b(in[b])
  • in[b] = out[p₁] ∪ out[p₂] ∪ ... ∪ out[p_n], p₁, ..., p_n pred.
• Find: fixed point solution

Reaching Definitions: Iterative Algorithm

input: control flow graph CFG = (N, E, Entry, Exit)

// Boundary condition

OUT[Entry] = ø

// Initialization for iterative algorithm

For each basic block B other than Entry

 OUT[B] = ø

// iterate

While (changes to any OUT occur) {

For each basic block B other than Entry {

in[B] = ∪ (out[p]), for all predecessors p of B

out[B] = f_B(in[B]) // out[B]=gen[B]∪(in[B]-kill[B])

}

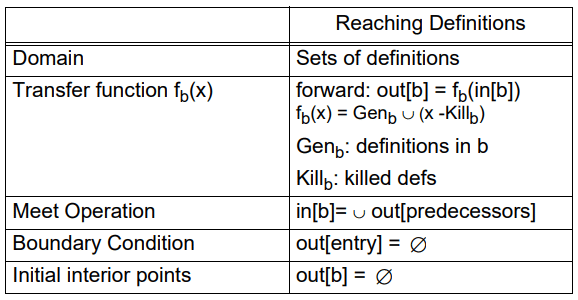

Summary of Reaching Definitions

II. Live Variable Analysis

Definition

• A variable v is live at point p
  if the value of v is used
  along some path in the flow graph starting at p.
• Otherwise, the variable is dead.

Problem statement

• For each basic block b,
  • determine if each variable is live at the start/end point of b
• Size of bit vector: one bit for each variable

Download the notes Reaching Definition Analysis

Download as PDF

Download as PDF

Effects of a Basic Block (Transfer Function)

• Observation:Trace uses back to the definitions

• Direction: backward: in[b] = f_b(out[b])
• Transfer function for statement s: x = y + z
  • generate live variables: Use[s] = {y, z}
  • propagate live variables: out[s] - Def[s], Def[s] = x
  • in[s] = Use[s] ∪ (out(s)-Def[s])
• Transfer function for basic block b:
  • in[b] = Use[b] ∪ (out(b)-Def[b])
  • Use[b], set of locally exposed uses in b,
    uses not covered by definitions in b
  • Def[b]= set of variables defined in b.b.

Liveness: Iterative Algorithm

input: control flow graph CFG = (N, E, Entry, Exit)

// Boundary condition

IN[Exit] = ø

// Initialization for iterative algorithm

For each basic block B other than Exit

 IN[B] = ø

// iterate

While (changes to any IN occur) {

For each basic block B other than Exit {

out[B] = ∪ (in[s]), for all successors of B

in[B] = fB(out[B]) // in[B]=Use[B]∪(out[B]-Def[B])

}

Framework

Take a Practice Test Test yourself on topics from Computer Science Engineering (CSE) exam

Practice Now

Practice Now

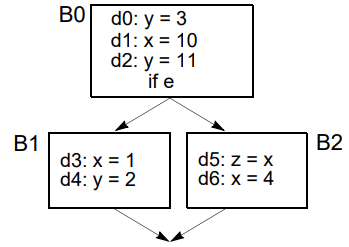

Problem 1: “Must-Reach” Definitions

• A definition D (a = b+c) must reach point P iff
  • D appears at least once along on all paths leading to P
  • a is not redefined along any path after last appearance of D and before P
• How do we formulate the data flow algorithm for this problem?

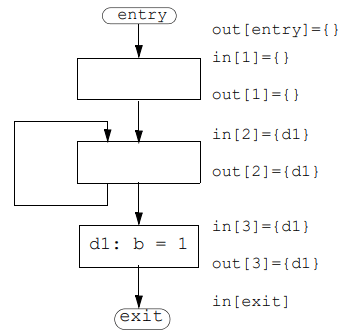

Problem 2: A legal solution to (May) Reaching Def?
