Triangles Class 9 Notes Maths Chapter 6

What is a Triangle?

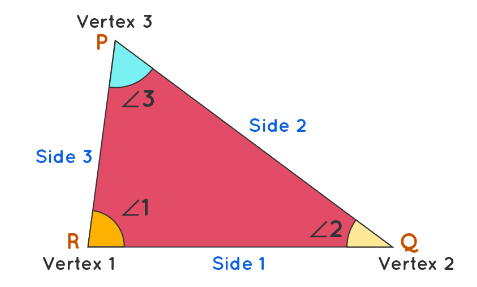

A closed figure with three sides is called a Triangle. It has three vertex, sides and Angles.

Triangles Class 9 Notes Maths Chapter 6

Types of Triangle

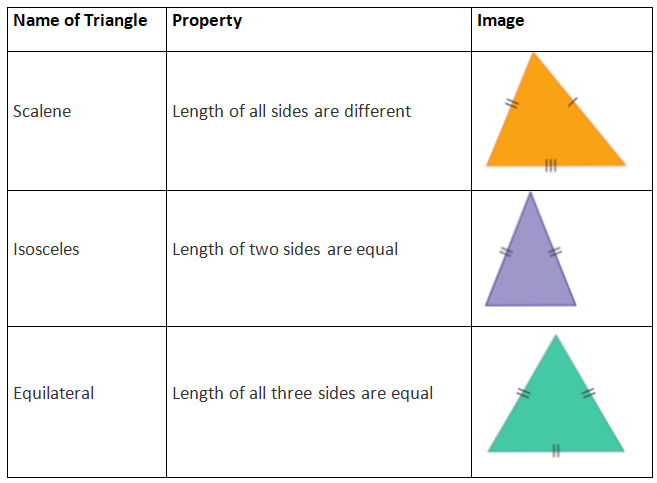

1. There are three types of triangles on the basis of the length of the sides.
Triangles Class 9 Notes Maths Chapter 6

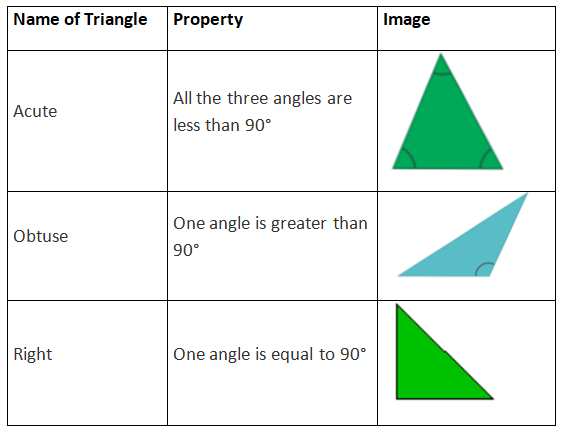

2. There are three types of triangles on the basis of angles.
Triangles Class 9 Notes Maths Chapter 6

Question for Short Notes: Triangles
Try yourself:Which type of triangle has all three sides of equal length?
View Solution

Congruence

If the shape and size of two figures are same then these are called Congruent.

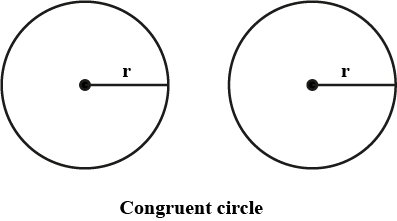

1. Two circles are congruent if their radii are same.

Triangles Class 9 Notes Maths Chapter 6

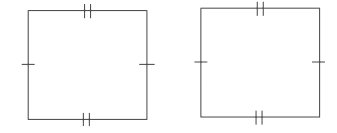

2. Two squares are congruent if their sides are equal.
Triangles Class 9 Notes Maths Chapter 6

Congruence of Triangles

A triangle will be congruent if its corresponding sides and angles are equal.
The symbol of congruent is “≅”.
Triangles Class 9 Notes Maths Chapter 6

AB = DE, BC = EF, AC = DF
m∠A = m∠D, m∠B = m∠E, m∠C = m∠F
Here ∆ABC ≅ ∆DEF

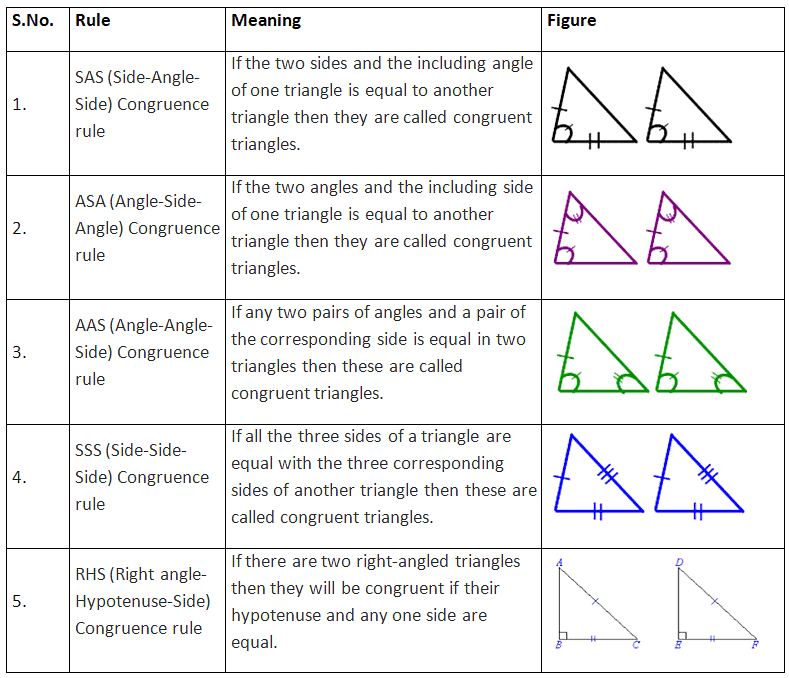

Criteria for Congruence of Triangles

Triangles Class 9 Notes Maths Chapter 6

Remark

  • SSA and ASS do not show the congruency of triangles.
  • AAA is also not the right condition to prove that the triangles are congruent.

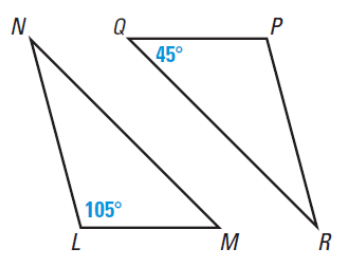

Example: Find the ∠P, ∠R, ∠N and ∠M if ∆LMN ≅ ∆PQR.
Triangles Class 9 Notes Maths Chapter 6

Sol:

If ∆ LMN ≅ ∆PQR, then

∠L=∠P
∠M =∠Q
∠N =∠R
So,
∠L=∠P = 105°
∠M =∠Q = 45°
∠M + ∠N + ∠L = 180° (Sum of three angles of a triangle is 180°)
45° + 105° + ∠N = 180°
∠N = 180°- 45° + 105°
∠N = 30°
∠N = ∠R = 30°

Question for Short Notes: Triangles
Try yourself:Which condition is required to prove the congruence of two triangles?
View Solution

Some Properties of a Triangle

If a triangle has two equal sides then it is called an Isosceles Triangle.
1. Two angles opposite to the two equal sides of an isosceles triangle are also equal.
Triangles Class 9 Notes Maths Chapter 6

2. Two sides opposite to the equal angles of the isosceles triangle are also equal. This is the converse of the above theorem.

Inequalities in a Triangle

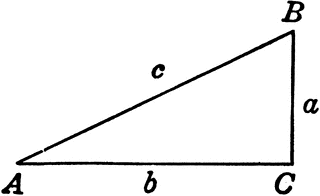

Theorem 1: In a given triangle if two sides are unequal then the angle opposite to the longer side will be larger.
a > b, if and only if ∠A > ∠B
Longer sides correspond to larger angles.

Triangles Class 9 Notes Maths Chapter 6

Theorem 2: In the given triangle, the side opposite to the larger angle will always be longer. This is the converse of above theorem.

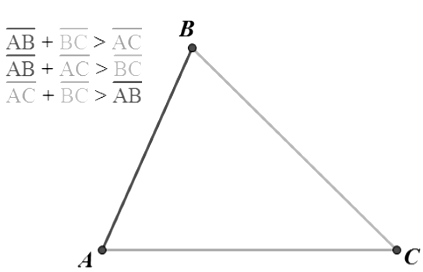

Theorem 3: The sum of any two sides of a triangle will always be greater than the third side.
Triangles Class 9 Notes Maths Chapter 6

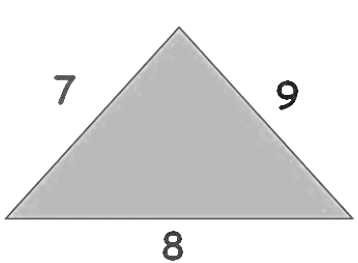

Example: Show whether the inequality theorem is applicable to this triangle or not?
Triangles Class 9 Notes Maths Chapter 6

Sol:

The three sides are given as 7, 8 and 9.
According to inequality theorem, the sum of any two sides of a triangle will always be greater than the third side.
Let’s check it
7 + 8 > 9
8 + 9 > 7
9 + 7 > 8
This shows that this theorem is applicable to all the triangles irrespective of the type of triangle.
