Uniformly Distributed Load

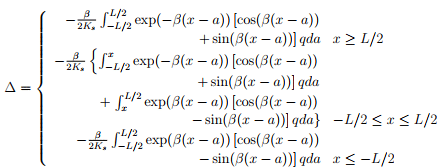

Next, we study the problem of an infinite beam on an elastic foundation subjected to a uniformly distributed load of length L symmetrically on either side of the origin, as shown in figure 11.6. As before, we apply the principle of superposition to find the deflection at a point to be



Uniformly Distributed Load Civil Engineering (CE) Notes | EduRev       (11.33)

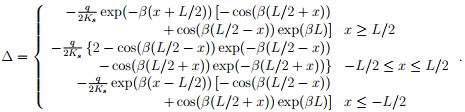

Evaluating the integrals in equation (11.33) we obtain



Uniformly Distributed Load Civil Engineering (CE) Notes | EduRev          (11.34)

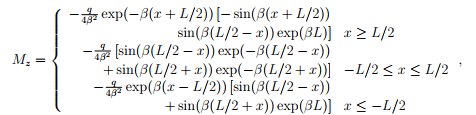

Having found the displacement, (11.34), the variation of the bending moment along the axis of the beam obtained from (11.2) is:

Uniformly Distributed Load Civil Engineering (CE) Notes | EduRev            (11.35)

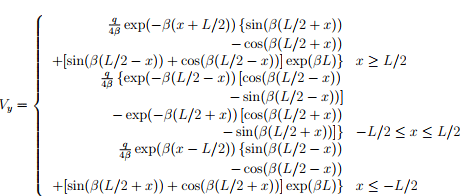

and the shear force variation computed using (11.14) is:

Uniformly Distributed Load Civil Engineering (CE) Notes | EduRev            (11.36)
