Objectives

  • Statement of superposition theorem and its application to a resistive d.c network containing more than one source in order to find a current through a branch or to find a voltage across the branch.

Introduction

If the circuit has more than one independent (voltage and/or current) sources, one way to determine the value of variable (voltage across the resistance  or current through a resistance) is to use nodal or mesh current methods as discussed in detailed in lessons 4 and 5. Alternative method for any linear network, to determine the effect of each independent source (whether voltage or current) to the value of variable (voltage across the resistance or current through a resistance) and then the total effects simple added. This approach is known as the superposition. In lesson-3, it has been discussed the properties of a linear circuit that satisfy (i) homogeneity property [response of output due to input = αu(t) equals to α times the response of output due to input = u(t) , S (αu(t)) = αS (u(t)) for all α ; and = input to the system] (ii) additive property [that is the response of u1 (t) + u2 (t)  equals the sum of the response of  u1(t)  and the response of  u2(t) ,S(u1(t) + u2(t)) = S (u1(t)) + S (u2 (t))]. Both additive and multiplicative properties of a linear circuit help us to analysis a complicated network. The principle of superposition can be stated based on these two properties of linear circuits.

Statement of superposition theorem

In any linear bilateral network containing two or more independent sources (voltage or current sources or combination of voltage and current sources ), the resultant current / voltage in any branch is the algebraic sum of currents / voltages caused by each independent sources acting along, with all other independent sources being replaced meanwhile by their respective internal resistances.

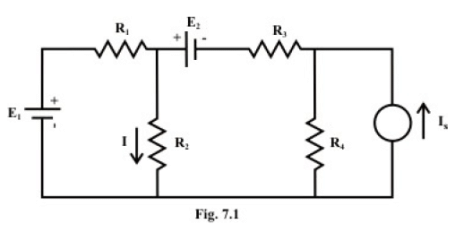

Superposition theorem can be explained through a simple resistive network as shown in fig.7.1 and it has two independent practical voltage sources and one practical current source.

Superposition Theorem in the Context of DC Voltage & Current Sources Acting in a Resistive Network | Basic Electrical Technology - Electrical Engineering (EE)

One may consider the resistances R1 and R3 are the internal resistances of the voltage sources whereas the resistance R4 is considered as internal resistance of the current source. The problem is to determine the response I in the in the resistor R2 . The current I can be obtained from

Superposition Theorem in the Context of DC Voltage & Current Sources Acting in a Resistive Network | Basic Electrical Technology - Electrical Engineering (EE)

according to the application of the superposition theorem. It may be noted that each independent source is considered at a time while all other sources are turned off or killed. To kill a voltage source means the voltage source is replaced by its internal resistance (i.e. or R1 R3 ; in other words E1 or E2 should be replaced temporarily by a short circuit) whereas to kill a current source means to replace the current source by its internal resistance (i.e. ; in other words Is  should be replaced temporarily by an open circuit).

Remarks: Superposition theorem is most often used when it is necessary to determine the individual contribution of each source to a particular response.

Procedure for using the superposition theorem

Step-1: Retain one source at a time in the circuit and replace all other sources with their internal resistances.

Step-2: Determine the output (current or voltage) due to the single source acting alone using the techniques discussed in lessons 3 and 4.

Step-3: Repeat steps 1 and 2 for each of the other independent sources.

Step-4: Find the total contribution by adding algebraically all the contributions due to the independent sources.

Application of superposition theorem

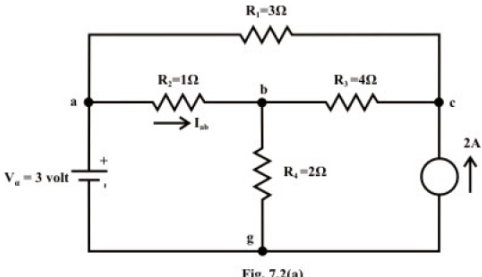

Example- Consider the network shown in fig. 7.2(a). Calculate Iab and Vcg using superposition theorem.

Superposition Theorem in the Context of DC Voltage & Current Sources Acting in a Resistive Network | Basic Electrical Technology - Electrical Engineering (EE)

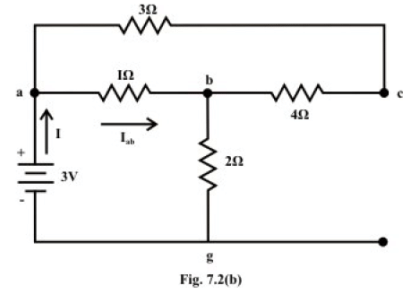

Solution: Voltage Source Only (retain one source at a time):

 First consider the voltage source Va that acts only in the circuit and the current source is replaced by its internal resistance (in this case internal resistance is infinite (∞)). The corresponding circuit diagram is shown in fig.7.2(b) and calculate the current flowing through the ‘a-b’ branch.

Superposition Theorem in the Context of DC Voltage & Current Sources Acting in a Resistive Network | Basic Electrical Technology - Electrical Engineering (EE)

Superposition Theorem in the Context of DC Voltage & Current Sources Acting in a Resistive Network | Basic Electrical Technology - Electrical Engineering (EE)
Superposition Theorem in the Context of DC Voltage & Current Sources Acting in a Resistive Network | Basic Electrical Technology - Electrical Engineering (EE) Now current through a to b, is given by
Superposition Theorem in the Context of DC Voltage & Current Sources Acting in a Resistive Network | Basic Electrical Technology - Electrical Engineering (EE)

Voltage across c-g terminal :

Vcg = Vbg+ Vcb = 2 × 1.043 + 4 × 0.13 = 2.61volts (Note: we are moving opposite to the direction of current flow and this indicates there is rise in potential). Note ‘c’ is higher potential than ‘g’

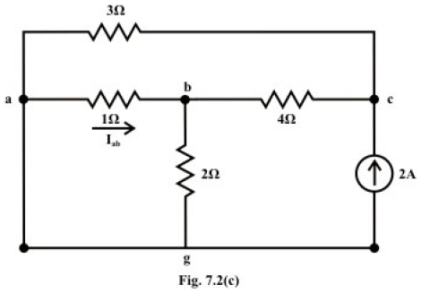

Current source only (retain one source at a time):

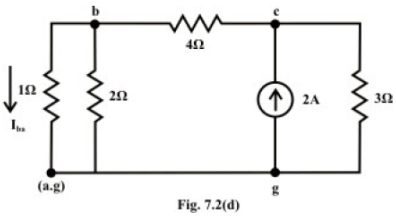

Now consider the current source Is = 2 A only and the voltage source Va is replaced by its internal resistance which is zero in the present case. The corresponding the simplified circuit diagram is shown below (see fig.7.2(c)& fig.7.2(d)).

Superposition Theorem in the Context of DC Voltage & Current Sources Acting in a Resistive Network | Basic Electrical Technology - Electrical Engineering (EE)

Superposition Theorem in the Context of DC Voltage & Current Sources Acting in a Resistive Network | Basic Electrical Technology - Electrical Engineering (EE)

Current in the following branches:

Superposition Theorem in the Context of DC Voltage & Current Sources Acting in a Resistive Network | Basic Electrical Technology - Electrical Engineering (EE)4 Ω resistor = 2− 1.217 = 0.783 A
Superposition Theorem in the Context of DC Voltage & Current Sources Acting in a Resistive Network | Basic Electrical Technology - Electrical Engineering (EE)

Voltage across 3Ω resistor (c & g terminals) Vcg = 1.217×3 = 3.651 volts

The total current flowing through 1Ω resistor (due to the  both sources) from a to b  = 0.913 (due to voltage source only; current flowing from ‘a’ to ‘b’) – 0.522 (due to current source only; current flowing from ‘b ’to ‘a’) = 0.391A.
Total voltage across the current source Vcg = 2.61volt (due to voltage source ; ‘c’ is higher potential than ‘g’) + 3.651 volt (due to current source only; ‘c’) is higher potential than ‘g’) = 6.26 volt.

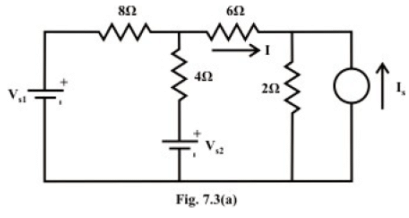

Example  For the circuit shown in fig.7.3(a), the value of Vs and Is are fixed. When , the current Vs2 = 0 I = 4 A . Find the value of I when Vs2 = 32V.

Superposition Theorem in the Context of DC Voltage & Current Sources Acting in a Resistive Network | Basic Electrical Technology - Electrical Engineering (EE)

Solution: Let us assume that the current flowing 6Ω resistors due to the voltage and current sources are given by (assume circuit linearity)

Superposition Theorem in the Context of DC Voltage & Current Sources Acting in a Resistive Network | Basic Electrical Technology - Electrical Engineering (EE)

where the parametersα , β, and η represent the positive constant numbers. The parameters α and β are the total conductance of the circuit when each voltage source acting alone in the circuit and the remaining sources are replaced by their internal resistances. On the other hand,  the parameter η represents the total resistance of the circuit when the current source acting alone in the circuit and the remaining voltage sources are replaced by their internal resistances. The expression (7.1) for current I is basically written from the concept of superposition theorem. From the first condition of the problem statement one can write an expression as (when the voltage source Vs1 and the current source Iacting jointly in the circuit and the other voltage source Vs2 is not present in the circuit.)

Superposition Theorem in the Context of DC Voltage & Current Sources Acting in a Resistive Network | Basic Electrical Technology - Electrical Engineering (EE) (Note both the sources are fixed)

Let us assume the current following through the 6Ω resistor when all the sources acting in the circuit with Vs = 32V is given by the expression (7.1). Now, one can determine the current following through 6Ω resistor when the voltage source Vs2 = 32V acting alone in the circuit and the other sources are replaced by their internal resistances. For the circuit shown in fig.7.3 (b), the current delivered by the voltage source to the resistor is given by

Superposition Theorem in the Context of DC Voltage & Current Sources Acting in a Resistive Network | Basic Electrical Technology - Electrical Engineering (EE)

Superposition Theorem in the Context of DC Voltage & Current Sources Acting in a Resistive Network | Basic Electrical Technology - Electrical Engineering (EE)

The current following through the 6 Ω due to the voltage source Vs2 = 32V only is 2A (flowing from left to right;  i,e. in the direction as indicated in the figure 7.3(b)). Using equation (7.1), the total current I flowing the 6 Ω resistor can be obtained as

Superposition Theorem in the Context of DC Voltage & Current Sources Acting in a Resistive Network | Basic Electrical Technology - Electrical Engineering (EE)Superposition Theorem in the Context of DC Voltage & Current Sources Acting in a Resistive Network | Basic Electrical Technology - Electrical Engineering (EE)
Superposition Theorem in the Context of DC Voltage & Current Sources Acting in a Resistive Network | Basic Electrical Technology - Electrical Engineering (EE)

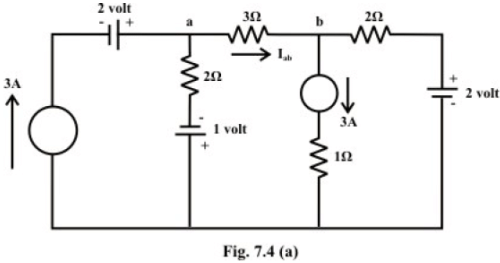

Example : Calculate the current Iab flowing through the resistor3 as shown in fig.7.4(a), using the superposition theorem.

Superposition Theorem in the Context of DC Voltage & Current Sources Acting in a Resistive Network | Basic Electrical Technology - Electrical Engineering (EE)

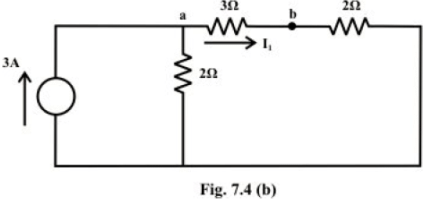

Solution: Assume that the current source 3A (left to the 1 source) is acting alone in the circuit and the internal resistances replace the other sources. The current flowing through 3Ω resistor can be obtained from fig.7.4(b)

Superposition Theorem in the Context of DC Voltage & Current Sources Acting in a Resistive Network | Basic Electrical Technology - Electrical Engineering (EE)

and it is given by

I1(due to 3 A current source) Superposition Theorem in the Context of DC Voltage & Current Sources Acting in a Resistive Network | Basic Electrical Technology - Electrical Engineering (EE)

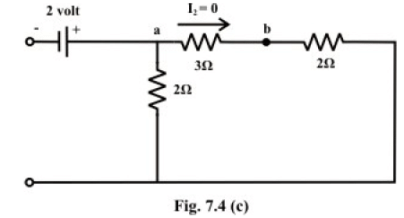

Current flowing through 3Ω resistor due to 2V source (only) can be obtained from fig.7.4(c)

Superposition Theorem in the Context of DC Voltage & Current Sources Acting in a Resistive Network | Basic Electrical Technology - Electrical Engineering (EE)

and it is seen from no current is flowing.

I2(due to 2V current source)  = 0 A(a to b)

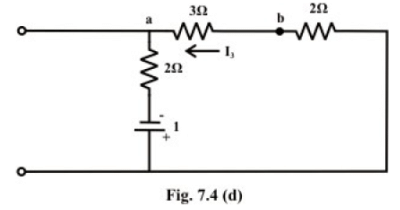

Current through 3Ω resistor due to 1V voltage source only (see fig.7.3(d)) is given by

Superposition Theorem in the Context of DC Voltage & Current Sources Acting in a Resistive Network | Basic Electrical Technology - Electrical Engineering (EE)

I3(due to 1V current source)  Superposition Theorem in the Context of DC Voltage & Current Sources Acting in a Resistive Network | Basic Electrical Technology - Electrical Engineering (EE)

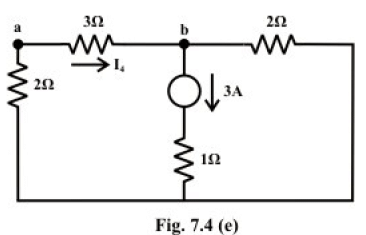

Current through 3Ω resistor due to 3 A current source only (see fig.7.3(e)) is obtained by

Superposition Theorem in the Context of DC Voltage & Current Sources Acting in a Resistive Network | Basic Electrical Technology - Electrical Engineering (EE)

I4(due to 3A current source) Superposition Theorem in the Context of DC Voltage & Current Sources Acting in a Resistive Network | Basic Electrical Technology - Electrical Engineering (EE)

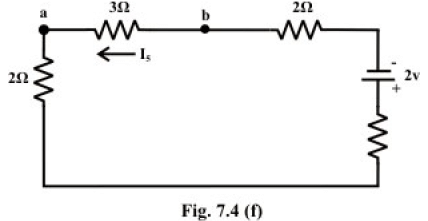

Current through 3Ω resistor due to 2V voltage source only (see fig.7.3(f)) is given by

Superposition Theorem in the Context of DC Voltage & Current Sources Acting in a Resistive Network | Basic Electrical Technology - Electrical Engineering (EE)

I5(due to 2V current source) Superposition Theorem in the Context of DC Voltage & Current Sources Acting in a Resistive Network | Basic Electrical Technology - Electrical Engineering (EE)

Resultant current Iab flowing through 3Ω resistor due to the combination of all sources is obtained by the following expression (the algebraic sum of all currents obtained in eqs. (7.4)-(7.8) with proper direction of currents)

1ab = I1(due to 3 A current source) + I2(due to 2 V voltage source) + I3(due to 1V voltage source) + I4(due to 3 A current source)+I5(due to 2 V voltage source)

Superposition Theorem in the Context of DC Voltage & Current Sources Acting in a Resistive Network | Basic Electrical Technology - Electrical Engineering (EE)

Limitations of superposition Theorem

  • Superposition theorem doesn’t work for power calculation. Because power calculations involve either the product of voltage and current, the square of current or the square of the voltage, they are not linear operations. This statement can be explained with a simple example as given below.

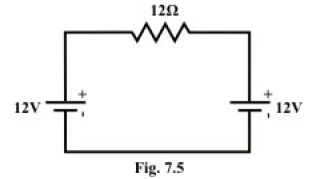

Example: Consider the circuit diagram as shown in fig.7.5.

Superposition Theorem in the Context of DC Voltage & Current Sources Acting in a Resistive Network | Basic Electrical Technology - Electrical Engineering (EE)

Using superposition theorem one can find the resultant current flowing through 12Ω resistor is zero and consequently power consumed by the resistor is also zero.  For power consumed in an any resistive element of a network can not be computed using superposition theorem. Note that the power consumed by each individual source is given by

PW1(due to 12Vsource(left)) =12 WattS , Pw2(due to l2y source(right)) =12 WattS

The total power consumed by 12Ω = 24 watts (applying superposition theorem). This result is wrong conceptually. In fact, we may use the superposition theorem to find a current in any branch or a voltage across any branch, from which power is then can be calculated.

  • Superposition theorem can not be applied for non linear circuit (Diodes or Transistors).
  • This method has weaknesses:- In order to calculate load current IL or the load voltage VL for the several choices of  load resistance RL of the resistive network , one needs to solve for every source voltage and current, perhaps several times. With the simple circuit, this is fairly easy but in a large circuit this method becomes an painful experience.
