Right of way
Right of way (ROW) or land width is the width of land acquired for the road, along its alignment. It should be adequate to accommodate all the cross-sectional elements of the highway and may reasonably provide for future development. To prevent ribbon development along highways, control lines and building lines may be provided. Control line is a line which represents the nearest limits of future uncontrolled building activity in relation to a road. Building line represents a line on either side of the road, between which and the road no building activity is permitted at all. The right of way width is governed by:

Terrain classification
The topography of the land traversed has an influence on the horizontal and vertical alignment of a highway. The terrain classifications pertain to the general character of a specific route corridor. For design purposes, variations in topography are categorized by terrain, utilizing the definitions in AASHTO's A Policy on Geometric Design of Highways and Streets :
Level Terrain - That condition where highway sight distances, as governed by both horizontal and vertical restrictions, are generally long or could be made to be so without construction difficulty or major expenses.

Rolling Terrain - That condition where the natural slopes consistently rise above and fall below the road or street grade and where occasional steep slopes offer some restriction to normal horizontal and vertical roadway alignment.

Mountainous Terrain - That condition where longitudinal and transverse changes in the elevation of the ground with respect to the road or street are abrupt and where benching and side hill excavation are frequently required to obtain acceptable horizontal and vertical alignment.

Design Speed:
It is the maximum safe speed that can be maintained over a specified section of highway when conditions are so favorable that the design features of the highway govern. The factor which affect the choice of a design speed are:
a)Class of road and terrain.
b)Curvature and its magnitude.
c)Condition of road surface.
d)Sight distance.
e)Nature, intensity and type of traffic.
f)Type and nature of road surface.

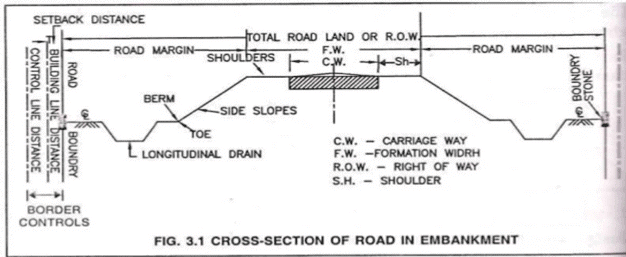

Right of Way (ROW) or land width is the width of land acquired for the road, along its alignment. It should be adequate to accommodate all the cross-sectional elements of the highway and may reasonably provide for future development. To prevent ribbon development along highways, control lines and building lines may be provided. Control line is a line which represents the nearest limits of future uncontrolled building activity in relation to a road. Building line represents a line on either side of the road; between which and the road no building activity is permitted at all. The right of way width is governed by: Width of formation: It depends on the category of the highway and width of roadway and road margins.
Height of embankment or depth of cutting: It is governed by the topography and the vertical alignment. Side slopes of embankment or cutting: It depends on the height of the slope, soil type etc. Drainage system and their size which depends on rainfall, topography etc.

Sight distance considerations: On curves etc. there is restriction to the visibility on the inner side of the curve due to the presence of some obstructions like building structures etc. Reserve land for future widening: Some land has to be acquired in advance anticipating future developments like widening of the road.

Terrain Classification & Width of Formation | Transportation Engineering - Civil Engineering (CE)

Width of formation
It depends on the category of the highway and width of roadway and road margins. Height of embankment or depth of cutting: It is governed by the topography and the vertical alignment. Side slopes of embankment or cutting: It depends on the height of the slope, soil type etc. Drainage system and their size which depends on rainfall, topography etc.Sight distance considerations : On curves etc. there is restriction to the visibility on the inner side of the curve due to the presence of some obstructions like building structures etc.Reserve land for future widening: Some land has to be acquired in advance anticipating future develop- ments like widening of the road.

The alignment is the route of the road, defined as a series of horizontal tangents and curves.

The profile is the vertical aspect of the road, including crest and sag curves, and the straight grade lines connecting them.

The cross section shows the position and number of vehicle and bicycle lanes and sidewalks, along with their cross slope or banking. Cross sections also show drainage features, pavement structure and other items outside the category of geometric design .

The document Terrain Classification & Width of Formation | Transportation Engineering - Civil Engineering (CE) is a part of the Civil Engineering (CE) Course Transportation Engineering.
All you need of Civil Engineering (CE) at this link: Civil Engineering (CE)
26 videos|91 docs|58 tests

Up next

FAQs on Terrain Classification & Width of Formation - Transportation Engineering - Civil Engineering (CE)

1. What is terrain classification in civil engineering?
Ans. Terrain classification in civil engineering refers to the process of categorizing land surfaces based on their physical characteristics such as slope, soil type, vegetation cover, and topography. This classification helps engineers in designing and constructing appropriate infrastructure based on the specific requirements and constraints of different terrains.
2. How is terrain classification useful in civil engineering projects?
Ans. Terrain classification is crucial in civil engineering projects as it provides valuable information for site selection, foundation design, and construction planning. By understanding the terrain's characteristics, engineers can assess the stability, bearing capacity, and potential risks of the land, allowing them to make informed decisions and implement appropriate measures to mitigate any challenges.
3. What factors are considered in terrain classification?
Ans. Several factors are considered in terrain classification, including slope gradient, soil properties, vegetation cover, drainage patterns, and topographic features. These factors help determine the terrain's stability, erosion potential, water infiltration rates, and the type of construction techniques and materials that should be used to ensure the longevity and safety of the infrastructure.
4. How is the width of formation determined in civil engineering projects?
Ans. The width of formation in civil engineering projects refers to the width of the constructed roadway or railway embankment. It is determined based on factors such as the traffic volume, type of vehicles, design speed, and safety requirements. Engineers consider the width necessary for the desired number of traffic lanes, median barriers, shoulders, and other features required for safe and efficient transportation.
5. What are some common challenges faced in terrain classification and formation width determination?
Ans. Some common challenges in terrain classification and formation width determination include dealing with steep slopes or unstable terrains, accounting for varying soil conditions, addressing drainage issues, and considering environmental factors. Additionally, the availability of space, cost constraints, and adherence to regulatory standards also pose challenges in determining the optimal width of formation for civil engineering projects.
