Cross Walk

Marked crosswalks indicate optimal or preferred locations for pedestrians to cross and help designate right-of-way for motorists to yield to pedestrians. Crosswalks are often installed at signalized intersections and other selected locations.

1. It should be located at all open legs of signalized intersection.

2. It should be perpendicular to roadway.

3. The parallel line should be 0.2-0.6 m in width and min. length 1.8 m (standard 3m).

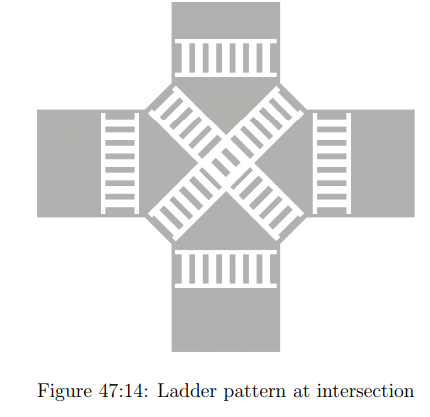

4. Marking may be of different type to increase visibility like as solid, standard, continental, dashed, zebra, ladder. It is shown in Fig. 47:13.

Traffic Islands

Traffic islands to reduce the length of the crossing should be considered for the safety of all road users. It is used to permit safe crossing when insufficient gap in two directions traffic & helps elderly, children and disabled.

1. It works best when refuse area median is greater than cross walk width or 3.6 m, have a surface area of at least 4.6 sq.m, are free of obstructions, have adequate drainage, and provide a flat, street level surface to provide accessibility to people with disabilities.

2. The Refuge area width should be at least 1.2 m wide and depend upon traffic speed. It should be 1.5m wide on streets with speeds between 40-48 kmph, 1.8 m wide(48-56 kmph), and 2.4 m (56-72 kmph).

Pedestrian Overpass and Underpass

Pedestrian facilities at-grade and as directly as possible are always preferred. However, where grade separation is indicated, paths that are attractive, convenient and direct can become well-used and highly valued parts of a city’s pedestrian infrastructure.

1. These are expensive method but eliminate all or most conflicts. These may be warranted for critical locations such as schools factory gates, sports arenas, and major downtown intersections (specially in conjunction with transit stations).

2. Overpasses are less expensive than underpass. However , vertical rise and fall to be negotiated by pedestrians is usually greater for an overpass, and it may be aesthetically inferior.

3. Minimum width is required 1.22 m, although 1.83 is preferred.

4. Ramps slopes not greater than 1:12 (8.33%) are preferable to flights of stairs to accommodate wheelchair, strollers, and bicycles and to comply with ADA.

Street Corner

Available Time-Space: The total time-space available for circulation and queuing in the intersection corner during an analysis period is the product of the net corner area and the length of the analysis period. For street corners, the analysis period is one signal cycle and therefore is equal to the cycle length. The following equation is used to compute time-space available at an intersection corner. Intersection Corner Geometry is shown in Fig. 47:15.

TS = C(W_a ∗ W_b − 0.215R² )                                            (47.4)

where, TS =available time-space (m2-s), Wa = effective width of Sidewalk a (m), Wb = effective width of Sidewalk b (m), R = radius of corner curb (m), and C = cycle length (s).


 Pedestrian signals

Pedestrian signals are designed basically considering minimum time gap required for crossing the pedestrians. This minimum time gap can be calculated by using following gap equation.

where, Gs=min time gap in sec, W= width of crossing section, ts= startup time, tc=consecutive time between two pedestrian, N=no of rows, and Sped =pedestrian speed.


 Numerical example

Calculate time gap for a platoon of 27 school children 5 in a row, consecutive time 2 sec width of crossing section is 7.5 m and walking speed of children .9 m/s start up time 3 sec. Solution

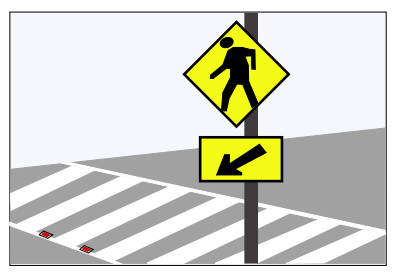

Figure 47:16: In-Pavement Raised Markers with Amber LED Strobe Lighting and LED Signs

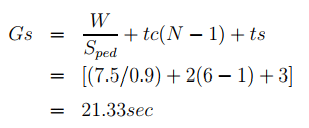

Given w=7.5m; tc= 3 sec Sped= 0.9m/s Find out N N=27/5 i.e. 6 row (5 containing 5 & 6th containing 2) Time gap

Traffic signage There are many signage used for pedestrian facilities like as in-pavement flashers, overhead signs, animated pedestrian indications and school zone symbol. These are shown below.

1. In-Pavement Flashers (Fig. 47:16)

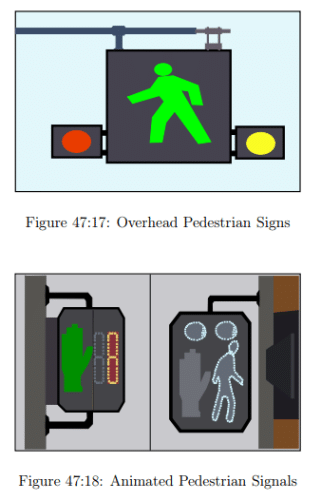

2. Overhead Signs (Fig. 47:17)

3. Animated Pedestrian Indications (Fig. 47:18)

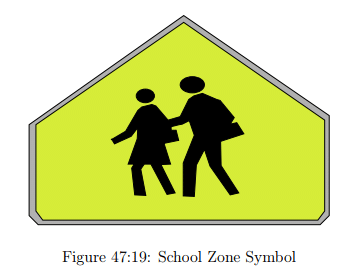

4. School Zone Symbol (Fig. 47:19)


Conclusion

This lectures covers pedestrian problems, their characteristics, different level of services and design principles of pedestrian facilities. Pedestrian as the most basic unit / component for street and public space design. Pedestrian includes vulnerable road users - elderly, disabled, children,

people with luggage etc. Safety of pedestrians to be on top priority (to be never compromised by design / policy). Effective integration of technical innovations, policies, institutional mechanisms for pedestrian safety.
