Objectives

In this lecture you will learn the following

• CMOS Inverter Characterisitcs
• Noise Margins
• Regions of operation
• Beta-n by Beta-p ratio

15. CMOS Inverter Characterisitcs

The complementry CMOS inverter is realized by the series connection of a p- and n-device as in fig 15.11.

Fig 15.11: CMOS Inverter

Inverter characteristics:

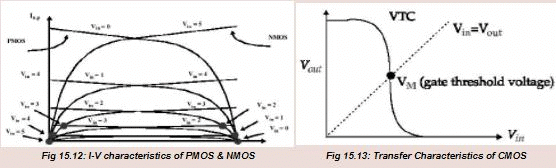

In the below graphical representation(fig.2.) The I-V characteristics of the p-device is reflected about x-axis. This step is followed by taking the absolute values of the p-device, Vds and superimposing the two characteristics. Solving Vinn and Vinp and Idsn = Idsp gives the desired transfer characteristics of a CMOS inverter as in fig3.

15.2 Noise Margins

Noise margin is a parameter closely related to the input-output voltage characteristics. This parameter allows us to determine the allowable noise voltage on the input of a gate so that the output will not be affected. The specification most commonly
used to specify noise margin (or noise immunity) is in terms of two parameters- The LOW noise margin, NML, and the HIGH noised margin, NMH. With reference to Fig 4. NML is defined as the difference in magnitude between the maximum LOW output
voltage of the driving gate and the maximum input LOW voltage recognized by the driven gate. Thus,

Fig 15.2: Noise Margin diagram

The value of NMH is difference in magnitude between the minimum HIHG output voltage of the driving gate and the minimum input HIGH voltage recognized by the receiving gate. Thus,

Where,

V_IHmin = minimum HIGH input voltage
V_ILmax = maximum LOW input voltage
V_OHmin = minimum HIGH output voltage
V_OLmax = maximum LOW output voltage.

15.3: Regions of Operation

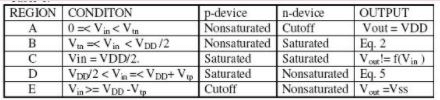

The operation of CMOS inverter can be divided into five regions .The behavior of n- and p-devices in each of region may be found using

We will describe about each regions in details-

Region A : This region is defined by 0 =< V_in < V_tn in which the n-device is cut off (Idsn =0), and the p-device is in the linear region. Since I_dsn = –I_Idsp, the drain-to-source current Idsp for the p-device is also zero. But for V_dsp = V_out– V_DD, with V_dsp = 0, the output voltage is V_out=V_DD.

Region B : This region is characterized by V_tn =< V_in < V_{DD /2} in which the p-device is in its nonsaturated region (V_ds != 0) while the n-device is in saturation. The equivalent circuit for the inverter in this region can be represented by a resistor for the p-transistor and a current source for the n-transistor as shown in fig. 6 . The saturation current Idsn for the n-device is obtained by setting V_gs = V_in . This results in

 and V_tn =threshold voltage of n-device, µ_n=mobility of electrons W_n = channel width of n-device & L_n = channel length of n-device

Fig 15.31: Equivalent circuit of MOSFET in region B

The current for the p-device can be obtained by noting that V_gs =( V_in – V_DD ) and Vds = (V_out – V_DD ). And therefore,

and V_tp =threshold voltage of n-device, µ_p=mobility of electrons, W_p = channel width of n-device & L_p = channel length of n-device. The output voltage Vout can be expressed as-

Region C: In this region both the n- and p-devices are in saturation. This is represented by fig 7 which shows two current

Fig 15.32: Equivalent circuit of MOSFET in region C

This yields,

By setting,

Which implies that region C exists only for one value of V_in. We have assumed that a MOS device in saturation behaves like an ideal current soured with drain-to-source current being independent of V_ds.In reality, as V_ds increases, I_ds also increases slightly; thus region C has a finite slope. The significant factor to be noted is that in region C, we have two current sources in series, which is an “unstable” condition.

Thus a small input voltage as a large effect at the output. This makes the output transition very steep, which contrasts with the equivalent nMOS inverter characteritics. characteritics. The above

expression of V_th is particularly useful since it provides the basis for defining the gate threshold V_inv which corresponds to the state where Vout=V_in .This region also defines the “gain” of the CMOS inverter when used as a small signal amplifier.

Fig 15.33: Equivalent circuit of MOSFET in region D

Region D: This region is described by V_DD/2 <V_in =< V_DD+ V_tp.The p-device is in saturation while the n-device is operation in its nonsaturated region. This condition is represented by the equivalent circuit shown in fig 15.33 .The two currents may be written as

with I_dsn = -I_dsp.

The output voltage becomes

Region E: This region is defined by the input condition V_in >= V_DD -V_tp, in which the pdevice is cut off (I_dsp =0), and the n-device is in the linear mode. Here, V_gsp= V_in - V_DD Which is more positive than V_tp. The output in this region is V_out=0

From the transfer curve , it may be seen that the transition between the two states is very step.This characteristic is very desirable because the noise immunity is maximized.

15.4 β_n/β_p ratio:



Figure 15.4: β_n/β_{p graph}

The gate-threshold voltage, V_inv, where V_in =V_out is dependent onβ_n/β_p . Thus, for given process, if we want to change β_n/β_p we need to change the channel dimensions, i.e.,channel-length L and channel-width W. Therefore it can be seen that as the ratio β_n/β_p is decreased, the transition region shifts from left to right; however, the output voltage transition remains sharp.
