FIR filters can be useful in making computer-aided design of the filters. Let us take an example and see how it works. Given below is a figure of desired filter.

While doing computer designing, we break the whole continuous graph figures into discrete values. Within certain limits, we break it into either 64, 256 or 512 (and so on) number of parts having discrete magnitudes.

In the above example, we have taken limits between -π to +π. We have divided it into 256 parts. The points can be represented as H(0), H(1),….up to H(256). Here, we apply IDFT algorithm and this will give us linear phase characteristics.

Sometimes, we may be interested in some particular order of filter. Let us say we want to realize the above given design through 9^th order filter. So, we take filter values as h0, h1, h2….h9. Mathematically, it can be shown as below

Where there are large number of dislocations, we take maximum points.

For example, in the above figure, there is a sudden drop of slopping between the points B and C. So, we try to take more discrete values at this point, but there is a constant slope between point C and D. There we take less number of discrete values.

For designing the above filter, we go through minimization process as follows;

Similarly,

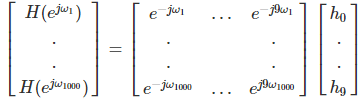

Representing the above equation in matrix form, we have −

Let us take the 1000×1 matrix as B, 1000×9 matrix as A and 9×1 matrix as

So, for solving the above matrix, we will write

where A^* represents the complex conjugate of the matrix A.
