Seepage in Non-Homogeneous Section
Figure 20.4 shows the Change in direction of flow lines at intersection of two soil layers with different permeability. In such situation, the condition is:
\[{{{k_1}} \over {{k_2}}}={{\tan {\alpha _1}} \over {\tan {\alpha _2}}}\] (20.14)
If k1 > k2, the flow lines get defected towards the normal after the intersection (i.e. a1 > a2). Similarly, If k1 < k2, the flow lines get defected away from the normal after the intersection (i.e. a1 < a2). If the permeability of one layer is 10 times more than the permeability of other layer, then it is assumed that no resistance for lowing of water is offered from more pervious layer, thus, no deflection correction is necessary.

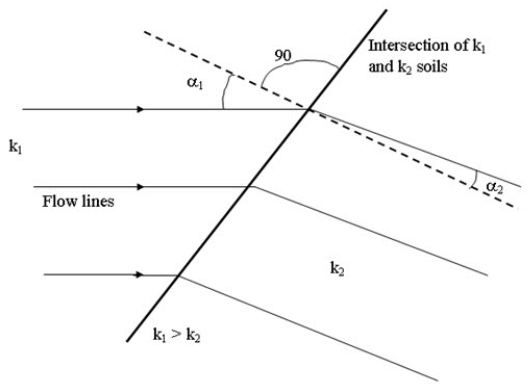

Fig.20.4. Change in direction of flow lines at intersection of two soil layers
with different permeability.
The document Seepage in Non-Homogeneous Section - Flow Net, Soil Mechanics | Soil Mechanics Notes- Agricultural Engineering is a part of the Agricultural Engineering Course Soil Mechanics Notes- Agricultural Engineering.
All you need of Agricultural Engineering at this link: Agricultural Engineering
FAQs on Seepage in Non-Homogeneous Section - Flow Net, Soil Mechanics - Soil Mechanics Notes- Agricultural Engineering
| 1. What is seepage in soil mechanics? |  |
Ans. Seepage in soil mechanics refers to the movement of water through soil or rock. It occurs when there is a difference in hydraulic head, causing water to flow from areas of higher head to areas of lower head. Seepage can have significant implications in engineering projects, such as causing erosion, instability, or affecting the stability of structures.
| 2. How is seepage analyzed in non-homogeneous sections? | |
Ans. In non-homogeneous sections, seepage can be analyzed using flow nets. A flow net is a graphical representation of the flow of water through soil or rock. It consists of a series of equipotential lines (lines of equal hydraulic head) and flow lines (lines of flow direction). By analyzing the geometry and characteristics of the flow net, engineers can determine the quantity and direction of seepage.
| 3. What are the main factors influencing seepage in non-homogeneous sections? | |
Ans. Several factors can influence seepage in non-homogeneous sections. These include the permeability of the soil or rock, the hydraulic gradient (difference in hydraulic head), the geometry of the section, and the presence of any barriers or boundaries. The permeability of different layers within the section can vary, leading to variations in seepage patterns and velocities.
| 4. How can seepage in non-homogeneous sections impact agricultural engineering projects? | |
Ans. Seepage in non-homogeneous sections can have various impacts on agricultural engineering projects. Excessive seepage can result in the loss of water from irrigation systems, reducing the effectiveness of water distribution and potentially leading to water scarcity for crops. Seepage can also contribute to soil erosion and the leaching of nutrients, affecting soil fertility and crop productivity.
| 5. What measures can be taken to mitigate seepage in non-homogeneous sections? | |
Ans. There are several measures that can be taken to mitigate seepage in non-homogeneous sections. These include the use of impermeable liners or barriers, such as geomembranes or clay liners, to prevent water from infiltrating or escaping the section. Additionally, proper compaction and consolidation methods can be employed to improve the overall integrity and permeability of the soil or rock. Regular monitoring and maintenance of the section can also help identify and address any seepage issues promptly.
