Current Electricity Class 12 Notes Physics Chapter 3


  • Current:- Current strength, in a conductor, is defined as the rate of flow of charge across any cross section of the conductor.
    I= q/t = ne/t
    For non-uniform flow,
    I= dq/dt
    Or, q = ? I dt
  • Units of electric current:-
    (a) C.G.S. electro-static unit (esu):- 1 esu of current (stat-ampere) = 1 esu of charge/1 second
    (b) C.G.S. electro-static unit (emu):- 1 emu of current (ab-ampere) = 1 emu of charge/1 second
    (c) S. I unit (ampere):- 1 ampere = 1 coulomb/1 second
    (d) 1 A = 3×109esu of current or stat-ampere
    (e) 1 A = 1/10 emu of current or abampere
  • Drift velocity:-The velocity with which the free electrons are drifted towards the positive terminal, under the action of the applied field, is called the drift velocity of the free electrons.
    V = (eV/ml)Current Electricity Class 12 Notes Physics Chapter 3
    Here, e is the charge of electron, V is the potential difference, m is the mass and Current Electricity Class 12 Notes Physics Chapter 3 is the relaxation time.
  • Electric current and Drift velocity:-  I= q/t = nAve
  • Ohm’s Law for conductors:- At constant temperature current flowing through a conductor of uniform area of cross-section, is proportional to the difference of potential across its terminals.
    Current Electricity Class 12 Notes Physics Chapter 3

(a) V = IR , Here, R = (ml/nAe2) (1/Current Electricity Class 12 Notes Physics Chapter 3)

(b) R=ρl/A

(c) ρ = 1/σ

(d) vd = (qECurrent Electricity Class 12 Notes Physics Chapter 3/m)

(e) I = neAvd

(f) ρ = m/ne2Current Electricity Class 12 Notes Physics Chapter 3

(g) σ = ne2Current Electricity Class 12 Notes Physics Chapter 3/m

  • Resistance (R):- Resistance of a conductor is defined as the ratio between potential differences between the two ends of the conductor to the current flowing through it.
    R= V/I
  • Units of R:-
    (a) In S.I:- 1 ohm = 1 volt/1 ampere
    (b) In C.G.S system:-
    1 statohm = 1 statvolt/1 statamp
    1 abohm = 1 abvolt/1 abampere
    (c) Relation between ohm and statohm:- 1 ohm = (1/9×1011) statohm
    (d) Relation between ohm and abohm:- 1 ohm = 109abohm
  • Variation of resistance with temperature:-
    Temperature coefficient of resistance (α) is defined as change in resistance of the conductor per unit resistance per degree centigrade rise of temperature.
    Rt=R0[1+α(T-T0)]
    α = Rt - R0/R0(T-T0)
    Here, Rt,R0 is the resistance of the conductor at tº C and 0º C respectively.
  • Resistivity of material (ρ):- ρ = RA/l ,
    Here R is the resisteance of the conductor, A is cross sectional area of conductor and l is the length of the conductor
  • Relation between resistivity(ρ) and relaxation time (τ):-
    ρ = m /ne2Current Electricity Class 12 Notes Physics Chapter 3
  • Variation of resistivity with temperature:-
    (a) Conductors:-
    ρt = ρ[1+α(T-T0)]
    Here c is called the temperature coefficient of the resistivity.
    = (ρt - ρ0) /ρ0 (T--T0)
    Temperature coefficient of resistivity of a conductor is defined as the change in resistivity per unit resistivity per degree Celsius rise of temperature.
    α=ρt - ρ0
    (b) Insulators:-
    Current Electricity Class 12 Notes Physics Chapter 3
  • Conductivity (σ):- Conductivity of a material is defined as the reciprocal of the resistivity.
    σ = 1/ρ
    Unit:- ohm-1m-1
  • Conductance:-Conductanceof a conductor is defined as the reciprocal of its resistance.
    Conductance = 1/R = (1/ρ) (A/l)
    Unit:- mho or ohm-1m-1
  • Current Density:-
    Current Electricity Class 12 Notes Physics Chapter 3(a) J = I/A
    (b) J = nevd
    (c) J =σE
    (d) µ = vd/E
    (e) σ = neµ
  • Relation between current density and electrified:-
    Current Electricity Class 12 Notes Physics Chapter 3Thus, electrical conductivity can also be defined as electric current density per unit electric field strength.
  • Resistance in series:- If anumber of resistances are connected in series with each other, the net resistance of the combination is equal to the sum of their individual resistances.
    (a) R = R1+R2+R3
    (b) V = V1+V2+V3
    (c) I = I1 = I= I3 = Constant
    (d) V1 = IR1, V2 = IR2, V= IR3
    Current Electricity Class 12 Notes Physics Chapter 3
  • Resistance in parallel:- If a number of resistances are connected in parallel, the reciprocal of the resistance of the combination is equal to the sum of the reciprocals of their individual resistances.
    (a) 1/R = 1/ R1 + 1/ R2 +1/ R3
    (b) I = I1+I2+I3
    (c) V = V1 = V= V3 = Constant
    (d) I1 = V/R1, I2 = V/R2, I3 = V/R3
    Current Electricity Class 12 Notes Physics Chapter 3
  • Distribution of current in a parallel combination of resistances:-
    (a) I= I (R2/R1+R2)
    (b) I2 = I (R1/R1+R2)
    In general,
    Current in one branch = total current × (resistance of second branch / sum of resistances in the two branches)
    Current Electricity Class 12 Notes Physics Chapter 3
  • Grouping of cells:-

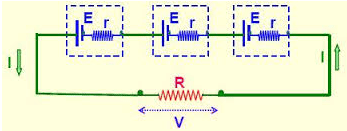

    (a) Cells in series:-
    I= (nE)/(R+nr)
    If R<<nr, then I = E/R
    If R>>nr, then I = nE/R
    Current Electricity Class 12 Notes Physics Chapter 3
    (b) Cells in parallel:-
    I= E/[R+(r/m)]
    If R>>r/m, then I = E/R
    If R>>r/m, then I = m(E/R)
    Current Electricity Class 12 Notes Physics Chapter 3
    (c) Mixed grouping:-
    (a) I = mnE/(mR+nr)
    (b) I is maximum when nR = mR
    (c) Imax = mnE/(2√mnrR)
    Current Electricity Class 12 Notes Physics Chapter 3
  • Electromotive force and potential difference:-
    The electromotive force E of a cell is defined as the difference of potential between its terminals when there is no current in the external circuit, i.e., when the cell is in open circuit.
    The potential difference of a cell is the difference of potential between two terminals when it is in closed circuit.
    E = V+IR
  • Internal resistance (r) of a cell:- The resistance offered by the electrolyte of the cell when the electric current passes through it is known as the internal resistance of the cell.
    r = R (E-V/V)
  • Electric Power:-
    (a) P = VI
    (b) P = I2R = V2/R
    Unit of power:-1 watt = 1 volt × 1 amp
  • Electric energy:-
    W = Vq = V(It)
    Unit of electric energy:-
    1 joule = 1 watt sec
    1 kilowatt hour = 1000 watt hour
  • Faraday’s Laws of Electrolysis:-
    (a) The mass of ion deposited on an electrode in the process of electrolysis, is proportional to the quantity of charge that has passed through the electrolyte.
    m = Zq = ZIt
    (b) When same current passes through several electrolytes for the same time, the masses of various ions deposited at each of the electrodes are proportional to their chemical equivalents (equivalent weights).
    m/W = constant
    Or, Z1/Z2 = W1/W2
    So, W/Z = constant = F
  • Heating effect of current:-
    I = I2Rt  Joule = I2Rt/J Calorie
  • Electric Bulb:-
    (a) Resistance of filament, R = V2/P
    (b) Maximum current that can be allowed to pass through bulb, Imax = P/V
  • Total power consumed in parallel combination:-
    P = P1+P2+P3
  • Total power consumed in series combination:-
    1/P= 1/P1+1/P2+1/P3
  • Effect of stretching a resistance wire:-
    R2/R1 = (l1/l2) (A1/A2) = (l2/l1)2 = (A1/A2)2 = (r1/r2)4      [Since, l1 A1 = l2 A2]
  • Thermo e.m.f:-e = αθ + (βθ2/2)       (Here, θ = θH = θC)
  • Neutral temperature: θN = -(α/β)
  • Temperature of inversion:- θN = (θ+ θC)/2 [Since, θ1 – θ= θN – θC]
  • Thermoelectric power or Seebeck Coefficient:- S =de/dθ = α +βθ
  • Peltier effect:-
    Heat absorbed per second at a junction when a current I flows = πI
    Here π is Peltier coefficient and is given by, π = SθH
  • Thomson coefficient:-
    σ = (ΔQ/time)/IΔθ
The document Current Electricity Class 12 Notes Physics Chapter 3 is a part of the NEET Course NCERT Exemplar & Revision Notes for NEET.
All you need of NEET at this link: NEET
182 docs

Top Courses for NEET

FAQs on Current Electricity Class 12 Notes Physics Chapter 3

1. What is current electricity?
Ans. Current electricity refers to the flow of electric charge through a conductor. It is the movement of electrons in a closed circuit, creating an electric current. This flow of charge is typically generated by a power source, such as a battery or generator.
2. How is current measured?
Ans. Current is measured using a device called an ammeter. An ammeter is connected in series with the circuit and measures the amount of current flowing through it. The unit of current is the ampere (A).
3. What is the difference between direct current (DC) and alternating current (AC)?
Ans. Direct current (DC) is the flow of electric charge in one direction, while alternating current (AC) continuously changes direction. DC is commonly used in batteries, while AC is the standard form of electricity supplied by power companies. AC is preferred for long-distance transmission as it can be easily transformed between different voltages.
4. What is Ohm's Law?
Ans. Ohm's Law states that the current flowing through a conductor is directly proportional to the voltage applied across it, and inversely proportional to its resistance. It can be expressed as I = V/R, where I is the current, V is the voltage, and R is the resistance.
5. How does resistance affect current flow?
Ans. Resistance is a measure of how difficult it is for current to flow through a conductor. According to Ohm's Law, as resistance increases, the current decreases for a constant voltage. Conversely, as resistance decreases, the current increases. This relationship highlights the importance of resistance in regulating current flow in a circuit.
