Electric Motor
Electric motor is a device that converts electrical energy to mechanical energy.
Parts of a Electric Motor

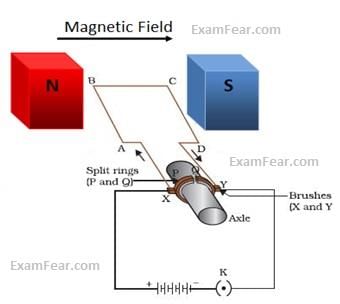

- Insulated Copper wire: A rectangular coil of wire ABCD
- Magnet Poles: A magnet as placed above ie North Pole and South Pole. This creates a magnetic field as shown above.
- Split Rings: Two disjoint C-shaped rings P and Q. It acts as a commutator (which can reverse the direction of current)
- Axle: The split rings are placed on the axle which can rotate freely.
- Brushes: The outside of the split rings are connected to conducting brushes X and Y.
- Source Battery: To source current.
Working
- When the current begins to flow, current flows through brush X, then A to B, B to C, C to D and then to brush Y and into the battery.
- Now applying Fleming's Left Hand Rule to wire AB, Current is along AB, Magnetic Field is as shown (North-> South), the motion of the wire is downwards.
- Now applying Fleming's Left Hand Rule to wire CD, Current is along CD, Magnetic Field is as shown (North-> South), the motion of the wire is upwards.
- The rectangular coil begins to move in the anti-clockwise direction
- Note that during anti-clockwise motion, the split rings and axle also move, whereas the brushes don't move.
- After half a rotation, Wire CD and Split ring Q moves to the left. Wire AB and Split ring P moves to right.Brushes X and Y donot move.
- Now applying Fleming's Left Hand Rule to wire CD, Current is along DC. (Battery -> Split ring Q -> DC , Magnetic Field is as shown (North-> South), the motion of the wire is downwards.
- Now applying Fleming's Left Hand Rule to wire AB, Current is along BA. (Battery -> Split ring Q -> DC --> CB -> BA --> Split ring P) , Magnetic Field is as shown (North-> South), the motion of the wire is upwards.
- So, again the coil rotates in the anti-clockwise direction.
- The reversal of current in the coil results in the continous rotation of the coil. The reversal of current is achieved by the commutator rings
Applications
- Electric Fans
- Refrigerators
- Mixers
- Washing machines
FAQs on Electric motor notes - Class 10
| 1. What is an electric motor and how does it work? |  |
Ans. An electric motor is a device that converts electrical energy into mechanical energy. It works on the principle of electromagnetic induction, where a current-carrying coil (armature) experiences a force when placed in a magnetic field. This force causes the armature to rotate, thus generating mechanical motion.
| 2. What are the different types of electric motors? | |
Ans. There are various types of electric motors, including DC motors, AC motors, synchronous motors, and induction motors. DC motors use direct current to power the armature, while AC motors can operate on either single-phase or three-phase alternating current. Synchronous motors maintain a constant speed and are used in applications that require precision timing. Induction motors are the most common type and are used in household appliances, industrial machinery, and electric vehicles.
| 3. What are the advantages of using electric motors? | |
Ans. Electric motors offer several advantages over other types of engines. They are highly efficient, converting a high percentage of electrical energy into mechanical energy. They are also environmentally friendly as they produce zero emissions during operation. Electric motors are compact, lightweight, and require minimal maintenance. Additionally, they offer excellent control and speed regulation, making them suitable for a wide range of applications.
| 4. How do I choose the right electric motor for my application? | |
Ans. To choose the right electric motor, you need to consider several factors. First, determine the power requirements of your application, such as the required torque and speed. Next, consider the voltage and current ratings of the motor to ensure compatibility with your power supply. Additionally, evaluate the motor's size, weight, and efficiency to ensure it fits your space and energy requirements. Finally, consider any specific features or certifications required for your application, such as explosion-proof or waterproof motors.
| 5. Can electric motors be used in renewable energy systems? | |
Ans. Yes, electric motors are commonly used in renewable energy systems. They play a crucial role in converting the energy generated from renewable sources, such as solar panels or wind turbines, into usable electrical power. Electric motors are used in applications like solar trackers, wind turbine generators, and hydroelectric power systems. Their efficiency and controllability make them ideal for harnessing renewable energy and contributing to a sustainable future.
