Microkernel & Monolithic Kernel

Microkernel in Operating Systems

Kernel - the core of an operating system

The kernel is the core component of an operating system that manages system resources and provides a controlled interface between applications and hardware. The kernel is one of the first programs loaded during system start-up (after the bootloader) and executes with the highest privilege level on the CPU.

Kernel mode and User mode of CPU operation

The CPU operates in at least two distinct modes to provide protection and controlled access to hardware resources. The two common modes are kernel mode (also called supervisor or privileged mode) and user mode (unprivileged mode).

• In kernel mode, the CPU may execute privileged instructions that control hardware and manage memory protection. The operating system switches the CPU to kernel mode when kernel code must run.
• In user mode, applications execute without direct access to privileged instructions or sensitive hardware resources; attempts to execute privileged instructions raise exceptions or traps.
• Non-privileged instructions used by user programs include arithmetic and stack operations (for example, ADD, PUSH).

Many systems extend this model with additional mode levels. For example, CPUs supporting virtualization add a distinct mode for the virtual machine monitor (VMM) that has more privilege than ordinary user programs but less than the full kernel.

System calls are the controlled interface by which user programs request kernel services. They are typically implemented using a software interrupt or a trap that switches the CPU from user mode to kernel mode. The interrupt handler identifies the service requested (often via a register or a syscall number), validates parameters, and invokes the appropriate kernel routine.

User programs that attempt illegal actions-such as executing privileged instructions, referencing invalid memory, or dividing by zero-generate traps. The kernel's interrupt/trap handler processes the fault, which may result in an error being returned to the program, a log (core) being written, and termination of the offending process.

What is a Microkernel?

A microkernel is a kernel design that implements only the minimal, essential services in kernel space, and moves other operating system services into user space as separate processes or servers. By keeping the kernel small, the microkernel approach reduces the trusted computing base and isolates many services from the kernel.

Typical minimal services implemented inside a microkernel include:

• Inter-process communication (IPC) primitives for message passing between user-space servers and applications.
• Basic memory management such as address-space management and protection primitives.
• CPU scheduling and low-level thread/process management.

Other services such as file systems, device drivers, network stacks and graphical servers run in user address space as separate server processes. Communication between client applications and these services uses message passing provided by the microkernel.

Advantages of the microkernel design

• Modularity and extensibility: New services can be added as user-space processes without changing the kernel.
• Reliability and fault isolation: A failure in a user-space service is less likely to crash the entire system because the kernel remains protected.
• Security: Smaller trusted kernel surface reduces the chance of critical vulnerabilities; user services run with lower privileges.
• Portability: With minimal hardware-dependent code in the kernel, porting to new architectures can be easier.

Disadvantages and trade-offs

• Performance overhead: Frequent message passing and context switches between user-space servers and the kernel introduce latency compared with direct procedure calls inside a monolithic kernel.
• Complexity of IPC and server coordination: Correctly implementing efficient IPC and managing many server processes adds design complexity.

Examples and historical notes

• MINIX (Andrew S. Tanenbaum) is a well-known educational microkernel-based system.
• Mach (Carnegie Mellon University) introduced a microkernel approach and influenced many later systems; in practice some implementations grew larger over time.
• L4 family (Jochen Liedtke) is a series of high-performance microkernels designed to reduce IPC overhead.
• QNX is a commercial real-time operating system using a microkernel architecture widely used in embedded systems.

Monolithic Kernel and key differences from Microkernel

What is a Monolithic Kernel?

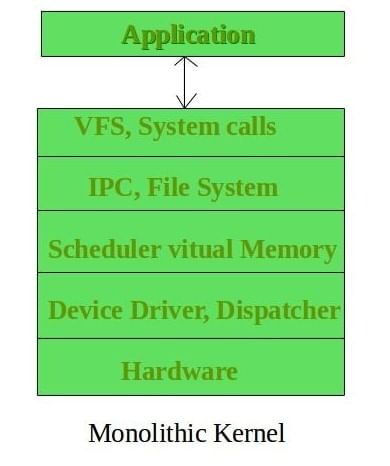

A monolithic kernel is a kernel design in which most operating system services-including device drivers, file systems, network stacks, CPU scheduling and memory management-execute in the same address space as the kernel. All these services run with full kernel privilege, typically as a single large process or binary.

Because services run in one address space, service invocation frequently uses procedure calls rather than message passing. This can yield higher performance due to fewer context switches and lower IPC overhead.

Advantages of the monolithic kernel

• Performance: Direct function calls within kernel space are faster than message-based communication between user-space processes and the kernel.
• Simplicity of calling conventions: Services can invoke each other through normal in-kernel interfaces without the cost of IPC.
• Examples: Traditional Unix implementations, Linux, OpenVMS, XTS-400, and z/TPF are often described as monolithic or monolithic-like kernels.

Disadvantages of the monolithic kernel

• Reliability risk: A bug in a device driver or kernel service can crash the entire system because all run with kernel privileges.
• Extensibility and portability: Adding or modifying kernel services typically requires rebuilding or modifying the kernel; porting can be harder if kernel contains a lot of platform-specific code.

Common hybrid approaches

Many practical operating systems adopt hybrid designs that combine aspects of both models. For example, a system may keep many services in kernel space for performance, while using modularisation (loadable kernel modules) or moving some services to user space for reliability and flexibility. Modern Linux is commonly described as a monolithic kernel that supports loadable modules, allowing some extensibility without full kernel rebuilds.

Key differences between Monolithic Kernel and Microkernel

• Size of kernel: Microkernels keep the kernel minimal; monolithic kernels include many OS services in kernel space.
• Address spaces: Microkernel separates user services into user-space processes; monolithic kernels run most services in the kernel address space.
• Communication: Microkernels use message passing (IPC); monolithic kernels use direct procedure calls and shared data structures.
• Performance: Monolithic kernels generally have lower overhead for system calls and device access; microkernels may pay extra cost for IPC and context switches.
• Reliability and security: Microkernels provide stronger fault isolation and a smaller trusted base; monolithic kernels are more exposed to bugs in drivers and services.
• Extensibility: Microkernels allow adding services without changing kernel code; monolithic kernels often require kernel changes or specific module support.
• Portability: Microkernels are often easier to port because hardware-dependent code is small; monolithic kernels may require more adaptation.

Difference between User-level thread and Kernel-level thread

• User-level threads: Managed by a user-space threading library. Thread operations (create, synchronize, switch) are fast because they do not require kernel intervention. However, if one thread blocks on a system call, the entire process may be blocked unless the threading library and kernel cooperate.
• Kernel-level threads: Managed by the kernel. The kernel schedules threads and knows about them individually; blocking a thread does not block other threads of the same process. Thread operations are generally slower because they require kernel calls and context switches, but they support true concurrency on multiprocessor systems.

Summary

Choosing between microkernel and monolithic kernel designs is a trade-off among performance, reliability, security and extensibility. Microkernels favour minimalism, modularity and fault isolation at the cost of IPC overhead; monolithic kernels favour performance and simplicity of in-kernel calls while accepting greater risk from kernel-space bugs. Hybrid and modular approaches seek to balance these trade-offs in real systems.
