Limits, Continuity & Differentiability | Engineering Mathematics - Civil Engineering (CE) PDF Download

Limits, continuity, and differentiability are fundamental concepts in calculus that provide a structured way to analyze and model the behavior of functions.
Limits allow us to understand how a function behaves as its input approaches a specific value, laying the groundwork for calculus.
Continuity ensures a function behaves predictably without breaks or abrupt changes, which is crucial for real-world systems. Differentiability quantifies how a function changes, enabling the study of rates, such as speed or growth.
Together, these concepts form the backbone of mathematical analysis, providing tools for optimizing systems, solving engineering problems, and interpreting dynamic phenomena logically and systematically.

Limits

• For a function f(x), the limit of the function at a point x = a is the value the function achieves at a point that is very close to x = a.
• Mathematically, ,
• Let f(x) be a function defined on an open interval around a, except at a itself.
  Then, the limit of f(x) as x approaches a is L if for every ε > 0, there exists a δ > 0 such that
  0 < |x - a| < δ  ⇒ |f(x) - L| < ε
• This can be expressed as lim_{x → a} f(x) = L
•

• As is clear from the above figure, the limit can be approached from either sides of the number line i.e. the limit can be defined in terms of a number less that a or in terms of a number greater than a.

Two types of limits

1. Left Hand Limit
   If the limit is defined in terms of a number which is less than a then the limit is said to be the left hand limit. It is denoted as  which is equivalent to x = a - h where h > 0 and h → 0.
2. Right Hand Limit
   If the limit is defined in terms of a number which is greater than a then the limit is said to be the right hand limit. It is denoted as x → a⁺ which is equivalent to x = a + h where h > 0 and h → 0.

Clear all your Civil Engineering (CE) doubts with EduRev Join for Free

Join for Free

Existence of Limit

The limit of a function f(x) at x = a exists only when its left hand limit and right hand limit exist and are equal and have a finite value i.e.

Some Common Limits

L’Hospital Rule

• If the given limit  is of the form 0/0 or ∞/∞ i.e. both f(x) and g(x) are 0 or both f(x) and g(x) are ∞ then the limit can be solved by L’Hospital Rule.
  If the limit is of the form described above, then the L’Hospital Rule says that –

  where f'(x) and g'(x) obtained by differentiating f(x) and g(x).
  If after differentitating, the form still exists, then the rule can be applied continuously until the form is changed.

Example 1: Evaluate

Sol: The limit is of the form 0/0, Using L’Hospital Rule and differentiating numerator and denominator

Example 2: Evaluate

Sol: On multiplying and dividing by kx and re-writing the limit we get

Download the notes Limits, Continuity & Differentiability

Download as PDF

Download as PDF

Continuity

A function is said to be continuous over a range if it’s graph is a single unbroken curve.
Formally,
A real valued function f(x) is said to be continuous at a point in the domain if – f(x) exists and is equal to .
If a function f(x) is continuous at  then-

Functions that are not continuous are said to be discontinuous

Example: For what value of λ is the function defined by

continuous at x = 0?

Solution: For the function to be continuous the left hand limit, right hand limit and the value of the function at that point must be equal.

Value of function at x=0

Right hand limit-

=

= 1

RHL equals value of function at 0-

-2λ = 1

λ = -1 / 2

Differentiability

• The derivative of a real-valued function f(x) wrt x is the function f'(x) and is defined as
• A function is said to be differentiable if the derivative of the function exists at all points of its domain.
• For checking the differentiability of a function at point x = c, must exist.
• If a function is differentiable at a point, then it is also continuous at that point.

Note: If a function is continuous at a point does not imply that the function is also differentiable at that point. For example, f(x) = |x| is continuous at x = 0 but it is not differentiable at that point.

Take a Practice Test Test yourself on topics from Civil Engineering (CE) exam

Practice Now

Practice Now

Solved Numericals

Q1: Value of the limit(a) 1
(b) 2
(c) 1/2
(d) More than one of the above
Ans: (c)

Sol:

which is an indeterminate form.
So, by using L’Hospital’s Rule, on differentiating numerator and the denominator separately we get,

Q2: If  is continuous at x = 1, then the value of K is
(a) 0
(b) -1
(c) 1
(d) More than one of the above
Ans: (c)

Sol:
Since, the function is continuous at x = 1.

Hence, the correct answer is option 3)

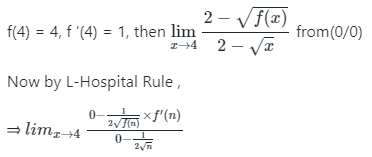

Q3: If f(4) = 4, f '(4) = 1, then

(a) -2
(b) 2
(c) 1
(d) More than one of the above
Ans:  (c)

Sol:
Given:
