Topological sorting for Directed Acyclic Graph (DAG) is a linear ordering of vertices such that for every directed edge u v, vertex u comes before v in the ordering. Topological Sorting for a graph is not possible if the graph is not a DAG.

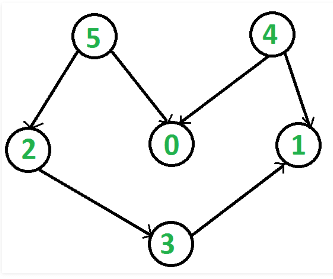

For example, a topological sorting of the following graph is “5 4 2 3 1 0”. There can be more than one topological sorting for a graph. For example, another topological sorting of the following graph is “4 5 2 3 1 0”. The first vertex in topological sorting is always a vertex with in-degree as 0 (a vertex with no incoming edges).
Topological Sorting | Programming and Data Structures - Computer Science Engineering (CSE)Topological Sorting vs Depth First Traversal (DFS):
In DFS, we print a vertex and then recursively call DFS for its adjacent vertices. In topological sorting, we need to print a vertex before its adjacent vertices. For example, in the given graph, the vertex ‘5’ should be printed before vertex ‘0’, but unlike DFS, the vertex ‘4’ should also be printed before vertex ‘0’. So Topological sorting is different from DFS. For example, a DFS of the shown graph is “5 2 3 1 0 4”, but it is not a topological sorting.

Algorithm to find Topological Sorting:
We recommend to first see the implementation of DFS. We can modify DFS to find Topological Sorting of a graph. In DFS, we start from a vertex, we first print it and then recursively call DFS for its adjacent vertices. In topological sorting, we use a temporary stack. We don’t print the vertex immediately, we first recursively call topological sorting for all its adjacent vertices, then push it to a stack. Finally, print contents of the stack. Note that a vertex is pushed to stack only when all of its adjacent vertices (and their adjacent vertices and so on) are already in the stack.

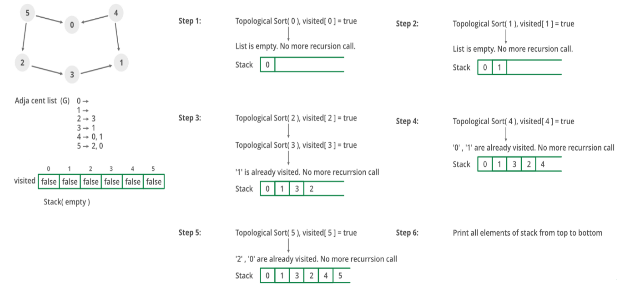

Below image is an illustration of the above approach:
Topological Sorting | Programming and Data Structures - Computer Science Engineering (CSE)

Following are the implementations of topological sorting. Please see the code for Depth First Traversal for a disconnected Graph and note the differences between the second code given there and the below code.

C++
// A C++ program to print topological
// sorting of a DAG
#include <iostream>
#include <list>
#include <stack>
using namespace std;
// Class to represent a graph
class Graph {
    // No. of vertices'
    int V;
    // Pointer to an array containing adjacency listsList
    list<int>* adj;
    // A function used by topologicalSort
    void topologicalSortUtil(int v, bool visited[],

                             stack<int>& Stack);
public:
    // Constructor
    Graph(int V);
    // function to add an edge to graph
    void addEdge(int v, int w);
    // prints a Topological Sort of
    // the complete graph
    void topologicalSort();
};
Graph::Graph(int V)
{
    this->V = V;
    adj = new list<int>[V];
}
void Graph::addEdge(int v, int w)
{
    // Add w to v’s list.
    adj[v].push_back(w);
}
// A recursive function used by topologicalSort
void Graph::topologicalSortUtil(int v, bool visited[],
                                stack<int>& Stack)
{
    // Mark the current node as visited.
    visited[v] = true;
    // Recur for all the vertices
    // adjacent to this vertex
    list<int>::iterator i;
    for (i = adj[v].begin(); i != adj[v].end(); ++i)
        if (!visited[*i])
            topologicalSortUtil(*i, visited, Stack);
    // Push current vertex to stack
    // which stores result
    Stack.push(v);
}
// The function to do Topological Sort.
// It uses recursive topologicalSortUtil()
void Graph::topologicalSort()
{
    stack<int> Stack;
    // Mark all the vertices as not visited
    bool* visited = new bool[V];
    for (int i = 0; i < V; i++)
        visited[i] = false;
    // Call the recursive helper function
    // to store Topological
    // Sort starting from all
    // vertices one by one
    for (int i = 0; i < V; i++)
        if (visited[i] == false)
            topologicalSortUtil(i, visited, Stack);
    // Print contents of stack
    while (Stack.empty() == false) {
        cout << Stack.top() << " ";
        Stack.pop();
    }
}
// Driver Code
int main()
{
    // Create a graph given in the above diagram
    Graph g(6);
    g.addEdge(5, 2);
    g.addEdge(5, 0);

    g.addEdge(4, 0);

    g.addEdge(4, 1);
    g.addEdge(2, 3);
    g.addEdge(3, 1);
    cout << "Following is a Topological Sort of the given "
            "graph \n";
    // Function Call
    g.topologicalSort();
    return 0;
}

Java
// A Java program to print topological
// sorting of a DAG
import java.io.*;
import java.util.*;
// This class represents a directed graph
// using adjacency list representation
class Graph {
    // No. of vertices
    private int V;

    // Adjacency List as ArrayList of ArrayList's

    private ArrayList<ArrayList<Integer> > adj;
    // Constructor
    Graph(int v)
    {
        V = v;
        adj = new ArrayList<ArrayList<Integer> >(v);
        for (int i = 0; i < v; ++i)
            adj.add(new ArrayList<Integer>());
    }
    // Function to add an edge into the graph
    void addEdge(int v, int w) { adj.get(v).add(w); }
    // A recursive function used by topologicalSort
    void topologicalSortUtil(int v, boolean visited[],
                             Stack<Integer> stack)
    {
        // Mark the current node as visited.
        visited[v] = true;
        Integer i;
        // Recur for all the vertices adjacent
        // to thisvertex
        Iterator<Integer> it = adj.get(v).iterator();
        while (it.hasNext()) {
            i = it.next();
            if (!visited[i])
                topologicalSortUtil(i, visited, stack);
        }
        // Push current vertex to stack
        // which stores result
        stack.push(new Integer(v));
    }
    // The function to do Topological Sort.
    // It uses recursive topologicalSortUtil()
    void topologicalSort()
    {
        Stack<Integer> stack = new Stack<Integer>();
        // Mark all the vertices as not visited
        boolean visited[] = new boolean[V];
        for (int i = 0; i < V; i++)
            visited[i] = false;
        // Call the recursive helper
        // function to store
        // Topological Sort starting
        // from all vertices one by one
        for (int i = 0; i < V; i++)
            if (visited[i] == false)
                topologicalSortUtil(i, visited, stack);
        // Print contents of stack
        while (stack.empty() == false)
            System.out.print(stack.pop() + " ");
    }
    // Driver code

    public static void main(String args[])
    {
        // Create a graph given in the above diagram
        Graph g = new Graph(6);
        g.addEdge(5, 2);
        g.addEdge(5, 0);
        g.addEdge(4, 0);
        g.addEdge(4, 1);
        g.addEdge(2, 3);
        g.addEdge(3, 1);
        System.out.println("Following is a Topological "
                           + "sort of the given graph");
        // Function Call
        g.topologicalSort();
    }
}
// This code is contributed by Aakash Hasija

Python
# Python program to print topological sorting of a DAG
from collections import defaultdict
# Class to represent a graph
class Graph:
    def __init__(self, vertices):
        self.graph = defaultdict(list)  # dictionary containing adjacency List
        self.V = vertices  # No. of vertices
    # function to add an edge to graph
    def addEdge(self, u, v):
        self.graph[u].append(v)
    # A recursive function used by topologicalSort
    def topologicalSortUtil(self, v, visited, stack):
        # Mark the current node as visited.
        visited[v] = True
        # Recur for all the vertices adjacent to this vertex
        for i in self.graph[v]:
            if visited[i] == False:
                self.topologicalSortUtil(i, visited, stack)
        # Push current vertex to stack which stores result
        stack.append(v)
    # The function to do Topological Sort. It uses recursive
    # topologicalSortUtil()
    def topologicalSort(self):
        # Mark all the vertices as not visited
        visited = [False]*self.V
        stack = []
        # Call the recursive helper function to store Topological
        # Sort starting from all vertices one by one
        for i in range(self.V):
            if visited[i] == False:
                self.topologicalSortUtil(i, visited, stack)
        # Print contents of the stack
        print(stack[::-1])  # return list in reverse order
# Driver Code
g = Graph(6)
g.addEdge(5, 2)
g.addEdge(5, 0)
g.addEdge(4, 0)
g.addEdge(4, 1)
g.addEdge(2, 3)
g.addEdge(3, 1)
print ("Following is a Topological Sort of the given graph")
# Function Call
g.topologicalSort()
# This code is contributed by Neelam Yadav

C#
// A C# program to print topological
// sorting of a DAG
using System;
using System.Collections.Generic;
// This class represents a directed graph
// using adjacency list representation
class Graph {
    // No. of vertices
    private int V;
    // Adjacency List as ArrayList
    // of ArrayList's
    private List<List<int> > adj;
    // Constructor
    Graph(int v)
    {
        V = v;
        adj = new List<List<int> >(v);
        for (int i = 0; i < v; i++)
            adj.Add(new List<int>());
    }
    // Function to add an edge into the graph
    public void AddEdge(int v, int w) { adj[v].Add(w); }
    // A recursive function used by topologicalSort
    void TopologicalSortUtil(int v, bool[] visited,
                             Stack<int> stack)
    {
        // Mark the current node as visited.
        visited[v] = true;
        // Recur for all the vertices
        // adjacent to this vertex
        foreach(var vertex in adj[v])
        {
            if (!visited[vertex])
                TopologicalSortUtil(vertex, visited, stack);
        }
        // Push current vertex to
        // stack which stores result
        stack.Push(v);
    }
    // The function to do Topological Sort.
    // It uses recursive topologicalSortUtil()
    void TopologicalSort()
    {
        Stack<int> stack = new Stack<int>();
        // Mark all the vertices as not visited
        var visited = new bool[V];
        // Call the recursive helper function
        // to store Topological Sort starting
        // from all vertices one by one
        for (int i = 0; i < V; i++) {
            if (visited[i] == false)
                TopologicalSortUtil(i, visited, stack);
        }
        // Print contents of stack
        foreach(var vertex in stack)
        {
            Console.Write(vertex + " ");
        }
    }
    // Driver code
    public static void Main(string[] args)
    {
        // Create a graph given
        // in the above diagram
        Graph g = new Graph(6);
        g.AddEdge(5, 2);
        g.AddEdge(5, 0);
        g.AddEdge(4, 0);
        g.AddEdge(4, 1);
        g.AddEdge(2, 3);
        g.AddEdge(3, 1);
        Console.WriteLine("Following is a Topological "
                          + "sort of the given graph");
        // Function Call
        g.TopologicalSort();
    }
}
// This code is contributed by Abhinav Galodha

Output
Following is a Topological Sort of the given graph
5 4 2 3 1 0

Complexity Analysis:

  • Time Complexity: O(V+E).
    The above algorithm is simply DFS with an extra stack. So time complexity is the same as DFS which is.
  • Auxiliary space: O(V).
    The extra space is needed for the stack.

Note: Here, we can also use vector instead of the stack. If the vector is used then print the elements in reverse order to get the topological sorting.

Applications:

Topological Sorting is mainly used for scheduling jobs from the given dependencies among jobs. In computer science, applications of this type arise in instruction scheduling, ordering of formula cell evaluation when recomputing formula values in spreadsheets, logic synthesis, determining the order of compilation tasks to perform in make files, data serialization, and resolving symbol dependencies in linkers .

The document Topological Sorting | Programming and Data Structures - Computer Science Engineering (CSE) is a part of the Computer Science Engineering (CSE) Course Programming and Data Structures.
All you need of Computer Science Engineering (CSE) at this link: Computer Science Engineering (CSE)
119 docs|30 tests

Top Courses for Computer Science Engineering (CSE)

FAQs on Topological Sorting - Programming and Data Structures - Computer Science Engineering (CSE)

1. What is topological sorting in computer science engineering?
Ans. Topological sorting is a technique used in computer science engineering to linearly order the elements of a directed graph. It ensures that for every directed edge from vertex A to vertex B, vertex A appears before vertex B in the ordering. This technique is useful in various applications such as task scheduling, dependency resolution, and determining the order of execution in a directed acyclic graph.
2. How is topological sorting performed in computer science engineering?
Ans. Topological sorting in computer science engineering is typically performed using depth-first search (DFS) or breadth-first search (BFS) algorithms. The process involves visiting each vertex in the graph and recursively exploring its adjacent vertices. During the exploration, the visited vertices are pushed onto a stack or added to a queue, depending on the chosen algorithm. The final ordering is obtained by popping elements from the stack or dequeuing them from the queue.
3. What is the time complexity of topological sorting in computer science engineering?
Ans. The time complexity of topological sorting in computer science engineering depends on the algorithm used. If depth-first search (DFS) is employed, the time complexity is O(V + E), where V represents the number of vertices and E represents the number of edges in the graph. If breadth-first search (BFS) is used, the time complexity is also O(V + E). In both cases, each vertex and edge are visited once, resulting in a linear time complexity.
4. Can topological sorting be applied to graphs with cycles in computer science engineering?
Ans. No, topological sorting cannot be applied to graphs with cycles in computer science engineering. Topological sorting is only applicable to directed acyclic graphs (DAGs). A cycle in a graph creates a contradiction in the ordering, as it is impossible to determine the precedence between vertices within the cycle. Therefore, it is necessary to ensure that the graph is acyclic before applying topological sorting.
5. What are some practical applications of topological sorting in computer science engineering?
Ans. Topological sorting finds applications in various areas of computer science engineering. Some practical examples include task scheduling, where the ordering of tasks based on dependencies is crucial; dependency resolution, where software libraries or modules need to be loaded in the correct order; and determining the order of execution in a directed acyclic graph, such as in a data flow or control flow analysis.
