Introduction

  • A type of controller in which the output of the controller varies in proportion with the error signal, integral of the error signal and derivative of the error signal is known as the proportional integral derivative controller. PID is the acronym used for this type of controller.
  • Proportional plus integral plus derivative controller is sometimes referred as a 3-mode controller, as it combines the controlling action of proportional, integral as well as derivative controller altogether.
  • The combination of all the three types of control action improves the overall performance of the control system, in order to provide the desired output in an effective manner. The output of a PID controller is given as:
    Proportional Integral Derivative (PID) Controller | Control Systems - Electrical Engineering (EE)

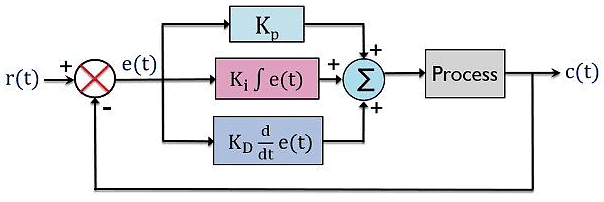

  • Here we have a block diagram of the PID controller:
    Proportional Integral Derivative (PID) Controller | Control Systems - Electrical Engineering (EE)

What are Proportional, Integral and Derivative Controllers?

  • Proportional controller: The controller whose output shows variation in proportion with the error signal is known as a proportional controller. It is given as:
    m(t) α e(t)
    m(t) = Kp e(t)
  • Integral Controller: In this case, the output of the controller varies with the integral of the error signal. Thus is given as:
    m(t) α ∫ e (t)
    m(t) = Ki ∫ e (t)
  • Derivative Controller: A derivative controller generates an output that varies proportionally with the derivative of the produced error signal. It is represented as:
    Proportional Integral Derivative (PID) Controller | Control Systems - Electrical Engineering (EE)

In this way, the early corrective response is produced for the system hence the stability of the overall system gets improved. However, it is noteworthy in the case of PD controllers that the steady-state error remains unaffected in its case. More simply we can say derivative controllers give rise to steady-state error. While integral controllers generate stability error. So, to eliminate the respective disadvantages of both types of controllers PID controllers are used. Hence a PID controller produces a system, that provides increased stability with a reduction in the steady-state error.

Proportional Plus Integral Plus Derivative Controller

  • The controlling action of PID controllers involving the control action of the proportional, integral and derivative controller is mathematically represented as:
    Proportional Integral Derivative (PID) Controller | Control Systems - Electrical Engineering (EE)
  • On removing the sign of proportionality, the constant of proportionality gets added. Thus, we can write it as:
    Proportional Integral Derivative (PID) Controller | Control Systems - Electrical Engineering (EE)
  • Here Kis proportionality constant for the error signal,
  • Kis the proportionality constant for integral of the error signal and
  • Kd is the proportionality constant for the derivative of the error signal.
  • Further to determine the transfer function of the controller, the time domain function must be converted to the frequency domain. Therefore, considering the Laplace transform of the above equation, we will get
    Proportional Integral Derivative (PID) Controller | Control Systems - Electrical Engineering (EE)

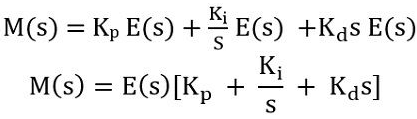

  • Further
    Proportional Integral Derivative (PID) Controller | Control Systems - Electrical Engineering (EE)
  • We know that the transfer function is represented as output by input. Thus the transfer of the controller will be given as,
    Proportional Integral Derivative (PID) Controller | Control Systems - Electrical Engineering (EE)
  • On further simplification
    Proportional Integral Derivative (PID) Controller | Control Systems - Electrical Engineering (EE)
  • Consider, Kp/K= Ti and Kd/Kp = Td and substitute in the equation given above, we will get,
    Proportional Integral Derivative (PID) Controller | Control Systems - Electrical Engineering (EE)
  • So, further
    Proportional Integral Derivative (PID) Controller | Control Systems - Electrical Engineering (EE)
  • Since, Kp/Ki = Ti therefore Kp/Ti = Ki
  • And Kd/Kp = Td, therefore, K= Kp Td
    Proportional Integral Derivative (PID) Controller | Control Systems - Electrical Engineering (EE)
  • This is given as the simplified transfer function of the PID controller.

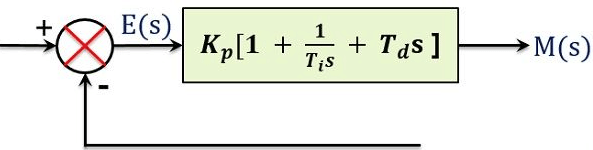

  • The PID controller in the form of block diagram with gain is represented below:
    Proportional Integral Derivative (PID) Controller | Control Systems - Electrical Engineering (EE)

Effects of PID Controller

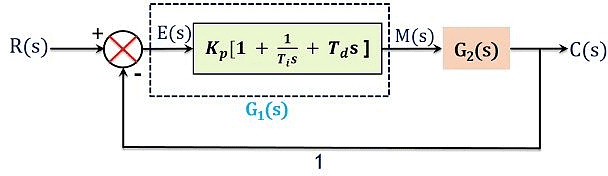

  • The block diagram of the control system with a PID controller:
    Proportional Integral Derivative (PID) Controller | Control Systems - Electrical Engineering (EE)
  • Suppose the gain of the PID controller is G1(s), given as:
    Proportional Integral Derivative (PID) Controller | Control Systems - Electrical Engineering (EE)
  • Let G2(s) be the open-loop gain of the system given as:
    Proportional Integral Derivative (PID) Controller | Control Systems - Electrical Engineering (EE)
  • The absence of zeroes in the open-loop gain shows low system stability. So, we will find the closed-loop gain of the system with a PID controller.
  • The overall gain of the system will be given as:
    G(s) = G1(s) G2(S)

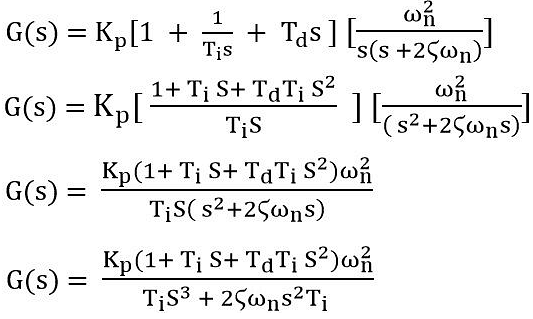

  • On substituting the values, we will
    Proportional Integral Derivative (PID) Controller | Control Systems - Electrical Engineering (EE)
  • The transfer function of the overall system is given as:
    Proportional Integral Derivative (PID) Controller | Control Systems - Electrical Engineering (EE)
  • For a system with unity negative feedback, H(s) = 1. Thus the transfer function will be given as:
    Proportional Integral Derivative (PID) Controller | Control Systems - Electrical Engineering (EE)

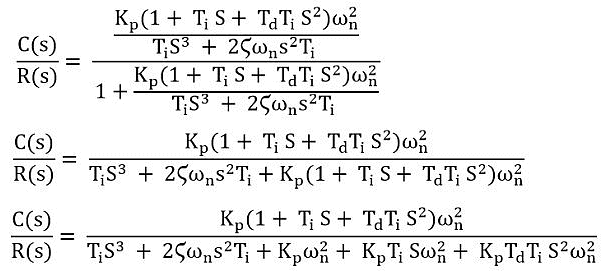

  • On substituting the overall gain of the system in the above equation, we will have,
    Proportional Integral Derivative (PID) Controller | Control Systems - Electrical Engineering (EE)
  • Taking Ti common from the denominator,
    Proportional Integral Derivative (PID) Controller | Control Systems - Electrical Engineering (EE)

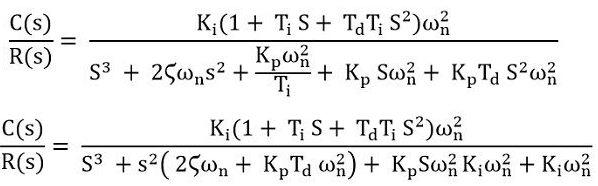

  • Since Kp/K= Ti thus Kp/Ti = Ki
    Proportional Integral Derivative (PID) Controller | Control Systems - Electrical Engineering (EE)
  • This is defined as the gain of the control system with a PID controller.
  • We know that the open-loop gain of controller is given as:
    Proportional Integral Derivative (PID) Controller | Control Systems - Electrical Engineering (EE)
  • As there is no ‘s’ term present in the numerator. Thus this represents the absence of zeroes.
  • But when the open-loop gain is compared with the gain of the overall control system with a PID controller, then we notice that 2 zeroes are present in the numerator of the gain of the control system.
  • It is clear that s3 term is present in the denominator also. This represents the presence of the pole at the origin.
  • Basically one zero of the numerator gets nullified by the one pole of the denominator. However, the presence of one zero at the numerator increases the stability of the overall system. While two poles at the origin reduces the steady-state error of the system.
  • Thus in this way on combining proportional, integral and derivative control action, the desired system response can be achieved.
