Example 1: Find the Sum of Two Numbers Entered

• Step 1: Read the integer A.
• Step 2: Read Integer B.
• Step 3: Perform the addition by using the formula C = A + B.
• Step 4: Print the Integer C.

Find the Sum of Two Numbers Entered

Example 2: Determining the Largest Number Among All the Entered Integers

• Step 1: Read the integer A.
• Step 2: Read Integer B.
• Step 3: If B is greater than A, then print B, else A.

Determining the Largest Number Among All the Entered Integers

Clear all your Software Development doubts with EduRev Join for Free

Join for Free

Example 3: Work Out All the Roots of a Quadratic Equation ax² +  bx + c = 0

• Step 1: Enter the variables a, b, c, d, x1, x2, rp, and ip.
• Step 2: Evaluate the discriminant by using the formula: D = b²- 4ac
• Step 3: Print rp and ip.

Work Out All the Roots of a Quadratic Equation ax² + bx + c = 0

Example 4: Find the Fibonacci series till term ≤ 1000

• Step 1: Declare the variables i, a, b, and show.
• Step 2: Enter the values for the variables, a=0, b=1, show=0
• Step 3: Enter the terms of the Fibonacci series to be printed, i.e., 1000.
• Step 4: Print the first two terms of the series.
• Step 5: Loop the following steps:
  • Show = a + b
  • a = b
  • b = show
  • Add 1 to the value of i each time.
  • Print Show

Find the Fibonacci series till term ≤ 1000

Example 5: Calculate the Sum of the First 50 Numbers

• Step 1: Declare number N = 0 and sum = 0
• Step 2: Determine N by N = N + 1
• Step 3: Calculate the sum by the formula: Sum = N + Sum.
• Step 4: Add a loop between steps 2 and 3 until N = 50.
• Step 5: Print Sum.

Calculate the Sum of the First 50 Numbers

Example 6: Find the largest price among 100 given values and reduce it by 10%

• Step 1: Read the 100 prices.
• Step 2: Compare the first price with the next and let the greater of the two be 'max' in the 'max index.
• Step 3: Loop it until the largest price has been found.
• Step 4: Reduce the 'max' value by 10% using the formula: prices [max index] = prices [max index] x 0.9.
• Step 5: Print.

Find the largest price among 100 given values and reduce it by 10%

Download the notes Flowchart: Assignment Solutions

Download as PDF

Download as PDF

Example 7: Arrange the numbers X, Y, Z in descending order

• Step 1: Input the value for variables X, Y, Z.
• Step 2: Read the integers X, Y, Z.
• Step 3: Check if x > y, x > z, y > z
• Step 4: Print the possible order.

Arrange the numbers X, Y, Z in descending order

Example 8: Determine and Output Whether Number N is Even or Odd

• Step 1: Read number N.
• Step 2: Set the remainder as N modulo 2.
• Step 3: If the remainder is equal to 0, then number N is even; else, number N is odd.
• Step 4: Print output.

Take a Practice Test Test yourself on topics from Software Development exam

Practice Now

Practice Now

Example 9: Calculate the Interest of a Bank Deposit

• Step 1: Read amount.
• Step 2: Read years.
• Step 3: Read rate.
• Step 4: Calculate the interest with the formula "Interest=Amount*Years*Rate/100.
• Step 5: Print interest.

Example 10: Determine Whether a Temperature is Below or Above the Freezing Point

• Step 1: Input temperature.
• Step 2: If it is less than 32, then print "below freezing point"; otherwise print "above freezing point".

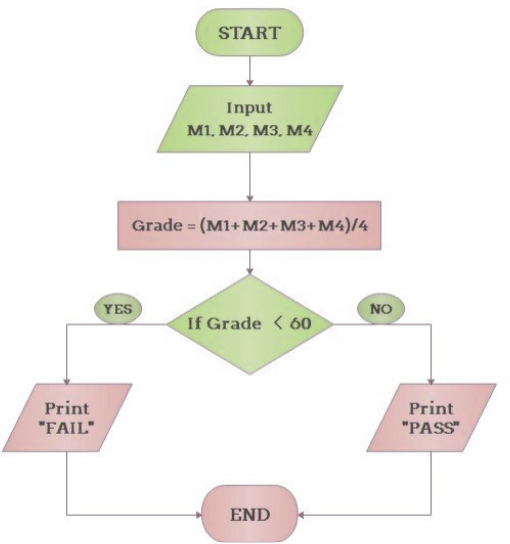

Example 11: Determine Whether A Student Passed the Exam or Not

• Step 1: Input grades of 4 courses: M1, M2, M3 and M4.
• Step 2: Calculate the average grade with the formula "Grade=(M1+M2+M3+M4)/4".
• Step 3: If the average grade is less than 60, print "FAIL"; else print "PASS".
