Class 5 Maths Chapter 9 Important Question Answers - Chapter 9 - Boxes And Sketches

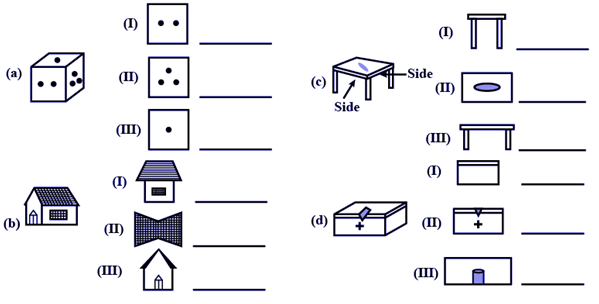

Q1: For each of the following solids, identify the front, side and top views and write it in the space provided.
Class 5 Maths Chapter 9 Important Question Answers - Chapter 9 - Boxes And Sketches
Ans: From observation we can see that in:
figure (a):
(i) is a front view,
(ii) is a side view, and
(iii) is a top view
figure (b):
(i) is a side view,
(ii) is a top view, and
(iii) is a front view
figure (c): both horizontal view are side view, so
(i) is a side view,
(ii) is a top view, and
(iii) is a side view
figure (d):
(i) is a side view,
(ii) is a front view, and
(iii) is a top view

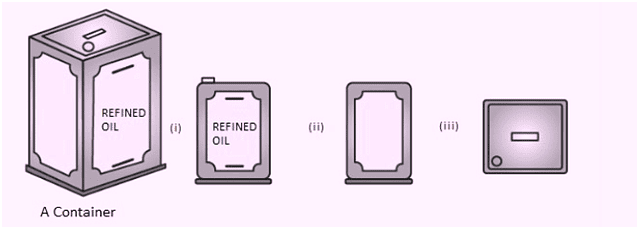

Q2: For each of the given solid, the three views are given. Identify for each solid the corresponding top, front and side views.
Class 5 Maths Chapter 9 Important Question Answers - Chapter 9 - Boxes And Sketches
Ans: The different views given in the figure are:
(i) Front
(ii) Side
(iii) Top

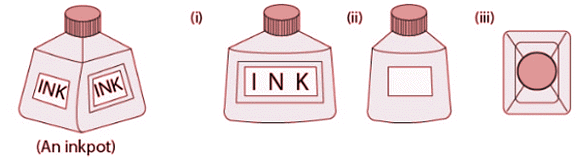

Q3: For each of the given solid, the three views are given. Identify for each solid the corresponding top, front and side views.
Class 5 Maths Chapter 9 Important Question Answers - Chapter 9 - Boxes And Sketches
Ans:
The different views given in the figure are:
(i) Side
(ii) Front
(iii) Top


Q4: In the figure, if only the shaded cubes are visible from the top, draw the base layer.
Ans: The base layer of the given figure is
Class 5 Maths Chapter 9 Important Question Answers - Chapter 9 - Boxes And Sketches

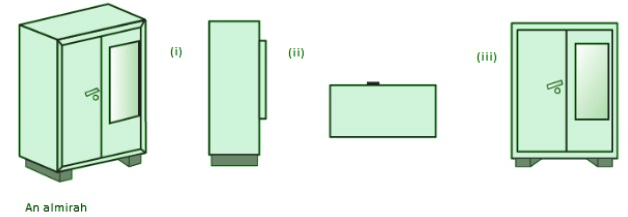

Q5: For each of the given solid, the three views are given. Identify for each solid the corresponding top, front and side views.
Class 5 Maths Chapter 9 Important Question Answers - Chapter 9 - Boxes And Sketches
Ans: The different views given in the figure are:
(i) Front
(ii) Top
(iii) Side

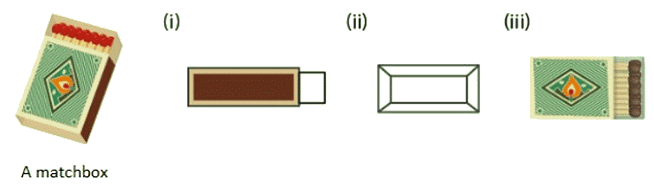

Q6: For each of the given solid, the three views are given. Identify for each solid the corresponding top, front and side views.
Class 5 Maths Chapter 9 Important Question Answers - Chapter 9 - Boxes And Sketches
Ans:
The different views given in the figure are:
(i) Side
(ii) Top
(iii) Front


Q7: For each of the given solid, the three views are given. Identify for each solid the corresponding top, front and side views.
Class 5 Maths Chapter 9 Important Question Answers - Chapter 9 - Boxes And Sketches
Ans: The different views given in the figure are:
(i) Front
(ii) Side
(iii) Top

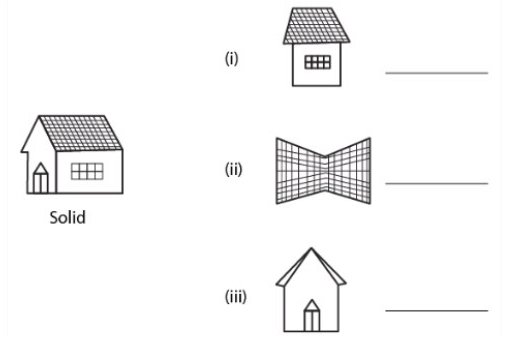

Q8: For the given solid, identify the front, side, and top views and write it in the space provided.
Class 5 Maths Chapter 9 Important Question Answers - Chapter 9 - Boxes And Sketches
Ans:
Class 5 Maths Chapter 9 Important Question Answers - Chapter 9 - Boxes And Sketches
