Introduction: Hermann-Mauguin notation, also known as the International Tables for Crystallography notation, is a standardized system used to describe the symmetry elements of crystals. It is essential for crystallographers to accurately represent the symmetry properties of crystals for various scientific and industrial applications. In this answer, we will discuss how to designate mirror planes, rotational axes of symmetry, and the center of symmetry using Hermann-Mauguin notation, and then provide an example for a crystal with specific symmetry elements.

Designating Symmetry Elements:

1. Rotational Axes of Symmetry: Rotational axes of symmetry are represented by their order (n) and orientation. In Hermann-Mauguin notation, the notation "n" represents a rotational axis. For example:

   • A 4-fold axis of symmetry is denoted as "4."
   • A 2-fold axis of symmetry is denoted as "2."

2. Mirror Planes: Mirror planes are represented by various symbols depending on their orientation and characteristics. Some common symbols include:

   • "m" for a horizontal mirror plane.
   • "n" for a vertical mirror plane.
   • "d" for a diagonal mirror plane.
   • "a" for an inclined mirror plane.
   • "g" for glide planes (combination of translation and reflection).

3. Center of Symmetry: A center of symmetry is indicated by the symbol "-1."

Example Crystal Symmetry:

Let's consider a crystal with the following symmetry elements:

• One 4-fold axis of symmetry (4).
• Four 2-fold axes of symmetry (2).
• Five mirror planes (m).
• Center of symmetry (-1).

Hermann-Mauguin Notation: The Hermann-Mauguin notation for this crystal would be: 4/mmm (-1)

• "4" represents the 4-fold rotational axis.
• "m" denotes the mirror planes.
• "-1" represents the center of symmetry.

Stereographic Projection Diagram:

To show the symmetry elements on a stereographic projection diagram, you would plot the crystal faces and indicate the symmetry elements using the appropriate symbols. For example:

• Place a point at the center to represent the center of symmetry (-1).
• Draw lines or arcs to represent the 4-fold axis of symmetry (4).
• Draw lines or symbols for the mirror planes (m).

Conclusion:

Hermann-Mauguin notation is a standardized way to describe the symmetry elements of crystals, including rotational axes of symmetry, mirror planes, and the center of symmetry. It allows crystallographers to convey important information about a crystal's symmetry properties in a concise and universally understood format. In our example, we used this notation to describe a crystal with specific symmetry elements, and we discussed how to represent these elements on a stereographic projection diagram. This notation is crucial for crystallography and plays a significant role in understanding the properties and behavior of crystals.

Examples:

1. Crystal Quartz: Quartz exhibits a 3-fold rotational axis and a horizontal mirror plane. Its Hermann-Mauguin notation is 32/m.
2. Sodium Chloride (Table Salt): Sodium chloride has cubic symmetry with a 4-fold axis and six mirror planes. Its notation is m-3m.

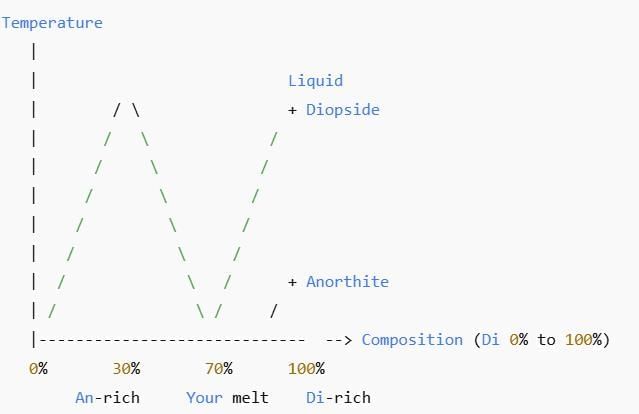

Introduction: Crystallization from a melt is a fundamental process in the formation of igneous rocks, where minerals solidify from a molten state. Understanding this process helps us comprehend the textures and compositions of rocks. In this answer, we will discuss the crystallization of a melt with a Diopside (CaMgSi2O6) and Anorthite (CaAl2Si2O8) composition under 1 atmospheric pressure, along with the resulting rock texture after complete crystallization.

Crystallization Process:

1. Melt Composition:

   • The melt composition is Diopside-70 and Anorthite-30, indicating the proportion of each mineral in the molten state.

2. Crystallization Sequence:

   • Diopside, being the dominant component, will likely crystallize first due to its higher proportion.
   • Anorthite, the minority component, will crystallize later.

3. Crystallization Phases:

   • Diopside Crystallization:

     • Diopside will nucleate and grow as crystals within the melt due to cooling.
     • These crystals will form a solid network within the melt.
     • The crystals will have a pyroxene-like structure, forming a substantial portion of the rock.

   • Anorthite Crystallization:

     • As cooling continues, Anorthite will start to crystallize alongside Diopside.
     • Anorthite crystals will interlock with Diopside crystals, forming a composite texture.

Resulting Rock Texture:

The resulting rock will have a porphyritic texture. Porphyritic rocks have larger crystals (phenocrysts) embedded in a fine-grained matrix (groundmass). In this case:

• The larger crystals (phenocrysts) will be Diopside, given its early crystallization.
• The fine-grained matrix (groundmass) will consist of a mixture of Diopside and Anorthite crystals.

Conclusion: Understanding the crystallization process from a melt composition of Diopside-70 and Anorthite-30 helps predict the resulting rock texture, which in this case is a porphyritic texture. The sequence of crystallization and the resulting texture are essential in interpreting the history and conditions of igneous rock formation.

Examples:

1. Andesite Porphyry: An andesitic porphyry is an igneous rock with a porphyritic texture, typically consisting of phenocrysts of plagioclase feldspar (anorthite) embedded in a finer-grained matrix.
2. Basalt Porphyry: Basalt porphyry is another example of a porphyritic rock, where larger phenocrysts of pyroxene or olivine are surrounded by a finer-grained groundmass of basaltic minerals.

Introduction: The concept of reaction series in igneous petrology was first proposed by N.L. Bowen, an American petrologist, in the early 20th century. Bowen observed the crystallization behavior of silicate minerals from a molten state as it cools. He divided this crystallization process into two main categories: the continuous reaction series and the discontinuous reaction series. These series help explain the mineralogical changes and evolution of igneous rocks as they solidify and cool.

Continuous Reaction Series:

1. Definition:

   • The continuous reaction series describes the crystallization of ferromagnesian (iron- and magnesium-rich) minerals that have a continuous range of solid solutions.
   • In this series, minerals continuously change composition along a continuum, forming a sequence.

2. Crystallization Process:

   • Minerals in the continuous series crystallize from high-temperature magma as it cools.
   • For example, olivine transforms into pyroxene, which further transforms into amphibole, and eventually into biotite and then muscovite, which marks the end of the continuous series.

3. Explanation:

   • This series is called "continuous" because minerals in it continuously change in composition as temperature decreases.
   • The solid solution series is driven by the change in temperature and pressure conditions during the cooling of the magma.

Discontinuous Reaction Series:

1. Definition:

   • The discontinuous reaction series describes the crystallization of non-ferromagnesian (iron- and magnesium-poor) minerals that have distinct, separate phases with well-defined compositions.
   • In this series, minerals crystallize in distinct steps or stages, each forming a separate mineral.

2. Crystallization Process:

   • Minerals in the discontinuous series crystallize from the magma in specific temperature ranges.
   • For example, plagioclase feldspar crystallizes at a certain temperature range, followed by orthoclase feldspar at a lower temperature range.

3. Explanation:

   • This series is called "discontinuous" because minerals in it crystallize in distinct steps or stages with no intermediate compositions.
   • The crystallization of minerals in this series is influenced by the change in temperature and the saturation level of specific elements in the magma.

Conclusion: Bowen's continuous and discontinuous reaction series provide critical insights into the crystallization process of minerals from a cooling magma. The continuous series involves a continuous change in mineral composition, primarily concerning ferromagnesian minerals. In contrast, the discontinuous series involves distinct stages of crystallization without intermediate compositions, primarily concerning non-ferromagnesian minerals. These series help us understand the mineralogical evolution of igneous rocks and provide fundamental principles in the field of petrology.

Examples:

1. Continuous Reaction Series: Olivine → Pyroxene → Amphibole → Biotite → Muscovite
2. Discontinuous Reaction Series: Plagioclase Feldspar → Orthoclase Feldspar → Quartz

Introduction: Metamorphism is a geological process that involves the alteration of rocks through changes in temperature, pressure, and chemical composition. During this process, rocks undergo various transformations, leading to the development of new minerals and textures. Two significant phases of metamorphism are prograde and retrograde metamorphism, each with distinct characteristics and mechanisms.

Prograde Metamorphism:

1. Definition:

   • Prograde metamorphism refers to the mineralogical and textural changes that occur as a rock is subjected to increasing temperature and pressure conditions.

2. Process:

   • Minerals in the rock undergo changes in composition and structure as they approach equilibrium with the prevailing conditions.
   • For example, under increasing temperature and pressure, metamorphic minerals like chlorite can transform into higher-grade minerals like biotite or garnet.

3. Example:

   • Chlorite to Biotite: During prograde metamorphism, chlorite, a low-grade metamorphic mineral, can transform into biotite, a higher-grade metamorphic mineral, with the increase in temperature and pressure.

Retrograde Metamorphism:

1. Definition:

   • Retrograde metamorphism refers to the alteration of minerals and textures in a rock as it is subjected to decreasing temperature and pressure conditions.

2. Process:

   • Minerals in the rock may change back to lower-grade minerals or different mineral assemblages when exposed to lower temperature and pressure.
   • This occurs after the peak metamorphic conditions have passed and during the exhumation of the rock.

3. Example:

   • Garnet to Chlorite: If a rock with garnet assemblages experiences a decrease in temperature and pressure, garnet can retrograde into chlorite or other lower-grade minerals.

Metasomatism:

1. Definition:

   • Metasomatism is a geological process involving the alteration of rocks through the introduction or removal of elements and compounds.

2. Process:

   • Metasomatism typically occurs through the interaction of rocks with hydrothermal fluids, magmatic fluids, or metamorphic fluids.
   • These fluids can introduce new elements and minerals or change the composition of existing minerals in the rock.

3. Examples:

   • Skarn Formation: Metasomatic alteration of limestone by intruding magma can result in the formation of a skarn, where calcium-rich pyroxenes and garnet are introduced into the limestone.
   • Hydrothermal Vein Deposits: Metasomatism by hydrothermal fluids can introduce metals like gold, silver, or copper into host rocks, forming valuable ore deposits.

Conclusion: Prograde and retrograde metamorphism represent the changes in rocks as they experience varying temperature and pressure conditions. Prograde metamorphism involves the transformation of minerals as conditions increase, while retrograde metamorphism occurs as conditions decrease. Metasomatism, on the other hand, involves alteration due to the introduction or removal of elements and compounds by fluids, contributing to changes in rock composition and forming various geological features. Understanding these processes is crucial for interpreting the history and evolution of rocks in the Earth's crust.

Give a brief account of Folk’s classification of limestones
Ans:

Introduction: Robert L. Folk, an influential sedimentary petrologist, developed a classification scheme for limestones based on their mineralogical and textural characteristics. This classification helps in understanding the depositional and diagenetic history of limestones, which is essential in interpreting geological processes. Folk's classification of limestones categorizes them into three major types based on their grain size, texture, and mineralogy.

Folk's Classification of Limestones:

1. Dunham's Classification:

   • Micrite: Fine-grained limestone consisting primarily of microcrystalline calcite mud (clay-sized particles).
   • Sparite: Coarse-grained limestone with crystalline calcite grains (sand- to gravel-sized particles) that are well-indurated and often forming a spar cement.
   • Packstone: Contains a mix of micrite and sparite grains, with a visible matrix of microcrystalline calcite mud.
   • Grainstone: Predominantly composed of sparite grains with little to no micrite.
   • Wackestone: Mix of micrite and a few sparite grains, often displaying a muddy texture.

2. Folk's Classification:

   • Calcilutite: Fine-grained limestone with a micritic texture, dominated by mud-sized calcite particles (micrite).
   • Calcarenite: Composed of sand-sized, coarse-grained calcite particles (calcisiltite and calcirudite), typically forming a grain-supported texture.
   • Calcirudite: Contains gravel-sized calcite grains (larger than sand-sized), forming a rudstone texture.
   • Micrite: Very fine-grained limestone primarily composed of calcite mud, similar to Dunham's micrite.

Examples:

1. Calcilutite:

   • Description: Fine-grained limestone dominated by micritic texture (micrite).
   • Example: Chalk, which is primarily composed of micritic calcite mud.

2. Calcarenite:

   • Description: Coarse-grained limestone with a grain-supported texture, composed of sand-sized calcite grains.
   • Example: Coquina, a type of calcarenite made up of loosely cemented shell fragments.

3. Calcirudite:

   • Description: Limestone with a rudstone texture, containing gravel-sized calcite grains.
   • Example: Coarse-grained limestone with abundant fossil fragments, often found in reef environments.

Conclusion: Folk's classification of limestones provides a comprehensive framework for understanding the mineralogical and textural variations in carbonate rocks. It enhances our ability to interpret the depositional and diagenetic processes that shaped these rocks, aiding in the study of sedimentary environments and geological history. The classification also assists in identifying specific types of limestones and their potential uses in various industries.

Give the classification scheme of silicate minerals on the basis of atomic structure, Si : O ratio and number of shared oxygen. Give suitable examples of each class.
Ans:

Introduction: Silicate minerals are the most abundant and diverse group of minerals in the Earth's crust, constituting nearly 90% of the Earth's crust by weight. Silicate minerals are characterized by their fundamental building blocks of silicon-oxygen tetrahedra. The classification of silicate minerals is based on their atomic structure, silicon to oxygen (Si:O) ratio, and the number of shared oxygen atoms. This classification provides insights into their chemical composition and crystal structure.

Classification Scheme of Silicate Minerals:

1. Based on Atomic Structure:

   • Isolated Tetrahedra:

     • Single, isolated SiO4 tetrahedra with no linkage to other tetrahedra.
     • Example: Olivine [(Mg, Fe)2SiO4].

   • Single Chain Silicates:

     • Tetrahedra share two oxygen atoms to form a single chain.
     • Example: Pyroxenes [(Ca, Na, Fe, Mg)(Mg, Fe, Al)(Si, Al)2O6].

   • Double Chain Silicates:

     • Tetrahedra share three oxygen atoms to form a double chain.
     • Example: Amphiboles [(Ca, Na)2-3(Mg, Fe, Al)5(Al, Si)8O22(OH)2].

   • Sheet Silicates:

     • Tetrahedra share three oxygen atoms to form sheets.
     • Example: Micas [KAl2(AlSi3O10)(F, OH)2].

   • Framework Silicates:

     • Tetrahedra share all four oxygen atoms to form a three-dimensional network.
     • Example: Feldspars [(Na, K, Ca)(Al, Si)4O8].

2. Based on Si:O Ratio:

   • Orthosilicates:
     • Si:O ratio of 1:4.
     • Example: Olivine [(Mg, Fe)2SiO4].
   • Sorosilicates:
     • Si:O ratio of 2:7 or 1:3.5.
     • Example: Epidote [(Ca2)(Al, Fe)3(Si2O7)(SiO4)O(OH)].
   • Cyclosilicates:
     • Si:O ratio of 1:3.
     • Example: Beryl [Be3Al2(Si6O18)].
   • Inosilicates:
     • Si:O ratio varies from 1:3 to 1:2.
     • Example: Pyroxenes [(Ca, Na, Fe, Mg)(Mg, Fe, Al)(Si, Al)2O6].
   • Phyllosilicates:
     • Si:O ratio of 2:5.
     • Example: Biotite K(Mg, Fe)3(Al, Fe)Si3O10(F, OH)2.
   • Tectosilicates:
     • Si:O ratio of 1:2.
     • Example: Quartz (SiO2).

3. Based on Number of Shared Oxygen:

   • Nesosilicates:
     • Tetrahedra are isolated and not linked to each other.
     • Example: Olivine [(Mg, Fe)2SiO4].
   • Sorosilicates:
     • Two tetrahedra share one oxygen atom.
     • Example: Epidote [(Ca2)(Al, Fe)3(Si2O7)(SiO4)O(OH)].
   • Cyclosilicates:
     • Tetrahedra form rings, and each tetrahedron shares two oxygen atoms.
     • Example: Beryl [Be3Al2(Si6O18)].
   • Inosilicates:
     • Tetrahedra share one or two oxygen atoms.
     • Example: Pyroxenes [(Ca, Na, Fe, Mg)(Mg, Fe, Al)(Si, Al)2O6].
   • Phyllosilicates:
     • Tetrahedra share three oxygen atoms.
     • Example: Biotite K(Mg, Fe)3(Al, Fe)Si3O10(F, OH)2.
   • Tectosilicates:
     • Tetrahedra share four oxygen atoms.
     • Example: Quartz (SiO2).

Conclusion: Silicate minerals are a diverse group of minerals that make up a significant portion of the Earth's crust. The classification of silicate minerals based on their atomic structure, Si:O ratio, and the number of shared oxygen atoms provides valuable information about their chemical composition and crystal structure. This classification system aids geologists and mineralogists in understanding the properties, formation, and distribution of silicate minerals in the Earth's crust. Examples provided for each class illustrate the diversity and complexity of silicate minerals.

Define ‘birefringence’ and ‘extinction angle’ in minerals. How does one proceed to measure extinction angle of a mineral under microscope? Substantiate your answer with suitable sketches.
Ans:

Introduction: Birefringence and extinction angle are essential terms in the field of mineralogy, particularly when studying minerals under a petrographic microscope. Birefringence refers to the optical property of minerals where they exhibit double refraction, resulting in two distinct refractive indices. The extinction angle, on the other hand, is a crucial angle that defines the orientation of the crystal with respect to the microscope's crosshairs.

Birefringence:

1. Definition:

   • Birefringence is the property of a mineral to split incident light into two refracted rays with different refractive indices, resulting in a double refraction effect.

2. Explanation:

   • When polarized light passes through a birefringent mineral, it experiences two refracted rays, each traveling at a different velocity and direction, due to the mineral's anisotropic nature.
   • The difference in refractive indices of the two rays is the birefringence.

3. Importance:

   • Birefringence is crucial in identifying and characterizing minerals, as different minerals exhibit varying levels of birefringence based on their crystal structures and compositions.

Extinction Angle:

1. Definition:

   • The extinction angle is the angle between the long crystal axis of a mineral (c-axis) and the vibration direction of the polarizer on a microscope when the mineral appears dark or extinct.

2. Explanation:

   • Minerals show bright or colorful interference colors when the crystal axis is not parallel to the polarizer, and they appear dark or go extinct when the crystal axis aligns with the polarizer.
   • The extinction angle is used to determine the orientation of the mineral's crystal axis and its relationship with the microscope's crosshairs.

Measuring Extinction Angle:

1. Procedure:

   • Place the mineral thin section on the microscope stage and align it with the microscope's crosshairs using the rotation stage.
   • Rotate the stage until the mineral goes extinct (appears dark) under crossed polarizers.
   • Note the position of the stage, which corresponds to the extinction angle.

2. Extinction Angle Measurement:

   • The extinction angle is measured relative to a reference line on the microscope stage, usually marked in degrees.
   • The reference line represents the orientation of the vibration direction of the polarizer.
   • The angle is typically measured in degrees clockwise from the reference line.

Conclusion: Birefringence and extinction angle are fundamental concepts in mineralogy, aiding in the identification and characterization of minerals under a microscope. Birefringence is the property of minerals to exhibit double refraction, while the extinction angle is the angle between the mineral's long crystal axis and the polarizer's vibration direction when the mineral appears dark. Measuring the extinction angle is a critical technique for understanding the crystallographic orientation of minerals, providing valuable information for petrographic analysis and mineral identification.

Define ‘twin plane’, ‘twin axis’ and ‘composition plane’ in crystals. State different types of twinning observed in feldspars.
Ans:

Introduction: Twinning is a common phenomenon in crystals where two or more parts of a crystal share a common boundary or plane. It occurs due to irregularities during crystal growth or deformation. Understanding twin planes, twin axes, composition planes, and various types of twinning is crucial in mineralogy and crystallography.

Definitions:

1. Twin Plane:

   • A twin plane is a specific crystallographic plane where the twinning occurs, resulting in a mirrored or repeated pattern on either side of the plane.
   • It is the plane along which the twin parts of the crystal are related.

2. Twin Axis:

   • A twin axis is an imaginary line or axis around which the twinning occurs, causing a repeated pattern or mirror image of the crystal structure.
   • The twin parts of the crystal are symmetrical around the twin axis.

3. Composition Plane:

   • A composition plane is a theoretical plane that represents the boundary between the twin parts of a crystal.
   • It may or may not correspond to an actual crystallographic plane.

Types of Twinning in Feldspars:

1. Carlsbad Twinning:

   • One of the most common twinning types in feldspars.
   • It involves a twin plane parallel to the albite twin law.
   • One part of the crystal is rotated 180 degrees around the twin axis relative to the other part.
   • Example: Albite and Anorthite feldspar twins.

2. Pericline Twinning:

   • Another prevalent type in feldspars, especially in orthoclase and plagioclase feldspars.
   • It involves a twin plane parallel to the pericline twin law.
   • One part of the crystal is rotated around the twin axis, resulting in a repeated pattern on either side of the twin plane.
   • Example: Orthoclase and Plagioclase feldspar twins.

3. Manebach Twinning:

   • Involves multiple twin planes and twin axes.
   • It is a complex form of twinning observed in feldspars.
   • Example: Complex twinning in feldspars.

4. Albite Twinning:

   • A specific type of twinning related to albite feldspar.
   • Involves a twin plane and twin axis parallel to specific crystallographic directions in the albite structure.
   • Example: Albite feldspar twins.

5. Baveno Twinning:

   • Involves twinning with two twin planes and twin axes.
   • A combination of Carlsbad and Manebach twinning.
   • Example: Complex twinning in feldspars.

Conclusion: Understanding twinning, twin planes, twin axes, and composition planes is fundamental in the study of crystals and minerals. In feldspars, various types of twinning, such as Carlsbad, Pericline, Manebach, Albite, and Baveno, demonstrate the diverse twinning patterns observed in this important group of minerals. Twinning plays a significant role in mineral identification and understanding crystallographic behaviors.

Discuss briefly the processes of magma generation in the Earth’s interior. How is grain size of an igneous rock related to the rate of cooling of magma? Discuss the role of fractional crystallization and assimilation in magmatic differentiation.
Ans:

Introduction: Magma generation is a complex process within the Earth's interior, leading to the formation of igneous rocks. Understanding the processes involved in magma generation and the subsequent formation of igneous rocks is vital in comprehending the Earth's geological processes.

Processes of Magma Generation:

1. Melting of Source Rocks:

   • High temperatures in the Earth's mantle or crust cause certain rocks to melt.
   • Rocks may undergo partial melting, resulting in the formation of magma.

2. Decompression Melting:

   • Occurs at divergent plate boundaries, such as mid-ocean ridges.
   • As tectonic plates move apart, pressure decreases, leading to mantle rock melting and the formation of magma.

3. Flux Melting:

   • Occurs at convergent plate boundaries, where subduction zones introduce water and other volatiles into the mantle.
   • Volatiles lower the melting point of mantle rocks, promoting the formation of magma.

4. Heat-Induced Melting:

   • Occurs in the mantle or lower crust due to the transfer of heat from nearby magma bodies or mantle plumes.
   • The increase in temperature causes rocks to melt and form magma.

Grain Size and Cooling Rate:

• Fast Cooling (Fine-Grained):

  • Rapid cooling of magma at or near the Earth's surface leads to the formation of fine-grained igneous rocks.
  • Fine-grained rocks have small crystal sizes due to the limited time available for crystal growth.
  • Example: Basalt, an extrusive fine-grained igneous rock.

• Slow Cooling (Coarse-Grained):

  • Slow cooling of magma beneath the Earth's surface results in the formation of coarse-grained igneous rocks.
  • Coarse-grained rocks have large crystal sizes due to ample time for crystal growth.
  • Example: Granite, an intrusive coarse-grained igneous rock.

Role of Fractional Crystallization and Assimilation:

1. Fractional Crystallization:

   • Involves the selective crystallization of specific minerals from a cooling magma.
   • Minerals with higher melting points crystallize first, leaving behind a residual melt that is enriched in other minerals.
   • Example: Fractional crystallization of olivine, pyroxene, and plagioclase from basaltic magma, leading to the formation of more evolved magmas.

2. Assimilation:

   • Involves the incorporation of foreign material (e.g., wall rocks) into a magma as it rises and cools.
   • The assimilated material mixes with the magma and influences its composition.
   • Example: Magma assimilating nearby crustal rocks, altering its composition and creating a more diverse igneous rock suite.

Conclusion: Magma generation involves various processes, including melting of source rocks, decompression melting, flux melting, and heat-induced melting. The grain size of an igneous rock is directly related to the rate of cooling, where faster cooling results in fine-grained rocks and slower cooling leads to coarse-grained rocks. Fractional crystallization and assimilation are essential processes in magmatic differentiation, influencing the composition and characteristics of the resulting igneous rocks. Understanding these processes is fundamental in the study of Earth's interior and the formation of igneous rocks.

Describe with suitable sketches four different types of structures/textures found in metamorphic rocks and add brief notes on their origin.
Ans:

Introduction: Metamorphic rocks are formed through the transformation of existing rocks (protoliths) due to high temperature, pressure, or chemical changes. These transformations result in various structures and textures within metamorphic rocks, providing insights into their geological history and conditions of formation.

Types of Structures/Textures in Metamorphic Rocks:

1. Foliation:

   • Origin:
     • Foliation refers to the parallel arrangement of platy or elongated minerals, giving the rock a layered or banded appearance.
     • It is primarily a result of directed pressure or stress during metamorphism.
   • Notes:
     • Common in regional metamorphic rocks subjected to intense pressure and shearing forces.
     • Examples: Slate, Schist, Gneiss.

2. Schistosity:

   • Origin:
     • Schistosity is a type of foliation characterized by the parallel alignment of platy minerals like micas, giving the rock a shiny, reflective appearance.
     • It forms under intermediate pressure and temperature conditions.
   • Notes:
     • Typically found in rocks undergoing regional metamorphism with moderate pressure and temperature.
     • Examples: Mica Schist, Garnet Schist.

3. Gneissic Banding:

   • Origin:
     • Gneissic banding involves alternating layers or bands of light and dark minerals, usually coarse-grained.
     • It results from intense metamorphism and partial melting, with minerals segregating into light and dark layers.
   • Notes:
     • Occurs in rocks subjected to high-grade metamorphism and partial melting.
     • Examples: Gneiss, Biotite Gneiss.

4. Non-Foliated Texture:

   • Origin:
     • Non-foliated textures lack any preferred orientation of minerals and do not exhibit a layered or banded appearance.
     • They typically form under contact metamorphism or in rocks subjected to high temperature but low pressure.
   • Notes:
     • Common in rocks near igneous intrusions or in regional metamorphic settings with equidimensional crystals.
     • Examples: Marble, Quartzite.

Conclusion: Metamorphic rocks exhibit diverse structures and textures, providing valuable information about their geological history and the conditions they have undergone. Foliation, schistosity, gneissic banding, and non-foliated textures are key structures or textures observed in metamorphic rocks, each originating from specific metamorphic conditions and processes. Understanding these structures and textures is essential for interpreting the metamorphic history of rocks and unraveling the geological processes that have shaped them.

Define ‘migmatite’. How does the process of migmatization help to understand the origin of granites?
Ans:

Introduction: Migmatite is a unique type of rock that contains both igneous and metamorphic characteristics. It forms through a process called migmatization, which involves partial melting of pre-existing rocks (protoliths) followed by the recrystallization of those melts into igneous rocks. Understanding migmatites and the process of migmatization sheds light on the origins of granites, one of the most common types of intrusive igneous rocks.

Definition of Migmatite:

• Migmatite is a rock that displays both igneous and metamorphic features, typically characterized by a mixture of light-colored igneous minerals (such as feldspar and quartz) and dark-colored metamorphic minerals (such as biotite and hornblende).

Process of Migmatization and its relation to Granite Formation:

1. Partial Melting:

   • During metamorphism, rocks can be subjected to high temperatures and pressures, leading to partial melting.
   • The higher temperature causes some minerals within the rock to melt while others remain solid.

2. Formation of Melt Pockets:

   • The melted portion forms pockets or veins within the original rock, composed of a mixture of light-colored molten material and solid, dark-colored minerals.

3. Crystallization of Melt:

   • The molten material begins to crystallize, forming light-colored igneous minerals such as feldspar and quartz.
   • The dark-colored minerals in the pockets may also recrystallize, but often retain their metamorphic characteristics.

4. Development of Migmatite:

   • The resulting rock, now partially composed of igneous and partially of metamorphic minerals, is known as migmatite.
   • Migmatites often display features like leucosomes (light-colored bands rich in igneous minerals) and melanosomes (dark-colored bands rich in metamorphic minerals).

5. Relation to Granite Formation:

   • The light-colored, felsic igneous minerals in migmatites closely resemble the composition of granites.
   • Through further crystallization and cooling, migmatites can potentially evolve into granite.

How Migmatization Helps Understand the Origin of Granites:

• By studying migmatites and the process of migmatization, geologists can infer that granites may have formed from the partial melting and subsequent crystallization of pre-existing rocks.
• The presence of light-colored igneous minerals resembling those found in granites within migmatites supports this theory.
• Understanding the conditions under which migmatization occurs provides insights into the formation of granites and the geological processes that have shaped them over time.

Conclusion: Migmatites and the process of migmatization offer a valuable understanding of the formation of granites, shedding light on the complex interplay of metamorphic and igneous processes. Studying these rocks and their formation processes is fundamental in deciphering the geological history and evolution of the Earth's crust.

What is provenance? How can we use clastic quartz, feldspars and lithic grains in provenance interpretation of sandstones?
Ans:

Introduction: Provenance refers to the source or origin of sediments that compose a sedimentary rock, providing valuable insights into the geological history and tectonic setting of a region. It involves understanding the processes that transported and deposited sediments and determining the nature of the source area. The interpretation of provenance is crucial in reconstructing past geological events and understanding the Earth's dynamic processes.

Using Clastic Grains in Provenance Interpretation:

1. Quartz Grains:

   • Quartz is a highly stable mineral and commonly found in various source rocks, making it a significant tool in provenance studies.
   • Provenance Interpretation:
     • Quartz grains can indicate the type of source rock (igneous, metamorphic, or sedimentary) based on their roundness, sphericity, and surface features.
     • Different types of quartz (e.g., monocrystalline, polycrystalline) can suggest specific source areas.

2. Feldspar Grains:

   • Feldspars are another important clastic mineral group used in provenance studies.
   • Provenance Interpretation:
     • Identifying the type of feldspar (e.g., potassium, sodium, plagioclase) helps in determining the source rock's composition and origin.
     • Weathering features on feldspar grains can indicate the degree of transport and weathering, providing information about the source region's climate.

3. Lithic Grains:

   • Lithic grains are fragments of rock derived from the erosion and breakdown of pre-existing rocks.
   • Provenance Interpretation:
     • Lithic grains can provide insights into the nature of the source area (e.g., igneous, metamorphic, sedimentary rocks) based on their mineralogy and texture.
     • Petrographic analysis of lithic grains helps identify the rock types and infer the tectonic setting of the source region.

Examples of Provenance Interpretation:

1. Example 1:

   • Abundant rounded and well-sorted quartz grains in a sandstone suggest a proximal source with good transportation and sorting mechanisms, potentially a high-energy environment like a river system.

2. Example 2:

   • Presence of angular feldspar grains with little weathering features indicates a nearby source area, possibly a granitic or igneous terrain.

3. Example 3:

   • Diverse lithic grains with various mineralogical compositions suggest a mixed source area with multiple types of rocks, indicating a complex geological setting.

Conclusion: Provenance interpretation utilizing clastic quartz, feldspars, and lithic grains is a crucial aspect of sedimentary geology. These clastic grains provide valuable clues about the source area's geological and tectonic characteristics, aiding in the reconstruction of Earth's past processes. Understanding provenance is essential for regional geological studies, basin analysis, and reconstructing ancient geological events and environments.

Define a ‘sedimentary facies model’. Illustrate with neat sketches the sedimentary facies and association facies likely to develop in a meandering fluvial depositional environment.
Ans:

Introduction: A sedimentary facies model is a conceptual representation of the spatial and temporal variations in sedimentary deposits within a specific depositional environment. It aids in understanding the characteristics and distribution of sedimentary rocks formed in different geological settings. Sedimentary facies models are crucial for interpreting ancient environments and reconstructing Earth's geological history.

Definition of Sedimentary Facies Model:

• A sedimentary facies model is a conceptual framework that describes the spatial and temporal variations in sedimentary deposits within a specific geological setting or depositional environment. It includes various sedimentary facies and their associations to represent the characteristics of rock units in that environment.

Sedimentary Facies in a Meandering Fluvial Depositional Environment:

1. Point Bar Facies:

   • Characteristics:
     • Fine to coarse-grained sand, silt, and clay.
     • Horizontal bedding, cross-bedding, and ripple marks.
     • Commonly found on the inner side of the meander loop.
   • Formation:
     • Sediments deposited during low energy flow on the inner bank of the meander.

2. Channel Fill Facies:

   • Characteristics:
     • Coarse-grained sediments, including gravel, sand, and pebbles.
     • Horizontal bedding, cross-bedding, and imbrication of clasts.
     • Found at the base and within the channel.
   • Formation:
     • High energy flow in the main channel deposits coarse sediments.

3. Levee Facies:

   • Characteristics:
     • Coarse-grained sediments like sand and gravel.
     • Steeply inclined cross-bedding.
     • Located on the outer edge of the meander loop.
   • Formation:
     • Deposition of sediments by high energy flows and accumulation on the outer bank of the meander.

4. Floodplain Facies:

   • Characteristics:
     • Fine-grained sediments, including silt and clay.
     • Laminations, mudcracks, and occasional ripple marks.
     • Extends laterally from the meander belt.
   • Formation:
     • Sediments deposited during low energy conditions during flood events, forming the floodplain.

Association Facies:

• In a meandering fluvial depositional environment, the facies mentioned above are often found together as a part of the overall association facies.
• This association of facies provides a comprehensive picture of the sedimentary deposits within the meandering fluvial system.

Conclusion: Sedimentary facies models and their associated facies provide a valuable framework for understanding the depositional processes and characteristics of sedimentary rocks. In a meandering fluvial depositional environment, the facies model helps in reconstructing the spatial and temporal variations of sedimentary deposits, aiding geologists in interpreting ancient environments and reconstructing Earth's geological history.

Describe the genesis of any four sedimentary structures which have significance for palaeocurrent analysis.
Ans:

Introduction: Sedimentary structures are essential features found within sedimentary rocks, providing valuable information about the depositional environment, processes, and paleocurrent directions. Paleocurrent analysis involves the study and interpretation of ancient flow directions using these structures. In this context, we will discuss the genesis of four significant sedimentary structures for paleocurrent analysis.

Genesis of Sedimentary Structures for Paleocurrent Analysis:

1. Cross-Bedding:

   • Genesis:
     • Formed by the migration of bedforms (e.g., dunes) in response to a unidirectional current.
     • Asymmetric ripples or dunes accumulate inclined layers of sediment in the direction of the current.
   • Significance for Paleocurrent Analysis:
     • The dip direction and angle of cross-bedding provide valuable information about the paleocurrent direction.

2. Mudcracks:

   • Genesis:
     • Occur due to desiccation and shrinkage of mud-rich sediments in intertidal or subaerial settings.
     • Wet mud undergoes cracking as it dries, forming polygonal patterns.
   • Significance for Paleocurrent Analysis:
     • The orientation of mudcracks can indicate the direction of water retreat or wind movement, aiding in paleocurrent determination.

3. Ripple Marks:

   • Genesis:
     • Formed by the interaction of water or wind with loose sediment, resulting in small-scale bedforms.
     • Asymmetric ripples are indicative of unidirectional current flow, while symmetric ripples suggest oscillatory or bi-directional flow.
   • Significance for Paleocurrent Analysis:
     • The long axis of asymmetric ripples indicates the paleocurrent direction.

4. Graded Bedding:

   • Genesis:
     • Results from the sorting and settling of sediments according to their size and weight.
     • Initially, coarser particles settle faster and are at the bottom, followed by finer particles settling on top.
   • Significance for Paleocurrent Analysis:
     • The direction of fining within a graded bed indicates the direction of flow during sedimentation.

Examples:

1. Example of Cross-Bedding:

   • In the Navajo Sandstone in the USA, extensive cross-bedding formations can be observed, indicating ancient dune environments and helping deduce the paleocurrent directions.

2. Example of Mudcracks:

   • Mudcracks in the Coconino Sandstone in the Grand Canyon, USA, provide evidence of an ancient arid environment and assist in determining the paleocurrent directions.

3. Example of Ripple Marks:

   • Ripple marks in the Eocene Green River Formation in Wyoming, USA, exhibit asymmetric features, indicating unidirectional flow during deposition.

4. Example of Graded Bedding:

   • The turbidites of the Flysch formations in the Alps display well-preserved graded bedding, reflecting rapid sedimentation from turbidity currents and helping infer paleocurrent directions.

Conclusion: Understanding the genesis and significance of sedimentary structures such as cross-bedding, mudcracks, ripple marks, and graded bedding is fundamental for paleocurrent analysis. These structures provide essential information about the direction and conditions of ancient currents, aiding in the interpretation of paleoenvironments and reconstructing past geological processes.
