Introduction

• One way to report the heat absorbed or released by chemical reactions would be to compile a massive set of reference tables that list the enthalpy changes for all possible chemical reactions, which would require an incredible amount of effort. Fortunately, Hess’s law allows us to calculate the enthalpy change for virtually any conceivable chemical reaction using a relatively small set of tabulated data, starting from the elemental forms of each atom at 25^oC and 1 atm pressure.
• Enthalpy of formation (ΔH_f) is the enthalpy change for the formation of 1 mol of a compound from its component elements, such as the formation of carbon dioxide from carbon and oxygen. The formation of any chemical can be as a reaction from the corresponding elements:
  elements → compound
  which in terms of the Enthalpy of formation becomes
  ΔH_rxn = ΔH_f (5.7.1)
  For example, consider the combustion of carbon:
  C(s) + O₂(g) ⟶ CO₂ (g)
  then
  ΔH_rxn = ΔH_f[CO₂ (g)]
  The sign convention for ΔHf is the same as for any enthalpy change:  ΔH_f < 0 if heat is released when elements combine to form a compound and  ΔH_f > 0 if heat is absorbed.

The sign convention is the same for all enthalpy changes: negative if heat is released by the system and positive if heat is absorbed by the system.

Standard Enthalpies of Formation

• The magnitude of ΔH for a reaction depends on the physical states of the reactants and the products (gas, liquid, solid, or solution), the pressure of any gases present, and the temperature at which the reaction is carried out. To avoid confusion caused by differences in reaction conditions and ensure uniformity of data, the scientific community has selected a specific set of conditions under which enthalpy changes are measured. These standard conditions serve as a reference point for measuring differences in enthalpy, much as sea level is the reference point for measuring the height of a mountain or for reporting the altitude of an airplane.
• The standard conditions for which most thermochemical data are tabulated are a pressure of 1 atmosphere (atm) for all gases and a concentration of 1 M for all species in solution (1 mol/L). In addition, each pure substance must be in its standard state, which is usually its most stable form at a pressure of 1 atm at a specified temperature. We assume a temperature of 25°C (298 K) for all enthalpy changes given in this text, unless otherwise indicated. Enthalpies of formation measured under these conditions are called standard enthalpies of formation (ΔH^o_f)
• The enthalpy change for the formation of 1 mol of a compound from its component elements when the component elements are each in their standard states. The standard enthalpy of formation of any element in its most stable form is zero by definition.

The standard enthalpy of formation of any element in its standard state is zero by definition.

• For example, although oxygen can exist as ozone (O₃), atomic oxygen (O), and molecular oxygen (O₂), O₂ is the most stable form at 1 atm pressure and 25°C. Similarly, hydrogen is H₂(g), not atomic hydrogen (H). Graphite and diamond are both forms of elemental carbon, but because graphite is more stable at 1 atm pressure and 25°C, the standard state of carbon is graphite (Figure  5.7.1). Therefore,  O₂(g),  H₂(g) and graphite have  ΔH^o_f values of zero.

Figure  5.7.1: Elemental Carbon. Although graphite and diamond are both forms of elemental carbon, graphite is slightly more stable at 1 atm pressure and 25°C than diamond is. Given enough time, diamond will revert to graphite under these conditions. Hence graphite is the standard state of carbon.

• The standard enthalpy of formation of glucose from the elements at 25°C is the enthalpy change for the following reaction:
  6C(s,graphite) + 6H₂ (g) + 3O₂ (g) → C₆H₁₂O₆(s)ΔH^o_f = −1273.3kJ (5.7.2)
  It is not possible to measure the value of ΔH^oof for glucose, −1273.3 kJ/mol, by simply mixing appropriate amounts of graphite, O₂, and H₂ and measuring the heat evolved as glucose is formed since the reaction shown in Equation 5.7.2 does not occur at a measurable rate under any known conditions. Glucose is not unique; most compounds cannot be prepared by the chemical equations that define their standard enthalpies of formation.
• Instead, values of ΔH^oof are obtained using Hess’s law and standard enthalpy changes that have been measured for other reactions, such as combustion reactions. Values of ΔH^of for an extensive list of compounds are given in Table T1. Note that ΔH^of values are always reported in kilojoules per mole of the substance of interest. Also, notice in Table T1 that the standard enthalpy of formation of O₂(g) is zero because it is the most stable form of oxygen in its standard state.

Solved Example

Example: For the formation of each compound, write a balanced chemical equation corresponding to the standard enthalpy of the formation of each compound.
(a) HCl(g)
(b) MgCO3(s)
(c) CH₃(CH₂)₁₄CO₂H(s)  (palmitic acid)
Given: compound formula and phase.
Asked for: balanced chemical equation for its formation from elements in standard states
Strategy: (a) Use Table T1 to identify the standard state for each element. Write a chemical equation that describes the formation of the compound from the elements in their standard states and then balance it so that 1 mol of product is made.
Ans: To calculate the standard enthalpy of formation of a compound, we must start with the elements in their standard states. The standard state of an element can be identified in Table T1: by a  ΔH^o_f value of 0 kJ/mol.
Hydrogen chloride contains one atom of hydrogen and one atom of chlorine. Because the standard states of elemental hydrogen and elemental chlorine are  H₂(g) and  Cl₂(g), respectively, the unbalanced chemical equation is
H₂(g) + Cl₂(g) → HCl(g)
Fractional coefficients are required in this case because ΔHof values are reported for 1 mol of the product,  HCl. Multiplying both  H₂(g) and Cl₂(g) by 1/2 balances the equation:
1/2H2(g) + 1/2Cl₂(g) → HCl(g)
The standard states of the elements in this compound are  Mg(s),  C(s, graphite), and O₂(g). The unbalanced chemical equation is thus
Mg(s) + C(s,graphite) + O₂(g) → MgCO₃(s)
This equation can be balanced by inspection to give
Mg(s) + C(s,graphite) + 3/2O₂(g) → MgCO₃(s)
Palmitic acid, the major fat in meat and dairy products, contains hydrogen, carbon, and oxygen, so the unbalanced chemical equation for its formation from the elements in their standard states is as follows:
C(s,graphite) + H₂(g) + O₂(g) → CH₃(CH₂)₁₄CO₂H(s)
There are 16 carbon atoms and 32 hydrogen atoms in 1 mol of palmitic acid, so the balanced chemical equation is
16C(s,graphite) + 16H₂(g) + O₂(g) ⟶ CH₃(CH₂)₁₄CO₂H(s)

Standard Enthalpies of Reaction

• Tabulated values of standard enthalpies of formation can be used to calculate enthalpy changes for any reaction involving substances whose ΔH^of values are known. The standard enthalpy of reaction ΔH^o_rxn is the enthalpy change that occurs when a reaction is carried out with all reactants and products in their standard states. Consider the general reaction
  aA + bB → cC + dD (5.7.3)
• where A, B, C, and D are chemical substances and a, b, c, and d are their stoichiometric coefficients. The magnitude of ΔH^ο is the sum of the standard enthalpies of formation of the products, each multiplied by its appropriate coefficient, minus the sum of the standard enthalpies of formation of the reactants, also multiplied by their coefficients:
   (5.7.4)
  More generally, we can write
   (5.7.5)

where the symbol ∑ means “sum of” and m and n are the stoichiometric coefficients of each of the products and the reactants, respectively. “Products minus reactants” summations such as Equation 5.7.5 arise from the fact that enthalpy is a state function. Because many other thermochemical quantities are also state functions, “products minus reactants” summations are very common in chemistry; we will encounter many others in subsequent chapters.

"Products minus reactants" summations are typical of state functions.

To demonstrate the use of tabulated ΔH^ο values, we will use them to calculate  ΔH_rxn for the combustion of glucose, the reaction that provides energy for your brain:
C₆H₁₂O₆(s) + 6O₂(g) → 6CO₂(g) + 6H₂O(l) (5.7.6)
Using Equation 5.7.5, we write

(5.7.7)

From Table T₁, the relevant ΔH^οf values are ΔH^οf [CO₂(g)] = -393.5 kJ/mol, ΔH^οf [H₂O(l)] = -285.8 kJ/mol, and ΔH^οf [C₆H₁₂O₆(s)] = -1273.3 kJ/mol. Because O₂(g) is a pure element in its standard state, ΔHοf [O₂(g)] = 0 kJ/mol. Inserting these values into Equation 5.7.7 and changing the subscript to indicate that this is a combustion reaction, we obtain
ΔH^o_comb = [6(−393.5kJ/mol) + 6(−285.8kJ/mol)]−[−1273.3 + 6(0kJmol)]
= −2802.5kJ/mol (5.7.8), (5.7.9)
As illustrated in Figure 5.7.2, we can use Equation 5.7.8 to calculate ΔH^οf for glucose because enthalpy is a state function. The figure shows two pathways from reactants (middle left) to products (bottom). The more direct pathway is the downward green arrow labeled ΔH^ο_comb. The alternative hypothetical pathway consists of four separate reactions that convert the reactants to the elements in their standard states (upward purple arrow at left) and then convert the elements into the desired products (downward purple arrows at right). The reactions that convert the reactants to the elements are the reverse of the equations that define the ΔH^οf values of the reactants. Consequently, the enthalpy changes are

Recall that when we reverse a reaction, we must also reverse the sign of the accompanying enthalpy change (Equation  5.7.4  since the products are now reactants and vice versa.

The overall enthalpy change for conversion of the reactants (1 mol of glucose and 6 mol of O₂) to the elements is therefore +1273.3 kJ.

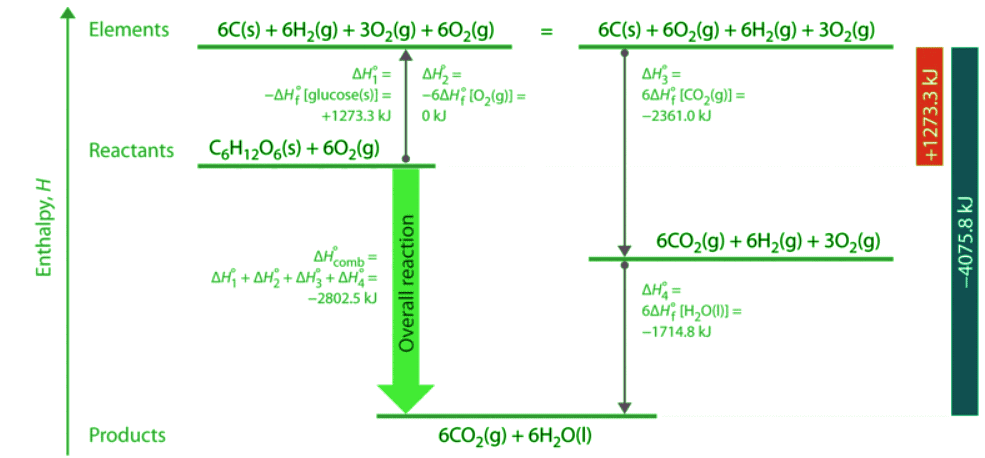

Figure  5.7.1: A Thermochemical Cycle for the Combustion of Glucose. Two hypothetical pathways are shown from the reactants to the products. The green arrow labeled ΔHοcomb indicates the combustion reaction. Alternatively, we could first convert the reactants to the elements via the reverse of the equations that define their standard enthalpies of formation (the upward arrow, labeled ΔH^ο₁ and ΔH^ο₂). Then we could convert the elements to the products via the equations used to define their standard enthalpies of formation (the downward arrows, labeled ΔH^ο₃ and ΔH^ο₄). Because enthalpy is a state function, ΔHοcomb is equal to the sum of the enthalpy changes ΔH^ο₁ + ΔH^ο₂ + ΔH^ο₃ + ΔH^ο₄.

• The reactions that convert the elements to final products (downward purple arrows in Figure  5.7.2) are identical to those used to define the ΔH^ο_f values of the products. Consequently, the enthalpy changes (from Table T1) are
  (5.7.11)
• The overall enthalpy change for the conversion of the elements to products (6 mol of carbon dioxide and 6 mol of liquid water) is therefore −4075.8 kJ. Because enthalpy is a state function, the difference in enthalpy between an initial state and a final state can be computed using any pathway that connects the two. Thus the enthalpy change for the combustion of glucose to carbon dioxide and water is the sum of the enthalpy changes for the conversion of glucose and oxygen to the elements (+1273.3 kJ) and for the conversion of the elements to carbon dioxide and water (−4075.8 kJ):
  ΔH^ocomb = +1273.3kJ + (−4075.8kJ) = −2802.5kJ (5.7.12)
• This is the same result we obtained using the “products minus reactants” rule (Equation 5.7.5) and ΔH^οf values. The two results must be the same because Equation 5.7.12 is just a more compact way of describing the thermochemical cycle shown in Figure 5.7.1.

Solved Examples

Example 1: Long-chain fatty acids such as palmitic acid (CH₃(CH₂)₁₄CO₂) are one of the two major sources of energy in our diet ( ΔH^of =−891.5 kJ/mol). Use the data in Table T1 to calculate ΔHοcomb for the combustion of palmitic acid. Based on the energy released in combustion per gram, which is the better fuel — glucose or palmitic acid?
Given: compound and  ΔH^οf values
Asked for:  ΔH^οcomb per mole and per gram
Strategy: (a) After writing the balanced chemical equation for the reaction, use Equation  5.7.5 and the values from Table T1 to calculate  ΔH^ο_comb the energy released by the combustion of 1 mol of palmitic acid.
(b) Divide this value by the molar mass of palmitic acid to find the energy released from the combustion of 1 g of palmitic acid. Compare this value with the value calculated in Equation  5.7.8 for the combustion of glucose to determine which is the better fuel.
Ans: (a) To determine the energy released by the combustion of palmitic acid, we need to calculate its ΔH^οf. As always, the first requirement is a balanced chemical equation:
C₁₆H₃₂O₂(s) + 23O₂(g) → 16CO₂(g) + 16H₂O(l)
Using Equation 5.7.5 (“products minus reactants”) with ΔH^οf values from Table T1 (and omitting the physical states of the reactants and products to save space) gives

This is the energy released by the combustion of 1 mol of palmitic acid.
(b) The energy released by the combustion of 1 g of palmitic acid is

As calculated in Equation  5.7.8, (ΔH^of) of glucose is −2802.5 kJ/mol. The energy released by the combustion of 1 g of glucose is therefore

The combustion of fats such as palmitic acid releases more than twice as much energy per gram as the combustion of sugars such as glucose. This is one reason many people try to minimize the fat content in their diets to lose weight.

We can also measure the enthalpy change for another reaction, such as a combustion reaction, and then use it to calculate a compound’s  ΔH^οf which we cannot obtain otherwise. This procedure is illustrated in Example  5.7.3.

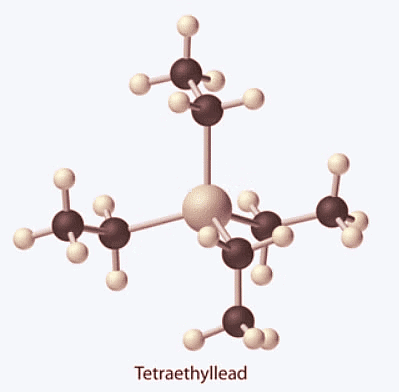

Example 2: Beginning in 1923, tetraethyllead [(C₂H₅)₄Pb] was used as an antiknock additive in gasoline in the United States. Its use was completely phased out in 1986 because of the health risks associated with chronic lead exposure. Tetraethyllead is a highly poisonous, colorless liquid that burns in air to give an orange flame with a green halo. The combustion products are  CO₂(g),  H₂O(l), and red  PbO(s). What is the standard enthalpy of formation of tetraethyllead, given that  ΔH^οf is −19.29 kJ/g for the combustion of tetraethyllead and  ΔH^οf of red PbO(s) is −219.0 kJ/mol?
Given: reactant, products, and  ΔH^ο_comb
Asked for:  ΔH^ο_f of the reactants
Strategy: (a) Write the balanced chemical equation for the combustion of tetraethyl lead. Then insert the appropriate quantities into Equation  5.7.5 to get the equation for ΔHοf of tetraethyl lead.
(b) Convert  ΔH^οcomb per gram given in the problem to  ΔH^οcomb per mole by multiplying  ΔH^οcomb per gram by the molar mass of tetraethyllead.
Use Table T1 to obtain values of  ΔH^ο_f for the other reactants and products. Insert these values into the equation for  ΔH^ο_f of tetraethyl lead and solve the equation.
Ans: (a) The balanced chemical equation for the combustion reaction is as follows:
2(C₂H₅)4Pb(l) + 27O₂(g) → 2PbO(s) + 16CO₂(g) + 20H₂O(l)
Using Equation  5.7.5 gives

Solving for  ΔH^o_f[(C₂H₅)₄Pb] gives
The values of all terms other than  ΔH^o_f[(C₂H₅)₄Pb] are given in Table T1.
(b) The magnitude of  ΔH^o_comb is given in the problem in kilojoules per gram of tetraethyl lead. We must therefore multiply this value by the molar mass of tetraethyl lead (323.44 g/mol) to get  ΔH^o_comb for 1 mol of tetraethyl lead:

= −6329kJ/mol
Because the balanced chemical equation contains 2 mol of tetraethyllead,  ΔH^o_rxn is
(c) Inserting the appropriate values into the equation for ΔH^of[(C₂H₅)4Pb]
ΔH^o_f [(C₂H₄)4Pb] = [1 mol PbO × 219.0kJ/mol] + [8mol CO₂ × (−393.5kJ/mol)] + [10mol H₂O × (−285.8kJ/mol)] + [−27/2 molO₂) × 0kJ/mol O₂ [12,480.2kJ/mol (C₂H₅)4Pb]
= −219.0kJ − 3148kJ − 2858kJ − 0kJ + 6240kJ = 15kJ/mol

Summary

• The standard state for measuring and reporting enthalpies of formation or reaction is 25 ^oC and 1 atm.
• The elemental form of each atom is that with the lowest enthalpy in the standard state.
• The standard state heat of formation for the elemental form of each atom is zero.

The enthalpy of formation (ΔH_f) is the enthalpy change that accompanies the formation of a compound from its elements. Standard enthalpies of formation (ΔH^o_f) are determined under standard conditions: a pressure of 1 atm for gases and a concentration of 1 M for species in solution, with all pure substances present in their standard states (their most stable forms at 1 atm pressure and the temperature of the measurement). The standard heat of formation of any element in its most stable form is defined to be zero. The standard enthalpy of reaction (ΔH^o_rxn) can be calculated from the sum of the standard enthalpies of formation of the products (each multiplied by its stoichiometric coefficient) minus the sum of the standard enthalpies of formation of the reactants (each multiplied by its stoichiometric coefficient)—the “products minus reactants” rule. The enthalpy of solution (ΔH_soln) is the heat released or absorbed when a specified amount of a solute dissolves in a certain quantity of solvent at constant pressure.
