which is similar to, but not the same as, the quantity ω we defined earlier to describe vibrations. The relationship between ω and t is exactly analogous to that between x and t for the motion of a particle through space.

Figure 4.2.3: We construct a coordinate system that coincides with the location and motion of the moving point of interest at a certain moment.

The speed at which a point on the object moves depends on both the object's angular velocity ω and the point's distance r from the axis. We adopt a coordinate system, d, with an inward (radial) axis and a tangential axis. The length of the infinitesimal circular arc ds$𝑑𝑠$ traveled by the point in a time interval dt$𝑑𝑡$ is related to dθ by the definition of radian measure, dθ = ds/rdθ  $=ds/$r, where positive and negative values of ds$𝑑𝑠$ represent the two possible directions of motion along the tangential axis. We then have  or

The radial component is zero, since the point is not moving inward or outward,

Dynamics

If we want to connect all this kinematics to anything dynamical, we need to see how it relates to torque and angular momentum. Our strategy will be to tackle angular momentum first, since angular momentum relates to motion, and to use the additive property of angular momentum: the angular momentum of a system of particles equals the sum of the angular momenta of all the individual particles. The angular momentum of one particle within our rigidly rotating object, L= mv⊥r$L=mv\perp$r, can be rewritten as L=rpsinθ, where r and p$𝑝$ are the magnitudes of the particle's r and momentum vectors, and θ is the angle between these two vectors. (The r vector points outward perpendicularly from the axis to the particle's position in space.) In rigid-body rotation the angle θ is 90°, so we have simply L=rpL$=$rp. Relating this to angular velocity, we have

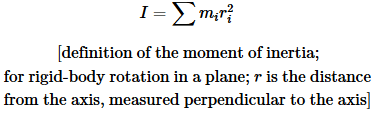

The particle's contribution to the total angular momentum is proportional to ω, with a proportionality constant mr$\mathrm{<sup\; style="word-break:\; break-word;\; line-height:\; 1.8;\; color:\; black;">2</sup>}$. We refer to mr$\mathrm{<sup\; style="word-break:\; break-word;\; line-height:\; 1.8;\; color:\; black;">2</sup>}$ as the particle's contribution to the object's total moment of inertia, I, where “moment” is used in the sense of “important,” as in “momentous” --- a bigger value of I tells us the particle is more important for determining the total angular momentum. The total moment of inertia is

The angular momentum of a rigidly rotating body is then

Iterated integrals

In various places in this book, we'll come across integrals stuck inside other integrals. These are known as iterated integrals, or double integrals, triple integrals, etc. Similar concepts crop up all the time even when you're not doing calculus, so let's start by imagining such an example. Suppose you want to count how many squares there are on a chess board, and you don't know how to multiply eight times eight. You could start from the upper left, count eight squares across, then continue with the second row, and so on, until you how counted every square, giving the result of 64. In slightly more formal mathematical language, we could write the following recipe: for each row, r, from 1 to 8, consider the columns, c, from 1 to 8, and add one to the count for each one of them. Using the sigma notation, this becomes

If you're familiar with computer programming, then you can think of this as a sum that could be calculated using a loop nested inside another loop. To evaluate the result (again, assuming we don't know how to multiply, so we have to use brute force), we can first evaluate the inside sum, which equals 8, giving

Notice how the “dummy” variable c$𝑐$ has disappeared. Finally we do the outside sum, over r$𝑟$, and find the result of 64.
Now imagine doing the same thing with the pixels on a TV screen. The electron beam sweeps across the screen, painting the pixels in each row, one at a time. This is really no different than the example of the chess board, but because the pixels are so small, you normally think of the image on a TV screen as continuous rather than discrete. This is the idea of an integral in calculus. Suppose we want to find the area of a rectangle of width a and height b, and we don't know that we can just multiply to get the area ab. The brute force way to do this is to break up the rectangle into a grid of infinitesimally small squares, each having width dx and height dy, and therefore the infinitesimal area dA = dxdy. For convenience, we'll imagine that the rectangle's lower left corner is at the origin. Then the area is given by this integral:

Notice how the leftmost integral sign, over y, and the rightmost differential, dy, act like bookends, or the pieces of bread on a sandwich. Inside them, we have the integral sign that runs over x, and the differential dx$𝑑𝑥$ that matches it on the right. Finally, on the innermost layer, we'd normally have the thing we're integrating, but here's it's 1, so I've omitted it. Writing the lower limits of the integrals with x =$\mathrm{ x}=$ and y =$\mathrm{ y}=$ helps to keep it straight which integral goes with with differential. The result is
